Product Overview

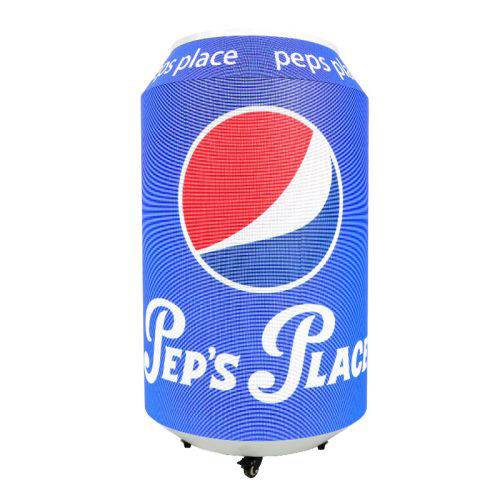

The Coke Can-Shaped LED Display is a novel advertising medium designed to mimic the iconic soda can silhouette. It combines high-resolution LED technology with a custom cylindrical form factor, delivering an unforgettable visual experience for brands, retailers, and event organizers.

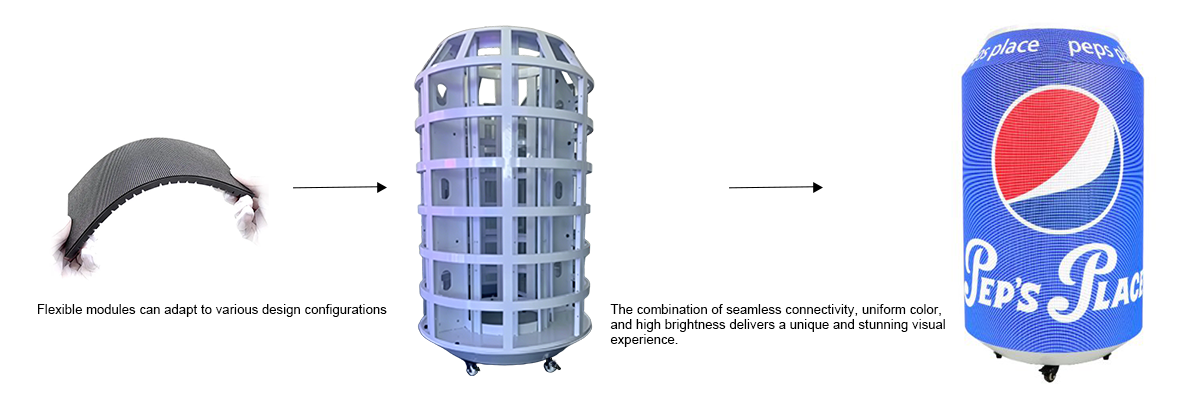

Unlike traditional rectangular screens, the can-shaped LED display leverages flexible LED modules and precision-engineered aluminum frames to achieve the curved contours of a beverage can. The result is a 3D-like advertising surface that naturally draws the eye and boosts dwell time.

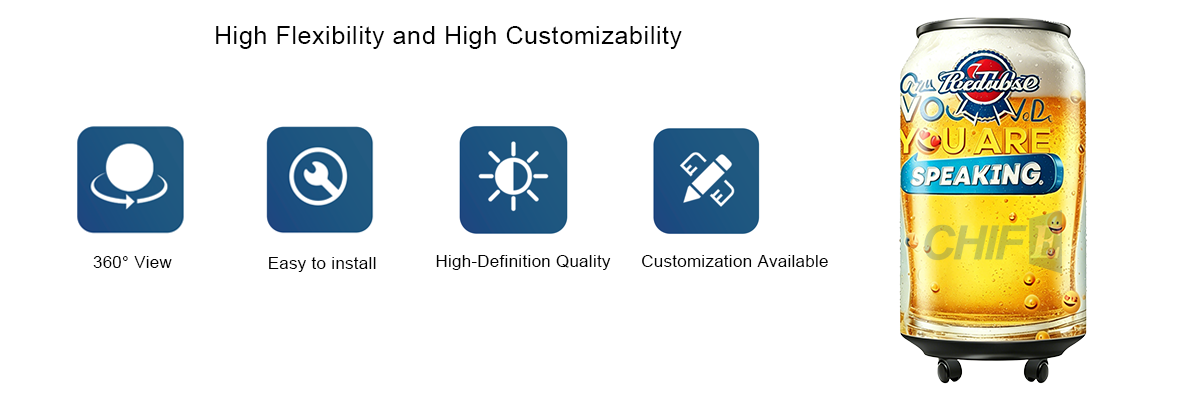

Key Features & Benefits
Unique Can Shape – The cylindrical silhouette instantly stands out in any environment — shopping malls, trade shows, stadiums, nightclubs, and brand pop-ups.
High Brightness (≥4,500 nits) – Sunlight-readable even for outdoor/shop-window installations. Delivers vivid colors day or night.

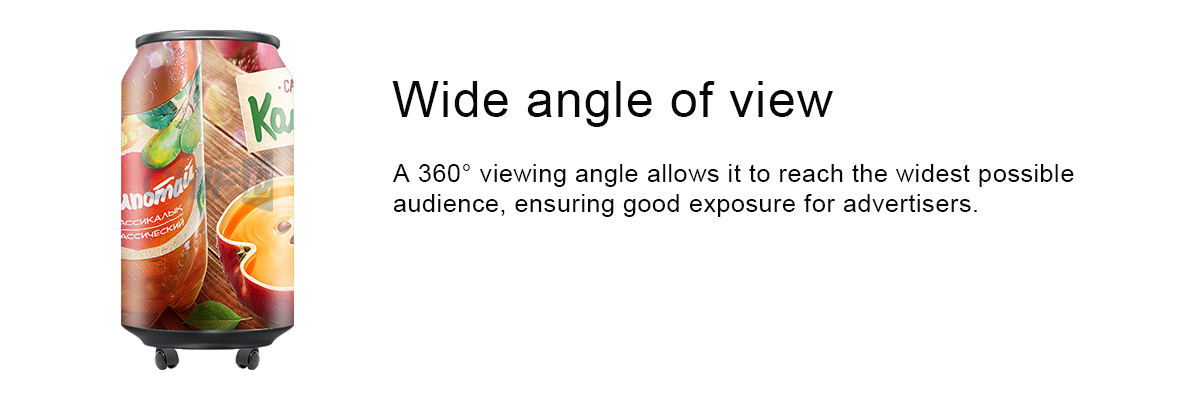

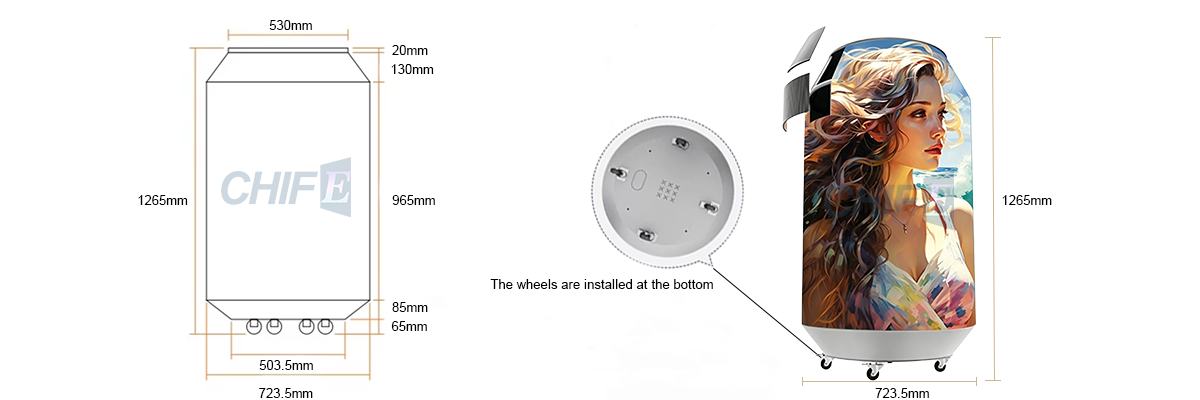

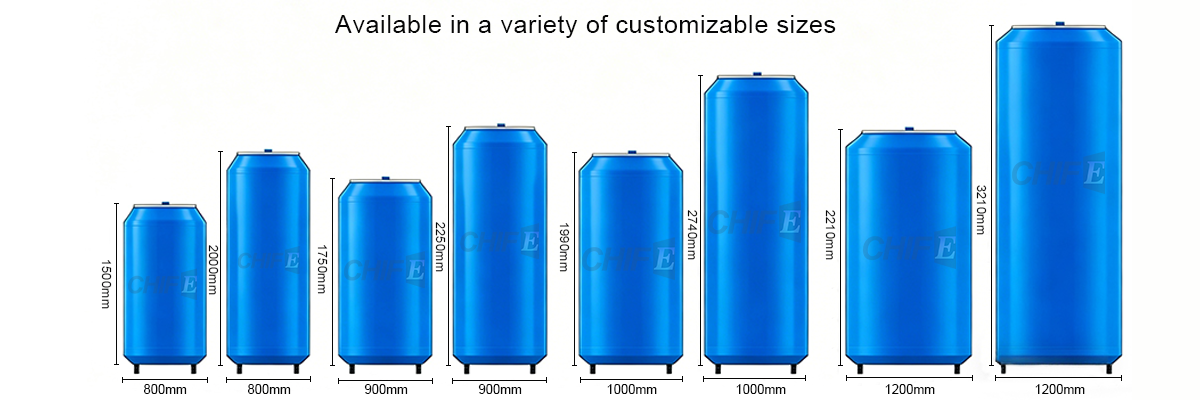

Fully Customizable – Sizes from 1.5m to 3.2m height; P1.25–P5 pixel pitches; 360° viewing options.
IP65 Weatherproof – Splash-proof, dust-proof housing available for outdoor or semi-outdoor use.
Energy-Efficient LEDs – Low power consumption with intelligent brightness auto-adjustment. Save up to 30% vs. standard screens.

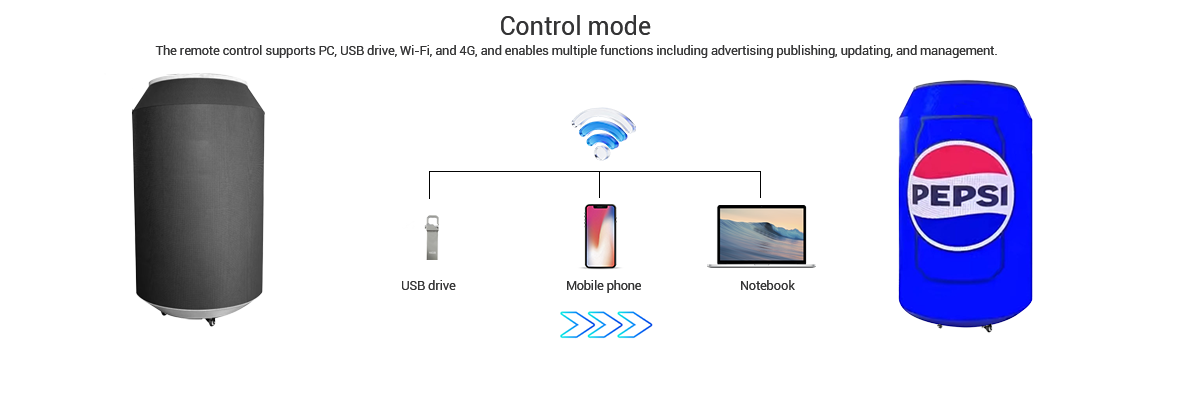

Smart Control – Wi-Fi / 4G / LAN remote management. Schedule content, switch videos, and monitor status from any device.
Flexible Content – Supports MP4, GIF, images, live feeds, and interactive touch (optional). Easily update via USB or cloud.
Quick Installation – Modular design with tool-free assembly kits.
Application Scenarios
Retail & Brand Stores – Window displays, in-store brand zones, soda brand pop-ups
Nightclubs & Bars – Eye-catching decor that doubles as dynamic advertising
Trade Shows & Expos – Standout exhibition booth attraction
Shopping Malls – Atriums, food courts, and escalator side walls
Theme Parks & Entertainment – Photo-worthy landmark installations
Corporate Lobbies – Brand statement piece for visitor impact
Stadiums & Arenas – VIP zones, concourses, fan engagement areas
Convenience Stores & cafes – Counter-top or window units for promotions
Installation Guide
Design & Approval – Our team drafts a 3D render and structural drawing for your approval.
Manufacturing – Precision fabrication of the curved aluminum frame and flexible LED modules.
Pre-assembly Test – Full burn-in test (72 hours) before shipping.

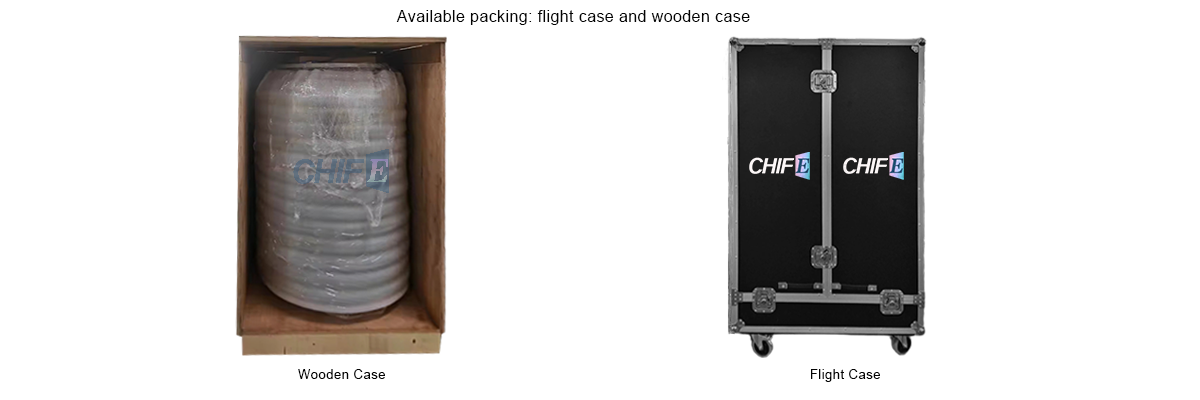

Packing & Shipping-Wrap with bubble film, then pack into reinforced wooden crates or flight cases.
On-site Installation – Step-by-step video guide included. Optional engineer dispatch available.
Why Choose CHIFE LED
CHIFE LED is a specialized LED display manufacturer with 10+ years of OEM/ODM experience. We have delivered custom-shaped LED displays to over 30 countries, including the US, UK, Germany, UAE, Saudi Arabia, and Australia.
Factory Direct – No middlemen. Best price guaranteed.
Free Design Support – Our engineers help you design the perfect can shape for your space.
2-Year Warranty – Reliable after-sales with spare parts included.
Fast Lead Time – 15–25 days for standard custom orders.
Global Shipping – DDP / FOB Shenzhen / CIF worldwide. Door-to-door available.
Full Certification – CE, FCC, RoHS. Safe and compliant for all markets.
Parameter
Item | P1.25 | P1.86 | P1.875 | P2 | P2.5 | P5 |
Pixel Pitch | 1.25mm | 1.86mm | 1.875mm | 2mm | 2.5mm | 5mm |
Modules size | 320x160mm | 320x160mm | 240x120mm | 320x160mm | 320x160mm | 320x160mm |
Pixel Density | 640000dots/sqm | 289050dots/sqm | 284444 dots/sqm | 250000 dots/sqm | 160000 dots/sqm | 40000dots/sqm |
Scan mode | 1/64 | 1/43 | 1/32 | 1/40 | 1/32 | 1/16 |
Best Viewing Distance | 1-50m | 1-50m | 1-50m | 2-50m | 2-50m | 5-50m |
Best Viewing Angle | Horizontal: 120° Vertical: 120° | Horizontal: 120° Vertical: 120° | Horizontal: 120° Vertical: 120° | Horizontal: 120° Vertical: 120° | Horizontal: 120° Vertical: 120° | Horizontal: 120° Vertical: 120° |
Avergage Power Consumption | 300W/sqm | 300W/sqm | 300W/sqm | 300W/sqm | 300W/sqm | 300W/sqm |
Working Temperature | 0°C~+50°C | 0°C~+50°C | 0°C~+50°C | 0°C~+50°C | 0°C~+50°C | 0°C~+50°C |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920Hz |
Control System | Synchronous control system | Synchronous control system | Synchronous control system | Synchronous control system | Synchronous control system | Synchronous control system |
Life Span | 100.000 Hours | 100.000 Hours | 100.000 Hours | 100.000 Hours | 100.000 Hours | 100,000 Hours |
Frequently Asked Questions
Q: What is the minimum order quantity (MOQ) for a can-shaped LED display?
A: MOQ is 1 unit. We are happy to produce a single custom can display for your project.
Q: Can the display show video content from YouTube or social media?
A: Yes. The screen supports common video formats (MP4, AVI, MOV) and can be connected to a media player or streaming device.
Q: How long does shipping take?
A: Typical lead time is 15–25 working days. Shipping takes 3–7 days by air or 15–30 days by sea depending on destination.
Q: Is the display suitable for outdoor use in rainy weather?
A: Yes. Our outdoor version is IP65-rated, fully waterproof, and tested for rain and dust.
Q: Do you provide installation support?
A: Yes. We provide detailed installation manuals and video guides. Remote technical support is free. On-site engineer dispatch is available for large projects.
Q: Can I use it in a nightclub with strobe lights?
A: Absolutely. The display works seamlessly with DMX lighting systems and can be synchronized with music and lighting effects.
Q: What content management software do you recommend?
A: We include a free PC-based CMS with every unit, supporting scheduled playlists, real-time updates, and multi-screen sync.
Q: How do I maintain the screen?
A: Minimal maintenance is required. Wipe the surface with a soft cloth occasionally. The modular design allows easy access for any future repairs.
