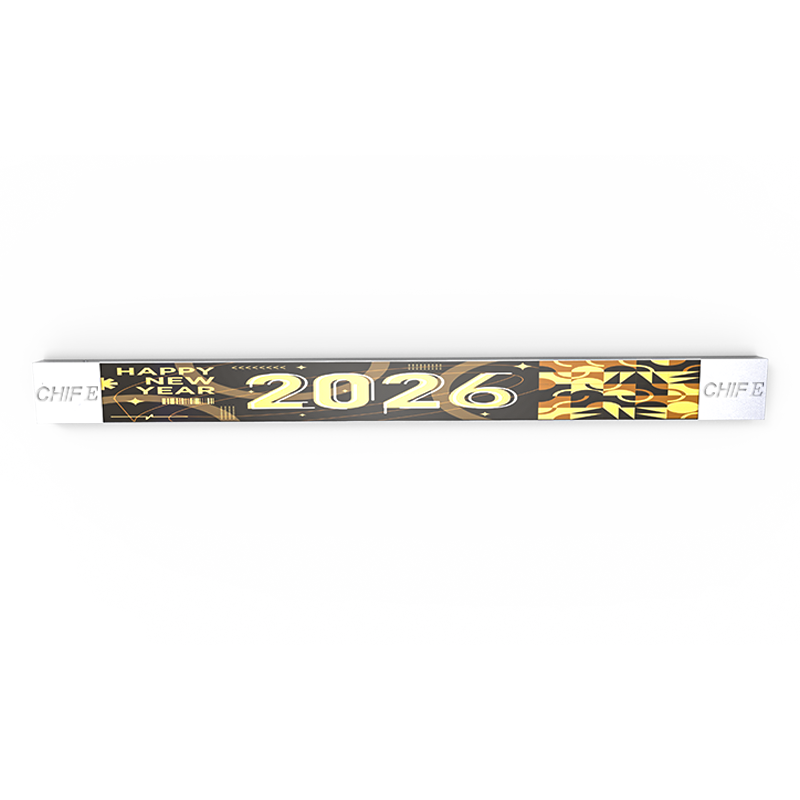

The high-definition bar-type fine-pitch LED display is an innovative display product that utilizes high-density, fine-pitch Surface Mount Device (SMD) LEDs as its pixel units. Its defining characteristic lies in a pixel pitch smaller than P2 (typically ranging between P1.25 and P2); combined with a unique bar-shaped aspect ratio design, this product transcends the size limitations of traditional displays, making it an ideal choice for specific application scenarios requiring a narrow, elongated display area.
Summary of Core Advantages
Ultra-thin & aesthetic: the 163 mm height is extremely slender, blending seamlessly into various decoration styles without appearing obtrusive. It functions as both a display screen and a decorative light strip.
Seamless HD splicing: utilizes standard 320×160 mm modules. Five modules spliced horizontally perfectly create the 1600 mm display width, resulting in minimal to invisible seams and a strong sense of image integrity.
Flexible content management: unlike traditional lightboxes, LED screens allow for remote content updates at any time (images, videos, scrolling text) and support split-screen displays, reducing operational costs.
Eye-care low brightness & high refresh: equipped with indoor-specific driver ICs, supporting high grayscale at low brightness levels for comfortable long-term viewing. A refresh rate of 3840Hz+ ensures no black scan lines appear in photos or videos.
Easy maintenance: supports front maintenance (magnetic tool module removal), facilitating easy replacement of individual modules even when wall-mounted.
Pixel Pitch Selection Guide
Given the screen height of only 160 mm, the number of pixel rows is limited. Choosing the correct pixel pitch is critical for clarity:
1. P1.25 (Ultra-high definition)
Optimal viewing distance: 1.5 – 3 meters
Ideal scenarios: retail store counters, museum display cases, interactive zones in science centers.
Advantages: extremely delicate details when viewed up close; capable of displaying fine text and small icons. Suitable for customers stopping to watch closely.
Resolution: Aapproximately 1280 pixels wide, allowing for smooth playback of high-definition video strips.
2. P1.53 (High Definition & Cost-Effective)
Optimal viewing distance: 2 – 4 meters
Ideal scenarios: restaurant menu boards, cafe wall decorations, bar ambiance screens.
Advantages: balances clarity and cost; currently the mainstream choice for indoor fine-pitch applications.
3. P1.86 / P2.0 (Standard High Definition)
Optimal viewing distance: 3 – 6 meters
Ideal scenarios: station/Airport guidance signs, mall corridor hanging displays, long-distance brand logo showcases.
Advantages: relatively lower cost; suitable for high-traffic areas where viewing distances are greater and dwell times are short.
Installation methods & application scenarios
1. Flexible Installation Options
Horizontal wall mounting: the most common method. Used as storefront banners, bar backdrops, or baseboard displays. Due to its thin profile, it can fit almost flush against the wall, resembling a glowing piece of art.

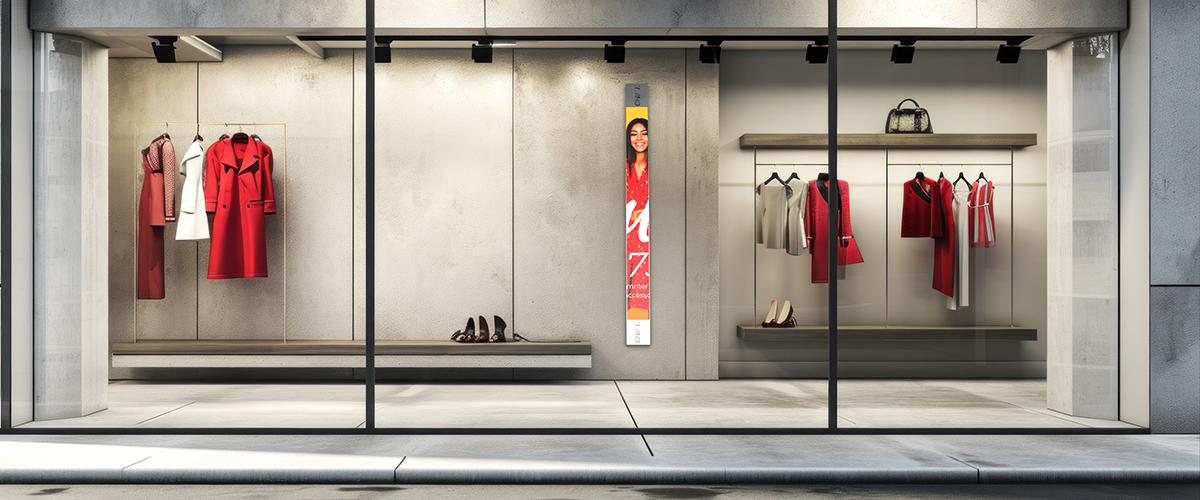

Vertical wall mounting: used as column decorations, doorway couplet screens, or elevator lobby guidance displays. Requires custom vertical splicing structures.
Ceiling suspension: hung from the ceiling using rods. Ideal for supermarket aisles or airport halls as floating information signs, saving floor space.
Recessed installation: a groove is reserved during the renovation phase to embed the screen into the wall, achieving a minimalist "screen-wall integration" effect.
2. Typical application scenario analysis

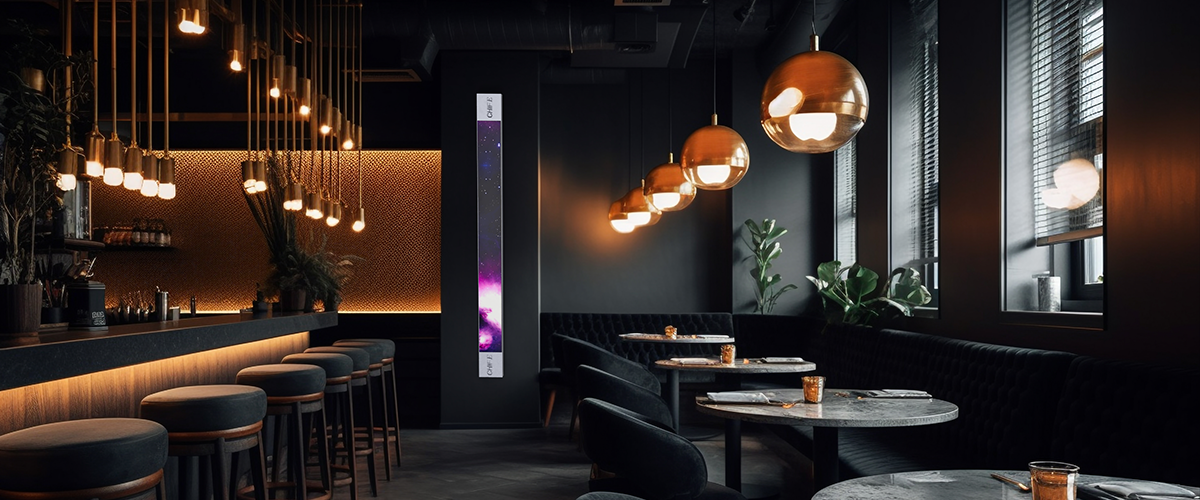

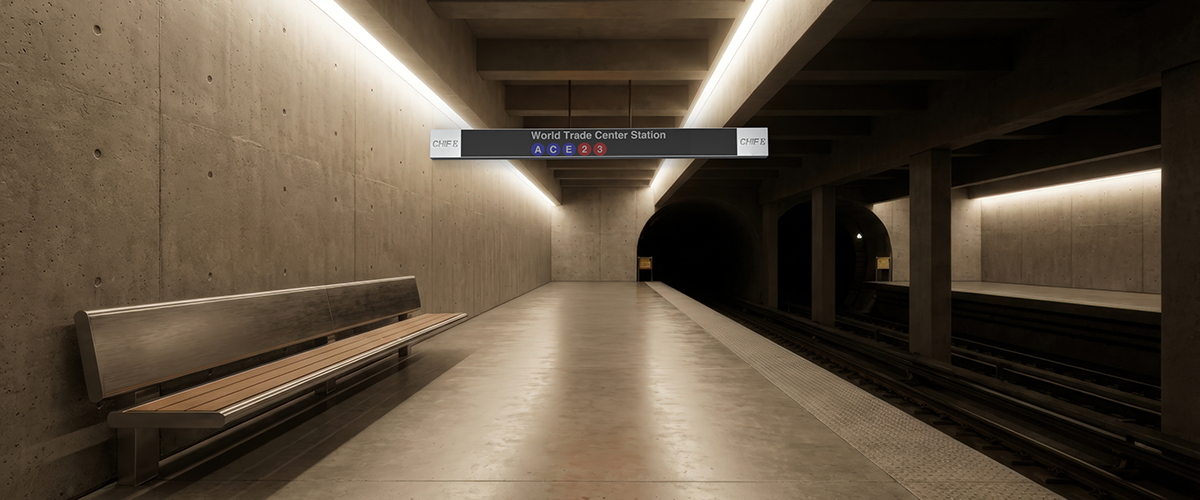

| Scenario | Recommended pitch | Suggested content | Value proposition |
| Brand retail stores | P1.25 / P1.53 | Rolling new product posters, promotional prices, brand slogans, dynamic logos. | Attracts foot traffic, enhances the store's technological feel, and replaces traditional paper posters. |
| Restaurants / Cafe | P1.53 / P1.86 | Digital menus (Daily Specials), preparation process videos, ambient dynamic visuals (e.g., flowing coffee). | Easy menu updates; dynamic visuals increase appetite and dwell time. |
| Bars / Nightclubs | P1.86 / P2.0 | Music rhythm visualizations, cool abstract graphics, drink lists. | High refresh rate ensures no scan lines in photos/videos, creating an immersive atmosphere. |
| Museums / Science centers | P1.25 | Artifact descriptions, timeline data streams, interactive Q&A text. | High resolution presents details clearly; protects artifacts (no UV radiation); content is easily switchable. |
| Stations / Airports | P1.86 / P2.0 | Flight/Train information, emergency notices, public service ads, directional guidance. | The long strip shape is perfect for scrolling text information; clearly visible from a distance. |
Procurement & construction tips
Power supply & control card: due to the custom irregular dimensions, dedicated long-shaped power supplies and control cards are required (typically hidden behind the screen or in a side access panel).
Thermal design: although it is a fine-pitch screen, heat concentration can occur in long strips. Ensure the product backplate has reasonable ventilation holes or utilizes an aluminum heat-dissipating housing.
Content adaptation: when designing assets, please strictly adhere to the 1600:160 (i.e., 10:1) aspect ratio to achieve the best display results.
Parameter Sheet
Item |
Specification details |
Remarks |
Product name |
Single-sided direct-view ultra-thin bar LED display |
Custom dimensions |
Overall dimensions |

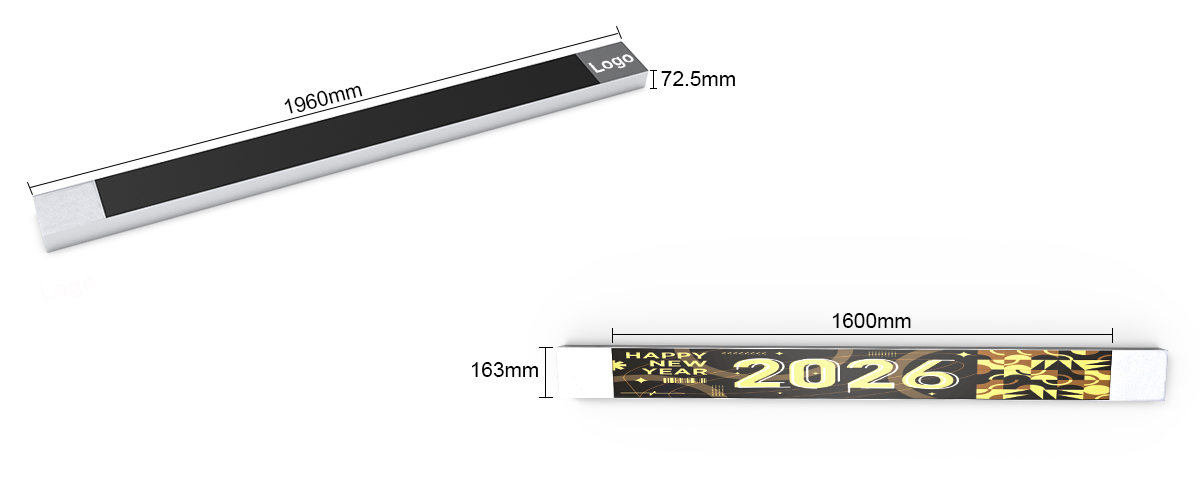

1960 mm (W) × 163 mm (H) |
Total size including bezel/housing |
Active display area |
1600 mm (W) × 160 mm (H) |
Actual light-emitting area (10:1 aspect ratio) |
Module specification |
320 mm × 160 mm |
Standard fine-pitch module; 5 modules spliced horizontally |
Available pixel pitch |
P1.25 / P1.53 / P1.86 / P2.0 |
Select based on viewing distance |
Resolution reference |
P1.25: 1280×128 |
Calculated based on 1600×160 mm display area |
P1.53: 1040×104 |
||
P1.86: 860×86 |
||
P2.0: 800×80 |
||
Installation methods |
Wall-mounted (Horizontal/Vertical), Ceiling suspended, recessed |
Supports various custom bracket types |
Viewing angle |
Horizontal/Vertical ≥ 160° |
Wide field of view with no color shift |
Refresh rate |
≥ 3840 Hz |
No scan lines when filmed by mobile phones; ideal for live streaming and photography |
Brightness |
600–800 cd/m² (Intelligently adjustable) |
Comfortable indoor brightness; non-glare |

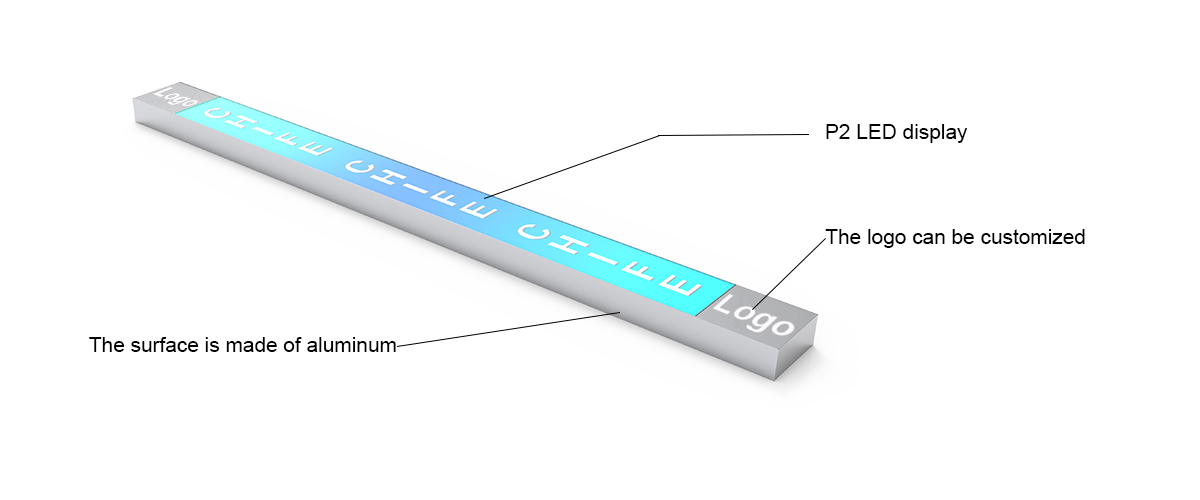

Cabinet Material |

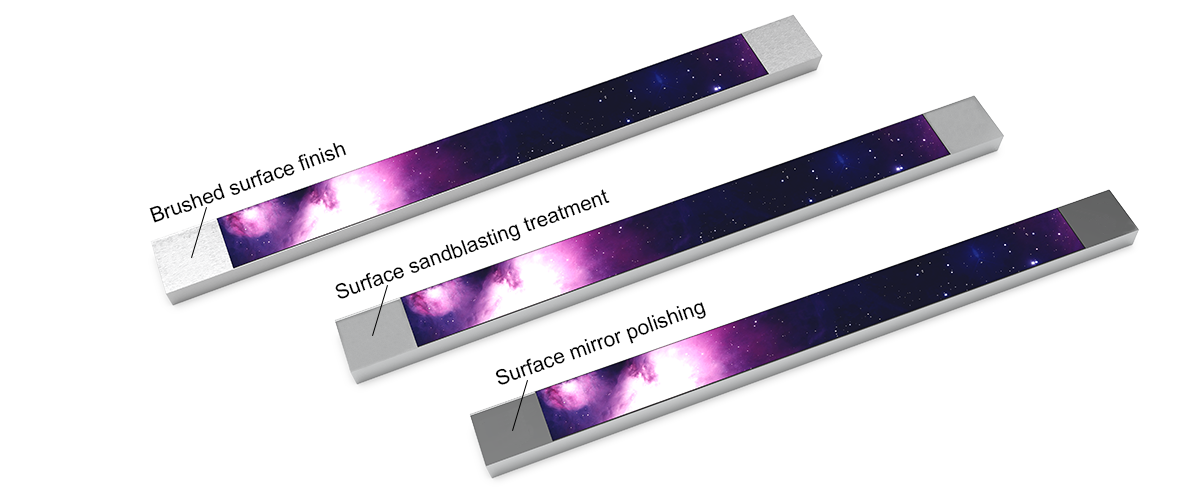

Aluminum Profiles (Mirror, Brushed, Matte) |
Excellent heat dissipation, lightweight, thickness typically <80 mm |
