MD-0210S ten-layer double-sided mechanical rotating screen

I. Core Structure and Technical Principles

1. Layered and Dual-Sided Design

10-Layer Stereoscopic Structure:

Each layer is independently equipped with high-density LED display modules, stacked vertically to create a three-dimensional visual space.Content Flexibility:Each layer can display distinct content (e.g., advertisements, dynamic effects) or synchronize for cohesive visuals (e.g., simulating flowing water or starry skies).

Dual-Sided Display Technology:

Each layer features front and rear LED screens for 360° unobstructed viewing.

Independent Control Modes:

Mode 1: Outer screen displays ads; inner screen shows interactive content (e.g., QR codes, mini-games).

Mode 2: Dual screens synchronize for amplified visual impact.

Optimized Viewing Angles: Wide-angle LED beads minimize color distortion from side perspectives.

2. Mechanical Rotation System

Drive Mechanism:

Core Components: Servo motor + planetary gearbox + precision drive shaft enable independent or synchronized rotation per layer.

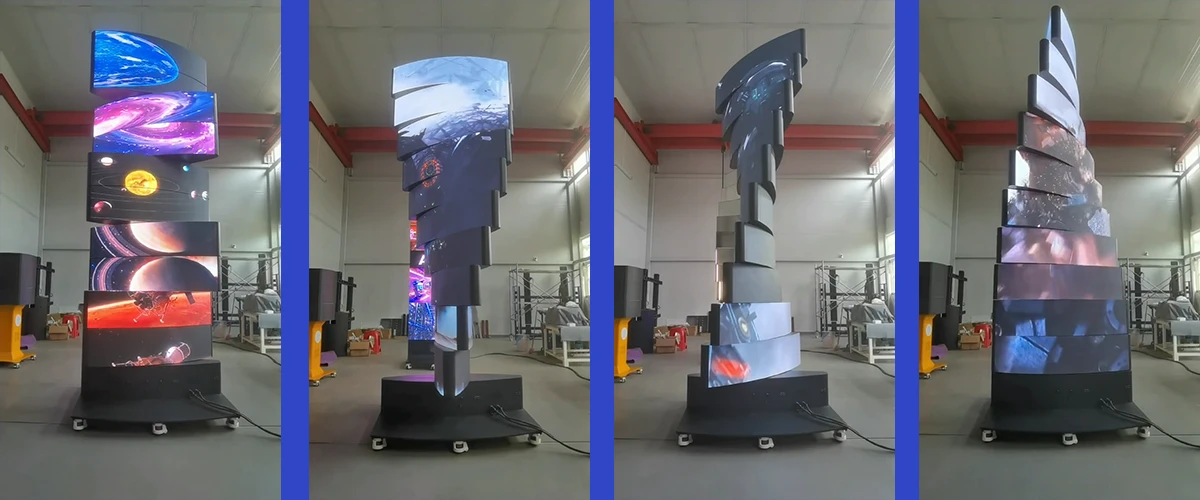

Rotation Forms:Each layer can rotate independently, or multiple layers can rotate synchronously, etc.

Speed Adjustment: Stepless speed control (1–10 RPM) to match scenario rhythms.

Stability Assurance:

  Dynamic Balancing: The chassis is equipped with a counterweight module to eliminate rotational eccentric force.

  Noise Reduction: Low-noise bearings and vibration-damping brackets ensure operation ≤45 dB (equivalent to library ambiance).

3. Control System

Synchronized Control Technology:

  PLC + Encoder Feedback: High-precision encoders detect rotation angles in real time, adjusting LED pixel activation timing to prevent misalignment.

Wireless Transmission and Programming:

  4G/Wi-Fi Wireless: Wireless connection allows you to upload content via your mobile phone, tablet or laptop and switch playback content at any time. The operation is simple and convenient.

Content Management Software:

  It comes with an operation interface that allows you to edit the rotation mode and switch the playback content.

II. Technical Advantages and Performance Features

1. Dynamic Visual Impact

Stereoscopic Display: 10-layer structure + rotation creates "spatial + temporal" dual dynamics, increasing viewer dwell time by ≥50%.

  360° Coverage: Dual-sided design ensures visibility from all angles in high-traffic areas (e.g., airports, stations).

2. High Brightness and Color Performance

Brightness: 300–800 nits (adjustable) for visibility in bright indoor settings (e.g., near windows).

Screen display: 3840Hz high refresh rate and high contrast

3. Modularity and Customization

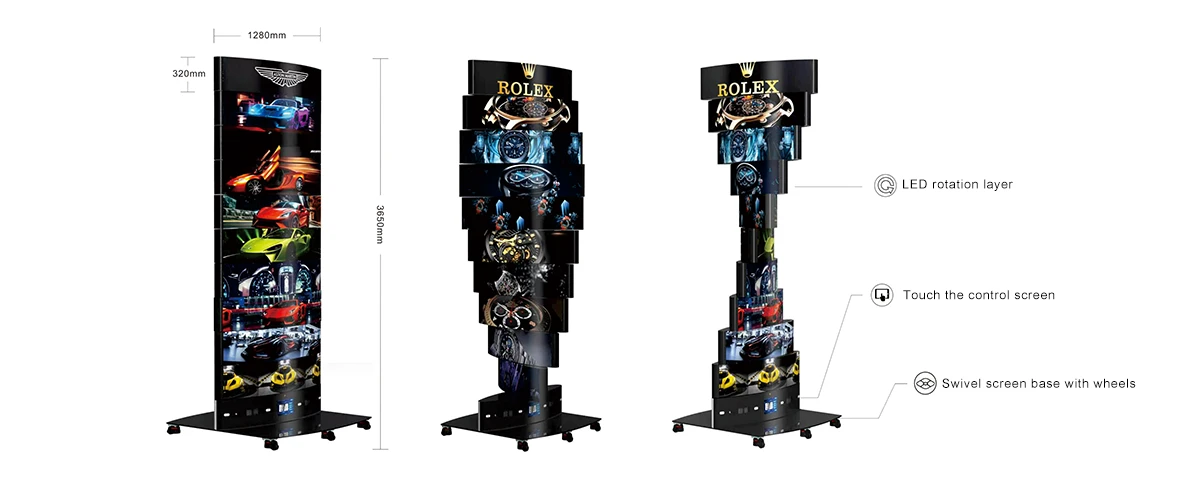

Size Customization:

  Number of layers: Number of layers can be customized

  Point spacing: Provide various dot spacing

4. Stability and Durability

Mechanical Lifespan: ≥10-year design life (8 hours/day continuous operation).

  LED Lifespan: ≥100,000 hours (MTBF).

  Maintenance Efficiency: Modular design allows single-layer replacement in ≤30 minutes.

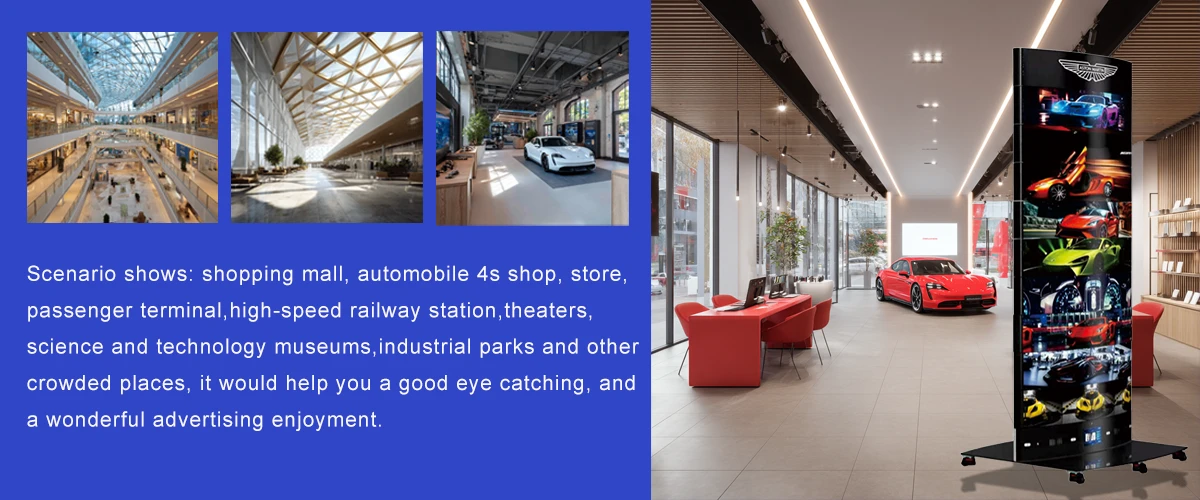

III. Typical Application Scenarios

1. Commercial Advertising and Brand Promotion

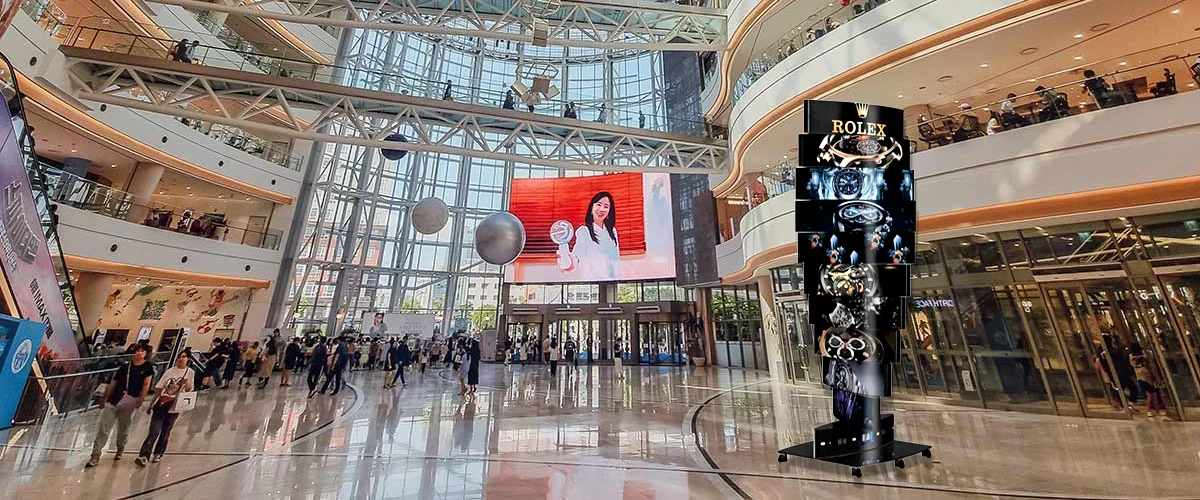

Shopping Malls:

Scenario: Atriums, escalator landings.

Effect: Layered ads rotate to captivate shoppers, boosting ad conversion rates.

  Airports/Stations:

Scenario: Waiting halls, security checkpoints.

  Functions:

Outer screen displays flight/train info; inner screen shows commercials.

Rotation guides passenger flow (e.g., directing to gates).

2. Automotive 4S Showroom Displays

Core Functions:

  360° Dynamic Showcase:

Outer screen plays brand films (e.g., model history, tech highlights).

  Inner screen displays real-time specs (e.g., horsepower, range, autonomous features).

3. Art Exhibitions and Science Displays

Science Centers:

  Application: Visualize DNA helices or cosmic movements.

  Effect: Rotating screens simulate celestial rotations, paired with audio narration for enhanced comprehension.

Art Galleries:

  Application: Create "dynamic light paintings" (e.g., animated renditions of Van Gogh’s Starry Night).

4. Public Space Decoration and Urban Branding

Urban Landmarks:

Scenario: Plazas, parks, mall exteriors.

Effect: Broadcast cultural documentaries (e.g., historic sites, tourism spots) to elevate city image.

5. High-End Product Launches and Interactive Experiences

Car Launches:

  Application: Rotating screens showcase 360° vehicle details alongside holographic driving simulations.

Tech Product Launches:

  Application: Display phone/drone disassembly animations to highlight design innovations.

  Effect: Rotating screens mimic product rotations for a futuristic feel.
