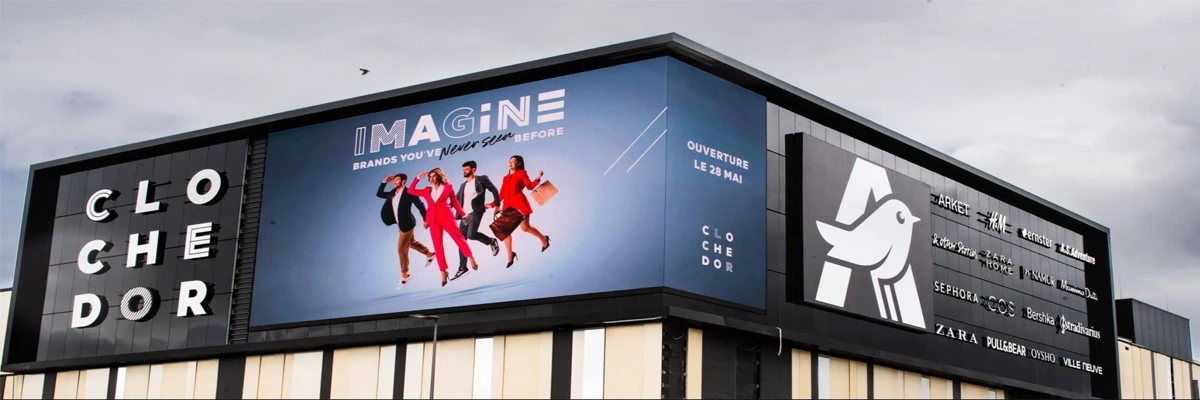

Our right angle LED displays are also known as L Shape LED displays or corner right angle LED displays. Their main feature is that two LED display screens are spliced with a 90-degree angle. Due to their inherent 90-degree angled box design, they are very easy to install on outer wall corners without requiring special module or cabinet cutting.

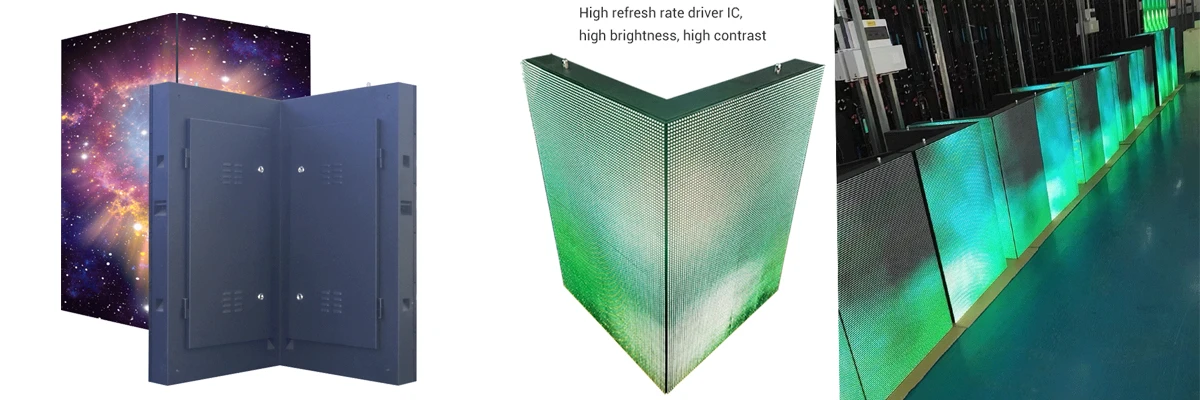

Right angle dcabinet
The 90-degree right-angle design eliminates the need for angled cutting of modules and boxes during installation, making it simple and seamless, ideal for outdoor display screen installations
IP65 Waterproof
Outdoor IP65 waterproofing ensures normal operation even in rainy, snowy, or humid weather conditions, providing complete protection for live event broadcasts and advertising displays, allowing the audience to smoothly enjoy the sports spectacle.
Easy installation real service design
It features a hidden handle design for easy movement and installation. The power supply, cables, receiver card, and other components are all housed inside the box, making operation and maintenance simple.
| Pixel Pitch (mm) | P4 | P5 | P6.67 | P8 | P10 |
| Pixel Configuration | SMD1921 | SMD3535 | |||
| Density (Pixels/㎡) | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixels) | 80x40 | 64x32 | 48x24 | 40x20 | 32x16 |
| Module Size (mm) | 320x160 | ||||
| Driving Mode (Duty) | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 640-640x960 | ||||
| Cabinet Weight (KG) | 25 | ||||
| Brightness (CD/㎡) | 5,500 | ||||
| Viewing Angle (°) | 140 | ||||
| Gray Grade (Bits) | 14 | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption (W/㎡) | 909 | 836 | 892 | 600 | 850 |
| Avg. Power Consumption (W/㎡) | 303 | 280 | 298 | 200 | 285 |
| Frame Frequency (Hz) | ≥60 | ||||
| Refresh Frequency (Hz) | 1920/3840 | ||||

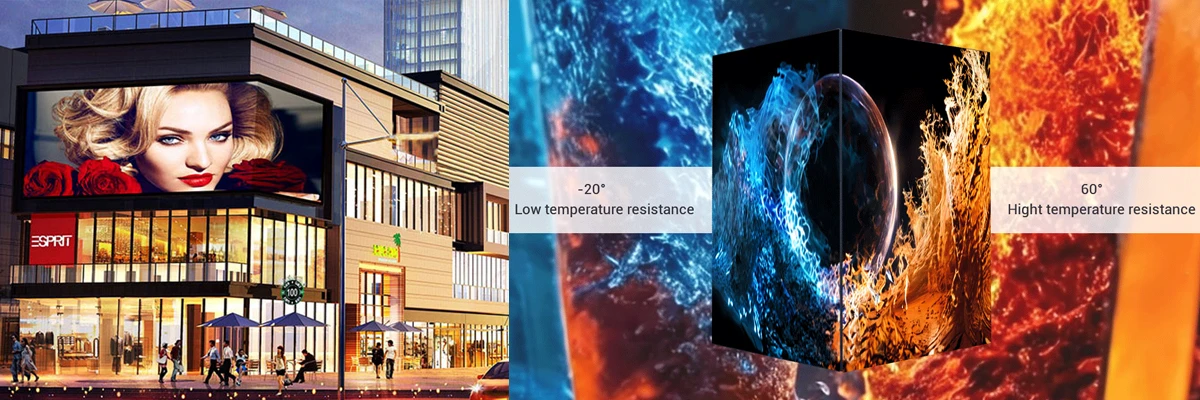

| Working Temperature (ºC) | -20～+60 | ||||
| Lifetime (Hours) | 100,000 | ||||
| Protection Grade | IP65 | ||||
