Product Overview
The CH10O02 Cathode Common Energy-Saving LED Display is a high-performance display product specifically designed for harsh outdoor environments. Utilizing advanced cathode common circuit technology combined with IP66 waterproof rating and corrosion-resistant materials, it ensures long-term stable operation in extreme conditions such as coastal areas, high temperatures, and high humidity.
Core Advantages
Energy Efficien
Cathode Common Circuit Technology: Average screen temperature 14.6℃ lower than traditional anode common circuits
Power Consumption Reduced by Over 20%: Significantly saves operational costs
Environmentally Friendly: Complies with green environmental standards
Superior Environmental Adaptability

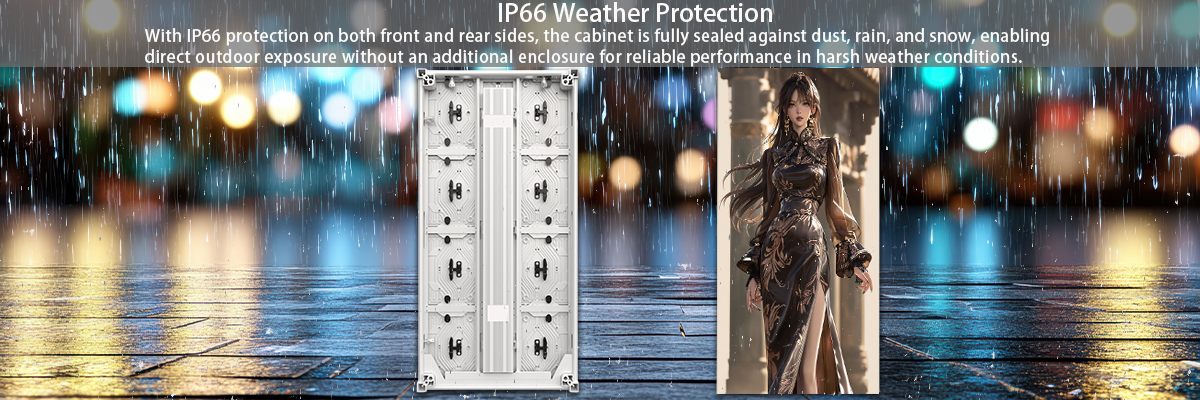

IP66 Waterproof Rating: Completely dustproof, strong water jet protection
Corrosion-Resistant Materials: Aluminum alloy cabinet, die-cast aluminum back cover
Moisture and Salt Spray Resistant: Suitable for coastal and seaside areas

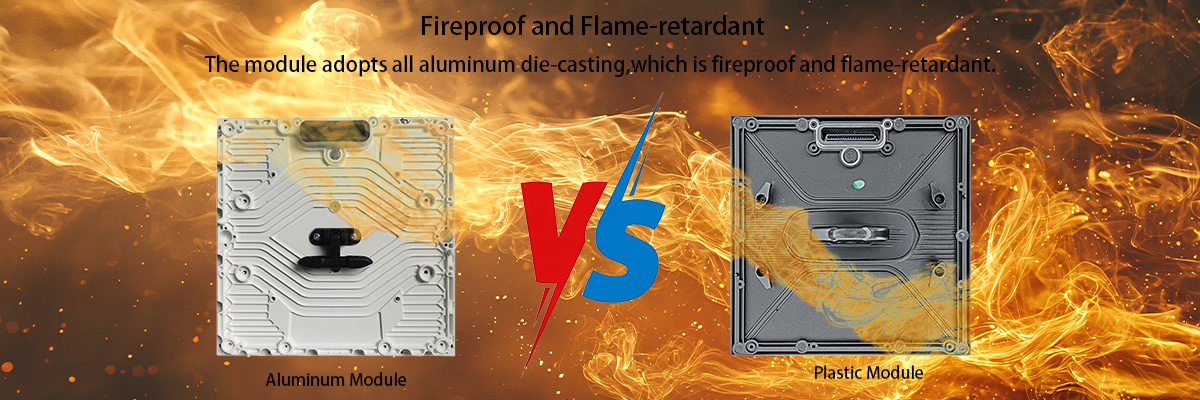

Flame Retardant and Fireproof: High melting point, safe and reliable
Flexible Configuration

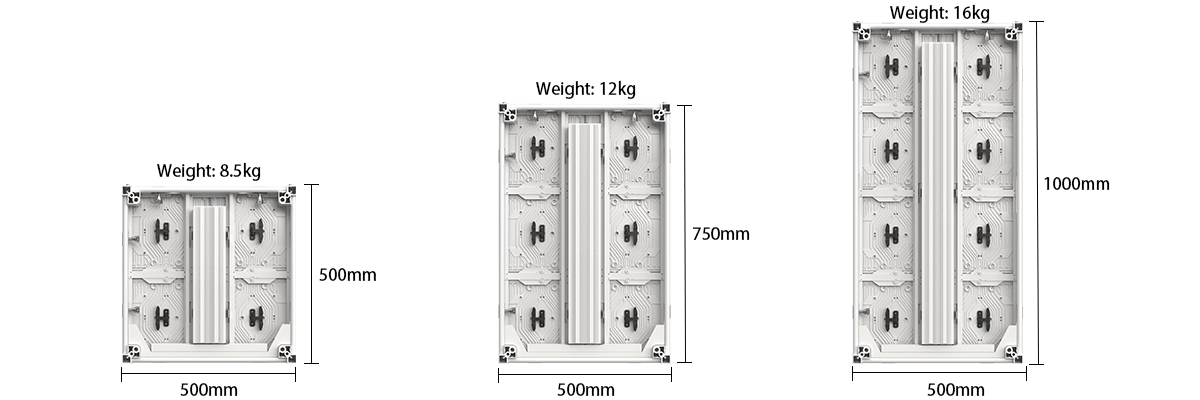

Multiple Cabinet Sizes: 500×500mm, 500×750mm, 500×1000mm
Standard Module: 250×250mm
Optional Curved Cabinets: Supports 90-degree curved cabinets for naked-eye 3D effects
Technical Specifications
Product Parameters
Item | P1.3 | P1.56 | P1.95 | P2.604 | P2.97 | P3.91 | P4.81 |
Pixel Composition(SMD) | 1010 | 1112 | 1415 | 1415 | 1415 | 1415 | 1921 |
Pixel Pitch(mm) | 1.3 | 1.56 | 1.95 | 2.604 | 2.97 | 3.91 | 4.81 |
Module Resolution(W×H) | 192×192 | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
Module Size(mm) | 250×250×18 | 250×250×19 | |||||
Module Weight(kg) | 1 | ||||||
Module Qty/Cabinet(W×H) | 2×4 | ||||||
Cabinet Resolution(W×H) | 384×768 | 320×640 | 256×512 | 192×384 | 168×336 | 128×256 | 104×208 |
Cabinet Size(mm) | 500×1000×84 | 500×1000×85 | |||||
Cabinet Area(㎡) | 0.5 | ||||||

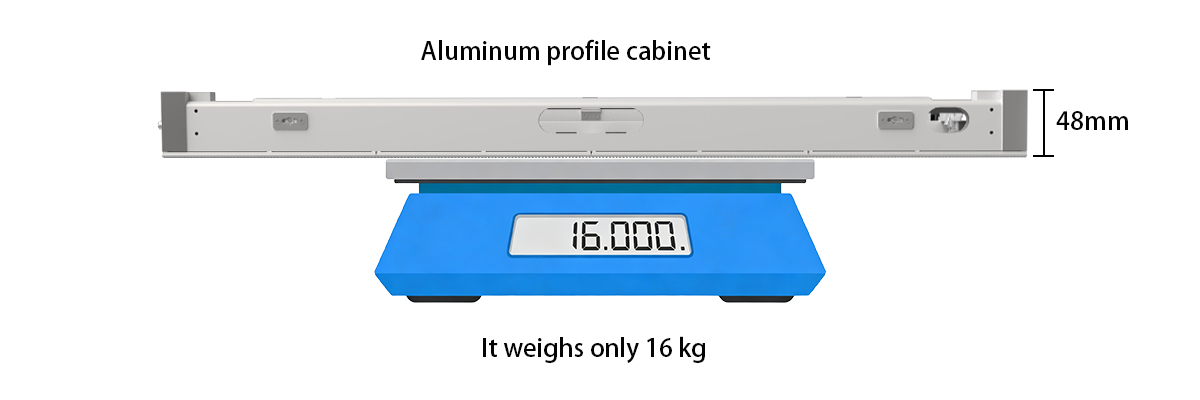

Cabinet Weight(kg/cabinet) | 16 | ||||||
Cabinet Material | Aluminium Profiles | ||||||
Cabinet Density（dot/m²） | 589824 | 409600 | 262144 | 147456 | 112896 | 65536 | 43264 |
IP Rating | IP66 | ||||||
White Balance Brightness(nits) | ≥4000 | ≥4500 | ≥5000 | ≥5000 | ≥5000 | ≥5000 | ≥5000 |
Color Processor(bit) | 14-16 | ||||||
Color Temperature(K) | 6500-9000 | ||||||
Visual Angle(H/V) | 140°/ 120° | ||||||
Luminous point centre deviation | ＜3% | ||||||
Luminance uniformity | ≥97% | ||||||
Chromaticity uniformity | Within ±0.003Cx, Cy | ||||||
Contrast Ratio | ≥5000:1 | ||||||
The Max Power Consumption(W/㎡) | 500 | 500 | 500 | 500 | 500 | 650 | 650 |
Average Power Consumption(W/㎡) | 168 | 168 | 168 | 168 | 168 | 218 | 218 |
Input Voltage | AC100~240V | ||||||
Frequency(Hz) | 50&60 | ||||||
IC Driving(s) | 1/48 | 1/40 | 1/32 | 1/24 | 1/21 | 1/8 | 1/7 |
Refreshing Ratio(Hz) | 3840 | ||||||
Maintenance Method | Front and Rear | ||||||
Lifespan(hrs) | 100,000 | ||||||
Work Temperature/Humidity | -30℃-60℃/10%RH-98%RH (Non Condensing) | ||||||
Storage Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | ||||||

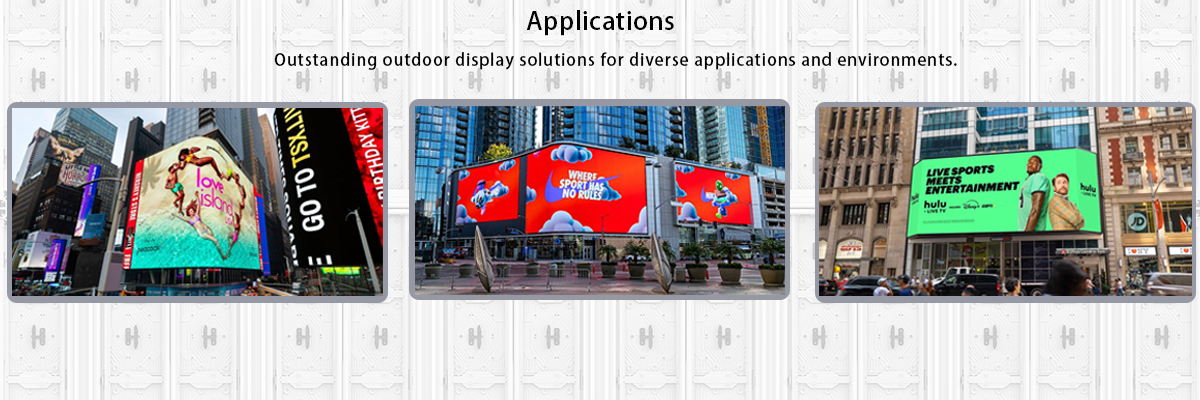

Application Scenarios
Outdoor Advertising
Commercial center billboards
Highway information displays
Sports stadium displays
Coastal Environments
Seaside resort information displays
Port and dock scheduling displays
Coastal city outdoor advertising
Event Displays
Concerts and music festivals
Exhibitions and product launches
Outdoor celebration events
Architectural Decoration
Building curtain wall displays
Shopping mall exterior wall advertising
Naked-eye 3D creative displays
Installation and Maintenance
Installation Methods
Wall Mounting: Suitable for building exterior walls
Pole Mounting: Independent support structure
Roof Mounting: Building top display

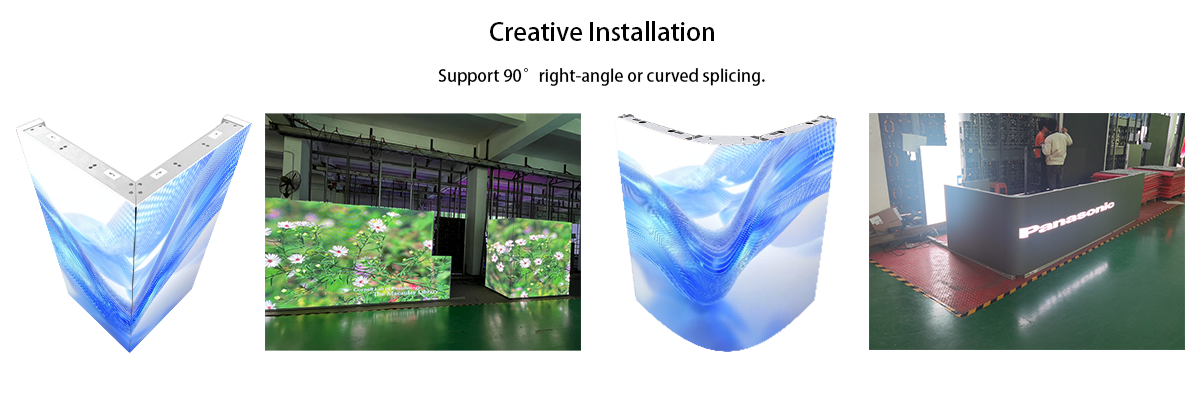

Curved Installation: 90-degree curved cabinet Splicing

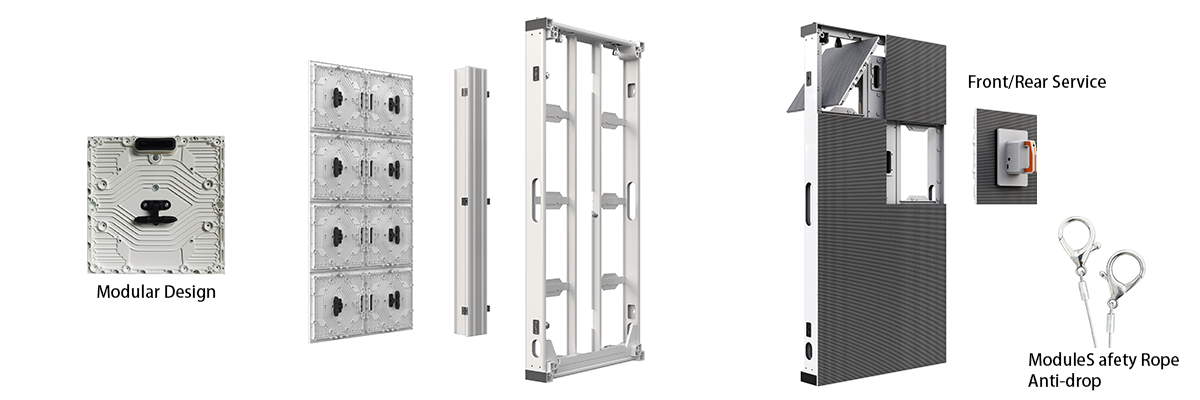

Maintenance Features
Front Maintenance Design: Convenient and quick maintenance
Modular Structure: Individual modules can be replaced independently
Waterproof Connectors: Ensures connection reliability
Naked-Eye 3D Display Solution
Technical Implementation
90-Degree Curved Cabinets: Creates three-dimensional visual effects
High Refresh Rate: ≥3840Hz, flicker-free
Wide Viewing Angle: Horizontal 160°, Vertical 140°
Creative Applications
3D product displays
Dynamic advertising creativity
Immersive experience scenarios
Quality Assurance
Certification Standards
CE Certification: Complies with European safety standards
RoHS Certification: Free of hazardous substances
IP66 Certification: Water and dust protection rating
Flame Retardant Rating: UL94 V-0
After-Sales Service
Warranty Period: 2 years (main components)
Technical Support: 7×24 hours response
Installation Guidance: Professional installation team support
Why Choose CH10O02?
1. Energy Saving and Environmental Protection
Cathode technology significantly reduces energy consumption, aligns with global energy-saving trends, and provides substantial electricity cost savings over long-term use.
2. Extreme Environment Adaptation
Specifically designed for coastal, high-temperature, and high-humidity environments, ensuring stable operation under a wide range of harsh conditions.
3. Flexible Configuration
Available in a variety of sizes and supporting curved splicing, it meets the requirements of diverse scenarios.
4. Visual Experience
High brightness, high contrast ratio, supports naked-eye 3D effects, enhancing advertising value.
Frequently Asked Questions

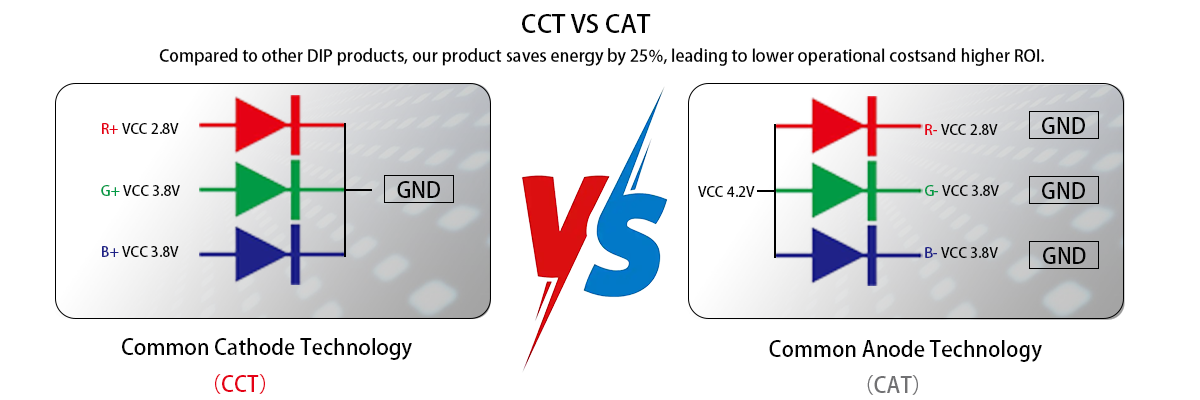

Q: What are the advantages of cathode common circuits?
A: Compared to traditional anode common circuits, cathode circuits have lower temperature, smaller power consumption, longer lifespan, and are particularly suitable for outdoor high-temperature environments.
Q: What should be noted when using at seaside?
A: CH10O02 uses special anti-corrosion treatment and can be directly used at seaside. Regular cleaning of surface salt deposits is recommended to ensure long-term performance.
Q: Does it support custom sizes?
A: Yes. In addition to standard sizes, we can customize special sizes and shapes according to project requirements.
Q: How long does installation take?
A: Standard installation takes 2-3 days to complete. Large projects depend on specific scale.
