CH96O09 Outdoor Common Cathode LED Display
960x96Omm Die-Cast Aluminum Cabinet
CH96O09 is a high-performance outdoor LED display built with a 960×960mm die-cast aluminum cabinet and a full aluminum module back cover. Featuring advanced common cathode technology, it delivers superior energy efficiency, lower heat generation, and longer lifespan — ideal for 24/7 outdoor advertising, stadiums, retail signage, and more.
As an ISO-certified factory, we offer customizable pixel pitch and full OEM/ODM support. All units come with CE, RoHS, and ISO certifications for worry-free global shipping.
Key Features
What makes the CH96O09 the right choice for your next outdoor LED project.
Common Cathode Technology
Separately drives red, green, and blue LEDs with precise voltage, reducing power consumption by up to 30% compared to conventional common-anode displays.
Eco-Friendly & Energy Saving
Lower heat dissipation means less strain on cooling systems and a smaller carbon footprint — perfect for green building certifications.

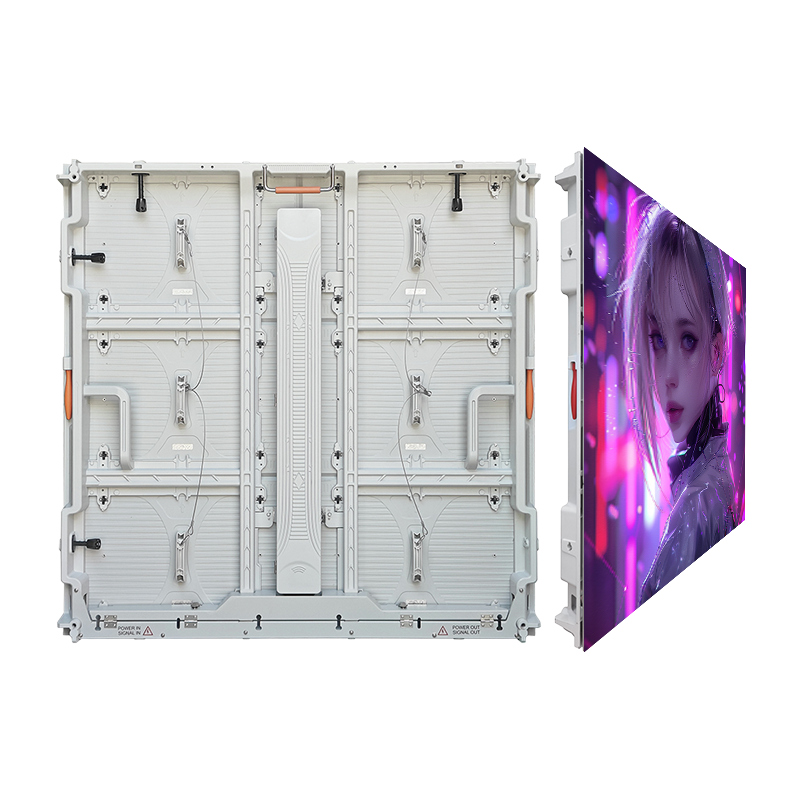

Die-Cast Aluminum Cabinet
960×960mm precision die-cast aluminum cabinet ensures ultra-flat splicing, lightweight structure, and excellent heat dissipation.

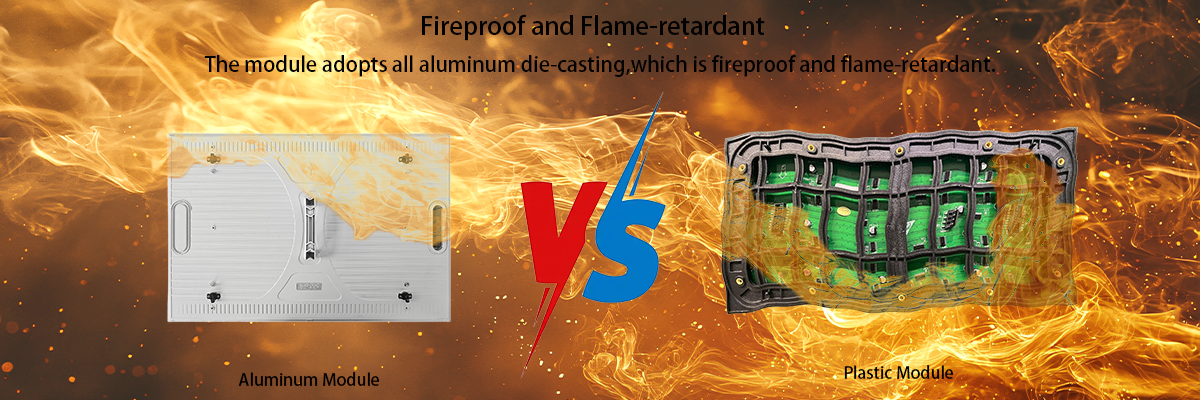

Full Aluminum Back Cover
Module back cover is made of full aluminum for superior heat conduction and long-term durability in harsh outdoor environments.

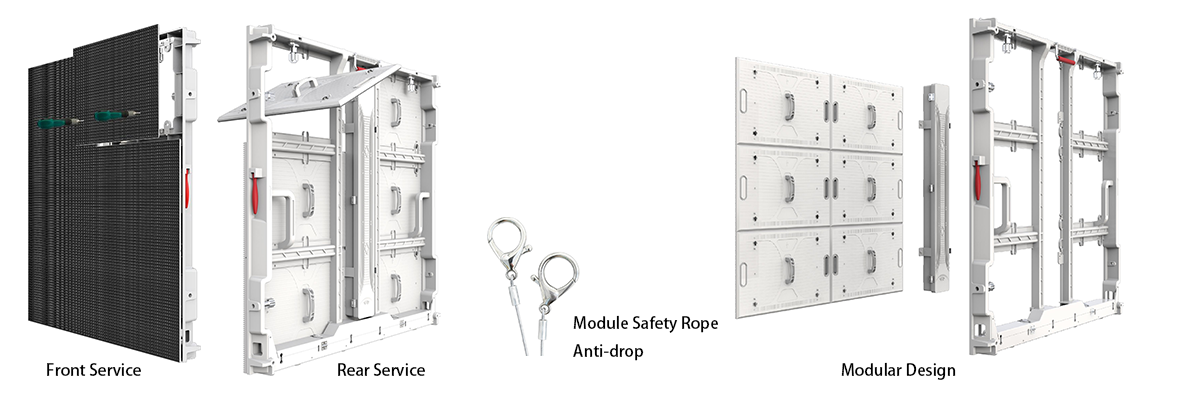

Front & Rear Maintenance
Supports both front and rear maintenance access, making installation and servicing flexible and efficient for any site condition.
Customizable Pixel Pitch
Pixel pitch can be tailored to your project requirements — from high-density close-view to larger pitch for long-distance viewing.
Technical Specifications
Detailed parameters for the CH96O09 outdoor common cathode LED display.
Item | P4.44 | P5.7 | P6.67 | P8 | P10 | |
Pixel Composition(SMD) | 1921 | 2727 | 2727 | 2727 | 2727 | |
Pixel Pitch(mm) | 4.44 | 5.7 | 6.67 | 8 | 10 | |
Module Resolution(W×H) | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 | |
Module Size(mm) | 480×320×14 | 480×320×15 | 480×320×16 | 480×320×17 | 480×320×17 | |
Module Weight(kg) | 2 | |||||
Module Qty/Cabinet(W×H) | 2×3 | |||||
Cabinet Resolution(W×H) | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 | |
Cabinet Size(mm) | 960×960×85 | 960×960×86 | 960×960×87 | 960×960×88 | 960×960×88 | |
Cabinet Area(㎡) | 0.92 | |||||

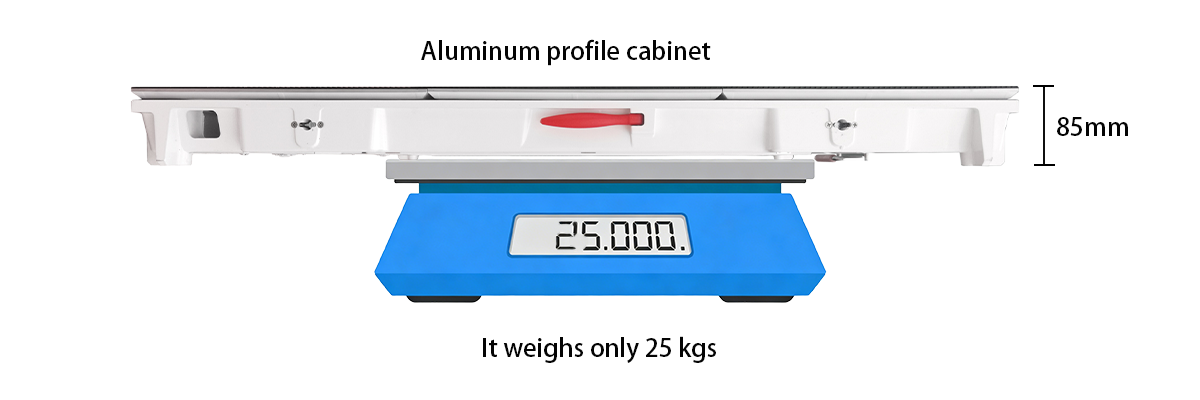

Cabinet Weight(kg/cabinet) | 25 | |||||
Cabinet Material | Die-cast Aluminium | |||||
Cabinet Density（dot/m²） | 50625 | 30625 | 22500 | 15625 | 10000 | |

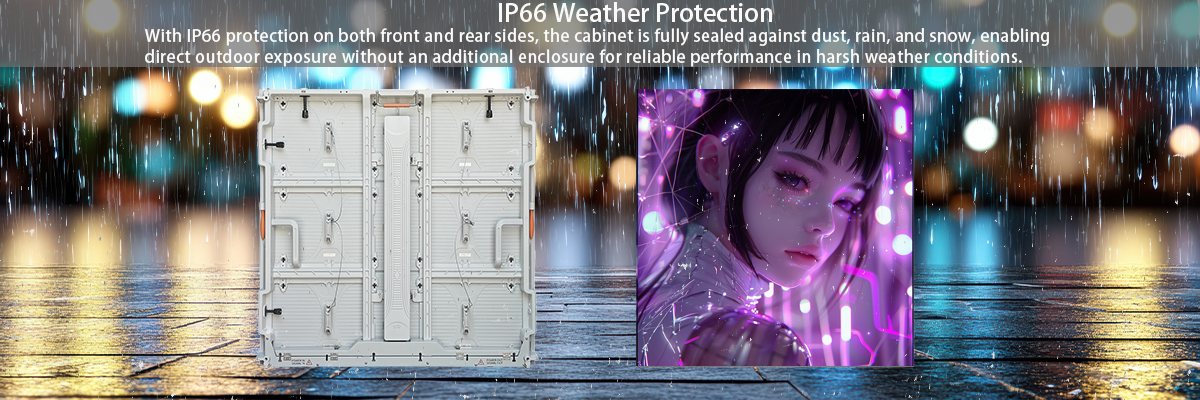

IP Rating | IP66 | |||||
White Balance Brightness(nits) | ≥5500 | ≥7000 | ≥7000 | ≥7000 | ≥7000 | |
Color Processor(bit) | 14-16 | |||||
Color Temperature(K) | 6500-9000 | |||||
Visual Angle(H/V) | 140°/ 120° | |||||
Luminous point centre deviation | ＜3% | |||||
Luminance uniformity | ≥97% | |||||
Chromaticity uniformity | Within ±0.003Cx, Cy | |||||
Contrast Ratio | ≥15000:1 | |||||
The Max Power Consumption(W/㎡) | 550 | 550 | 550 | 550 | 550 | |
Average Power Consumption(W/㎡) | 186 | 186 | 186 | 186 | 186 | |
Input Voltage | AC100~240V | |||||
Frequency(Hz) | 50&60 | |||||
IC Driving(s) | 1/9 | 1/7 | 1/6 | 1/3 | 1/2 | |
Refreshing Ratio(Hz) | 3840 | |||||
Maintenance Method | Front and Rear | |||||
Lifespan(hrs) | 100,000 | |||||
Work Temperature/Humidity | -30℃-60℃/10%RH-98%RH (Non Condensing) | |||||
Storage Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
Wide Application Scenarios
The CH96O09 performs reliably across diverse outdoor environments.
Outdoor Advertising
Stadiums & Arenas
Retail Signage
Transportation Hubs
Building Facades
Event Stages
Why Choose Chifuyi Technology?
We are not just a seller — we are the manufacturer.
Original Factory
10+ years of manufacturing experience, direct from factory floor.
Full Certifications
CE, RoHS, ISO9001 — compliant and ready for customs clearance.
Reliable Delivery
15-20 day lead time. DDP/DAP shipping available worldwide.
24/7 Support
Professional after-sales team, online support anytime.
Frequently Asked Questions
Quick answers to common inquiries about the CH96O09.
1. Can the pixel pitch be customized?
Yes. As a factory, we support customizable pixel pitch from P3.9 to P10 to meet different viewing distance and resolution requirements.
2. Is the display suitable for 24/7 operation?
Absolutely. The common cathode design reduces heat generation, and the full aluminum construction ensures excellent thermal management, making it ideal for 24/7 use.
3.What certifications do you have?
Our products are CE, RoHS, and ISO9001 certified, ensuring smooth customs clearance and compliance with international standards.
4. What is the minimum order quantity (MOQ)?
MOQ is flexible. For standard configurations, small trial orders are welcome. Bulk orders enjoy preferred pricing.
5. Is front maintenance really possible?
Yes. The CH96O09 supports both front and rear maintenance, giving installers maximum flexibility depending on mounting conditions.
