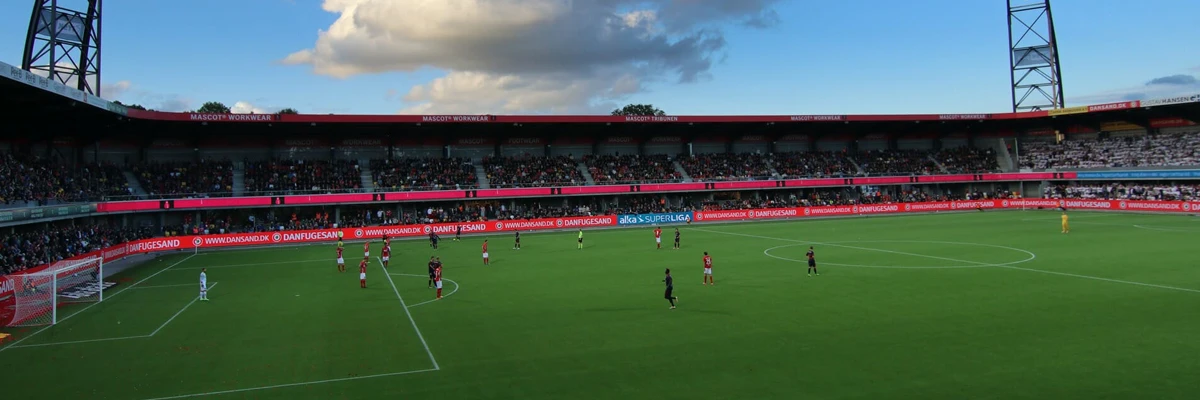

The LED display is a kind of stadium perimeter LED display,the die-cast aluminum alloy chassis indeed provides rugged durability, while the IP65 waterproof function ensures reliability in harsh weather conditions. The adjustable bracket and front-back maintenance design offer convenience, and the self-cleaning surface function ensures the screen remains clear at all times. The combination of these features will deliver an excellent sports viewing experience for the audience.

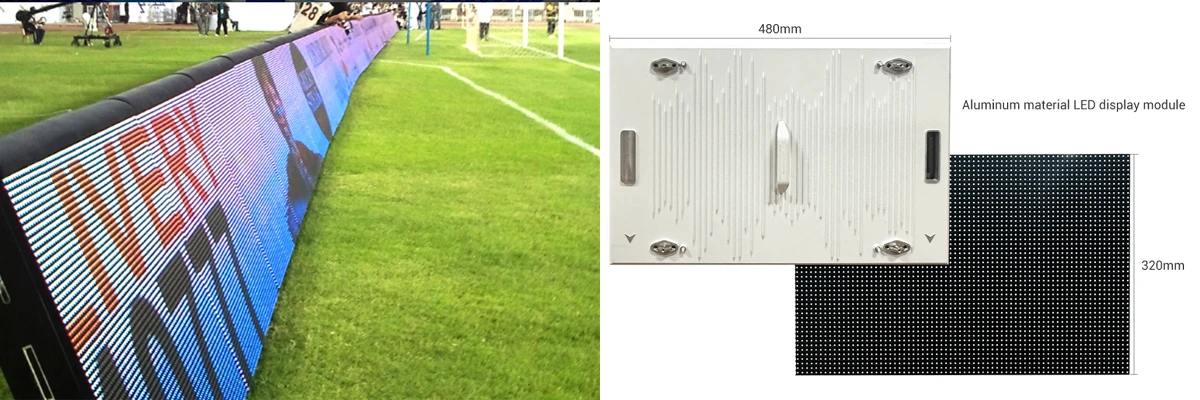

Aluminum alloy LED display module panel
Based on the usage environment of the stadium, we have specially designed the 480x320mm aluminum alloy material LED display module. Its design considers a longer lifespan and more stable performance, allowing it to reliably fulfill tasks such as live broadcasting and advertisement display, whether in the hot temperatures of Middle Eastern stadiums or the cold conditions of North American and Russian stadiums.

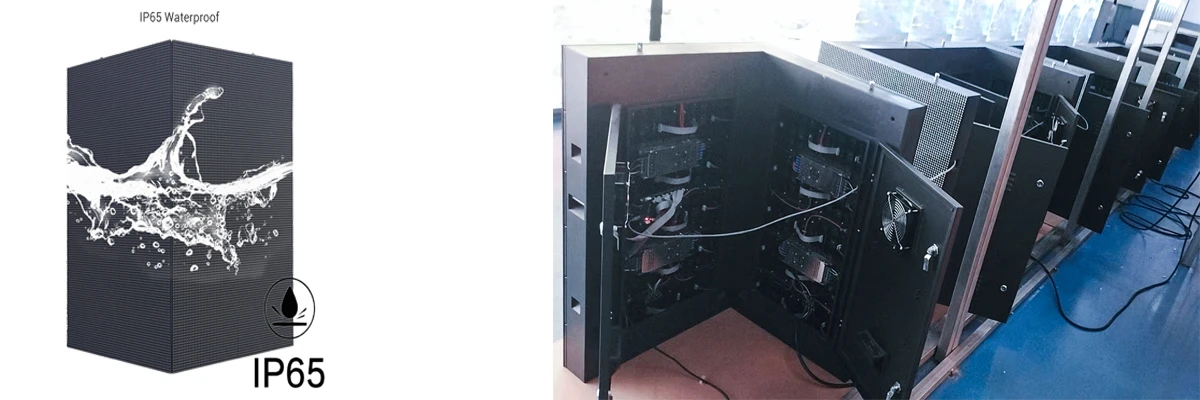

IP65 Waterproof
Outdoor IP65 waterproofing ensures normal operation even in rainy, snowy, or humid weather conditions, providing complete protection for live event broadcasts and advertising displays, allowing the audience to smoothly enjoy the sports spectacle.

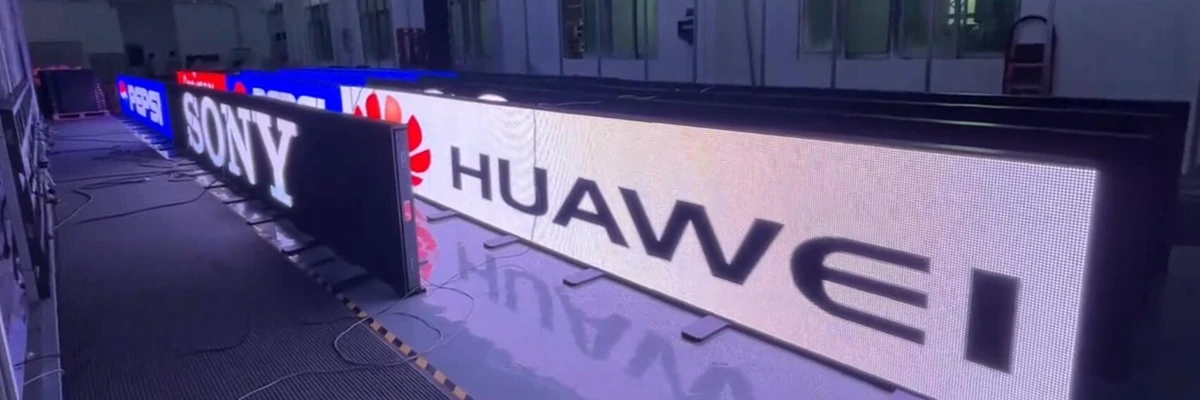

Portable installation design
We specially designed hidden handles, foldable lifting handles, and adjustable brackets for this LED display screen. These portable designs facilitate easy movement, transportation, and installation of the display screen, allowing for quick setup even in the case of stadium rentals.
Front and Rear maintenance

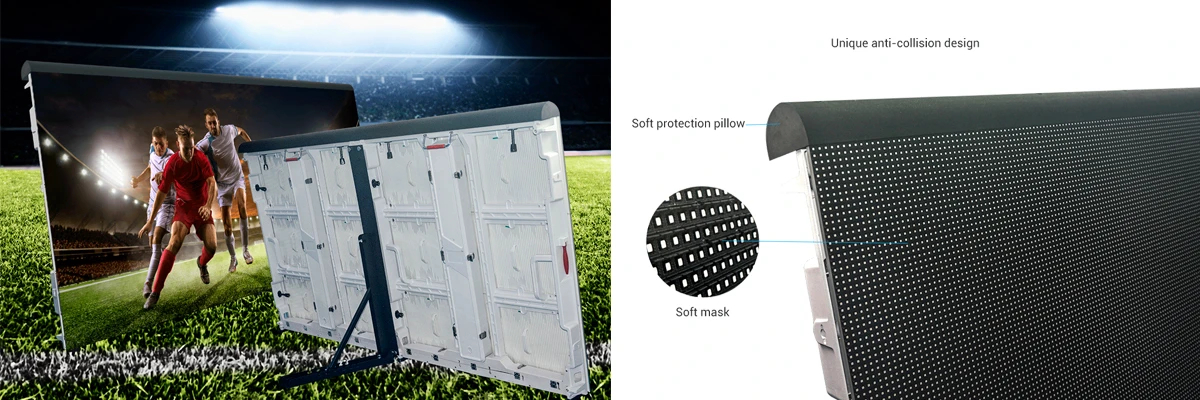

Our display screen supports front and rear maintenance, allowing for quick installation, disassembly, and repair using screw tools. Additionally, we have added rubber protective strips and soft-bristle face panels to effectively protect athletes from impact injuries and to some extent filter rainwater and dust.
Specification
| Pixel Pitch(mm) | P6.67 | P8 | P10 |
| Pixel Matrix Per Sq.m | 22,500 | 15,625 | 10000 |
| Pixel Configuration | SMD2727 | SMD3535 | |
| Brightness (cd/㎡) | 5500 | 5000 | 6000 |
| Scan | 1/6 | 1/3 | 1/5 |
| Module Dimension | 480x320mm / 1.57x1.05ft | ||
| Cabinet Dimension | 960x960mm / 3.15x3.15ft | ||
| Cabinet Resolution | 144x144 | 120x120 | 96x96 |
| Cabinet Material | Profile Aluminum | ||
| Cabinet Weight | 30KG | ||
| Power Con.(W/㎡) (Max / Avg) | 660W/300W | ||
| Service Access | Front & Rear | ||
| Refresh Rate (HZ) | ≥3840 | ||
| Grey Scale (bit) | 14 | ||
| Viewing Angle (H/V) | 160°/160° | 140°/140° | |
| IP Rate | IP65 | ||
| Operation Temperature | -20℃ ~ +60°℃ | ||
| Input Voltage (AC) | 110V / 220V | ||
