CHM09 P1.5mm LED Module with 2-in-1 Power & Signal Connector
Our CHM09 series is engineered to revolutionize commercial LED video wall integration. By combining power and signal delivery into one single custom Type-C connector, this module eliminates traditional messy ribbing wires, significantly enhancing circuit safety and streamlining the installation process.
Product features

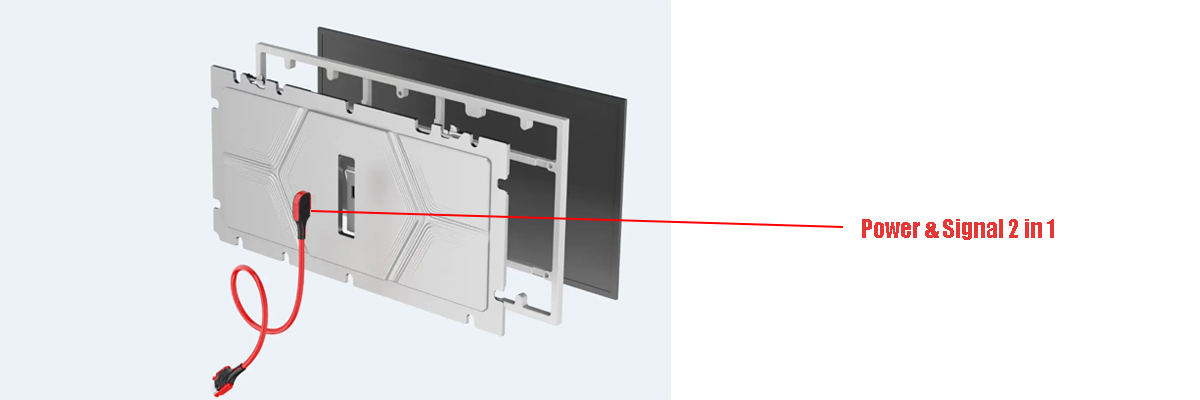

1, Innovative 2-in-1 Cableless Connection: Integrating power lines and signal data into one heavy-duty Type-C connector. It maximizes module backspace, reduces cable failure rates by up to 80%, and ensures ultra-clean internal cabinet wiring.

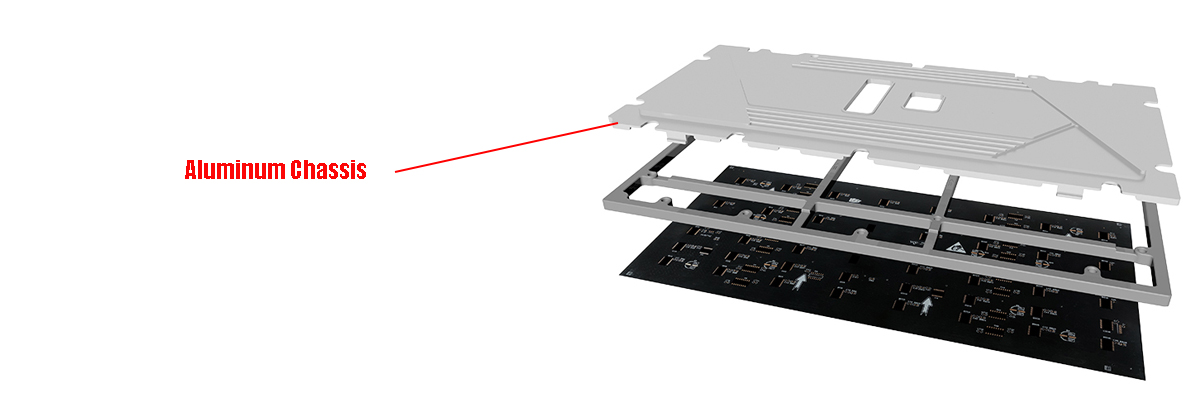

2, Premium Aluminum Chassis: Unlike standard plastic shells, our premium aluminum frame provides superior thermal dissipation, structural rigidity, and exceptional anti-deformation performance for long-term 24/7 commercial operations.

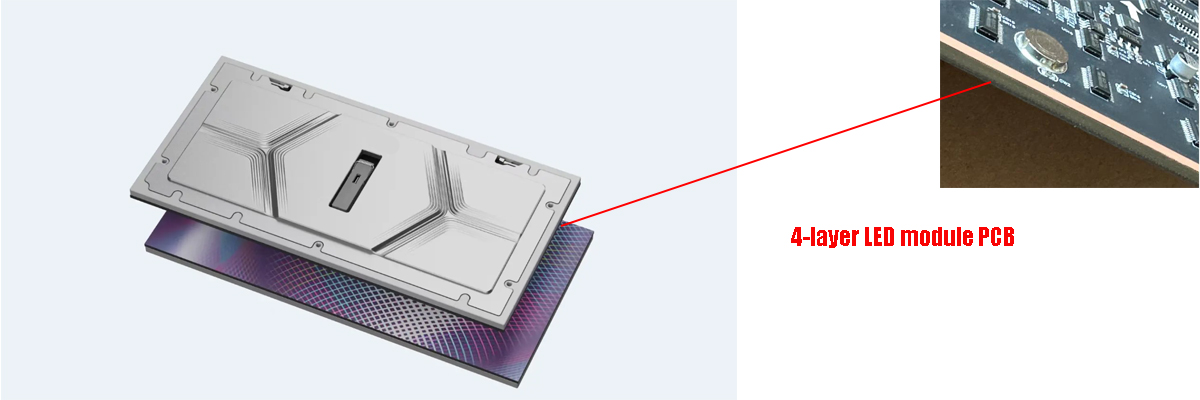

2, High-Density 4-Layer PCB: Engineered with an industry-leading 4-layer LED module PCB to optimize current flow, eliminate signal interference, and support much higher refresh rates and grayscale stability.

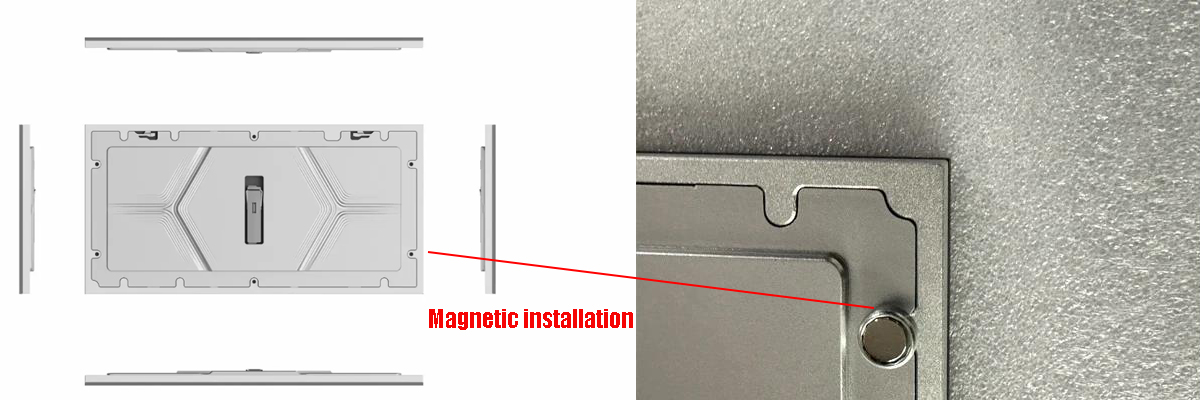

4, Effortless Magnetic Front Service: Equipped with powerful rear magnets, this standard 320x160mm indoor P1.5 LED panel supports true vacuum-suction front maintenance. Replace a module in just 5 seconds without disturbing the cabinet structure.
Detailed Technical Specifications
Parameter | Specifications |
|---|---|
Pixel Pitch | P1.5 |
Moudle Size | 320x160mm |
Interface Type | 2-in-1 Type-C Port (Power + Signal Integrated) |
Module Resolution (Pixel) | 214x107 |
Pixel Configuration | SMD1010 |
Driving Mode (Duty) | 1/26 |
Pixel Configuration | SMD1010 |
Brightness(nits) | 500-800nits |
Refresh Frequency (Hz) | 3840 |
Maintenance Type | Front Service / Magnetic Fixed Installation |
