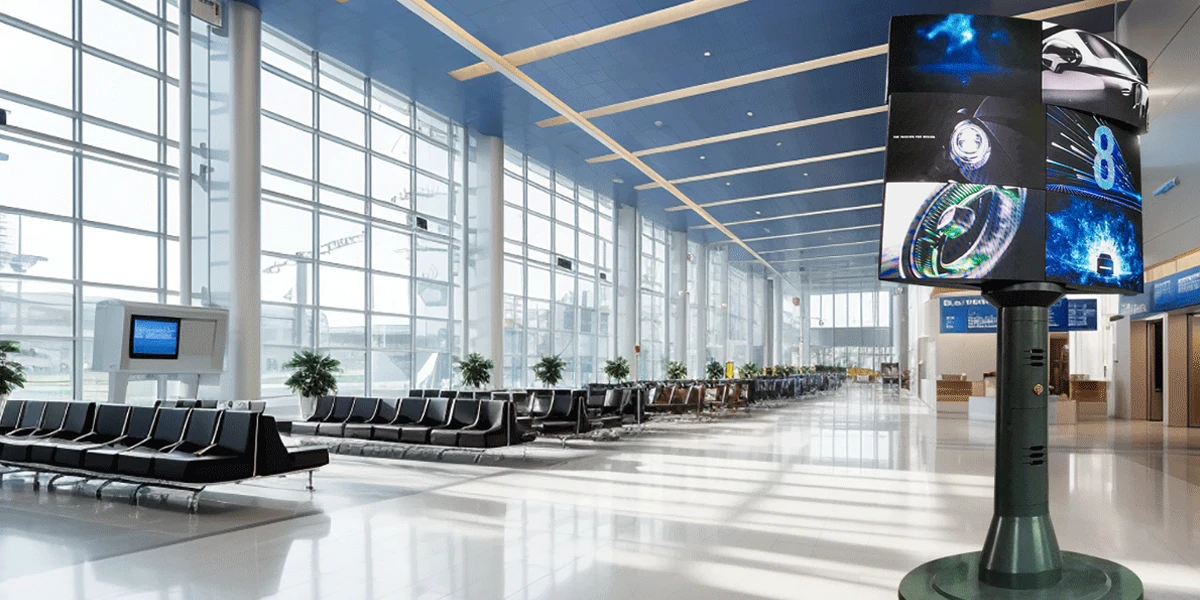

Our rotating LED mechanical screen is a new breakthrough and design in scene application of LED display screens.It presents video contentto the audience through a 360° rotation, bringing a completely new listening experience suitable for places with high pedestrian traffic such as shopping malls, plazas, and transportation hubs,etc.

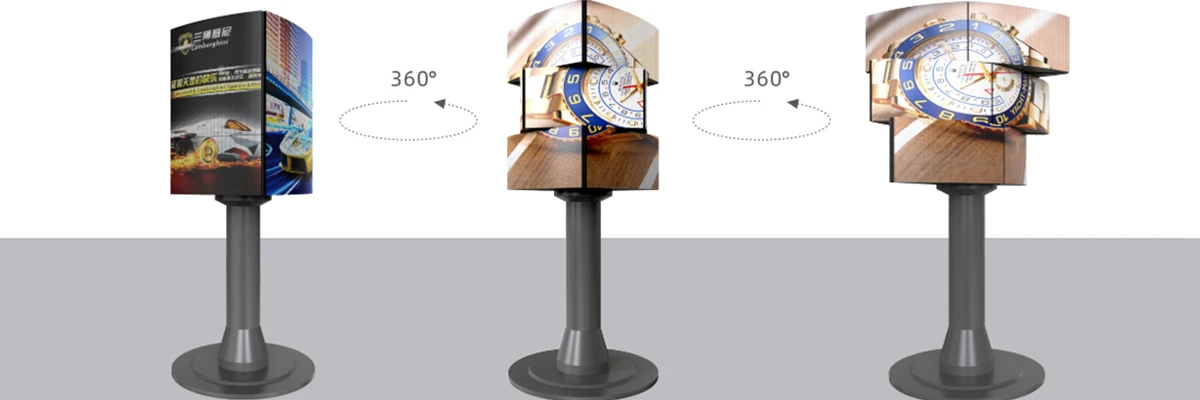

360°rotating display
Using the built-in mechanical device to drive the display screen to rotate 360 degrees, you can adjust the rotation speed of the display screen remotely according to different advertising content to better showcase the advertised products, providing customers with an immersive panoramic listening experience.
Structure and appearance design with multiple patents
Adopting a curved three-dimensional multi-layer screen design, it can display advertising content from a wider visual angle and more perspectives
The display screen can rotate to show single-screen content for each layer of the screen body separately, or multiple layers of screen bodies can be combined to form a larger display screen to showcase advertising content.
Layers and number of sides
The display screen is composed of 3 layers, each layer has 4 independent sides, thus achieving multi-angle and multi-viewpoint display effects. This design allows the display to present different content at different viewing angles, greatly increasing the efficiency of information transmission
Mechanical structure
Through precise mechanical structure design, each surface can be rotated or moved independently to achieve dynamic switching and display of content.This mechanical design not only increases the fun of the display, but also makes content display more flexible.
Supports synchronous and asynchronous display
It can be controlled synchronously through the APP software to display content in real-time, offering high flexibility. Alternatively, content can be pre-set for asynchronous display, automatically rotating to showcase advertisements.
Hich-definition display
Using hich-aualty LED amp beads and advanced criving technoloay to ensure hich cefinition and hiah coloieproduction of the display. Whether it is text, pictures or videos, it can be presented in a delicate and vivid form.
Brightness and contrast
The display has excellent brightness and contrast performance, maintaining a clear display even in bright environments. This allows it to perform well in a variety of situations.
Parameter table
Details | Specifications | Specifications | Remark | |
Display | ltem Name | Indoor P3 | Indoor P3.076 | Optional |
Module | Soft 240x120 | Hard 320x160 | ||
Layers | 3 | 3 | ||

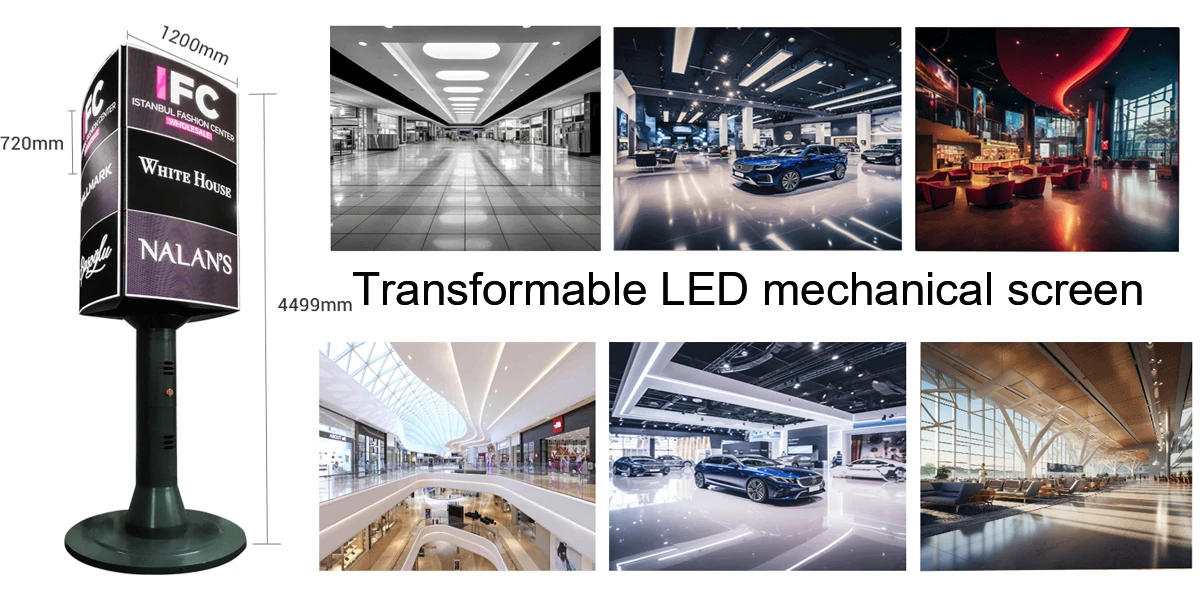

Size | L1200*H4499 | L1280*H4750 | ||
Expand Size | L2400*H4499 | L2560*H4750 | ||
Display | wide angle arc | wide angle plane | ||
Surface | 12 | 9 | ||
Display Size/side | 1200*720mm | 1280*800mm | ||
3 layers/side | 1200*2160mm | 1280*2400mm | When playing the full image, you can choose the synchronization mode. | |
3 layers expand size | 2400*2160mm | 2560*2400mm | ||
Total Size | 4800*2160mm | 5120*2400mm | ||
Total Height | 4499mm | 4750mm | ||
Max Power | 13.5KW | 13.5KW | Maximum power13.5KW, actual use is about 9.5KW | |
| Rotating Mold | Optional | Optional | You can choose different rotation methods according to the image requirements |
Rotating Speed | Adjustable | Adjustable | The running speed can be adjusted according to user or screen requirements | |
Rotating Way | 8 | 8 | forward and reverse spirals, crossing, semisynchronous, synchronous | |
Switch | PC/Mobilephone | PC/Mobilephone | ||
Control | Remote | Remote | ||
Install | Voltage | 220V/380V | 220V/380V | |
Installation | Non-base | Non-base | The equipment comes with its own chassis, no installation foundation is required. |
