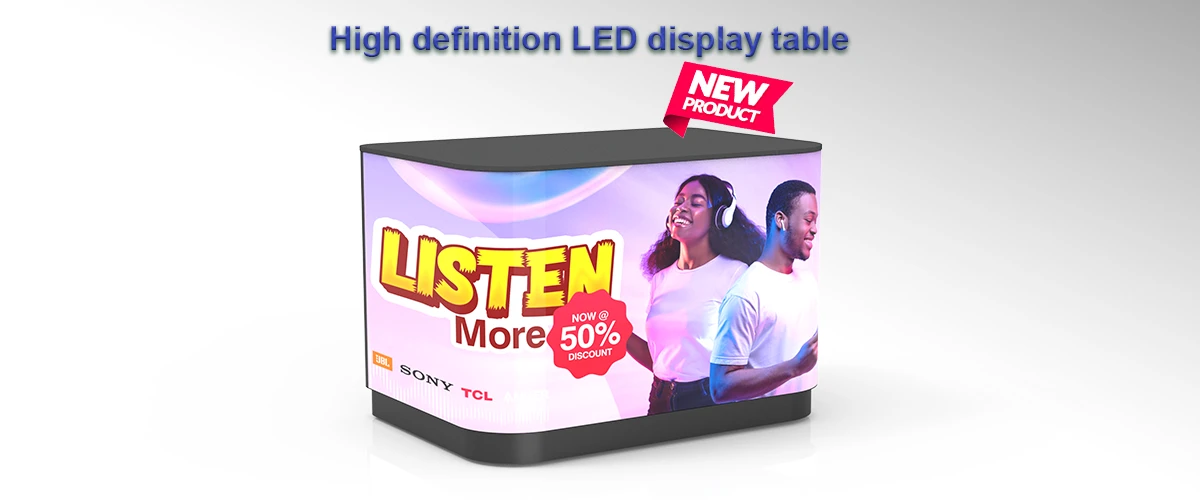

High definition LED display table

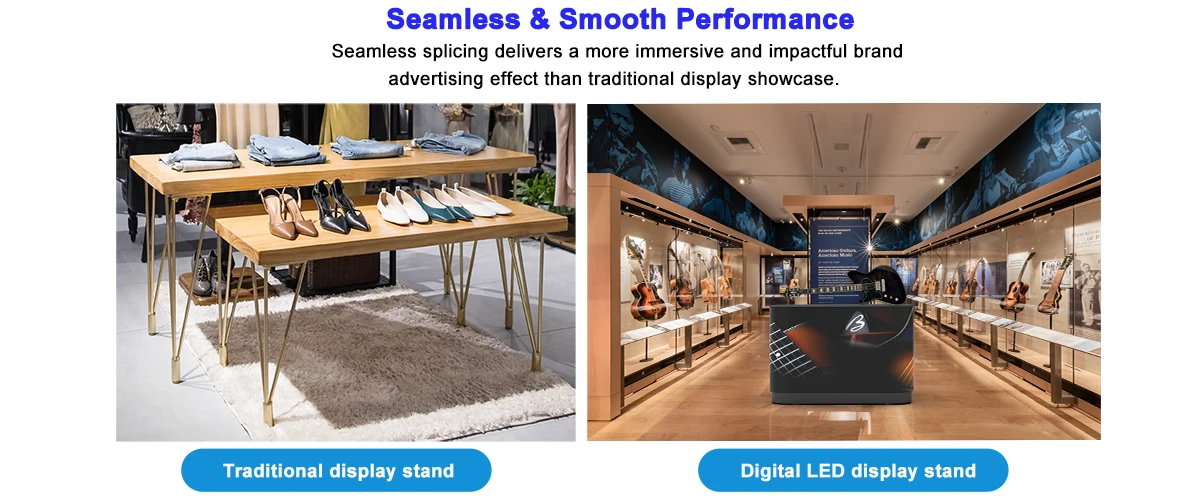

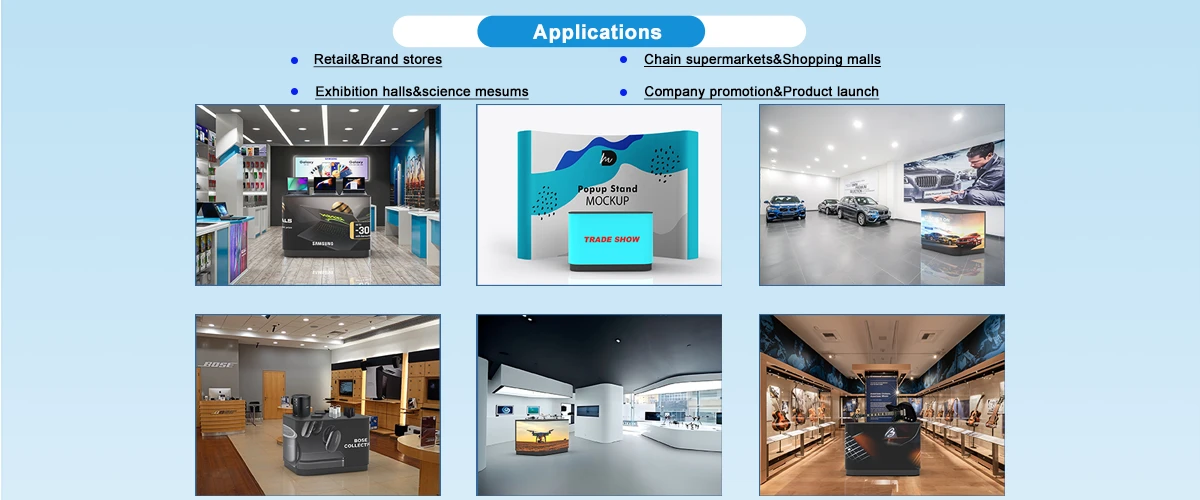

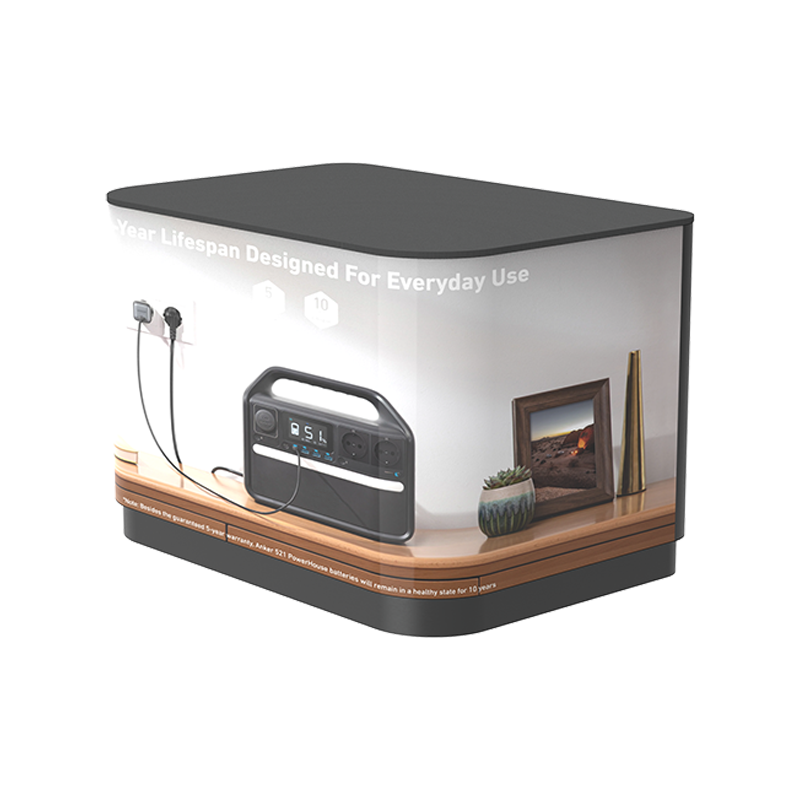

Curved digital LED displays can not only enhance the visual effects and brand image of retail stores, but also enhance customers' shopping experience and increase sales conversion rates. They are a powerful display tool for modern retail store towers.

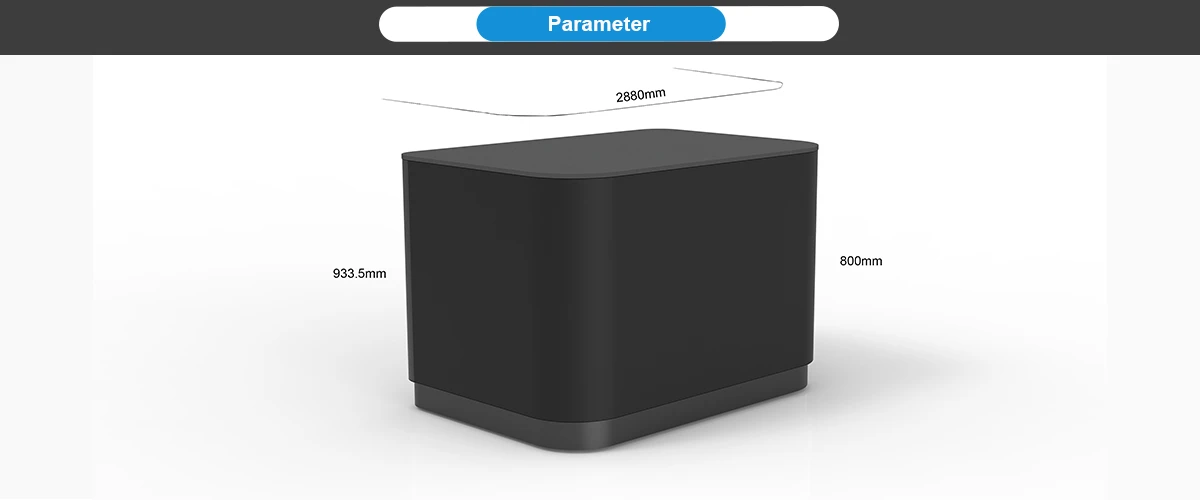

Parameter Sheet
| Pixel Pitch | 1.56 | 1.86 | 2 | 2.5 |
| Resolution | 1476922 | 1238710 | 1152000 | 921600 |
| Pixel Encapsulation | 1212 | 1515 | 1515 | 1515 |
| Pixel Configuration | 1R 1G 1B | |||
| Module Size | 320*160mm | |||
| Module Resolution | 204*102 | 172*86 | 160*80 | 128*64 |
| Driving Method | 51S | 43S | 40S | 32S |
| Power Supply | 200W | |||
| Driving IC | Constant current drive | |||

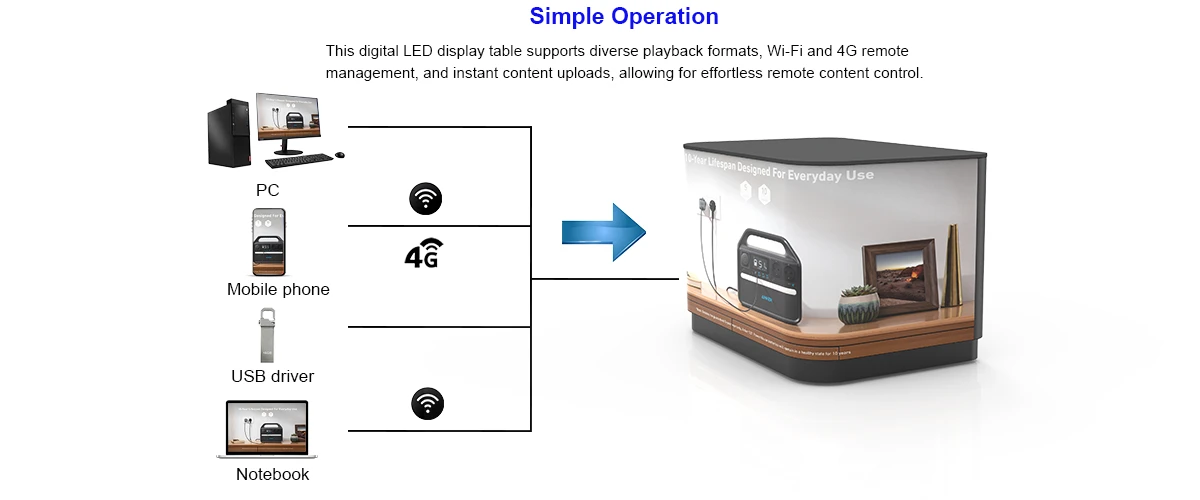

| Control Way | PC,Cellphone,Pad,Wifi,APP,HDMI,USB,SIM | |||
| Module P.C | 3.6-4.0A | |||
| Brightness | 600 nits | |||
| View Distance | 2.0m | 2.4m | 2.8m | 3.3m |
| Gray Scale | 14 bit | |||
| Operation Power | 110-220v | |||
| Refresh Frequency | >3840HZ | |||
| Working Temp | -20℃ - 50℃ | |||
| Operating Humidity | 10%~90% | |||
| IP (Front) | IP43 | |||

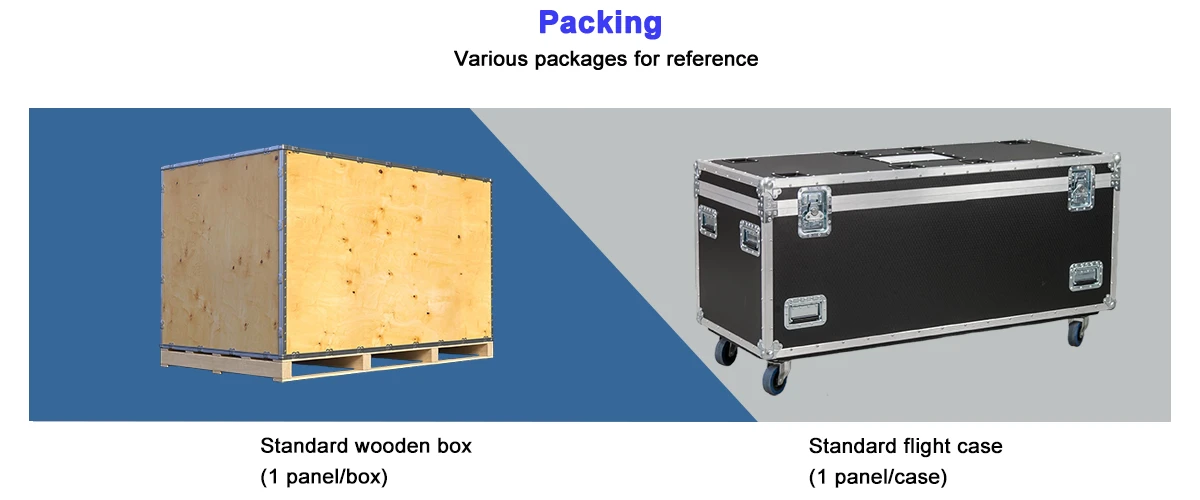

| Package | Wooden case or Flight case | |||
