Luminous counter screen intelligent mobile bar display system

The luminous counter screen is a mobile commercial bar and display system that integrates premium materials, intelligent display technology, and practical functionality. Featuring a sophisticated black marble-patterned sintered stone countertop, it combines immersive LED screens on both sides with a flexible poster area and a three-tier professional storage space. This creates a versatile mobile terminal that serves as a brand display, product showcase, interactive experience point, and immediate service station all in one. Designed specifically for high-end commercial spaces, brand events, hotels, restaurants, and retail environments, it functions not only as utility equipment but also as a visual focal point and experiential hub within any space.

I. Core design & materials

1.Countertop & main structure

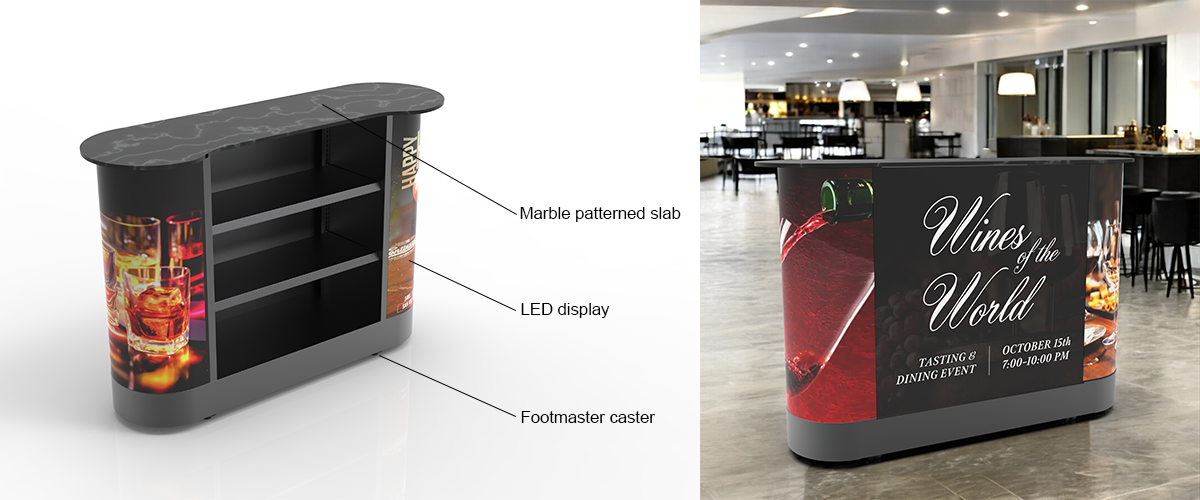

• Countertop material: made from premium black marble-patterned sintered stone, 15mm thick. The surface undergoes nano-level anti-stain treatment, offering exceptional resistance to stains, scratches, and high temperatures. It can directly hold ice, glassware, and is easy to clean and maintain.

• Main frame: the primary structure utilizes a high-strength industrial-grade sheet metal design. Fabricated via laser cutting, bending, and seamless welding, its surface features a multi-layer electrostatic powder coating, presenting a matte dark space gray finish that is robust, durable, and offers excellent load-bearing capacity.

• Ergonomic design: the countertop edges feature a slightly rounded bevel to prevent bumps.

2.Integrated storage system

• Three-tier stepped shelving: the internal structure is made of thickened cold-rolled steel plate, with a total load capacity exceeding 80kg.

• Bottom tier: a large storage compartment suitable for backup bottles, ingredient cases, or larger equipment.

• Middle tier: features adjustable-height shelves for storing bar tools like shakers, jiggers, and mixing equipment.

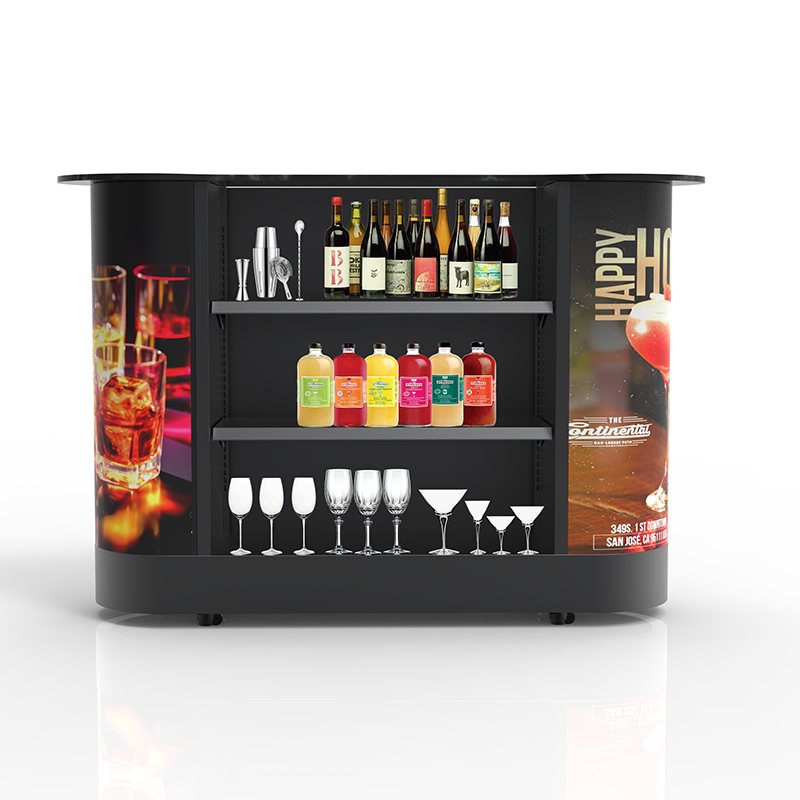

• Top tier: angled wine rack designed specifically for displaying premium spirit bottles, offering high visibility and easy access.

II.Intelligent display system

1.Dual-side corner LED screens

• Screen configuration: custom fine-pitch LED display panels (options: P1.53/P1.86/P2) are seamlessly embedded into the side corners using full-lamination technology, creating a perfect fusion with the sheet metal frame.

• Display features:

  • High refresh rate & wide viewing angle: refresh rate ≥3840Hz, with a horizontal viewing angle of 170°, ensuring no motion blur or color shift from any perspective.

  • Seamless corner integration: proprietary image processing algorithms guarantee seamless, continuous playback across the corner, delivering a wraparound visual experience.

• Content playback: supports UHD video, dynamic graphics, and real-time data display (e.g., drink menus, event info, social media feeds).

2. Central magnetic poster system

• Magnetic panel: the central area of the countertop features a high-strength magnetic backing board, protected by a wear-resistant acrylic layer.

  • Quick-change design: all promotional posters, artwork, or brand logos are printed on specialized panels with magnetic backing, allowing for tool-free replacement in under 3 seconds.

  • Creative flexibility: supports the flexible arrangement and combination of multiple smaller panels for regularly updated content layouts.

• Accent lighting: the poster area is enhanced by an overhead adjustable color temperature LED strip, allowing users to switch between cool or warm light to complement the visual theme.

III. Mobility & integrated control

1. Caster system

• Heavy-duty silent casters: equipped with four 40mm industrial-grade silent swivel casters, with locking brakes on the front wheels. The caster system supports over 300kg, ensuring smooth, stable, and quiet mobility.

• Omni-directional movement: enables easy maneuvering across various floor surfaces like tile, carpet, and hardwood, allowing for rapid adaptation to changing layout needs.

2.Unified intelligent control

• Integrated control system: features a built-in multimedia controller supporting wired Ethernet, Wi-Fi , and 4/5G.

• Multi-device management:

  • Remote PC/tablet control: dedicated software allows for content scheduling, playlist management, and system control.

  • Smartphone apps enable quick actions: instant control of screen on/off, brightness adjustment, and one-click content push.

• Cloud content management platform: supports uploading, managing, and distributing media content to multiple counter screen units via the cloud.

IV.Core application scenarios

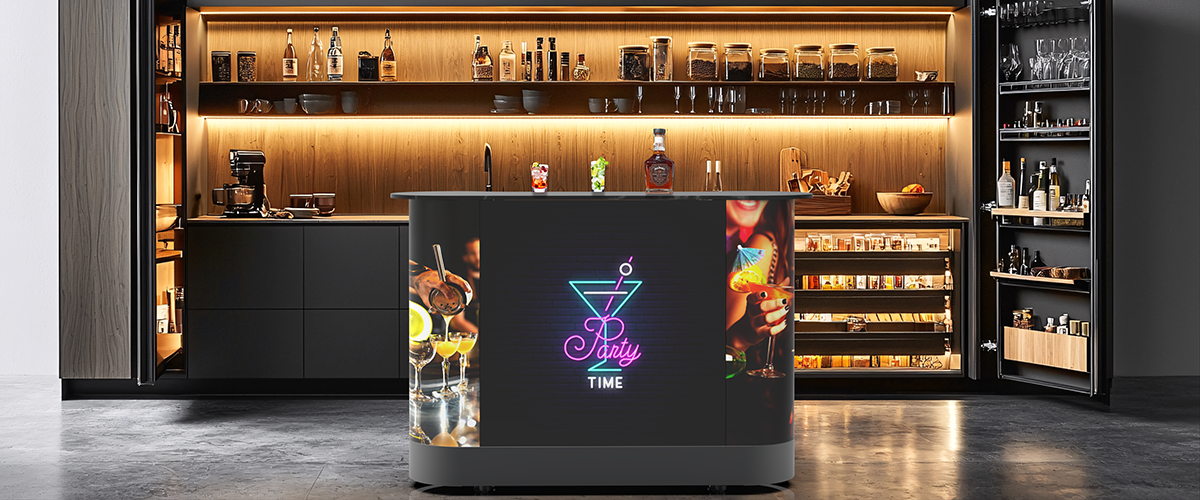

1. Upscale hotels & lobby bars:

   • Serves as a mobile welcome station or specialty drink service point. LED screens display brand videos, while the central poster area highlights daily events or artistic themes.

2. Brand pop-up stores & commercial events:

   • Quickly establishes a brand interaction center. Side screens loop product advertisements, while the counter provides live tasting experiences, creating a seamless display-experience-sales loop.

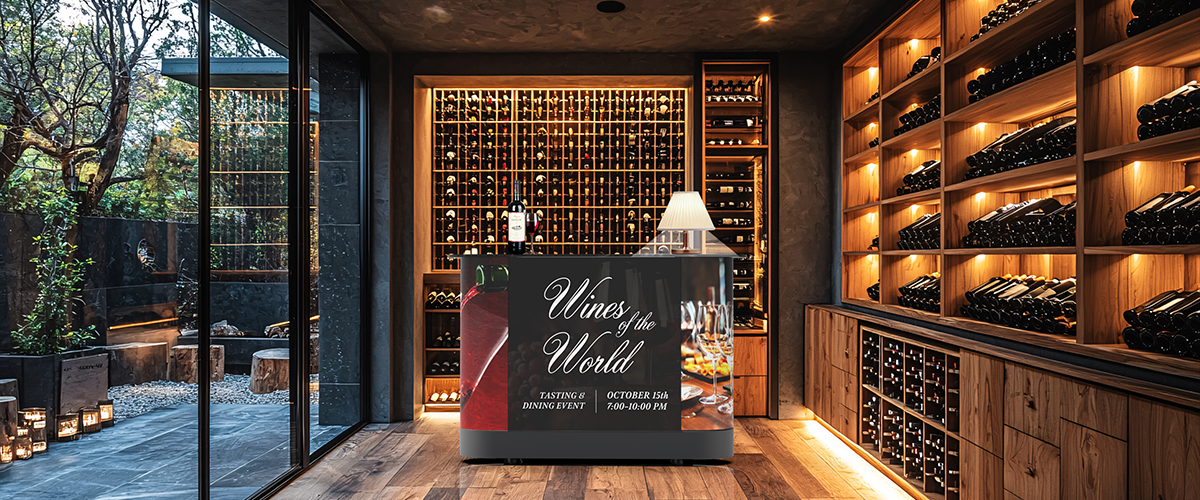

3. Fine dining restaurants & members' clubs:

   • It can serve as a sommelier recommendation station or a cocktail bar performance stage. Screens can display videos on wine origins and production techniques, enhancing service professionalism and guest ritual.

4. Commercial complexes & exhibition halls:

• Acts as a flexible information island or lounge refreshment station, easily relocated and its content updated according to promotional activities.

V. Key value propositions
