Reception Desk LED Display
Elevate your brand image with a premium front-desk LED display. Factory direct from CHIFELED — two stylish designs, three adaptable sizes, fine-pitch GOB soft modules, and fully customizable pixel pitch. CE/RoHS certified, plug-and-play, front-service maintenance.

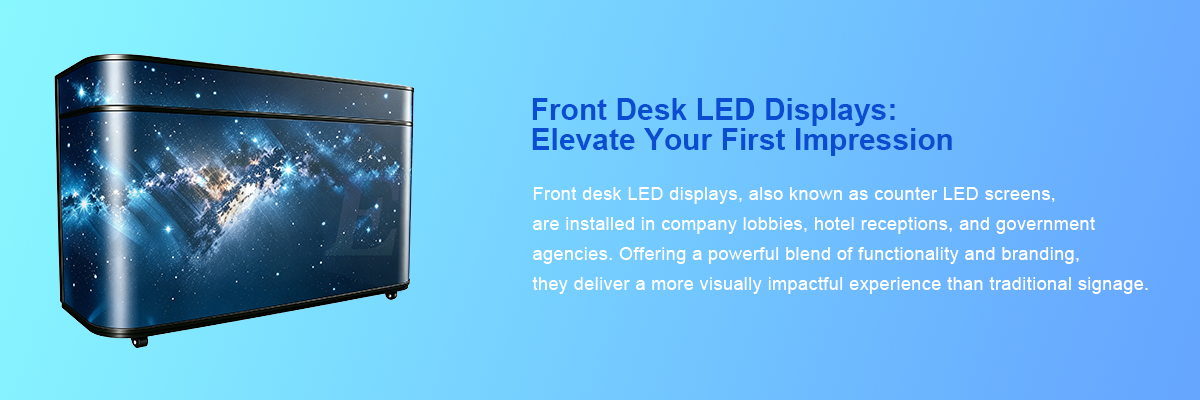

Product Overview
Our reception desk LED display is engineered to impress. Designed for corporate lobbies, hotel front desks, and government reception areas, this display combines premium aesthetics with industrial-grade reliability.
As an OEM/ODM LED display factory, we offer full customization — from pixel pitch and cabinet finish to exact dimensions matching your reception desk.
Two design styles available for different architectural aesthetics
Three predefined sizes or fully custom dimensions
Sheet metal baking finish cabinet — durable and elegant
Fine-pitch front-service soft module for seamless image
GOB (Glue-on-Board) process — enhanced protection and contrast
Custom pixel pitch to match your viewing distance
Plug-and-play — quick installation, no complex wiring
Front-service maintenance — no rear access needed
CE, RoHS certified — full compliance for global shipping

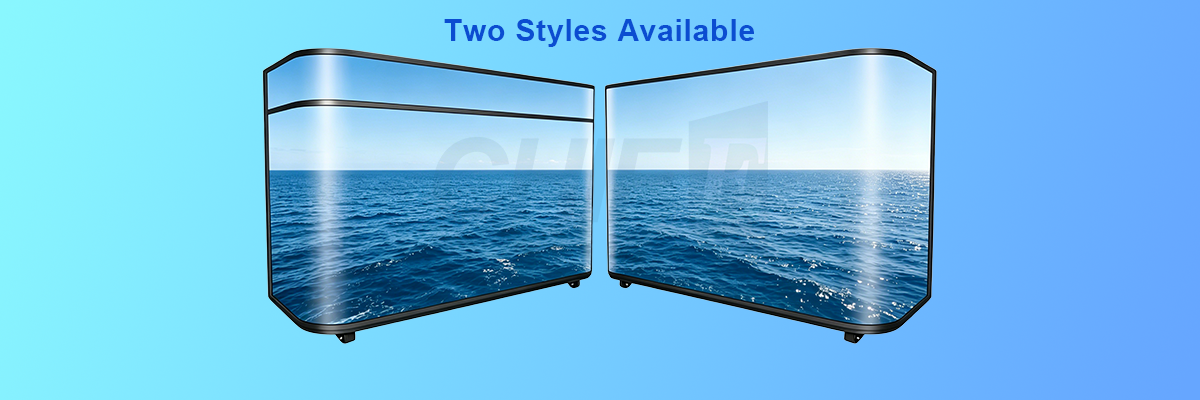

Two Design Styles
Choose the style that complements your reception area. Both use the same premium materials — the difference is in the front face design.
Style A — Classic Flat
Sleek, flush front panel with a minimalist flat surface. Ideal for modern clean-line interiors where subtlety matters.
Flush flat front face — ultra-slim appearance
Seamless module alignment for uniform display
Matte black finish minimizes reflection
Best for: corporate offices, tech company lobbies
Style B — Curved Frame
Elegant curved front frame with slight edge contouring. Creates a more dynamic, welcoming presence at the reception.
Subtle curved frame — soft, inviting silhouette
Enhanced side visibility for wider viewing angles
Premium brushed-finish bezel option available
Best for: hotels, luxury showrooms, government halls
Key Features & Technology

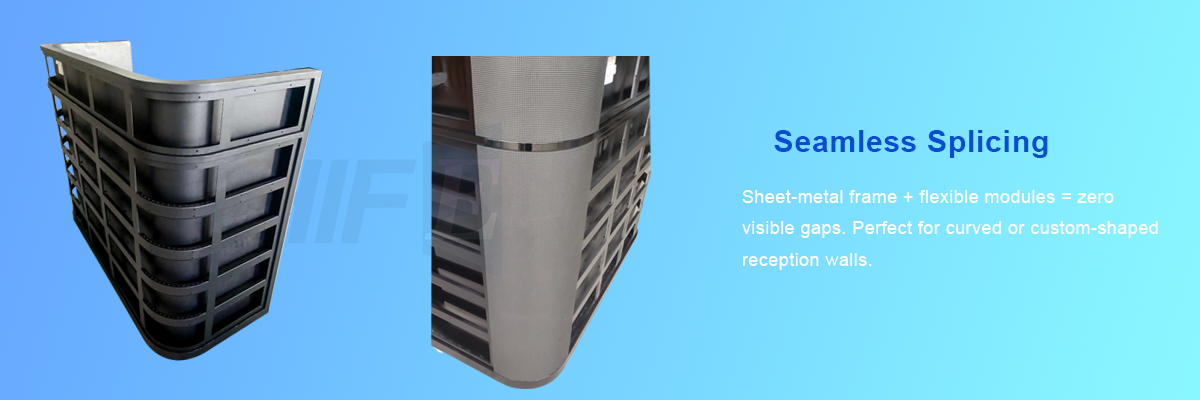

Sheet Metal Baking Finish Cabinet
High-strength sheet metal construction with automotive-grade baking finish. Resistant to scratches, corrosion, and daily wear. Available in black, white, or custom RAL colors to match your décor.
Fine Pitch Front-Service Soft Module
Small pitch (P1.5–P2.5) delivers crisp, high-resolution imagery. Soft module design ensures perfect flatness. Front-service means all maintenance is done from the front — no need to disassemble the desk.

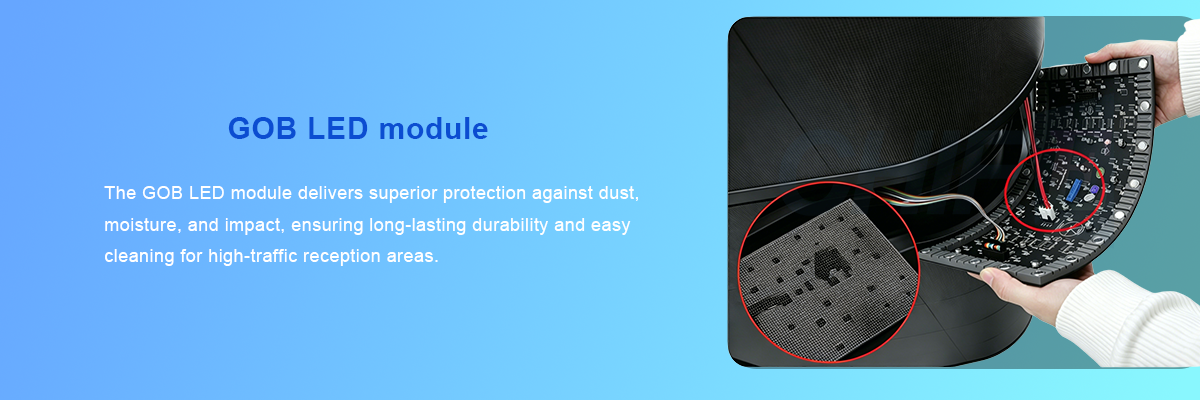

GOB Process Technology
Glue-on-Board encapsulation protects LED chips and solder joints from moisture, dust, and impact. Enhances contrast ratio by 30%, reduces glare, and extends module lifespan significantly.
Customizable Pixel Pitch
As a flexible OEM factory, we offer custom pixel pitch from P1.5 to P2.5 and beyond. Match your exact viewing distance and resolution requirements without compromise.
Plug & Play Installation
Pre-assembled and tested before shipping. Just place on your reception desk, connect power and signal — no on-site splicing or complex configuration needed. Ready in minutes.

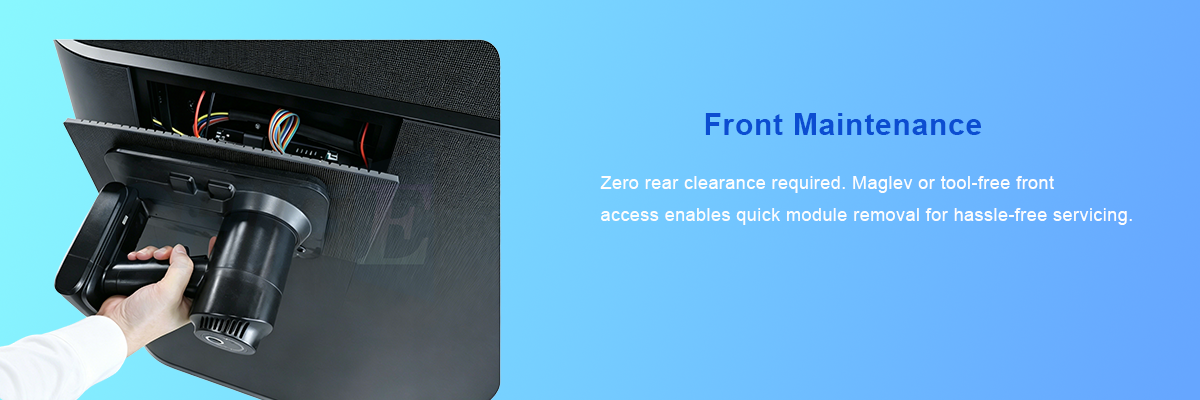

Front Service & Maintenance
All modules are removable and replaceable from the front. No rear clearance required — ideal for wall-mounted or desk-integrated setups. Reduces maintenance cost and downtime.
Full Certifications — CE, RoHS
Every unit complies with international safety and environmental standards. Includes full documentation for smooth customs clearance worldwide. Quality assured from factory.
OEM / ODM Factory Direct
We are the source manufacturer — no middlemen. Get competitive factory pricing, strict quality control, flexible customization, and dedicated technical support from the same team that builds the product.

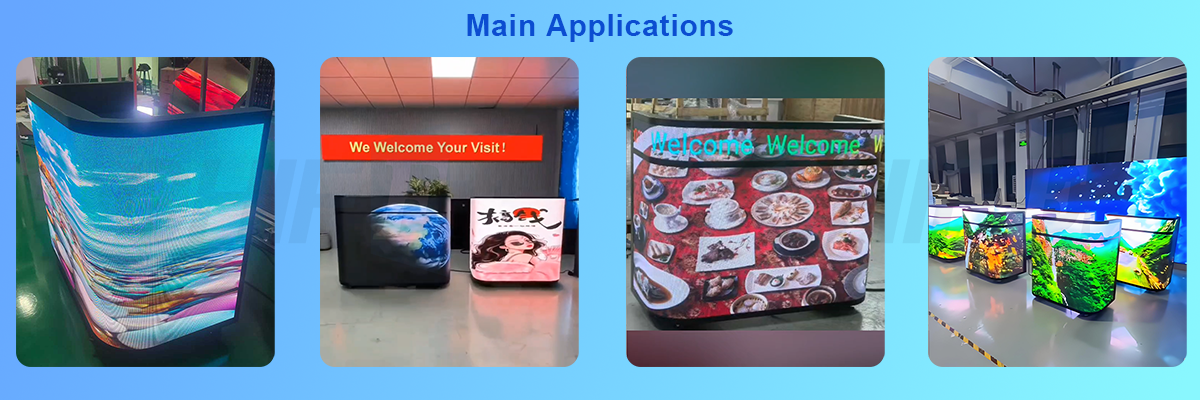

Application Scenarios
Reception desk LED displays are widely adopted across industries for brand presentation and visitor engagement.
Corporate Lobby
Display company branding, welcome messages, corporate videos, and real-time announcements to create a professional first impression.
Hotel Reception
Showcase room rates, event promotions, local attractions, and personalized welcome screens for arriving guests.
Government Reception
Display public notices, directional information, queue status, and policy highlights with clear, high-visibility content.
Retail & Mall
Promote seasonal campaigns, highlight featured products, and create an immersive brand experience at entrance counters
Medical & Clinic
Display department guides, appointment schedules, health tips, and patient welcome information in reception areas.
Bank & Finance
Show exchange rates, service guides, financial product promotions, and queue management information in real time.
Available Sizes
All three sizes share a consistent depth of 585mm and height of 1100mm, designed to sit elegantly on standard reception desks.
Pixel Pitch (mm) | P1.53(GOB) | P1.86(GOB) | P2.5(GOB) |
|---|---|---|---|
Pixel Configuration | SMD1212 | SMD1515 | SMD1515 |
Density (Pixels/㎡) | 422,500 | 288,906 | 160,000 |
Module Resolution (Pixel) | 208x104 | 172x86 | 128x64 |
Module Size (mm) | 320x160 | 320x160 | 320x160 |
Driving Mode (Duty) | 1/52 | 1/43 | 1/32 |
Display size(L*H) | 1920* 960 / 2240* 960 / 2560* 960 | 1920* 960 / 2240* 960 / 2560* 960 | 1920* 960 / 2240* 960 / 2560* 960 |
Cabinet Dimension(L*H*D) | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 |
Cabinet Resolution(Pixel) | 1248*624 / 1456*624 / 1664*624 | 1248*624 / 1456*624 / 1664*624 | 1248*624 / 1456*624 / 1664*624 |
Cabinet Weight (KG) | 97 / 115 / 130 | 97 / 115 / 130 | 97 / 115 / 130 |
Brightness (CD/㎡) | 600 | 600 | 600 |
Viewing Angle (°) | 140 | 140 | 140 |
Gray Grade (Bits) | 12-16 | 12-16 | 12-16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 1200 | 1200 | 1200 |
Avg. Power Consumption (W/㎡) | 500 | 500 | 500 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Working Temperature (ºC) | -20～+50 | -20～+50 | -20～+50 |
Protection Grade | IP43 | IP43 | IP43 |
Why Choose CHIFELED?
Source Factory
We design, manufacture, and test everything in-house. No middlemen markups. You get factory-direct pricing and full quality control traceability.
Full Customization
Pixel pitch, dimensions, cabinet color, frame style, brightness level — customize every parameter to match your exact project requirements.
Global Shipping Ready
Professional export packaging, full CE/RoHS documentation, and experience shipping to 40+ countries. Smooth customs clearance guaranteed.
Dedicated Support
From pre-sales technical consultation to after-sales support, your dedicated project manager ensures every question gets answered promptly.
Frequently Asked Questions
What pixel pitch options are available?
Pixel pitch is fully customizable from P1.5 to P2.5 and beyond. For reception desk applications where viewers are 1–3 meters away, we typically recommend P1.5 or P1.8 for optimal visual clarity. Contact us with your viewing distance and we will recommend the best pitch.
How is the display installed on a reception desk?
The display comes pre-assembled in a single cabinet. Simply place it on your reception desk, connect the power cable and signal source (HDMI or USB), and it is ready to use. No on-site assembly or complex wiring is needed.
Can the dimensions be customized?
Yes. As an OEM/ODM factory, we can customize the width, height, depth, and overall cabinet design to fit your specific reception desk dimensions. Contact us with your requirements and we will provide a tailored solution.
What is GOB process and why does it matter?
GOB (Glue-on-Board) is an encapsulation technology where a transparent protective adhesive is applied over the LED modules. It protects against moisture, dust, static shock, and minor impacts. It also improves contrast by reducing surface reflection, making the displayed content more vivid.
What certifications do you provide?
All our displays are CE and RoHS certified. We can provide the full certification documentation package for customs clearance in most countries. Additional certifications can be arranged for specific project requirements.
What is the lead time and shipping?
Standard lead time is 10-15 working days for standard sizes. Custom orders typically require 15-25 working days. We ship worldwide via sea or air freight, with professional export packaging to ensure safe delivery.
How is front service different from traditional maintenance?
Traditional LED displays require rear access for module replacement. Our front-service design allows modules to be removed and replaced entirely from the front of the display. This is especially important for reception desk installations where the back is typically against a wall or built into the desk structure.
Do you offer warranty?
Yes, we offer a standard 2-year warranty on all reception LED displays. Extended warranty options are available. We provide technical support and spare parts throughout the warranty period.
