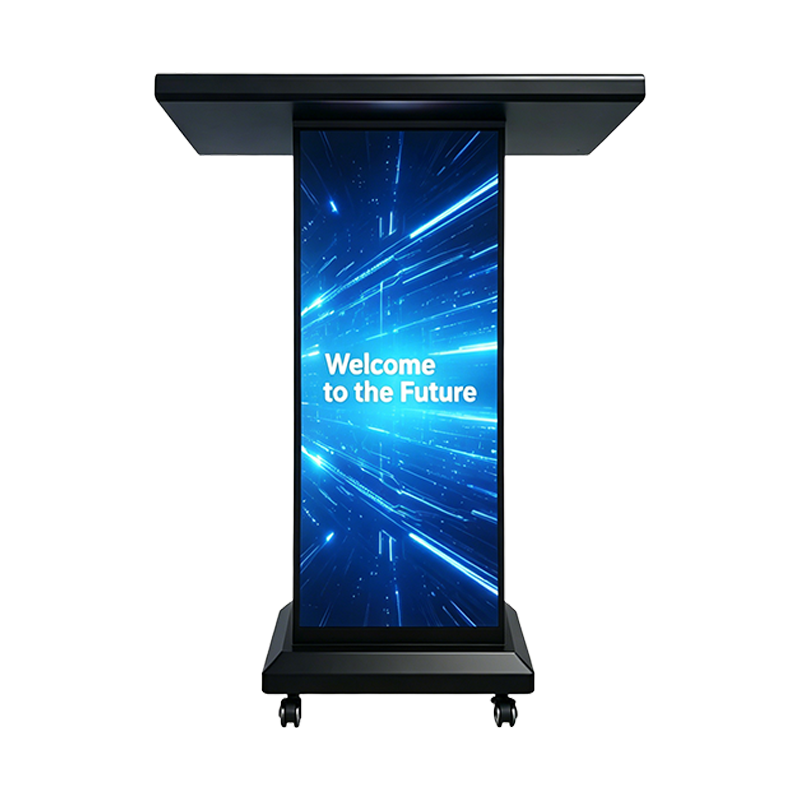

Product Overview
Everything you need for impactful presentations
Professional-grade podium LED display screen designed for conferences, churches, lecture halls, and public events. As a factory-direct manufacturer, we offer fully customizable pixel pitch and appearance. With CE, FCC, and RoHS certifications, every unit is quality-assured for worry-free delivery worldwide.
Key Features
Engineered for performance, designed for convenience

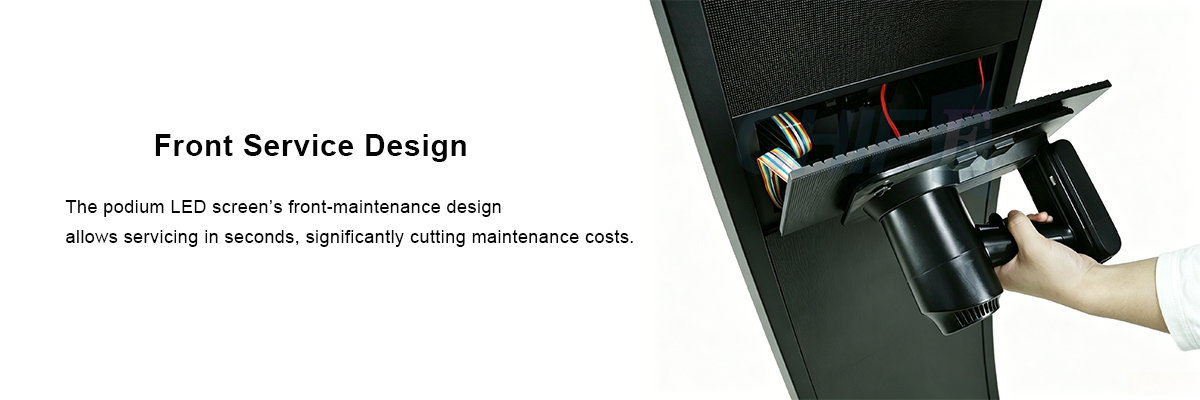

1. Front Service Maintenance
The podium LED display is designed for front servicing — all maintenance and repairs can be performed from the front side. No need for rear clearance, making it ideal for wall-mounted or stage-integrated installations. This design significantly reduces maintenance time and labor costs.

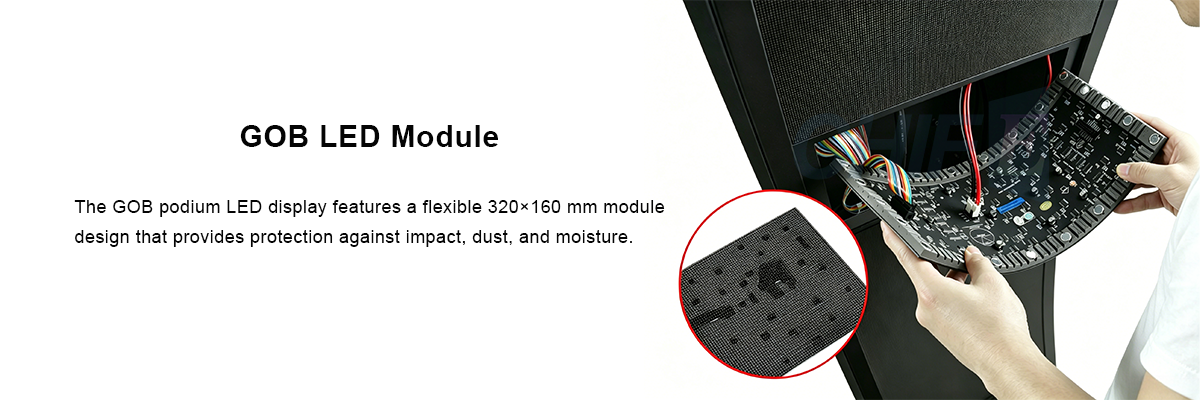

2. GOB Module – Waterproof & Dustproof
Our GOB (Glue on Board) technology encapsulates the LED modules with a protective layer, providing excellent waterproof, dustproof, and anti-impact performance. This ensures stable operation even in humid or dusty environments, extending the product's lifespan.
3. High-Definition Visual Experience
With high contrast ratio, vivid colors, and wide viewing angles, the podium LED display delivers stunning image quality. Whether you're displaying text, presentation slides, live video, or dynamic graphics, your audience will enjoy a clear and immersive viewing experience.
4. Custom Pixel Pitch & Appearance
As a factory-direct manufacturer, we offer complete customization. Need a fine-pitch display for close-range viewing? Or a unique color and logo finish to match your brand? We can tailor the pixel pitch and appearance to your exact requirements.
5. table with Swivel Casters
Both models come with heavy-duty Fuma wheels (swivel casters) at the base, allowing one person to easily move the unit between rooms, stages, or even load it for transport. This makes it perfect for rental use, multi-purpose rooms, and mobile events.
6. Plug & Play — Ready in Seconds
No complex wiring or technical installation required. Simply connect the power cable, plug in your video source (laptop, tablet, media player), and the display is ready. Even non-technical users can operate it with confidence.

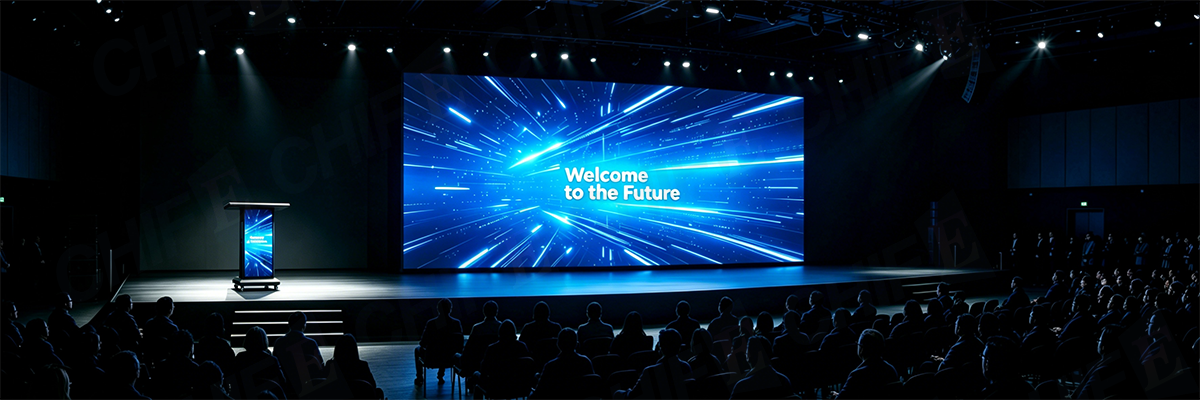

Application Scenarios
Versatile enough for any public speaking or information display environment

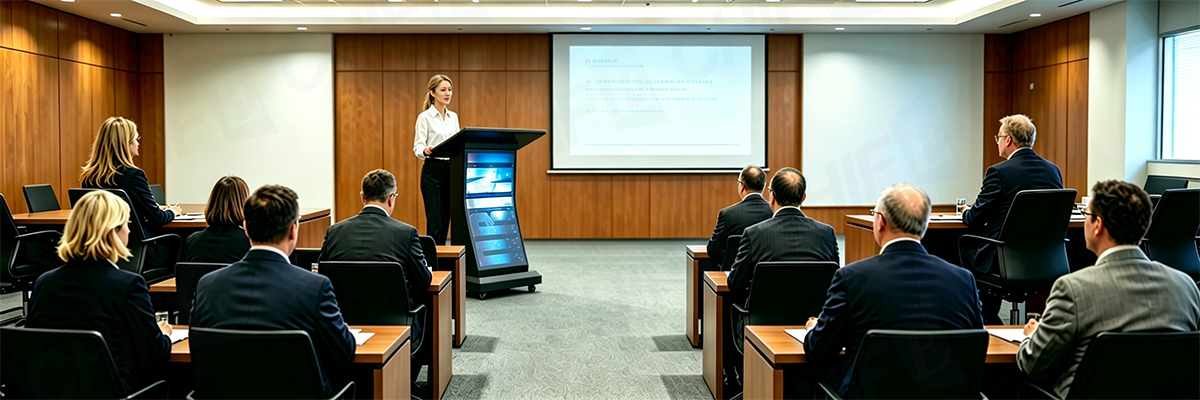

Conference Rooms & Multi-Function Halls
Ideal for board meetings, presentations, and internal briefings. Adds a professional touch to any corporate setting.
Churches & Auditoriums
Perfect for worship services, sermons, and community events. Clear visuals ensure messages reach every attendee.
Lecture Halls & Training Rooms
Great for academic lectures, seminars, and corporate training. Enhances audience engagement and content delivery.
Government & Enterprise Meetings
Suitable for official ceremonies, press conferences, and high-level meetings. Reliable and professional.
Public Events & Promotions
Use at trade shows, product launches, exhibitions, and brand promotion events. Grabs attention and delivers key messages effectively.
Public Speaking & Information Display
Perfect for keynote speeches, welcome messages, directional information, and real-time announcements. A versatile communication tool.
Technical Specifications
Two standard sizes available with custom options
Pixel Pitch (mm) | P1.53(GOB) | P1.53(GOB) | P1.86(GOB) | P1.86(GOB) |
|---|---|---|---|---|
Pixel Configuration | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
Density (Pixels/㎡) | 422,500 | 422,500 | 288,906 | 288,906 |
Module Resolution (Pixel) | 208x104 | 208x104 | 172x86 | 172x86 |
Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 |
Driving Mode (Duty) | 1/52 | 1/52 | 1/43 | 1/43 |
Display size(L*H) | 320*960 | 480*960 | 320*960 | 480*960 |
Cabinet Dimension(L*D*H) | 530*460*1150 | 650*460*1150 | 530*460*1150 | 650*460*1150 |
Cabinet Resolution(Pixel) | 208*624 | 312*624 | 172*516 | 258*516 |
Cabinet Weight (KG) | 24 | 29.6 | 24 | 29.6 |
Brightness (CD/㎡) | 600 | 600 | 600 | 600 |
Viewing Angle (°) | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 12-16 | 12-16 | 12-16 | 12-16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 1200 | 1200 | 1200 | 1200 |
Avg. Power Consumption (W/㎡) | 500 | 500 | 500 | 500 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Working Temperature (ºC) | -20～+50 | -20～+50 | -20～+50 | -20～+50 |
Protection Grade | IP43 | IP43 | IP43 | IP43 |
Frequently Asked Questions
Everything you need to know
What pixel pitch options are available?
As a factory-direct manufacturer, we offer fully customizable pixel pitch options. Whether you need a fine-pitch display (e.g., P1.5, P1.8, P2.0) for close viewing or a standard pitch for larger venues, we can tailor it to your specific requirements. Contact us with your viewing distance and we'll recommend the optimal pitch.
Can I customize the color and appearance?
Absolutely. We offer full appearance customization — you can choose the cabinet color, finish, and even add your brand logo. Whether you need a professional black, sleek white, or a custom RAL color, we can produce it. Simply share your design requirements.
How do I move the podium display?
Both models come with heavy-duty swivel casters (Fuma wheels) installed at the bottom. Simply unlock the casters, tilt and roll the unit to your desired location, then lock them in place. It's designed for one-person operation.
What certifications do your products have?
Our podium LED displays are fully certified with CE, FCC, and RoHS compliance. This ensures product safety, electromagnetic compatibility, and environmental standards. We can provide certification copies upon request.
Is technical support provided for international buyers?
Yes. We provide comprehensive technical support for all international customers, including installation guidance, troubleshooting, and after-sales service. Our team is available via email and live chat during business hours (GMT+8).
What is the warranty period?
Our standard warranty covers manufacturing defects. The exact warranty period depends on the configuration and order terms. Please contact our sales team for the full warranty details specific to your order.
