Six-layer four-sided deformable LED rotating mechanical display

The six-layer four-sided deformable LED rotating mechanical display is a breakthrough product in next-generation spatial display technology. It is not merely a display screen but a programmable physical deformation structure. Comprising six independent mechanical layers with four LED display units each, it forms a three-dimensional visual matrix of 24 display surfaces in total. Its core innovation lies in its mechanical deformation capability —the entire structure can change spatial relationships between layers through preset programs while rotating, achieving three-dimensional Rubik's Cube-like reassembly. Combined with a fully wireless content management system and visual programming interface, it creates an unprecedented carrier for spatial media art.

I.Core innovative architecture

1.Deformable mechanical system

• Six-layer linkage deformation structure: each layer equipped with high-torque servo motors supporting axial rotation and radial displacement, capable of combining over 50 basic forms

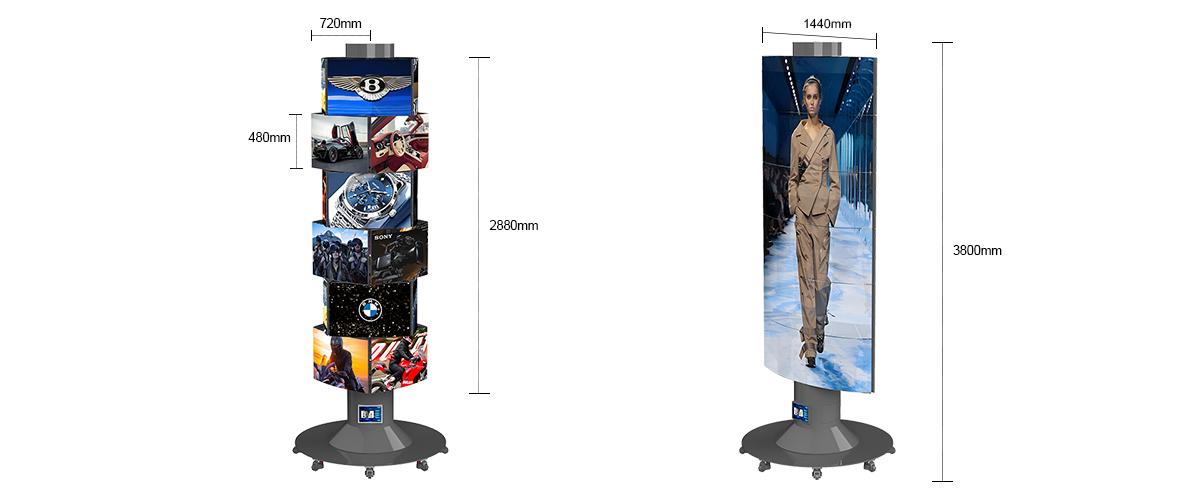

• Folding-deployment modes: transforms from a compact cube to an extended tower structure

• Dynamic center of gravity adjustment: built-in inertial sensors monitor real-time changes, automatically adjusting motor torque to maintain stability


• Silent transmission design: utilizes harmonic reducers combined with synchronous belt drives, with full-speed operation noise <28dB

2.Dual-mode display system

a.Main display surfaces

• Small pixel pitch options: supports P2/P2.5/P3 pixel pitches, with single-surface resolution up to 360×240 pixels

• Modular assembly: each display surface consists of 12 independent modules supporting hot-swappable replacement

• HDR enhanced display: local dimming technology achieves 100,000:1 dynamic contrast ratio

b.Visual programming interface

• Independent rotating touchscreen: 7.9-inch IPS touchscreen supporting ±180° physical rotation, decoupled or synchronized with main screen motion

II.Fully wireless intelligent control system

1.Network connectivity capabilities

• Multi-mode network support: built-in 4G /5G module (optional), dual-band Wi-Fi

• Intelligent network switching: automatically selects optimal transmission path based on signal quality

• Offline cache mechanism: built-in 16GB RAM capable of caching months of playback content

2.Cross-platform control ecosystem

• Unified control platform: web-based responsive control interface adapting to phone/tablet/computer screens

• Mobile Apps: dedicated iOS/Android apps

• One-touch synchronization: videos captured by phones can be directly optimized, cropped, and synced to the device playback queue via app

III.Intelligent motion mode system

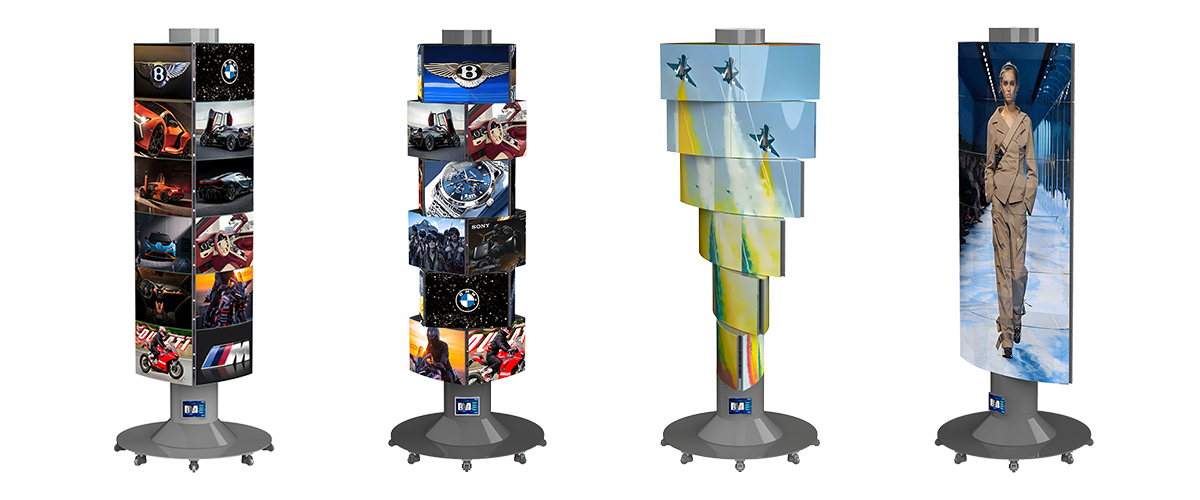

1.Preset deformation mode library

• Mechanical bloom mode: layers rotate and unfold sequentially from a cube, like a flower blooming

• DNA helix mode: adjacent layers rotate in opposite directions, forming a double-helix structure

• Breathing pulse mode: periodic expansion and contraction of the entire structure

• Architectural reconfiguration mode: simulates architectural structure transformation processes

• Fluid simulation mode: organic deformation based on fluid dynamics algorithms

2.Visual programming environment

• Node-based programming interface: create complex behaviors by connecting functional nodes without coding

• Real-time physical parameter adjustment: cirectly drag parameter sliders to adjust speed, acceleration, elasticity coefficients

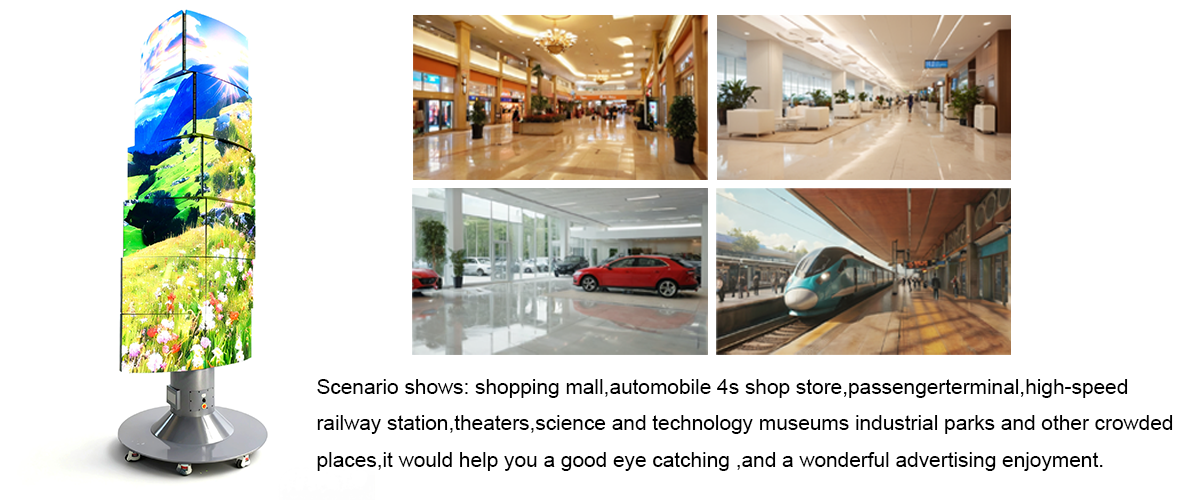

IV.Application scenario expansion

1.High-end retail & brand experience

• Flagship store dynamic windows: automatically deforms daily to change storefront visual identity

• Product launch ceremonies: gradually reveals new products during deformation, creating dramatic moments

• Wearable technology displays: mechanical motion rhythms coordinate with fashion presentation tempos

2.Exhibitions and technology expos

• Technology Expo: High-definition display technology and smooth rotation deliver a strong visual impact, allowing visitors to fully appreciate the unique charm of mechanical rotating screens in content display.

• Trade Show: Unique display formats attract more potential customers, helping exhibitors enhance their brand image and strengthen their market competitiveness.

3.Smart Cities & Public Art

• Urban Plaza Landmarks: Performs deformation shows at hourly intervals, showcasing city vitality

• Transportation Hub Guidance Towers: Deforms to point toward different exits while displaying corresponding information

• Festival Theme Installations: Switches between different holiday-themed forms through deformation

4.Corporate & Educational

• Tech Company Lobbies: Demonstrates core values of innovation and change

• STEM Teaching Tool: Visually demonstrates mechanical structures, kinematics, and programming concepts

• Data Center Visualization: Uses physical deformation to represent data flows and system status

It is both a technological product and an artistic medium; both an information display and a space transformer. Through wireless connectivity and intelligent control, it makes dynamic expression in physical space as flexible and controllable as digital content, opening a new chapter in spatial media art.

All technical specifications can be customized according to project requirements. Comprehensive services from creative consulting and content production to installation and maintenance are provided. Supports private deployment and SDK deep development, offering tailored solutions for various needs including large-scale events and permanent installations.

V.Parameter table
