Product Overview

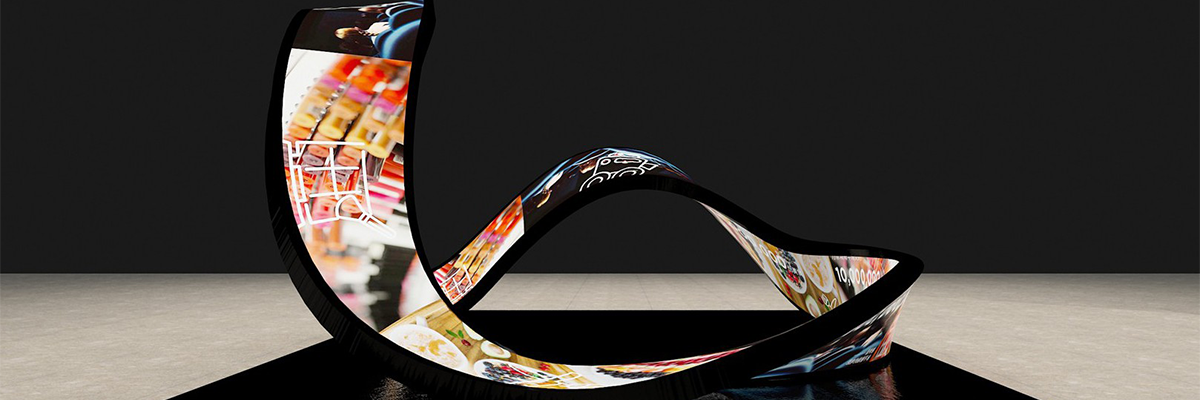

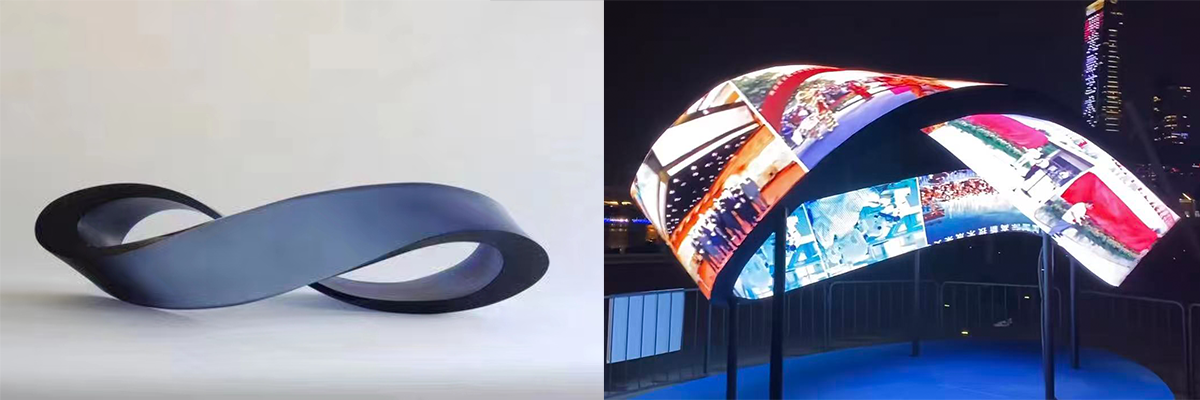

The Mobius LED Display is the most striking innovation in the creative LED display family. Inspired by the Mobius strip — a topological marvel with only one surface and one boundary — it transforms conventional flat panels into a seamless, three-dimensional infinite loop structure.
Unlike traditional rectangular or flat LED panels, the Mobius loop LED screen offers a boundless visual experience that captivates viewers from every angle. Its continuous twisting form conveys a sense of eternity, innovation, and limitless potential — making it an iconic statement piece for any space.
As a source factory, we offer complete customization of pixel pitch (P1.8-P4) and structural shape. Every Mobius LED display is built to your exact specifications with full CE, RoHS, and FCC certifications for worry-free global shipping.
Key Advantages
1. Infinite Loop Visuals – Content flows continuously around the ring without interruption. No start, no end – only an endless story.
2. 360° Viewing – Every angle offers a clear, immersive view. Ideal for atriums, museums, and busy public spaces.
3. Fully Customizable – Flexible LED modules allow any size, curvature, twist angle, and pixel pitch (P1.8 – P4). Single-ring diameters from 1.5m to 10m+.
4. High Resolution & Brightness – Crisp images, 3840Hz refresh rate, brightness up to 5500 nits for outdoor use.
5. Seamless Splicing – No visible gaps. Advanced flexible PCBs ensure smooth, uniform displays.
Technical Specifications
Customizable parameters for your vision
Module type | P1.25 | P1.29 | P1.538 | P1.568 | P1.86 | P2 | P2.5 | P3 | P4 | ||
Technical parameters | Pixel configuration | 1R1G1B | |||||||||
LED packaging | SMD1010TOP | SMD1010CHIP | SMD1212 | SMD 1515 | SMD2020 | ||||||
LED packaging | 640000 | 600625 | 422500 | 406406 | 288906 | 250000 | 160000 | 105625 | 62500 | ||
Module Size(mm) | 320X160X8.6 | ||||||||||
Module Resolution (Pixel) | 256X128 | 248X124 | 208X104 | 204X102 | 172X86 | 160×80 | 128X64 | 104×52 | 80×40 | ||
Driving Mode(Duty) | 64 | 62 | 52 | 51 | 43 | 40 | 32 | 26 | 20 | ||
Standard constant current IC | PWM | Double buffer or PWM | Double buffer | ||||||||
Refresh frequency | 3840 | 1920- | 1920 | 1920 | |||||||
Frame Frequency (Hz) | 60hz | ||||||||||
Gray level | 13-14 | 12-13 | 12 | ||||||||
Splicing diameter | 1222 | 1019 | 815 | 611 | 407 | ||||||
Bending radian | ≥165° | ≥162° | ≥158° | ≥150° | ≥150° | ≥135° | |||||
Module weight(g) | 330 | 400 | 340 | 290 | 280 | ||||||
Flatness | ≤0.3 | ≤0.5 | |||||||||
Optical specifications | brightness | 600-650 | 700-750 | 650-750 | 700-750 | ||||||
Max. Power Consumption (W/㎡) | 600 | 440 | 430 | 450 | 410 | 360 | |||||
Avg. Power Consumption (W/㎡) | 170 | 125 | 123 | 128 | 118 | 103 | |||||
Usage parameters | Service life | 100000 | |||||||||
Working temperature range | -20-40 | ||||||||||
Working humidity range | 20%—75% | ||||||||||

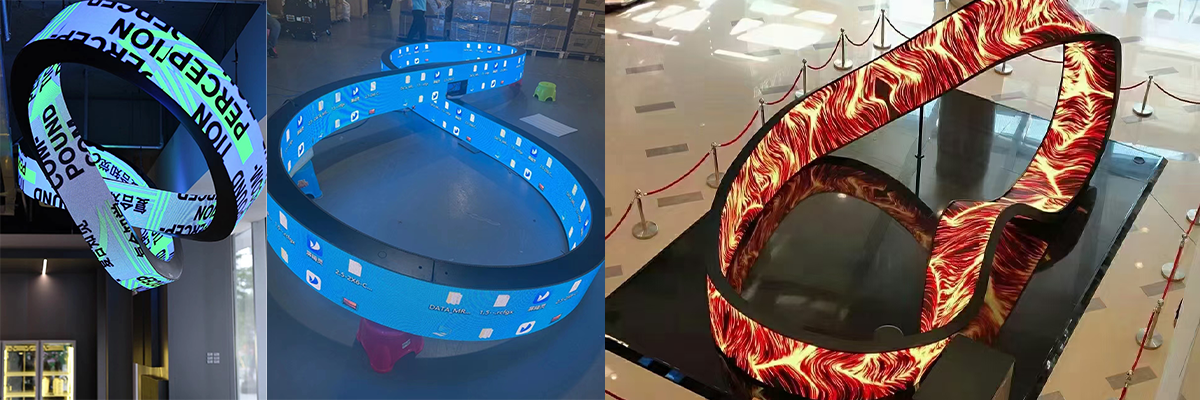

Application Scenarios
Where the Mobius LED display creates the greatest impact
Museums & Science Centers – Showcase mathematical beauty and innovation.
Shopping Malls – Create Instagram‑worthy focal points.
Landmark Art – Large‑scale installations.
Brand Showrooms – Reinforce premium, forward‑looking identity.
Stages & Events – Enhance live performances with flowing visuals.
Tourism & Night Scenery – Build “infinite loop” themed attractions.
Custom Manufacturing Process

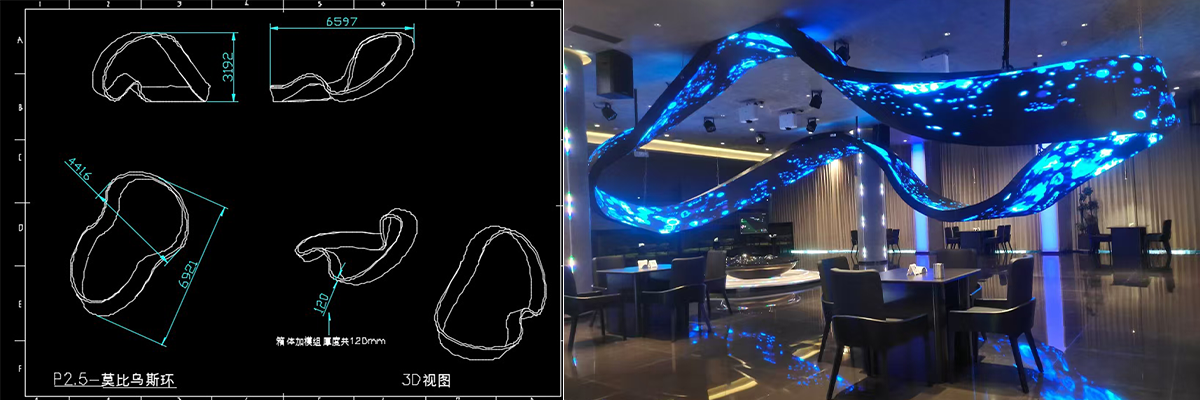

3D Modeling – Exact size and structure simulation.
PCB & Module Design – Flexible PCBs tailored to the twist.

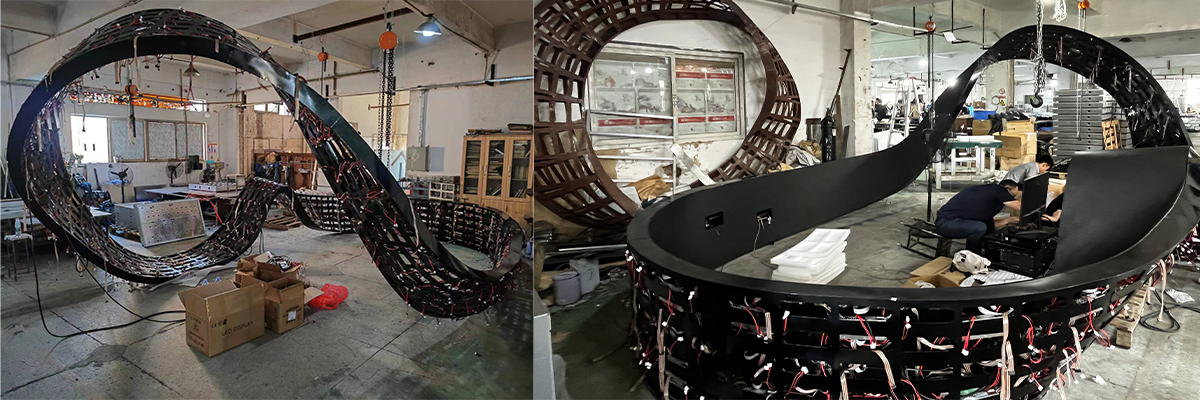

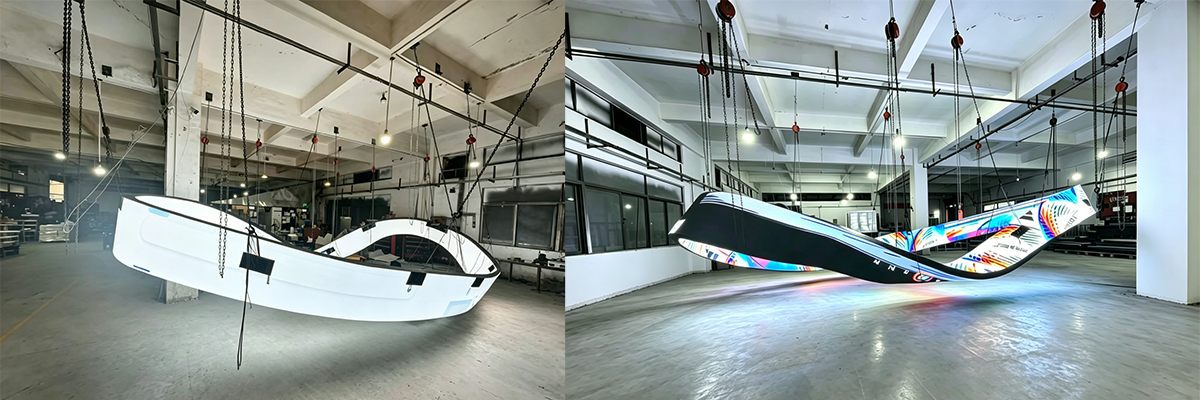

Assembly & Aging Test – Full test for reliability.
Packaging & Shipping – 360° Safe Protection, Shipped in Fumigation-Free Wooden Crates

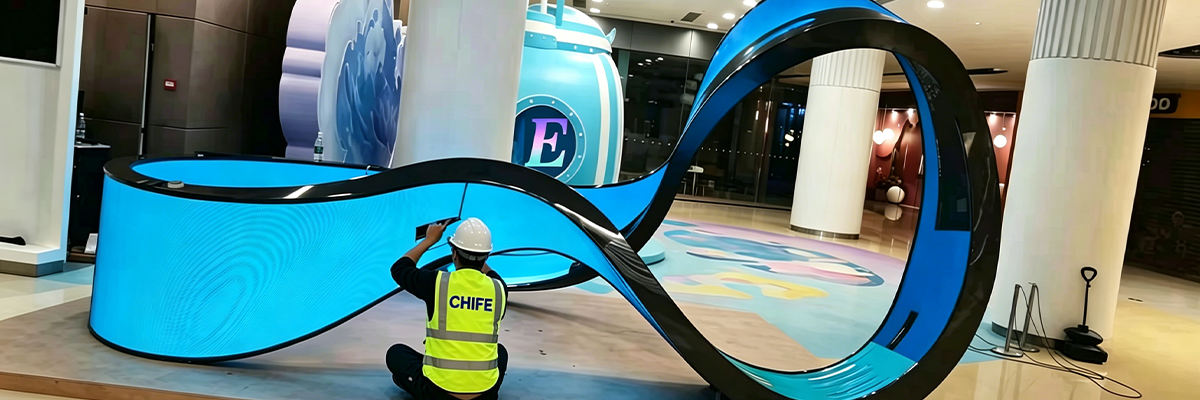

On-Site Installation – Professional engineers offer remote support for the entire installation and calibration process to ensure proper playback.
Why Choose ChIFE LED?
Source factory advantages that make every project easier
Proven expertise in complex curved and twisted LED structures
High‑quality flexible modules with durable materials
Seamless splicing via CNC & magnetic alignment
Full customization – size, curvature, pitch, brightness
Global Service & Support – Dedicated customer support for projects worldwide.
Frequently Asked Questions
Common questions about Mobius loop LED displays
Q: Can the pixel pitch of the Mobius LED display be customized?
A: Yes. As a source factory, we offer fully customizable pixel pitch from P1.25 (ultra-HD, close viewing) to P4 (large format). We'll recommend the optimal pitch based on your viewing distance and content requirements.
Q: What certifications do Chifeled Mobius loop LED displays have?
A: All our products are CE, RoHS, and FCC certified. Additional certifications can be provided upon request based on your destination country's requirements.
Q: Can the Mobius strip shape be customized?
A: Absolutely. The twist angle, loop width, curvature radius, ribbon thickness, and overall proportions can all be adjusted. We can also create multi-twist Mobius structures or other topological variations based on your design.
Q: What is the typical lead time for a custom Mobius LED display?
A: Standard lead time is 20 to 35 working days, depending on structural complexity and order quantity. The unique curved structure requires precision engineering and custom tooling.
Q: How is content adapted for the continuous loop surface?
A: We provide content mapping guidelines and work with compatible media servers to ensure seamless playback across the continuous loop surface. Custom content creation services are also available upon request.
Q: Do you provide installation support for overseas projects?
A: Yes. We provide detailed installation manuals, video guidance, and remote technical support. For complex Mobius structures, on-site installation supervision can be arranged.
Q: What is the minimum order quantity (MOQ)?
A: MOQ depends on the specific configuration. For custom Mobius LED displays, we typically accept orders from 1 piece. Contact us for a project-specific quote and feasibility assessment.
