Why Choose Our Immersive LED Display?
Engineered for visual impact. Built for reliability. Backed by 10+ years of LED manufacturing expertise.
1. Seamless Splicing
Ultra-narrow bezel design (≤0.1mm gap) creates a near-invisible seam between panels, delivering a truly unified, wall-to-wall visual canvas with no distraction.
2. 360° Full-View Wrapping
Modular curved segments enable cylindrical, spherical, concave, and convex layouts. Audiences get an uninterrupted panoramic view from every angle.
3. Superior Picture Quality
High refresh rate (≥3840Hz), 16-bit grayscale, and DCI-P3 wide color gamut deliver cinema-grade contrast, true blacks, and lifelike colors for any content.
4. Interactive & Sensor Ready
Integrated infrared touch, motion tracking, and haptic feedback support. Compatible with standard sensor protocols for gesture recognition and immersive interaction.
5. XR / Virtual Production Core
Low-latency (<3 frames) camera tracking sync eliminates moiré patterns and flicker on camera. The ideal LED volume for in-camera VFX and real-time rendering workflows.
6. Multi-Screen Mosaic
Daisy-chain up to 16 displays per controller with Genlock frame synchronization. Seamless multi-screen deployment for large-scale creative installations.
Technical Specifications
High-density LED packages with robust driver ICs — available in P2.5, P1.8, P1.2, and P0.9. All pitches support custom cabinet shapes.
Parameter | P2.5 | P1.8 | P1.2 | P0.9 |
|---|---|---|---|---|
Pixel Pitch | 2.5 mm | 1.875 mm | 1.25 mm | 0.9375 mm |
LED Type | SMD 3-in-1 / MiniLED (SMD 1415 / 1515) | |||
Refresh Rate | ≥3840 Hz | |||
Brightness | ≥1500 nits | ≥1200 nits | ≥1000 nits | ≥800 nits |
Contrast Ratio | ≥5000:1 | |||
Gray Scale | 14–16 bit | |||
Viewing Angle | 160°(H) / 160°(V) | |||
Cabinet Size | 500×500 mm | 480×480 mm | 480×360 mm | 480×360 mm |
Cabinet Shape | Rectangular / Curved / Custom (any profile) | |||
IP Rating | Front: IP30 / Rear: IP20 (custom IP54 available) | |||
Certification | CE, RoHS, FCC, ETL, CCC, TÜV (on request) | |||
Where Immersive LED Shines
From Hollywood sound stages to retail flagship stores — our immersive LED displays power experiences that captivate and convert.
XR / Virtual Production
LED volumes for in-camera VFX, real-time backgrounds, and virtual set extensions. Compatible with Unreal Engine, Disguise, and Brompton processing.
Exhibition & Museums
Immersive digital art rooms, interactive timelines, and panoramic historic re-creations that draw visitors into the narrative.
Retail & Brand Spaces
360° brand experience zones, digital showrooms, and interactive storefronts that boost dwell time and brand recall.
Entertainment Venues
Themed dome theaters, immersive rides, concert stage backdrops, and nightclub LED environments that surround audiences.
Simulation & Training
Flight simulators, military tactical training, and medical AR visualization — low-latency, high-fidelity immersive LED walls.
Corporate & Conference
Immersive boardrooms, experience centers, and product launch stages with seamless multi-screen layouts.
Factory Direct – Your OEM / ODM Partner
We are not a trading company — we design, engineer, and manufacture every display in our own ISO-certified facility in Shenzhen, China.
Custom Shape & Size
Round, arc, S-curve, L-shape, triangular, hexagonal, or freeform — our R&D team brings your creative vision to physical reality.
Pixel Pitch Customization
From ultra-fine P0.9 for close viewing to P2.5 for large-scale installations. Mix pitches in a single project for cost optimization.
Certification Guaranteed
CE, RoHS, FCC, ETL, CCC, TÜV — all major certifications covered. Full compliance documentation shipped with every order.
Reliable Delivery
Strict QC at every stage: incoming material inspection, in-process testing, 48-hour burn-in, and final QA before shipment.
OEM / Branding
Custom packaging, logo printing, firmware splash screen, and control software white-labeling available for resellers worldwide.
Global Support
English-speaking project managers, on-site installation guidance, remote troubleshooting, and 3-year warranty coverage.
Frequently Asked Questions
Quick answers to common questions about immersive LED displays, customization, and shipping.
What pixel pitch should I choose for my project?
For viewing distances ≤2m (e.g., indoor exhibition, retail), we recommend P0.9–P1.2. For distances 3–5m (e.g., virtual production stages, conference halls), P1.8–P2.5 offers the best balance of clarity and cost. Our engineers provide a free viewing-distance analysis with every inquiry.
Can you manufacture non-rectangular shapes?

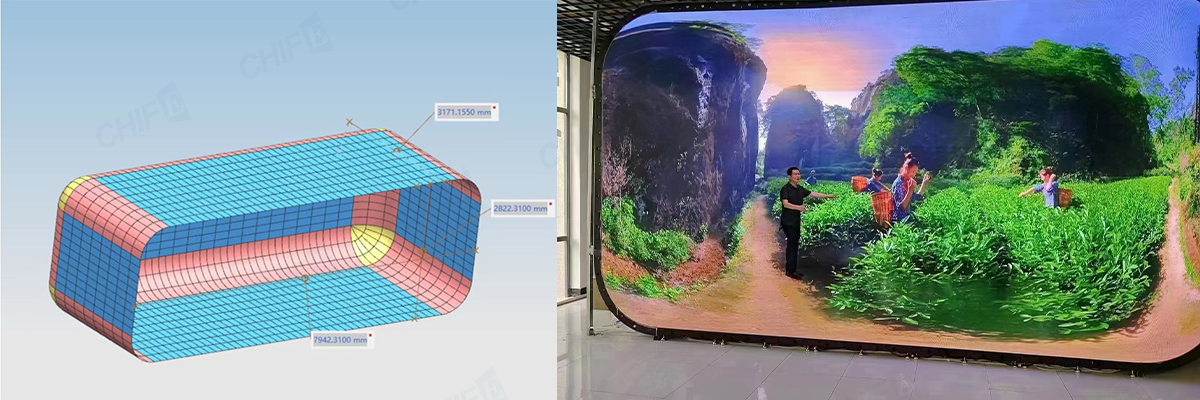

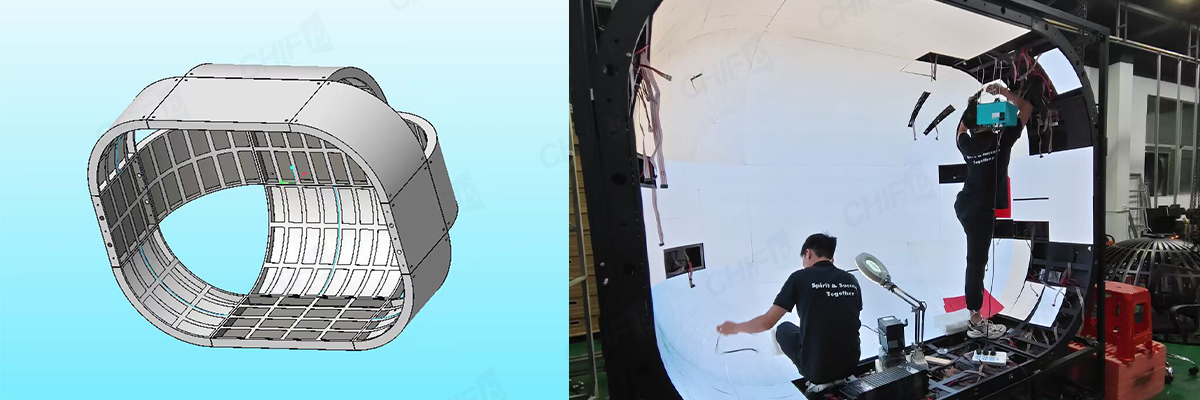

Absolutely. We have delivered arc (concave/convex), cylindrical, spherical, S-curve, L-shaped, triangular, and freeform LED displays. Custom die-cast aluminum cabinets are made to your CAD drawings, and we can assist with structural engineering.
What is the typical lead time?
Standard rectangular cabinets: 15–20 working days. Custom-shaped cabinets: 25–35 working days, depending on complexity. Rush orders are possible for quantities under 20 sqm — contact our sales team for express options.
Do you provide on-site installation support?
Yes. We offer remote video guidance (free) and on-site installation supervision (fee-based). Our technical team also provides comprehensive installation manuals and pre-assembly training for your local technicians.
What certifications do you provide with shipments?
Every shipment includes CE and RoHS compliance declarations as standard. FCC, ETL, CCC, and TÜV certifications are available upon request. We also provide factory inspection reports and material safety datasheets.
