Product Overview

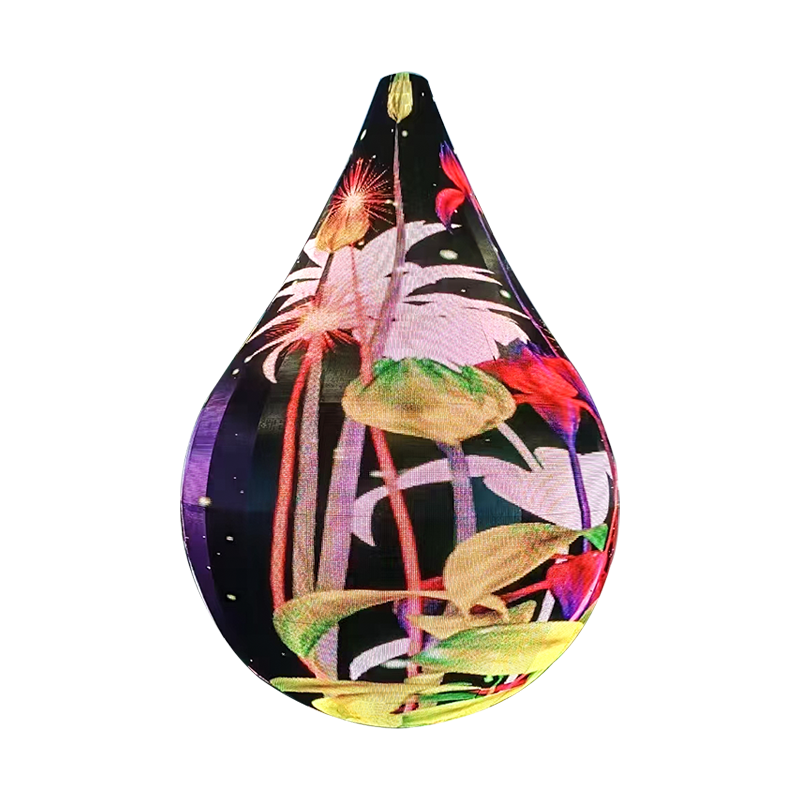

The Waterdrop LED Display is a creatively shaped indoor LED screen designed to mimic the natural, flowing form of a water droplet. It represents the perfect fusion of technology, art, and commercial value — a creative visual solution worth serious consideration for any indoor space.
Unlike traditional rectangular screens, the waterdrop shape instantly captures attention and delivers a unique visual identity. Whether installed in a retail store, hotel lobby, science museum, bar, or stage, it transforms ordinary indoor spaces into extraordinary visual experiences.
As a source factory, we offer complete customization of pixel pitch (P2-P6 indoor) and outer shape. Every screen is built to your exact specifications with full CE, RoHS, and FCC certifications for worry-free global shipping.
Key Features
Why the Waterdrop LED Display stands out in indoor creative visual solutions
Unique Waterdrop Shape
Organic, flowing form breaks away from traditional rectangular displays. The waterdrop silhouette naturally draws the eye and elevates any indoor installation.
Indoor Pixel Pitch (P2-P6)
Fine pixel pitch optimized for indoor viewing distances. From ultra-HD P2 for close-up retail displays to P6 for larger indoor installations.
Full Shape Customization
Adjust the waterdrop curve, aspect ratio, and size — or create entirely custom irregular shapes. Your design, our engineering.
Ultra-Quiet Operation
Fanless or silent fan design ensures zero noise interference — perfect for quiet indoor environments like hotel lobbies and museums.
Vivid Color & High Contrast
High refresh rate up to 3840Hz with exceptional color reproduction. Rich, vibrant visuals that captivate audiences in any indoor setting.
Full Certifications
CE, RoHS, FCC certified. Compliance with international standards means fast customs clearance and reliable quality assurance.
Application Scenarios
Perfect for these indoor environments
Retail Stores & Shopping Malls
Attract foot traffic with a stunning waterdrop display in shop windows, brand zones, and mall atriums. The unique shape creates a strong brand identity and draws customers into your store.

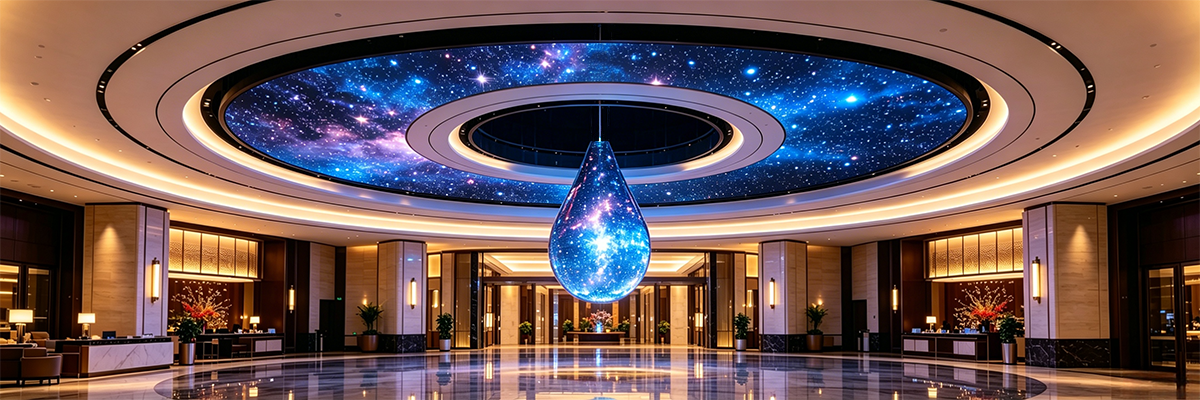

Hotel Lobbies
Elevate the guest experience with an artistic waterdrop LED screen in hotel lobbies and reception areas. Creates a sophisticated, modern atmosphere that leaves a lasting impression.
Science Centers & Museums
Engage visitors with dynamic waterdrop displays at science centers, technology museums, and exhibition halls. The creative shape itself becomes part of the exhibit experience.
Stage Decoration & Bars
Add visual dynamism to stage backdrops, nightclub interiors, and bar counters. Waterdrop LED screens sync with music and lighting for an immersive entertainment atmosphere.
Technical Specifications
Customizable parameters to match your indoor project requirements
Parameter | Option Range |
|---|---|
Pixel Pitch | P2 – P6 (indoor-optimized) |
LED Type | SMD 1515 / 1921 / 2121 |
Brightness | 800 – 2000 nits (indoor) |
Refresh Rate | 1920Hz – 3840Hz |
IP Rating | IP30 / IP43 (indoor) |
Viewing Angle | H: 160° / V: 160° |
Power Consumption | Average: 150–300 W/m² | Peak: 400–700 W/m² |
Cabinet Material | Die-cast aluminum / Custom |
Shape Customization | Waterdrop curve, size, aspect ratio — fully adjustable |
Control System | NovaStar / Colorlight / Compatible |
Operating Temperature | 0°C ~ +45°C (indoor) |
Noise Level | Silent / Ultra-low noise fan |
Certifications | CE, RoHS, FCC |
Warranty | 2 years |
Why Choose Chifeled?
Source factory advantages that make every project easier
12+ Years of Experience
Over a decade of LED display manufacturing expertise serving global clients.
100+ Countries Served
Trusted by clients across 100+ countries and regions worldwide.
24/7 Technical Support
Engineer-backed support throughout installation, operation, and maintenance.
✅ Certified Quality
Every unit tested before shipment. CE, RoHS, FCC — full compliance guaranteed.
Frequently Asked Questions
Common questions about indoor waterdrop LED displays
Q: Can the pixel pitch of the waterdrop LED display be customized?
A: Yes. As a source factory, we offer fully customizable pixel pitch from P2 (ultra-HD, close viewing) to P6 (indoor large format). We'll help you select the optimal pitch based on your indoor viewing distance and resolution requirements.
Q: What certifications do Chifeled waterdrop LED displays have?
A: All our products are CE, RoHS, and FCC certified. We also can provide additional certifications upon request depending on your destination country's requirements. This ensures fast customs clearance and reliable quality.
Q: Is this waterdrop LED display suitable for outdoor use?
A: This model is specifically designed for indoor applications such as retail stores, hotel lobbies, museums, science centers, bars and stage decoration. For outdoor needs, please contact us for our outdoor-rated creative display solutions.
Q: Can the shape be customized beyond the standard waterdrop design?
A: Absolutely. The waterdrop shape is fully adjustable — curve, aspect ratio, size. We also support other custom irregular shapes (raindrop, leaf, logo shapes, etc.) based on your design files.
Q: What is the typical lead time for a custom waterdrop LED display?
A: Standard lead time is 15 to 30 working days, depending on the complexity of customization and order quantity. Rush orders may be available for an expedited fee.
Q: Do you provide installation support for overseas projects?
A: Yes. We provide detailed installation manuals, video guidance, and remote technical support. For large projects, on-site installation supervision can be arranged.
Q: What is the minimum order quantity (MOQ)?
A: MOQ depends on the specific configuration. For creative shape displays, we typically accept custom orders from 1 piece. Contact us for a project-specific quote.
