What Is a Stage Immersive LED Display?
An immersive LED display is a multi-surface or ultra-large curved LED screen system that covers the audience's full field of vision — front, sides, floor, and ceiling. Unlike traditional single-plane screens confined to a "picture frame" effect, our immersive LED stage solution surrounds the viewer, eliminating visual blind spots and creating a deep, wrap-around sense of presence.
Designed for concerts, live performances, theater productions, XR virtual production, TV broadcast studios, exhibition halls, and high-end commercial spaces, the system combines fine pixel pitch (P1.5–P2.6), 3840Hz ultra-high refresh rate, and synchronized multi-surface playback to deliver breathtaking visuals — whether the audience is in the front row or watching through a 4K/8K broadcast camera.
Multi-Surface 360° Coverage
Front LED wall, side wings, floor LED, and ceiling panels — synchronized as one seamless visual environment. Covers the audience's main and peripheral vision, eliminating blind spots.
3840Hz Ultra-High Refresh
Camera-friendly refresh rate ensures zero scan lines, zero flicker, and zero black bars when captured by 4K or 8K broadcast cameras. Ideal for virtual production and live TV broadcast.
Precision Color Uniformity
High-precision module splicing with pixel-by-pixel calibration ensures consistent brightness and color across the entire display — no visible seams, no color variation.
Exceptional Low-Brightness Performance
Rich grayscale retention even at low brightness levels. Perfect for dark ambiance immersive scenes — deep blacks, detailed shadows, and smooth gradients without loss of detail.
Flexible Custom Shapes
Supports curved, cylindrical, corner, right-angle, and irregular panel configurations. Fully customizable to match any stage design or architectural requirement.
Key Technical Features
Every detail engineered for stage-grade performance — from pixel-level calibration to international safety certifications.
Seamless Multi-Surface Integration
Our immersive LED display system integrates multiple LED surfaces — main backdrop, side wings, floor panels, and optional ceiling panels — into one synchronized visual canvas. Advanced video processing ensures frame-accurate playback across all surfaces, creating a truly wrap-around immersive experience without visual gaps or tearing.

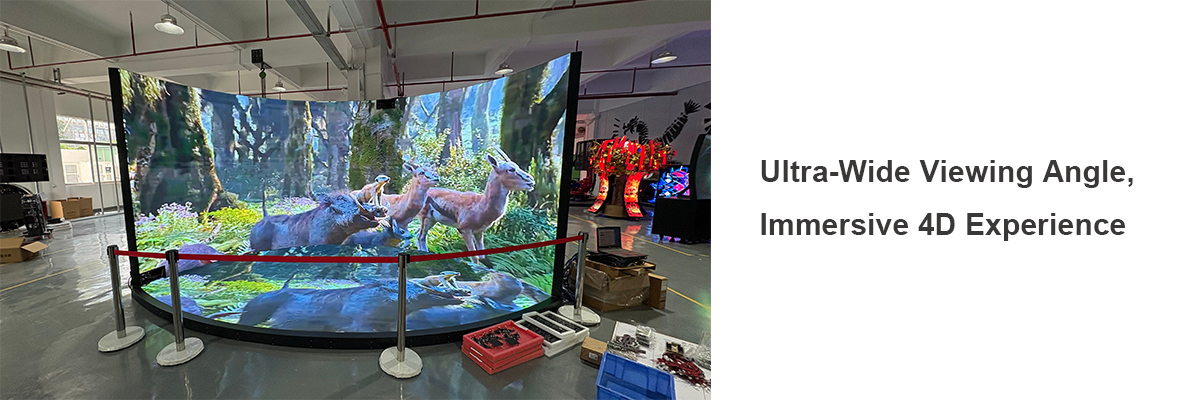

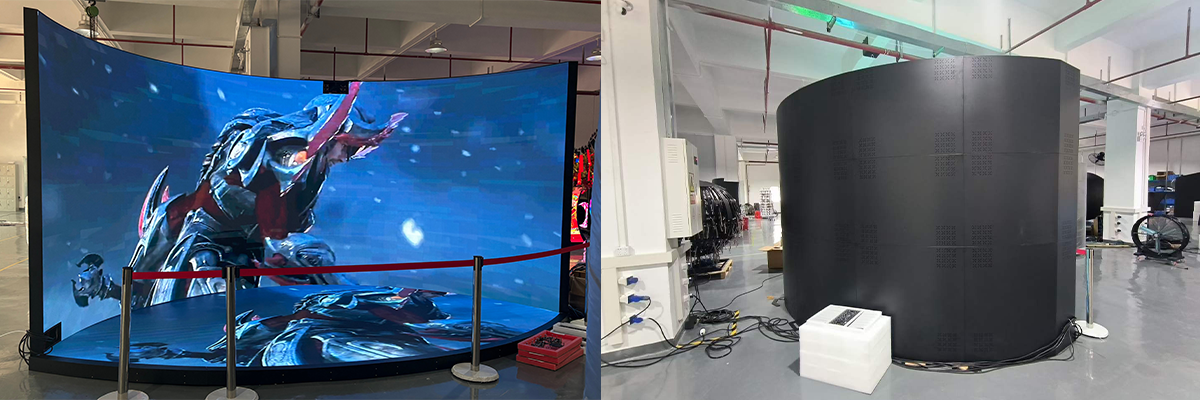

Whether it's a concave curved wall, a 360° cylindrical LED room, or a three-wall CAVE setup, our modular system adapts to any configuration.
3840Hz Refresh Rate — Camera-Ready
A standard LED screen at 1920Hz refresh can still show scan lines when captured by professional cameras. Our 3840Hz ultra-high refresh rate eliminates this issue entirely — no flicker, no scanning artifacts, no black lines — ensuring clean, broadcast-ready footage for:
Live TV broadcast & streaming
XR / virtual production stages (Unreal Engine, Disguise, Notch)
Music video & film production
eSports & gaming events
High-Contrast & Deep Blacks
Featuring high-contrast LED lamp technology (up to 10,000:1 contrast ratio), our immersive display delivers true deep blacks and vibrant colors — critical for dark-stage scenarios where every subtle shadow and highlight contributes to the illusion of immersion.
Precision Assembly & Calibration
Each module undergoes pixel-by-pixel calibration to ensure uniform brightness (±2%) and color (ΔE < 2) across the entire display surface. High-precision CNC-machined cabinet frames guarantee sub-millimeter alignment between modules — the result is a completely seamless viewing experience with no visible grid lines or color patches.
Grayscale Performance at Low Brightness
Many LED displays wash out at low brightness — losing shadow detail and producing banding artifacts. Our immersive LED system retains 16-bit+ grayscale processing even when dimmed, preserving every nuance in dark scenes and smooth tonal transitions — essential for atmospheric immersive storytelling.
Application Scenarios
Stage immersive LED displays are transforming how audiences experience live events and visual content. Here are the key applications:
Concerts & Music Festivals
Create breathtaking stage backdrops with synchronized multi-surface visuals. From intimate theater shows to stadium concerts, our immersive LED system turns the entire stage into a living canvas.
XR & Virtual Production
Camera-ready 3840Hz refresh with support for Unreal Engine, Disguise, and Notch. Replace green screens with real-time LED environments — actors perform inside the scene, not in front of it.
TV Broadcast Studios
Seamless LED walls with zero scan-line performance under 4K/8K cameras. Dynamic virtual sets replace traditional physical sets — faster scene changes, unlimited creative possibilities.
Exhibition & Museums
360° immersive galleries, digital art installations, and heritage visualization. Transport visitors into historical scenes, artistic worlds, or scientific simulations.
Commercial & Retail Spaces
Brand experience centers, flagship store installations, and corporate lobbies. Immersive LED environments captivate visitors and communicate brand stories in unforgettable ways.
Theater & Live Performance
Dynamic digital scenography for drama, dance, opera, and immersive theater. Change entire environments in seconds — no physical set changes needed.
Quality Assurance & Global Delivery
Every immersive LED display ships only after rigorous testing. We stand behind our products with comprehensive warranty and global support.
100% Factory Burn-In Testing
Every LED module undergoes 72-hour continuous burn-in aging test before shipping. We power on and cycle through test patterns to identify and eliminate any dead pixels or unstable components.
Pixel-by-Pixel Calibration
Professional-grade calibration equipment performs point-by-point brightness and chroma calibration on every module. Result: consistent color temperature and uniform brightness across the entire display — zero color patches, zero brightness variation.
International Certifications
CE (EMC + LVD), RoHS, FCC certified. Meets regulatory requirements for Europe, North America, and major global markets. Additional certifications (ETL, UL, CB) available for specific regions on request.
Secure Global Packaging
Flight cases or reinforced wooden crates with custom-cut foam cushioning and anti-shock buffer materials. Designed to withstand international sea freight and air freight handling. Full container loading optimization available.
Technical Specifications
Standard configurations available in P1.5, P1.8, P2.0, P2.5, and P2.6. Custom pixel pitches available on request.
Pixel Pitch | P1.5 / P1.8 / P2.0 / P2.5 / P2.6 (custom available) |
|---|---|
LED Configuration | SMD 1010 / SMD 1515 / SMD 2121 (depending on pitch) |

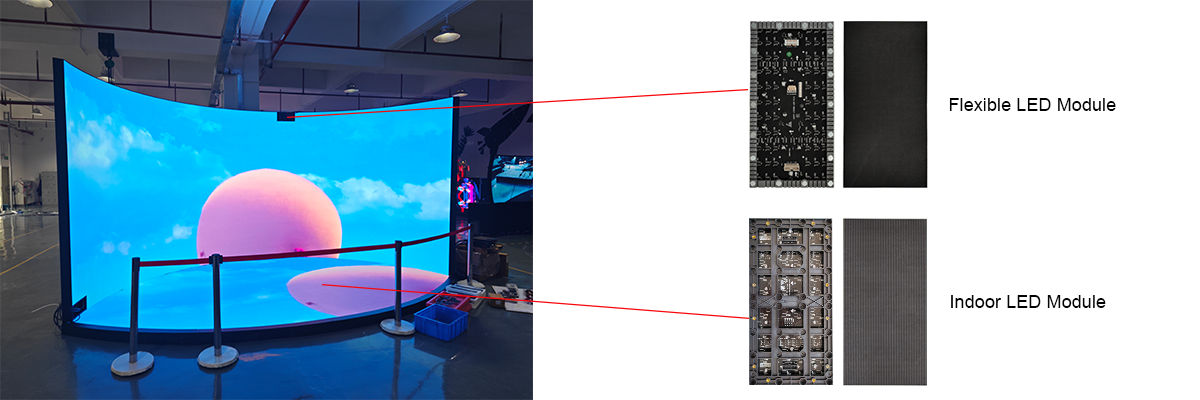

Module Size | 250×250mm / 320×160mm (custom) |
Cabinet Material | Die-cast aluminum alloy |
Cabinet Weight | 6.5–8.5 kg per cabinet (dependent on configuration) |
Refresh Rate | ≥3840Hz |
Brightness | 800–1200 nits (adjustable; higher brightness available) |
Contrast Ratio | Up to 10,000:1 |
Viewing Angle | Horizontal 160° / Vertical 160° |
Grayscale | 16-bit |
Color Temperature | 3000K–10000K adjustable |
Input Voltage | AC 100–240V, 50/60Hz |
Max Power Consumption | ~600W/m² (average ~200W/m²) |
Operating Temperature | -20°C to +50°C |
IP Rating (Optional) | IP30 (indoor) / IP54 (indoor with protection) |

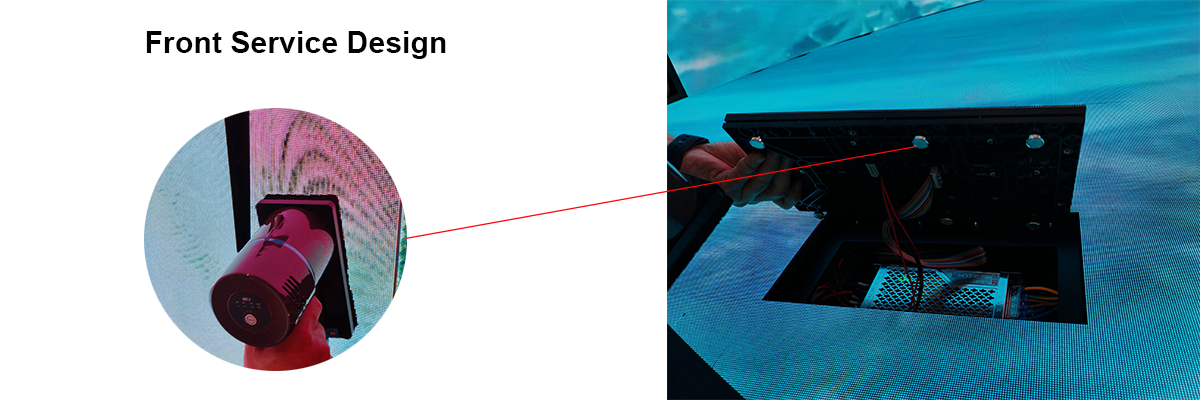

Service Access | Front & rear service |
Lifespan | ≥100,000 hours |
Control System | Novastar / Colorlight compatible; supports Disguise, Unreal Engine nDisplay, Notch |
Curvature Support | ±15° per cabinet (concave & convex) |
Frequently Asked Questions
Quick answers to common questions about our stage immersive LED display.
What pixel pitch is best for a stage immersive LED display?
It depends on viewing distance. For close-range immersive rooms (viewers within 2–3 meters), P1.5–P1.8 is recommended for a seamless, pixel-free experience. For concert stages and larger venues where the nearest audience is 5+ meters away, P2.5–P2.6 provides an excellent balance of visual quality and cost-efficiency. We offer custom pixel pitches based on your specific stage dimensions and audience layout.
Can the display work with Unreal Engine / Disguise / Notch for XR production?
Yes. Our immersive LED display supports industry-standard media servers and real-time rendering platforms including Disguise, Unreal Engine (nDisplay), Notch, Resolume, and Novastar控制 software. The 3840Hz refresh rate and genlock support ensure frame-synchronized playback for camera-tracked virtual production workflows.
How long does installation take for a touring concert setup?
With our modular quick-lock cabinet design, a typical 50m² stage backdrop can be assembled by a trained crew in 4–6 hours. Full multi-surface immersive setups (wall + floor + sides, ~150m²) typically require 1–2 days for complete assembly, calibration, and content mapping. We provide detailed rigging guides and can send an engineer for the first deployment.
What about curved or irregular stage shapes?
Our cabinets support ±15° concave and convex curvature per panel. Custom-curved frames are available for tighter radii. For irregular shapes — corners, right angles, cylindrical wraps, domes — we design custom structural frames and mapping configurations to match your exact stage design. Send us your stage CAD or sketch, and we'll provide a feasibility study and design proposal.
How does the floor LED panel handle weight and foot traffic?
Our floor LED panels feature reinforced tempered glass surfaces rated for pedestrian traffic (up to 2000kg/m² distributed load). Anti-slip coating is standard. For scenarios with heavy equipment or vehicle traffic, we offer industrial-grade reinforced panels with higher load capacity.
