Product Overview
Redefining Visual Display with Seamless Circular Design
The CHIFE LED Frameless Round LED Display is a breakthrough creative display product that transcends the traditional rectangular screen format. With a complete circular display area and a minimalist borderless design, it delivers an entirely new visual experience for commercial spaces, brand showrooms, and event stages.

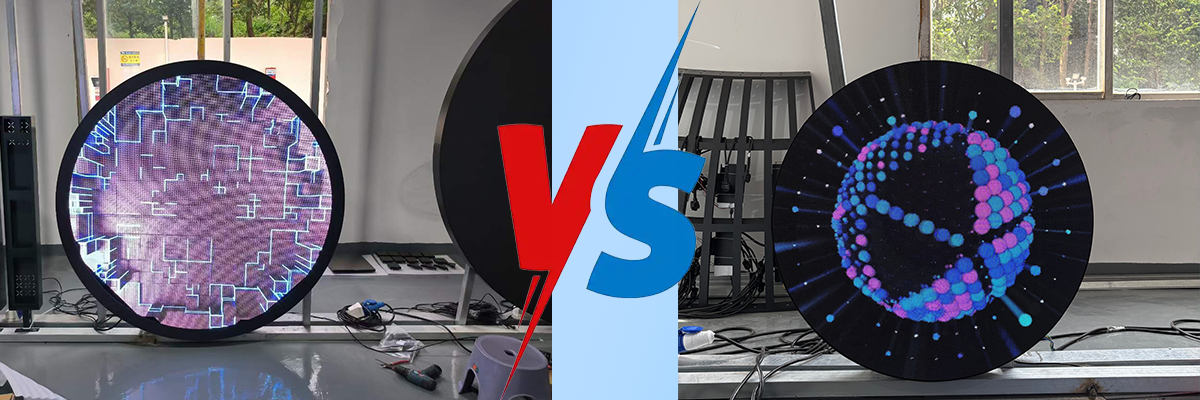

Unlike conventional square LED panels that crop content into a circle — creating visual fragmentation — our custom sector-shaped module splicing technology achieves a genuine seamless circular display. The borderless construction allows the screen to blend naturally into any installation environment: suspended, recessed, or floor-standing.
Key Features
What Makes Our Round LED Display Different
Every component is engineered to deliver stunning visuals, effortless installation, and long-term reliability — backed by over a decade of LED display manufacturing expertise.

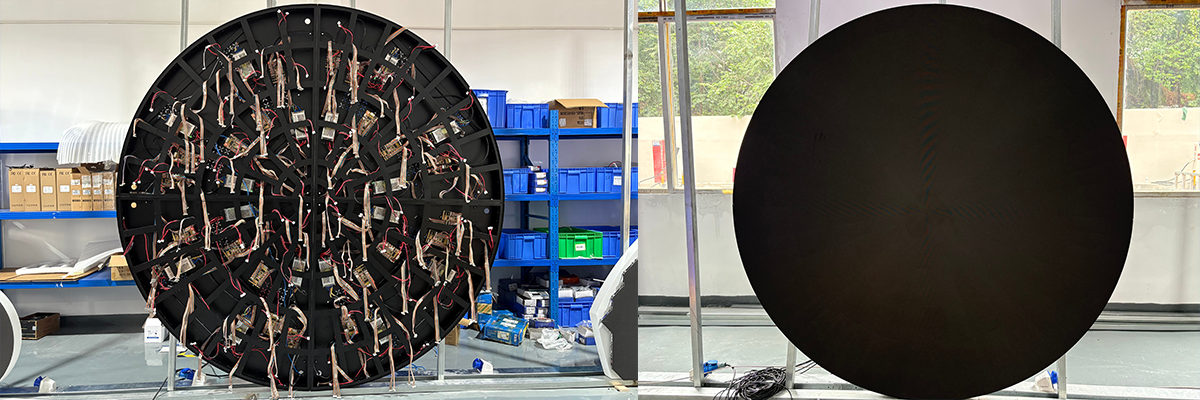

Authentic Seamless Circular Display

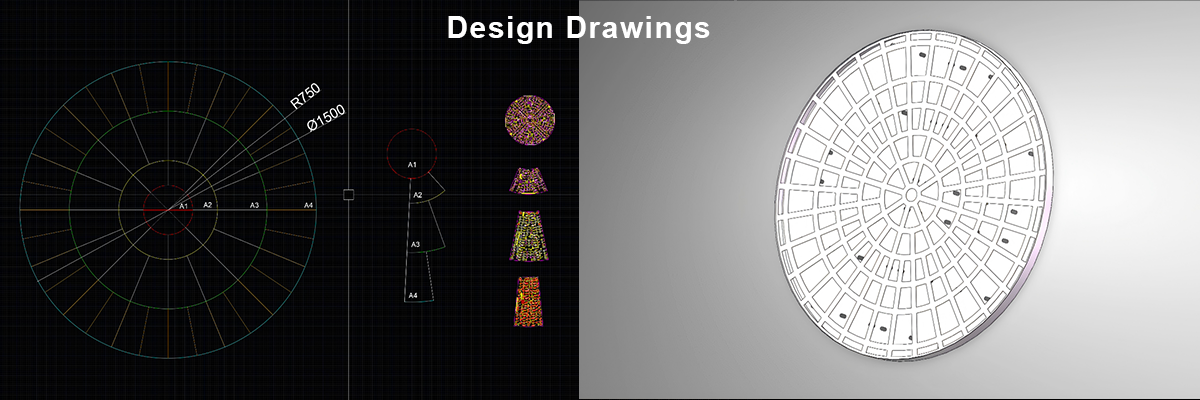

Custom sector-shaped module splicing eliminates the visual break inherent in cutting a square panel into a circle. Every pixel flows continuously across the entire circular surface for a truly immersive experience.
True Frameless Borderless Design
Zero visible bezel around the display edge. The screen merges seamlessly with walls, ceilings, or custom mounting structures — ideal for high-end retail and architectural integration.

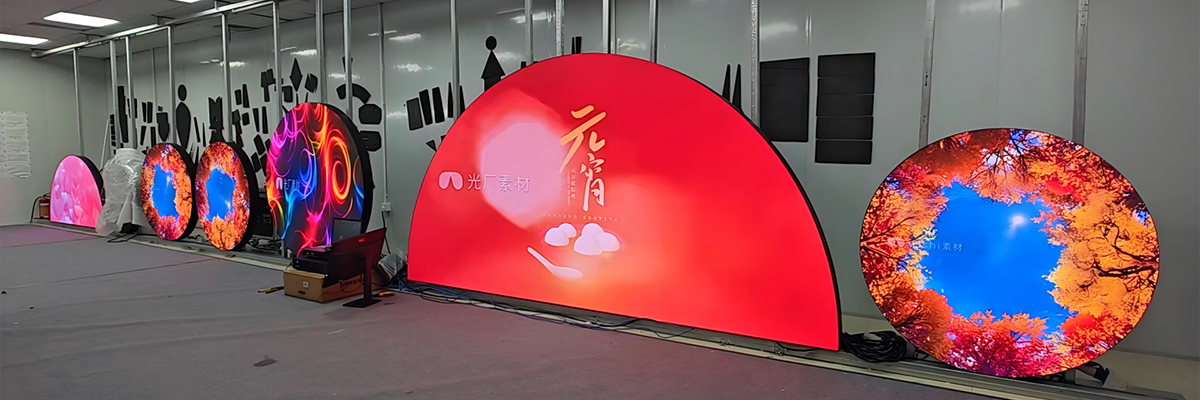

Full Customization Options
Standard diameters from 50cm, 60cm to 100cm+, with any custom diameter available on request. Choose single-sided or dual-sided display, and personalize frame color (black/gray/white) and mounting accessories.
Premium SMD LED Quality
Equipped with high-grade SMD LED chips supporting pixel pitches from P1.25 to P2.5. Delivers crisp, vibrant images with excellent color uniformity and grayscale performance.
Wide 140°+ Viewing Angle
Both horizontal and vertical viewing angles exceed 140 degrees, ensuring consistent image quality from virtually any position — no dead zones, no color shift at the edges.
Multi-Platform Smart Control
Supports WiFi, 4G, USB, and LAN-based control. Update and schedule content in real time via smartphone app or PC software — perfect for dynamic retail and event environments.

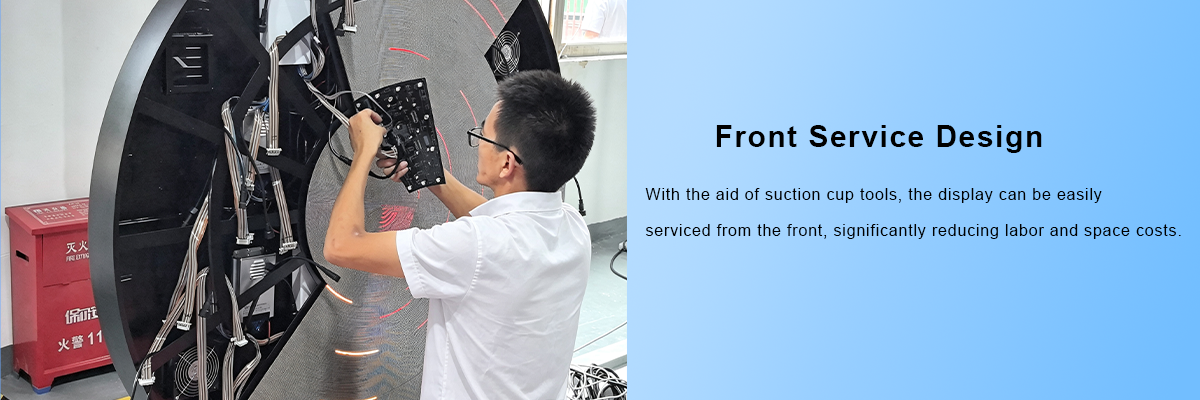

Front Maintenance Design
No rear access channel required — all servicing is performed from the front. Dramatically reduces installation footprint and simplifies long-term upkeep in space-constrained locations.
Built to Last 75,000–100,000 Hours
Rated lifespan of up to 100,000 hours. Operates reliably in temperatures from -20°C to 60°C. Indoor and outdoor models available with optional waterproofing and dust-proof protection.
Application Scenarios
Where Round LED Displays Shine
From high-street retail to immersive exhibitions, the circular form factor commands attention in ways a rectangle never can.

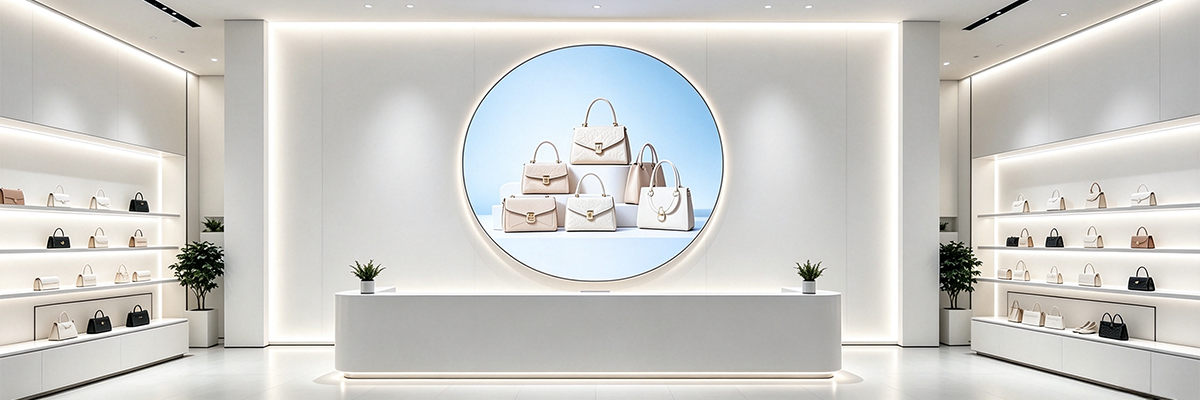

Commercial Retail
Serve as a striking brand logo display or promotional hub. The distinctive round shape naturally draws the eye — boosting foot traffic, dwell time, and brand recall in competitive retail environments.
Stage & Live Events
Function as a dynamic stage backdrop or installation art piece. Play rhythm-synced visuals that amplify the emotional impact of performances, creating a fully immersive atmosphere.
Exhibitions & Museums
Digitally render globes, clocks, compasses, and other circular objects in science museums and galleries. Enhance educational impact with vivid, interactive circular content that traditional rectangular screens cannot replicate.
Public Spaces & Wayfinding
Deploy in airports, metro stations, and shopping malls as digital landmarks or information displays. The circular form is universally recognizable and creates an intuitive focal point for directional guidance.
Why Choose CHIFE LED
Our Service Commitment
More than a manufacturer — we are your end-to-end partner from concept to completion.
10+ Years of LED Display Industry Experience
Deep expertise across thousands of global projects. We provide comprehensive ODM/OEM customization services tailored to your brand and project specifications — not just off-the-shelf products.
Full-Cycle Engineering Support
Our professional engineering team provides end-to-end support: from initial concept design and structural calculations to on-site installation guidance and system commissioning. We speak your language — technically and literally.
Comprehensive After-Sales Service
A robust warranty and after-sales system ensures long-term, worry-free operation. Remote diagnostics, spare parts supply, and technical consultation keep your display performing at its peak for years to come.
Technical Specifications
Detailed Parameters
All specifications are subject to customization. Contact our engineering team for your specific project requirements.
Indoor SCircular Screen Specifications | |||||
Module type | Indoor Irregular Modules | Indoor Irregular Modules | Indoor Irregular Modules | Indoor Irregular Modules | Indoor Irregular Modules |
Average spacing between modules | 1.25MM | 1.5MM | 1.86MM | 2MM | 2.5MM |
Packaging method | SMD | SMD | SMD | SMD | SMD |
Module structure | Integrated LED and driver | Integrated LED and driver | Integrated LED and driver | Integrated LED and driver | Integrated LED and driver |
Maximum resolution | 1600*1600 | 1333*1333 | 1075*1075 | 750*750 | 600*600 |
Whole screen pixels | 2560000 | 1777333 | 1155625 | 562500 | 360000 |
Module size (W × H) | Custom irregular shape | Custom irregular shape | Custom irregular shape | Custom irregular shape | Custom irregular shape |
brightmess | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² |
Horizontal viewing angle of the screen | 140±10° | 140±10° | 140±10° | 140±10° | 140±10° |
Best line of sight | ≥1.25m | ≥1.5m | ≥1.8M | ≥2M | ≥2.5M |
Brightness uniformity | >0.98 | >0.98 | >0.98 | >0.98 | >0.98 |
Vertical viewing angle of the screen | 140±10° | 140±10° | 140±10° | 140±10° | 140±10° |
Usage environment | Indoor | Indoor | Indoor | Indoor | Indoor |
Attenuation rate (1year of operation) | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% |
Refresh frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Service life | ≥100000H | ≥100000H | ≥100000H | ≥100000H | ≥100000H |
Gray level | 14-16Bit | 14-16Bit | 14-16Bit | 14-16Bit | 14-16Bit |
Working temperature range | -20-40℃ | -20-40℃ | -20-40℃ | -20~40℃ | -20~40℃ |
Working humidity range | 10%-65%RH | 10%-65%RH | 10%-65%RH | 10%-65%RH | 10%-65%RH |
Change frame frequency | ≥60 fps | ≥60 fps | ≥60 fps | ≥60 fps | ≥60 fps |
Impurity rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
Frequently Asked Questions
Common Questions About Round LED Displays
Q: Can you manufacture a round LED display in any diameter?
Yes. While we offer standard diameters of 50cm, 60cm, 80cm, and 100cm, our sector-module design allows us to custom-build virtually any diameter to fit your exact spatial requirements.

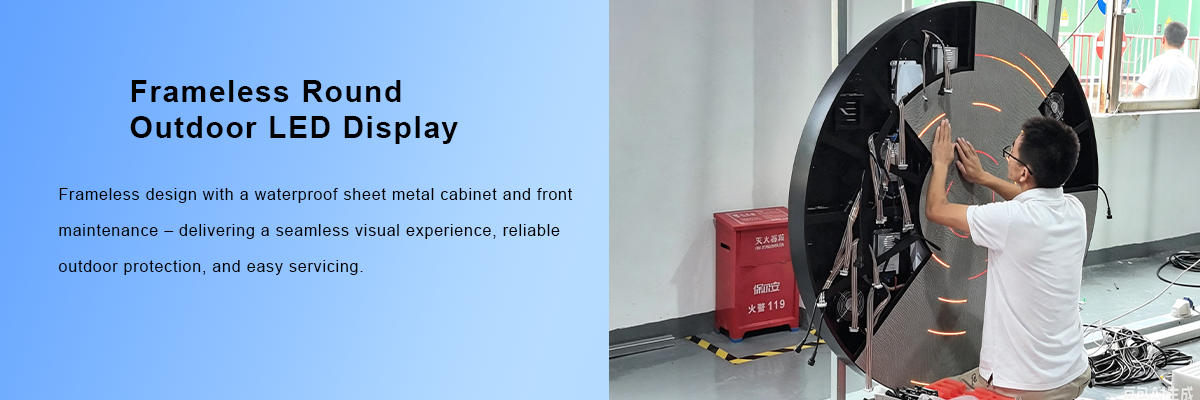

Q: Is the round LED display suitable for outdoor use?
Absolutely. We offer outdoor-rated models with IP65 waterproofing and dust-proof enclosures, high-brightness LEDs (3,500–5,000+ nits), and wide temperature tolerance (-20°C to 60°C) for reliable all-weather performance.
Q: How does the front maintenance design work in practice?
Individual LED modules are accessible and removable from the front using a magnetic or mechanical tool. This means the display can be mounted flush against a wall or inside a tight enclosure without leaving rear service clearance.
Q: What is the minimum order quantity (MOQ) for custom round LED displays?
CHIFE LED accepts low-MOQ custom orders. Whether you need a single unit for a flagship store or a bulk order for a chain rollout, we work with your project scale. Contact our sales team for a tailored quotation.
Q: What content formats and control software do you support?
Our LED controllers support standard image and video formats (JPG, PNG, MP4, AVI, GIF, etc.). The included software runs on Windows, macOS, iOS, and Android, with cloud-based remote management available.
Q: How long does production and shipping take?
Standard models typically ship within 20–25 business days after order confirmation. Highly customized designs may require additional engineering and production time. Express shipping options are available worldwide.
