Product Overview
What is the Flat Ring Circular LED Display?
The CHIFE LED Circular Ring LED Display is a purpose-built flat ring-shaped LED screen designed for environments where audiences view from multiple angles. Unlike conventional rectangular LED panels that lose clarity at off-axis positions, the ring geometry ensures consistent brightness, accurate colors, and smooth motion from any vantage point — a true 360° immersive experience.
Every unit is built to order: module dimensions, ring diameter, pixel pitch, and structural framing are tailored to your project's specific requirements. Whether you need a suspended ceiling ring in a shopping mall atrium, a stage backdrop for live performances, or a statement installation in a corporate lobby, CHIFE LED's engineering team delivers a plug-and-play solution backed by over 10 years of LED display manufacturing expertise.
Key Features
Why Choose CHIFE LED Circular Ring Display?
True 360° All-Round Viewing
The flat ring design ensures every audience member — regardless of their position around the display — enjoys a clear, consistent, and vibrant visual experience. Zero dead angles and zero color shift across the entire viewing sphere.
Stunning Color Reproduction
With 16-bit gray scale processing and superior color calibration technology, images are rendered with lifelike accuracy. Deep blacks, vivid highlights, and smooth gradients make content pop — ideal for video playback, live broadcasting, and high-resolution graphics.
High Refresh Rate & Flicker-Free
Refresh rates of 3840Hz and above guarantee flicker-free performance even under professional camera recording. Perfect for broadcast environments, stage productions, and live-streamed events where scan-line artifacts are unacceptable.

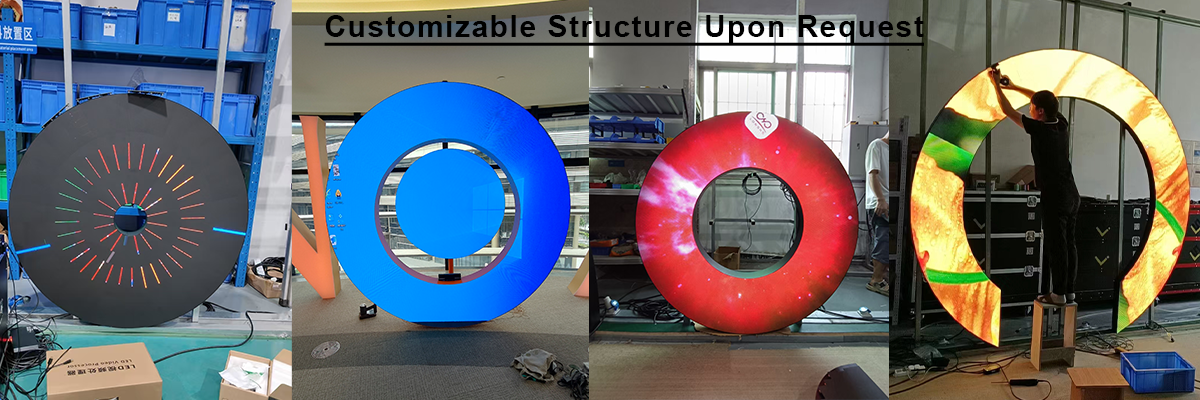

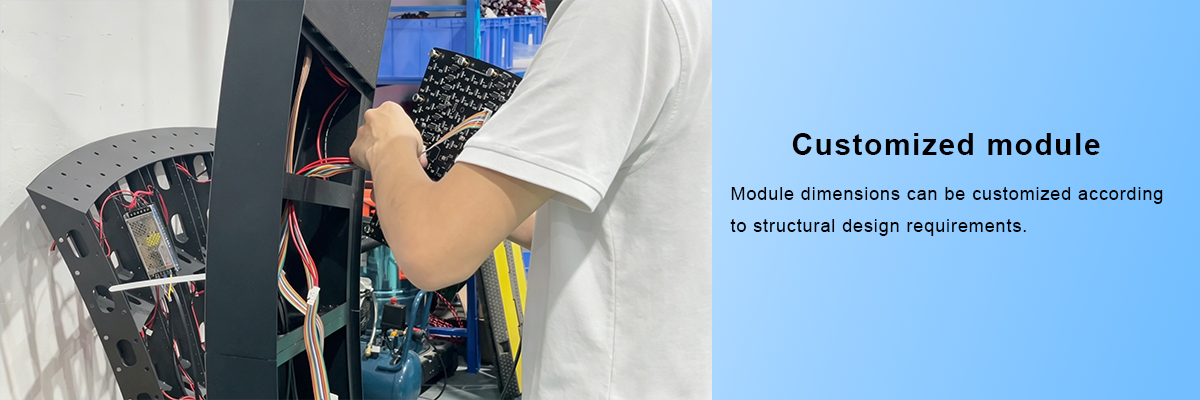

Fully Customizable Sizes & Shapes
Module dimensions are not fixed — they are engineered around your project. Support for flat, curved, and irregular splicing configurations allows the display to fit any architectural or set-design requirement, no matter how complex.

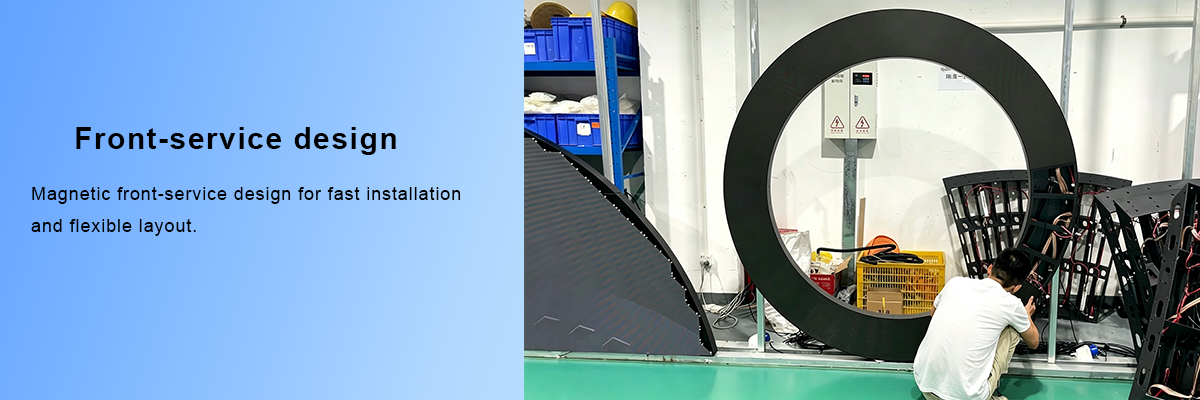

Magnetic Front Maintenance
Powerful magnetic mounting system allows individual modules to be removed and replaced entirely from the front side. No rear service access required — installation space is minimized, and on-site maintenance takes seconds per module.
Custom Structural Framing
The support frame and mounting structure are custom-designed for your specific site conditions and aesthetic requirements. Ceiling-suspended, wall-mounted, free-standing — we engineer the solution that fits your venue perfectly.
Applications
Where Circular Ring LED Displays Shine
The 360° viewing capability and customizable form factor make the CHIFE LED circular ring display a standout choice for high-traffic commercial and public environments:
Shopping Mall Atriums
Suspended ceiling ring installations that dominate central atriums, delivering brand advertising and event content visible from every floor

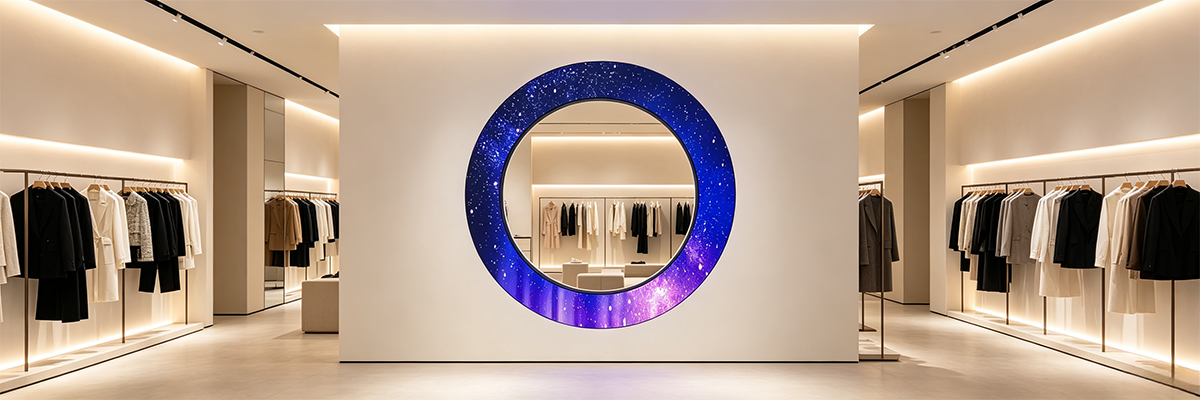

Brand Exhibition Halls
Immersive 360° product showcases and brand storytelling in flagship stores, auto showrooms, and trade fair booths.
Stage Set Design
Dynamic ring-shaped backdrops and overhead installations for concerts, awards ceremonies, TV studios, and theatrical productions.
Hotel Lobbies
Elegant ceiling-mounted ring displays that serve as ambient art installations by day and dynamic content screens for events by night.
Airports & High-Speed Rail Stations
High-visibility information and advertising rings in transit hubs where passenger flow comes from all directions.

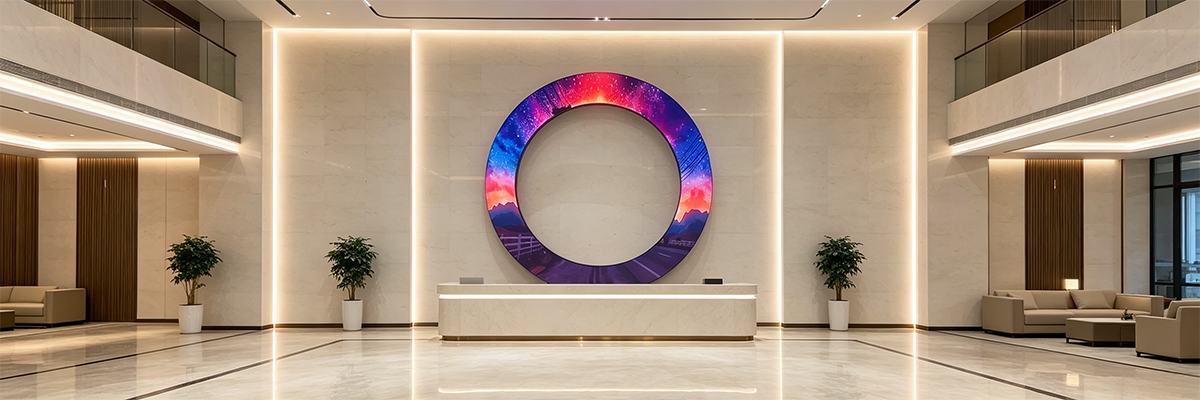

Corporate Headquarters Lobbies
Statement installations that communicate brand values, company milestones, and real-time data in an architecturally striking format.
Technical Specifications
Circular Ring LED Display Specifications
Parameter | Specification |
|---|---|
Product Type | Flat Ring Circular LED Display |
Pixel Pitch | P1.5 / P1.8 / P2 / P2.5 / P3 / P4 / P5 (customizable) |
Module Size | Custom-designed per project requirements |
Ring Diameter | Fully customizable (inner/outer diameter as per design) |
Viewing Angle | 360° Horizontal / 160° Vertical |
Refresh Rate | ≥ 3840Hz |
Gray Scale | 16 bit |
Brightness | 800 – 5000 cd/m² (indoor/outdoor options available) |
Color Temperature | 3200K – 9300K adjustable |
IP Rating | IP30 (indoor) / IP65 front, IP54 rear (outdoor) |
Mounting Method | Magnetic front-access; ceiling-suspended, wall-mounted, or free-standing |
Maintenance | Front maintenance (no rear service channel required) |
Control System | NovaStar / Colorlight synchronous/asynchronous |
Input Signal | HDMI, DVI, SDI, VGA, DP (optional) |
Lifespan | ≥ 100,000 hours |
Certification | CE, RoHS, FCC, ISO9001 |
Warranty | 2 years standard |
CHIFE LED Service Promise
Why Partner with CHIFE LED?
10+ Years Industry Experience
Over a decade of focused expertise in LED display R&D, manufacturing, and project delivery. We understand the technology, the market, and what it takes to execute complex installations on time and on budget.
One-Stop ODM / OEM Service
From initial concept design and structural engineering to mass production, quality control, and global logistics — CHIFE LED handles the entire value chain so you focus on your project, not the supply chain.
ISO9001 Certified Quality
Every display undergoes rigorous factory testing including 72-hour burn-in, color calibration, and pixel-level inspection. CE, RoHS, and FCC certifications ensure compliance with international standards.
Global Project Support
Multilingual technical support, comprehensive installation guides, and remote commissioning assistance ensure your project succeeds regardless of the installation location.
