Immersive LED Screens: All-in-One Digital Space Solution

While traditional single flat LED screens only deliver visuals in one direction, immersive LED display solutions are reshaping the connection between people, spaces and digital visuals. Featuring 270° curved screens, 360° dome screens, CAVE multi-sided immersive spaces, curved displays and interactive floor screens, these solutions adopt high-density fine-pitch COB and SMD LED technologies. Instead of being mere attachments on walls, the screens fully surround viewers and eliminate visual barriers, bringing an authentic audiovisual experience where people feel like stepping into the virtual scenes. Today, immersive LED setups have become core facilities to boost foot traffic for cultural tourism scenic spots, corporate exhibition halls, commercial complexes, trendy bars and virtual shooting studios, as well as mainstream upgrades for digital spaces.

• 11. What Is an Immersive LED Screen?
• 22. Core Technical Advantages
• 2.12.1 Full Customization to Fit Any Space
• 2.22.2 Millisecond-level Synchronization for Unified Audio & Visual Performance
• 2.32.3 Powerful Interactive Expandability
• 2.42.5 High Stability & Lower Long-term Operation Costs
• 33. Application Scenarios Across Industries
• 3.13.1 Cultural Tourism Scenic Spots
• 3.23.2 Government & Corporate Digital Exhibition Halls
• 3.33.3 Commercial Complexes & Internet-famous Check-in Spots
• 3.43.4 Bars, Nightclubs & Live Houses
• 3.53.5 XR Virtual Shooting & Scientific Research Simulation Labs
• 43.6 Science Popularization Halls & Children's Parks
• 54. Full Project Implementation Process
• 65. Future Development Trends of the Industry
• 7Conclusion

1. What Is an Immersive LED Screen?

An immersive LED screen is not a single standalone product. It refers to an all-in-one visual and lighting system composed of multi-form LED modules, synchronous control systems, interactive devices and audio systems.

Different from ordinary single-sided LED displays, it adopts multi-panel combinations covering walls, floors and ceilings to form enclosed visual areas with no blind spots. Equipped with high refresh rate, ultra-high definition images, somatosensory interaction and stereo sound, it blurs the line between reality and virtuality and fully immerses audiences into digital scenes.

There are five mainstream structural types:

270° / 360° Curved LED Screens: Three-sided curved enclosures, ideal for exhibition halls and flying cinemas as entry-level immersive solutions.

LED Dome Screens: Inner curved spherical surfaces presenting panoramic sky views, widely used in cultural tourism flying cinemas and planetariums.

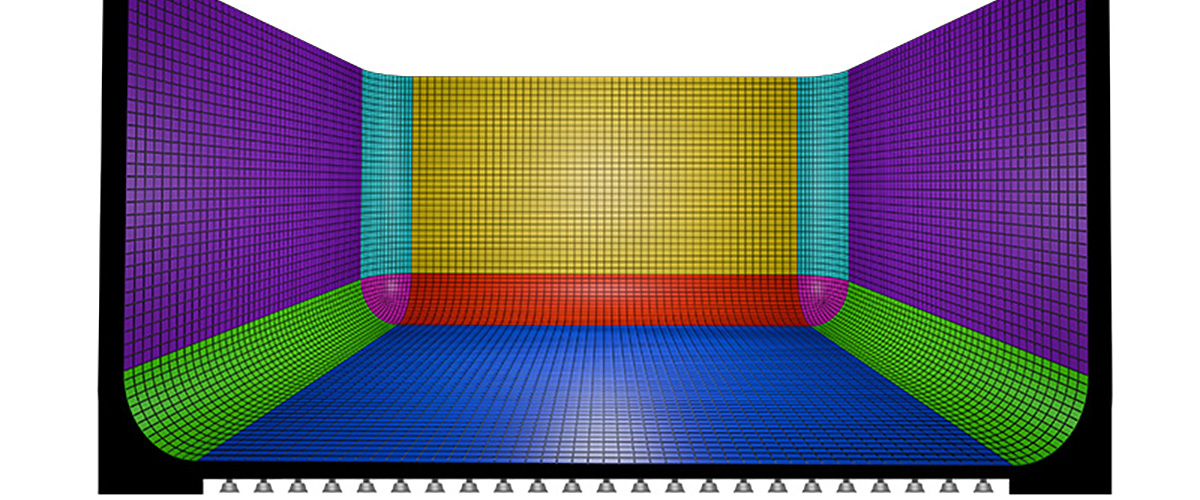

4/5-Sided CAVE Immersive Spaces: Combined walls, floors and ceilings, specially designed for scientific research simulation and high-end digital exhibition halls.

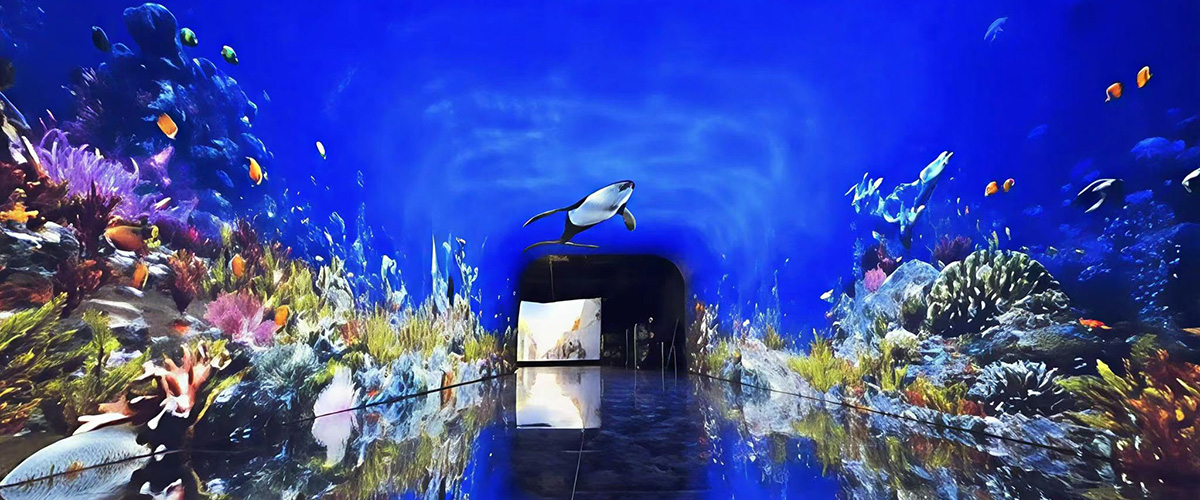

Irregular Curved Tunnel Screens: Available in wavy, arc and folded shapes, perfect for internet-famous walkways and shopping mall corridors.

Combination of Interactive Floor Screens & Wall Screens: Supporting somatosensory interaction on the ground with dynamic effects such as flowing water, blooming flowers and footprints, it is a top choice to attract customers for commercial venues.

2. Core Technical Advantages

High-end immersive projects mostly adopt COB (Chip On Board) packaging technology. Unlike traditional raised lamp beads, it creates a smooth surface light source.

· The minimum pixel pitch ranges from P0.4 to P1.2 with ultra-high pixel density. No visible grains or moiré patterns even when viewed at a close distance of 1 meter.

· It delivers an ultra-high contrast ratio of 10000:1 for deep pure black tones. With HDR support and 120% NTSC wide color gamut, it restores cinematic-level color and rich image layers.

· Boasting an ultra-wide viewing angle of 170°, the brightness and color remain consistent without deviation at any viewing position, ensuring distortion-free viewing for multiple people simultaneously.

Comparison with projection: Projectors are severely affected by ambient light, resulting in faded images and blurry edges in bright environments. LED screens are self-luminous with stable brightness, presenting clear and vivid pictures even in well-lit shopping malls and exhibition halls.

2.1 Full Customization to Fit Any Space

With modular design, LED modules can be spliced freely into various arcs, sizes and shapes, including curved surfaces, spheres, waves and irregular forms. They fit perfectly with original building structures without wall renovation to create integrated light and shadow spaces. Flexible LED modules support ultra-large curved surfaces, enabling immersive tunnels and circular exhibition halls and realizing the integrated design of "screens as walls".

2.2 Millisecond-level Synchronization for Unified Audio & Visual Performance

Equipped with a distributed synchronous control system, all curved screens, wall screens and floor screens output images synchronously without tearing or delay. Combined with multi-channel surround sound systems, it realizes five-sense linkage of vision, sound, vibration and scent. For flying cinemas and 5D experience halls, images and dynamic seats can work in perfect sync to greatly enhance immersion.

2.3 Powerful Interactive Expandability

It is compatible with infrared somatosensory devices, motion capture systems, touch sensors and AR recognition equipment:

· Dynamic effects like rippling water, blooming flowers and twinkling stars will be triggered automatically when visitors step on interactive floor screens.

· Users can switch scenes via gesture control, traveling instantly from deep oceans to sea of clouds or ancient cities.

· Connected with digital sand tables, it can display urban planning and corporate development history with one click, turning static displays into interactive storytelling.

2.5 High Stability & Lower Long-term Operation Costs

COB screens are fully glued and sealed, reaching IP65 front protection rating for dustproof and waterproof performance. The surface can be cleaned directly with alcohol. Chips are closely attached to the substrate for better heat dissipation, which largely reduces the probability of dead lamps. The overall service life can reach up to 100,000 hours.

Compared with projectors that require frequent bulb replacement and optical path maintenance, LED screens run stably for years after one-time installation, cutting daily maintenance work for scenic spots and commercial venues.

3. Application Scenarios Across Industries

3.1 Cultural Tourism Scenic Spots

Immersive LED dome screens and 270° curved screens are signature facilities for scenic spots. They deliver naked-eye 3D flight experiences, allowing visitors to travel across mountains, oceans and starry skies without wearing glasses.

Typical Cases: A 9K LED dome flying cinema in Wuyi Mountain features a 15-meter diameter LED dome and dynamic cabins, creating the popular project Fly Over Fujian which becomes a must-visit attraction. The curved screen experience hall at Sanya Haichang Fantasy Town continuously attracts tourists and drives secondary consumption all year round.

3.2 Government & Corporate Digital Exhibition Halls

Replacing dull traditional display boards, immersive LED spaces tell stories about brands, cities and history through panoramic visuals.

3.3 Commercial Complexes & Internet-famous Check-in Spots

Immersive tunnels and interactive floor screens in shopping mall corridors and atriums naturally attract visitors to take photos and share on short video platforms. Small curved immersive screens in retail stores and fashion boutiques create exclusive visual atmospheres, upgrading store style and extending customer stay time.

3.4 Bars, Nightclubs & Live Houses

Combining large curved LED screens with dynamic flowing pixel visuals, it creates diverse atmospheres such as cyberpunk and retro styles. Operators can switch party themes with one click without repeated interior renovation.

3.5 XR Virtual Shooting & Scientific Research Simulation Labs

5-sided CAVE immersive LED spaces are applied in film and television virtual production and industrial simulation, as well as digital twin projects for cities. It replaces traditional green screens with real-time rendered virtual scenes and significantly improves shooting efficiency.

3.6 Science Popularization Halls & Children's Parks

Themed immersive spaces featuring oceans, universe and forests, paired with interactive floor screens, create interesting science popularization scenarios, ideal for parent-child tours and educational experiences.

4. Full Project Implementation Process

Site Survey & Solution Design: Confirm screen types (curved screen, dome screen, CAVE space, etc.) and select pixel pitch ranging from P0.6 to P2.5 according to site size, floor height and budget.

Custom Hardware Production: Manufacture integrated COB/SMD modules, curved steel cabinets, synchronous control systems and audio devices.

On-site Installation & Debugging: Set up curved steel structures, splice screens and calibrate images to ensure multi-screen synchronization.

Content Adaptation & Optimization: Produce exclusive panoramic videos matching the curvature ratio of screens to avoid image distortion.

Delivery & Training: Hand over the central control background. Users can switch scenes and set scheduled playback via mobile phones or computers with simple operations.

After-sales Warranty: Provide 2 to 3 years of overall product warranty, remote technical debugging and on-site maintenance services.

5. Future Development Trends of the Industry

Full Popularization of COB Technology: Traditional SMD products will be gradually phased out in high-end immersive projects. Ultra-fine pitch COB screens will become the standard configuration with upgraded image quality, protection performance and stability.

Lightweight & Detachable Immersive Solutions: Compact and quick-assembly modular curved screens will be widely used for pop-up stores and temporary exhibition spaces.

AI-powered Intelligent Immersion: AI will generate scene content in real time and switch visuals automatically based on passenger flow and time periods, lowering content production costs.

Popularization of Small-scale Immersive Spaces: Small curved screens of 3 to 5 meters will be adopted by medium and small stores and studios, lowering the entry threshold of immersive projects for offline physical stores.

Conclusion

Immersive LED display technology is redefining the way offline spaces deliver content. More than simple advertising screens, they act as powerful digital carriers for stories, emotions and creative ideas. Whether serving as a passenger flow booster for cultural tourism scenic spots, an image showcase for corporate exhibition halls, or a popular check-in facility for commercial stores, professional immersive LED solutions break the limits of the physical world with light and shadow, and deliver unique sensory experiences that cannot be replaced by online content.

Feel free to contact us for professional customized solutions if you have relevant project demands.
