Case：3 P4 LED Spherical Screens Installed at US Outdoor Plaza

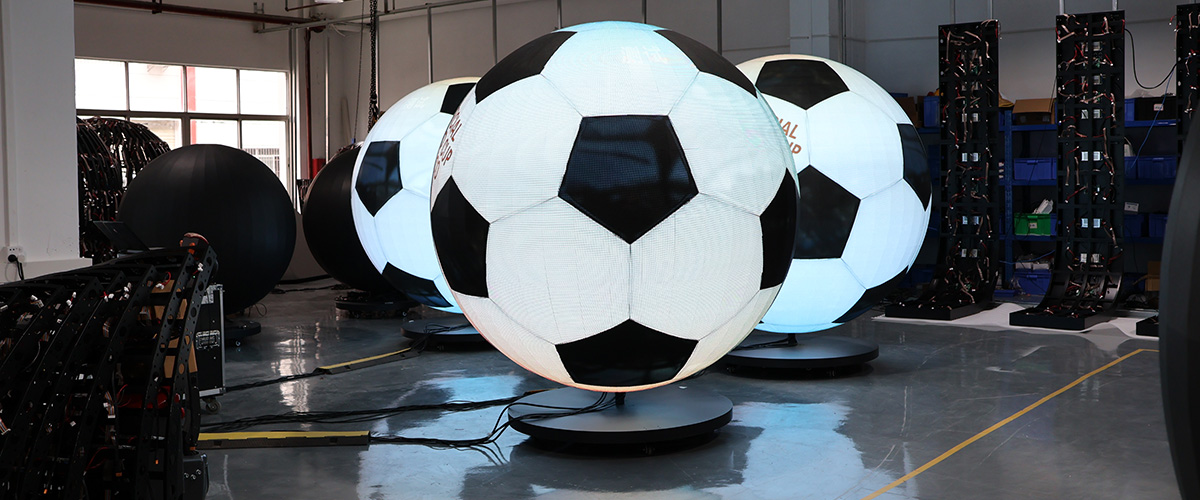

This is an export project of LED spherical screens for an outdoor commercial plaza on the US West Coast. Three 2.5m-diameter P4 high-definition outdoor LED spherical screens are installed side by side in the open area. They are applied for commercial advertising and night landscape lighting, supporting two playback modes: synchronized linkage of all three screens and independent playback for each single sphere.

• 1Key Project Challenges
• 2Targeted Solutions
• 3Detailed specifications
• 4On-site Operation Results
• 5Project Summary

Key Project Challenges

1. Severe outdoor environment: Coastal salt fog, strong sunlight and frost may lead to water ingress, aging and brightness attenuation, demanding top-tier protection and heat dissipation performance.

2. Multi-screen synchronization barriers: The three spherical displays require seamless picture synchronization without color deviation or image dislocation, while retaining independent playback functions.

3. Overseas adaptation requirements: The products must match US electrical standards with an English control system. Since local construction labor costs are high, the on-site installation and debugging process needs to be simplified.

Targeted Solutions

1. Reinforced three-proof outdoor structure The screens adopt fully sealed die-cast aluminum cabinets with intelligent air-cooled heat dissipation systems. UV-resistant LED beads resist sea salt corrosion and strong sunlight exposure to adapt to local all-weather outdoor environments.

2. Precise three-screen synchronous control A customized multi-screen synchronization system delivers millisecond-level image alignment for the three spherical screens. Users can switch between linkage and independent playback modes with one click via a full English operation backend for convenient remote overseas maintenance.

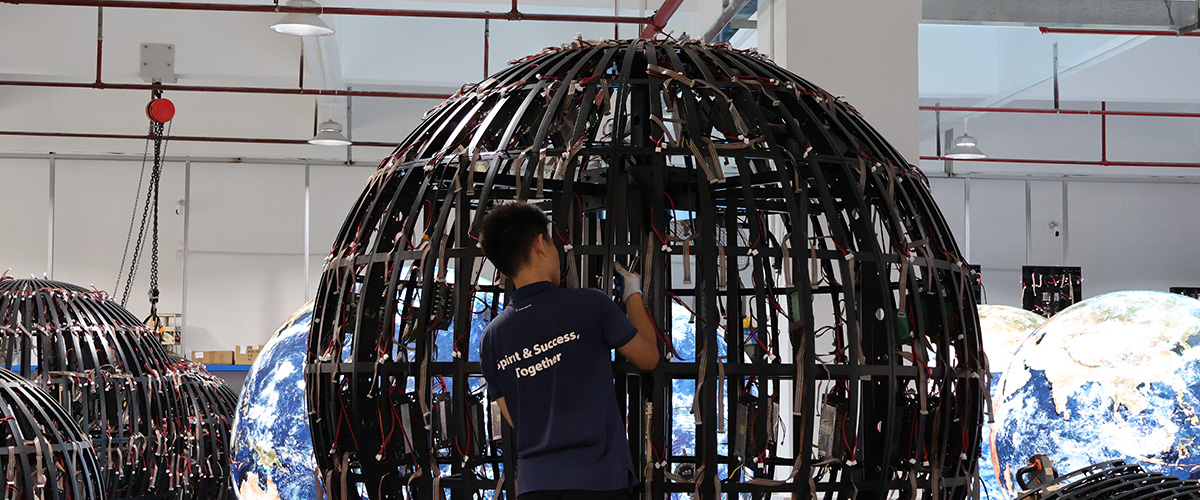

3. Lightweight modular installation The split modular design finishes most debugging work in the factory. Simple on-site assembly greatly shortens overseas construction cycles and cuts labor installation costs.

4. All-weather image optimization Equipped with high brightness and automatic light sensor adjustment, the screens maintain clear visibility under strong daylight and dim automatically at night to avoid light pollution, complying with local US light control regulations.

Detailed specifications

On-site Operation Results

After power-on, the three spherical screens stand out as iconic visual installations of the plaza with their 360° full-view display. They deliver clear commercial advertisements covering all pedestrian flow during daytime. At night, synchronized dynamic creative visuals create a stunning atmosphere, turning the plaza into a popular internet-famous spot and greatly boosting foot traffic and ad exposure for the business district.

The equipment has passed extreme weather tests including strong winds, heavy rain and drastic temperature shifts without any faults such as screen distortion, water penetration or brightness loss, winning high recognition from the client.

Project Summary

This US outdoor synchronized triple spherical screen project fully addresses pain points of overseas special-shaped LED displays with high-standard outdoor protection, stable multi-screen synchronization technology, North American compliant certifications and simplified overseas installation solutions.

We provide customized indoor and outdoor spherical LED screens ranging from 1m to 8m in diameter with multi-screen linkage networking functions. Our one-stop creative LED display export solutions fit various overseas scenarios including commercial plazas, cultural tourism landmarks and outdoor landscape lighting.
