CHIFE Delivers P6 Outdoor Waterpoof LED Display to Cape Verde
Project Overview
Product Model: P6 Outdoor Fixed LED Display
Area: 36.864m2 = 4.8x7.68m
LED module: P6-320x160mm

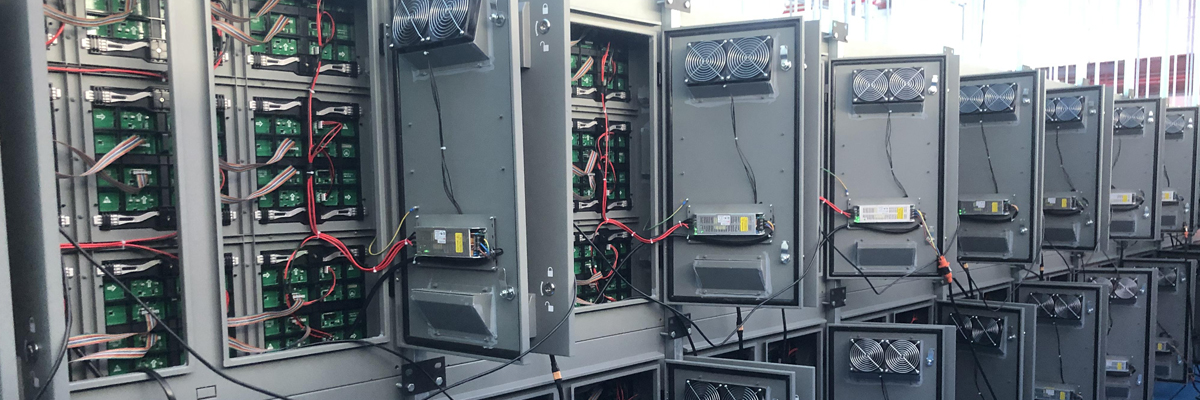

LED cabinet: 960x960mm - die-casting aluminium
Location: Praia, Capital of Cape Verde
Application: High-Traffic Commercial Advertising Billboard
Key Features: High brightness (≥5,500 nits), IP65 waterproof rating, anti-corrosion aluminum cabinet design
The Challenge: Thriving in a Coastal Climate
Cape Verde, an island nation located off the coast of West Africa, presents a highly demanding environment for outdoor digital electronics. The installation site in the capital city of Praia experiences:
High Salinity & Humidity: Constant exposure to salt spray from the Atlantic Ocean accelerates the corrosion of metal components.
Intense Sunlight: Strong tropical solar radiation requires exceptional display brightness to maintain clear visibility during peak daylight hours.
Elevated Ambient Temperatures: Effective heat dissipation is critical to preventing thermal buildup and extending the lifespan of the LEDs.
To meet these environmental challenges, the client required a robust, highly reliable outdoor display solution that wouldn’t degrade over time.
The Solution: Custom-Engineered P6 Outdoor LED Screen
CHIFE provided a fully optimized P6 outdoor LED display specifically configured for seaside resilience.
1. Superior Corrosion Resistance
To combat the salty coastal air, we utilized premium aluminum alloy cabinets treated with a specialized anti-corrosion coating. All internal connectors, screws, and PCB boards were sealed with a three-proof conformal coating (anti-moisture, anti-salt spray, and anti-fungus), isolating the sensitive electronics from the atmosphere.
2. High Brightness & Smart Dimming
Featuring high-efficiency LED lamps, the display delivers a brightness level exceeding 5,500 nits. This ensures that commercial advertisements remain vivid, crisp, and fully legible even under direct tropical sunlight. An integrated light sensor adjusts the brightness automatically between day and night, reducing power consumption and preventing light pollution.
3. Advanced IP65 Weatherproofing
With a strict IP65 front and rear protection rating, the screen is completely sealed against heavy rain and airborne dust. The module design incorporates deep-groove drainage channels to shed water rapidly during intense rainstorms.
4. Efficient Thermal Management
The cabinet design leverages natural convection alongside low-noise cooling fans to maximize airflow. By keeping the internal operational temperatures low, we minimized color drift and significantly extended the lifespan of the components.
