P6 Outdoor Double-Sided LED Display System for Football Stadiums

Project Background

Modern sports complexes require highly efficient infrastructure capable of communicating with multiple audiences simultaneously. In large-scale football stadium configurations, a central visual node must frequently deliver dynamic content in two opposing directions: serving spectators inside the primary bowl while concurrently engaging crowds, traffic, or secondary hospitality zones located on the concourse or outer rim of the arena.
To meet this challenge for a premium sports facility project, CHIFE engineered a customized P5 Outdoor Double-Sided LED Display System. Utilizing a high-strength integrated structural framework, this dual-faced scoreboard delivers completely independent signal routing or perfect mirrored playback across both display faces. Utilizing a 5mm pixel pitch optimized for mid-to-long distance stadium viewing, the system presents fluid live scores, instant replays, and sponsor commercial loops with uncompromised clarity.

Project Challenges & Engineering Solutions

Challenge 1: Severe Dynamic Wind Loads on High-Altitude Stand-Mounted Structures

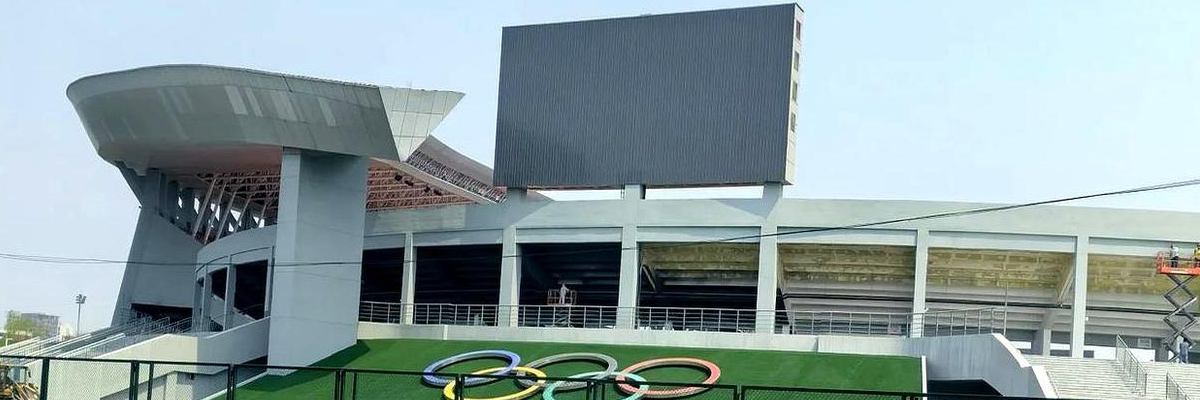

As seen in P5-football-stadium-led-video wall.jpg, the screen is installed at a significant height, directly exposed over the stadium's upper concrete stands. Without the protection of an adjacent building wall, the back of the screen functions like a massive sail, subjected to violent, turbulent wind shears accelerating over the rim of the stadium roof. Standard structural frames cannot safely absorb these severe overturning moments and dynamic vibrations.
Solution: FEA-Verified Reinforced Steel Sub-Structure and Magnesium-Aluminum Alloys
CHIFE’s structural engineering team designed a specialized load-bearing matrix utilizing heavy-duty, hot-dip galvanized structural steel pillars deeply anchored into the stadium’s reinforced concrete foundation beam. To drastically reduce the top-heavy dead weight of the display, we utilized ultra-lightweight magnesium-aluminum alloy custom cabinets instead of traditional iron. Every weld joint and anchor point underwent comprehensive Finite Element Analysis (FEA), proving the structure safely withstands up to Grade 11 gale-force winds without any structural micro-fissures.

Challenge 2: Direct Solar Heat Absorption and High Thermal Stresses
Being positioned completely open-air at the highest point of the stadium stands means the display absorbs unrelenting direct solar radiation throughout the day. In high-brightness outdoor operations, this external heat combines with internal electronic component heat, creating localized thermal pockets that can cause accelerated LED aging, uneven color shifts, or sudden driver IC failure.
Solution: Cross-Flow Intelligent Fan System and Energy-Saving Common-Cathode Drive
The internal cavity of the P6 display is equipped with an automated, temperature-sensing cross-flow ventilation matrix. Specialized high-volume industrial fans maintain a continuous forced-air cycle, drawing cool air from lower intake slots and rapidly venting heat out of the upper perimeter. Crucially, the modules implement an advanced common-cathode driving architecture. By routing precise, separate voltages to the Red (2.8V) and Green/Blue (3.8V) LED chips, power consumption and thermal dissipation at the source are cut by up to 30%, keeping the display cool even during mid-day summer matches.

Technical Engineering FAQ

Q1: Why is P5 the ideal pixel pitch for an outdoor stadium scoreboard installed above the stands?
In a sprawling football arena like the one in P5-football-stadium-led-video wall.jpg, the closest spectators are situated at least 15 to 20 meters away, extending up to over 150 meters across the pitch. A 6mm pixel pitch provides a native density of 27,777 dots/m², delivering a perfect visual blend and pristine image sharpness from these distances. It enables the display of granular text—such as yellow card warnings or multi-line team lineups—without jagged edges or pixelation, maximizing legibility for every ticket holder.

Q2: How does the system handle the extreme environmental demands of an open-air sports stadium?
To completely isolate the display from driving rain, dust, and humidity, CHIFE engineered a fully enclosed cabinet system achieving a true IP65 ingress protection rating on both the front and rear faces. Every individual P5 module is sealed with an ultra-durable dual-layer polyurethane waterproofing gasket. Internal power supply modules, receiving cards, and hub boards are treated with a premium anti-corrosion conformal coating to ensure flawless operation 365 days a year.

Key Technical Specifications: P6 Outdoor Stand-Mounted LED Screen
