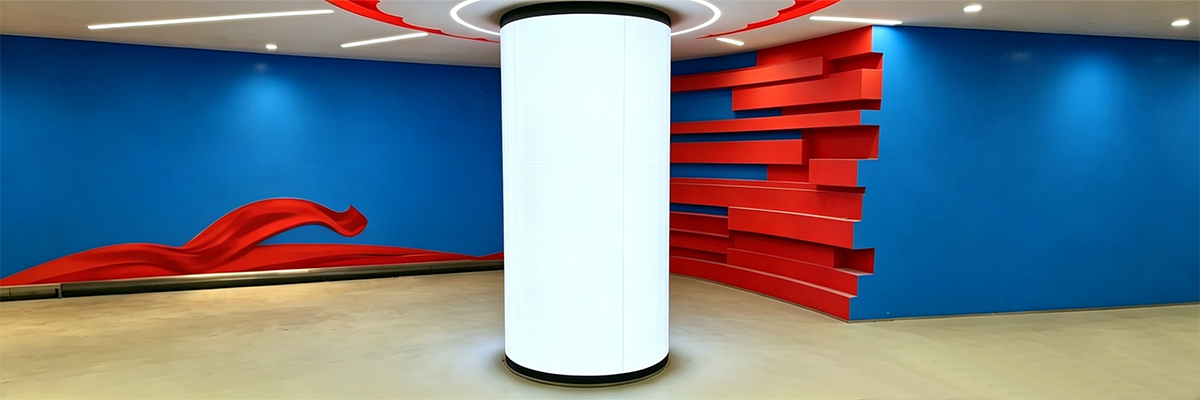

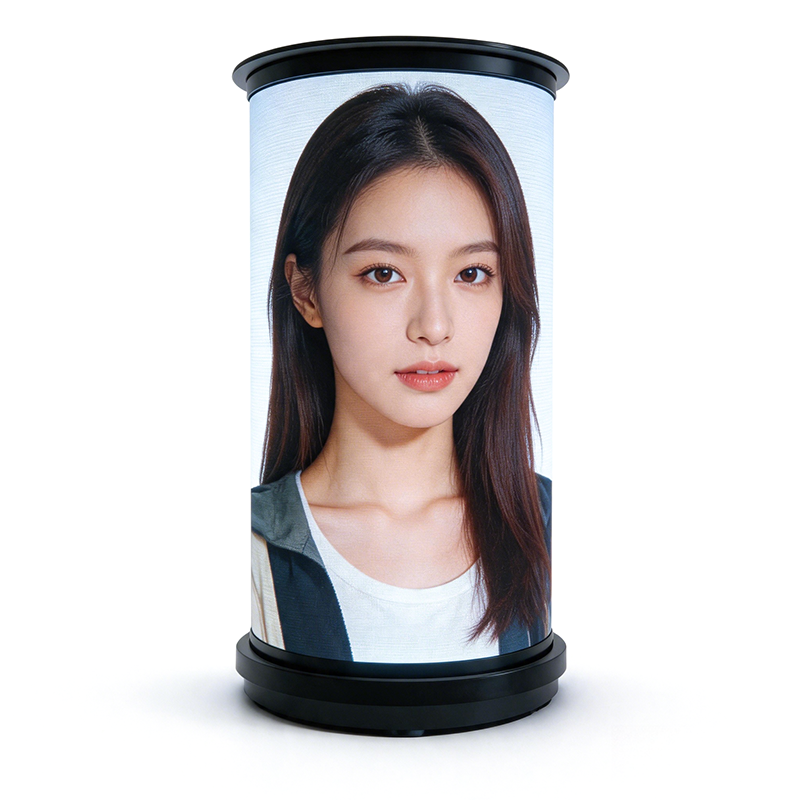

What Is a Cylindrical LED Display?

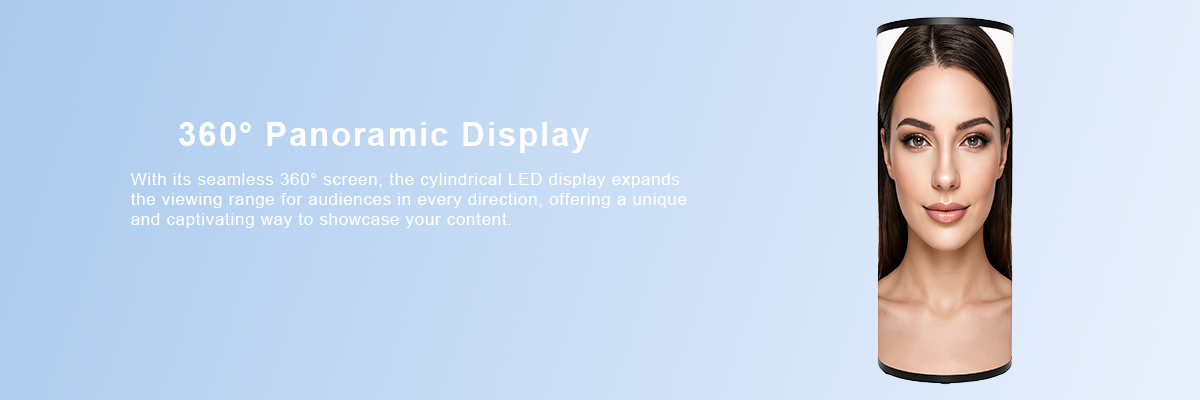

A cylindrical LED display is a curved video screen designed to wrap around round surfaces such as building pillars, columns, and standalone cylinders. Unlike traditional flat panels, it uses flexible soft LED modules that bend to the desired radius, creating a seamless 360° or partial-wrap visual display.

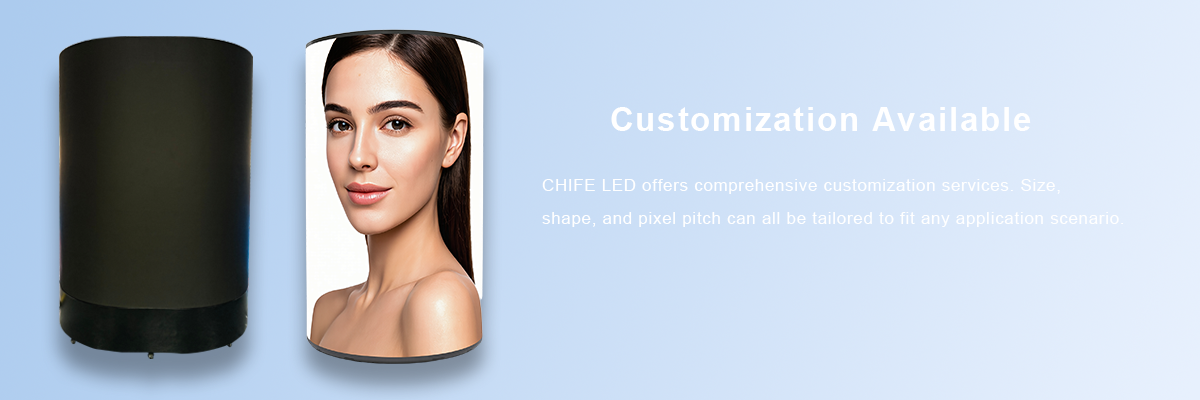

As a direct OEM/ODM factory, we offer full customization on:
Size — diameter, height, and wrap angle all custom
Pixel Pitch — from P1.5 (ultra-fine) to P10 (large format)
Curvature — any radius from 0.5 m to 5 m+
Brightness & Resolution — tailored to indoor or outdoor use
✓ CE · RoHS · ETL · FCC certified · On-time delivery guaranteed
Key Features
What makes our cylindrical LED displays the choice of professionals.
Full Custom Sizes & Pitches
Not limited to standard sizes. We engineer every panel to your exact diameter, height, wrap angle, and pixel pitch requirement. Any size, any pitch — made to order.
Seamless Splicing Optimization for Flexible LED Modules
Our proprietary flexible LED module design allows the screen to bend smoothly along curved surfaces. No visible seams, no flat spots — just a continuous, professional wrap.
Front Maintenance

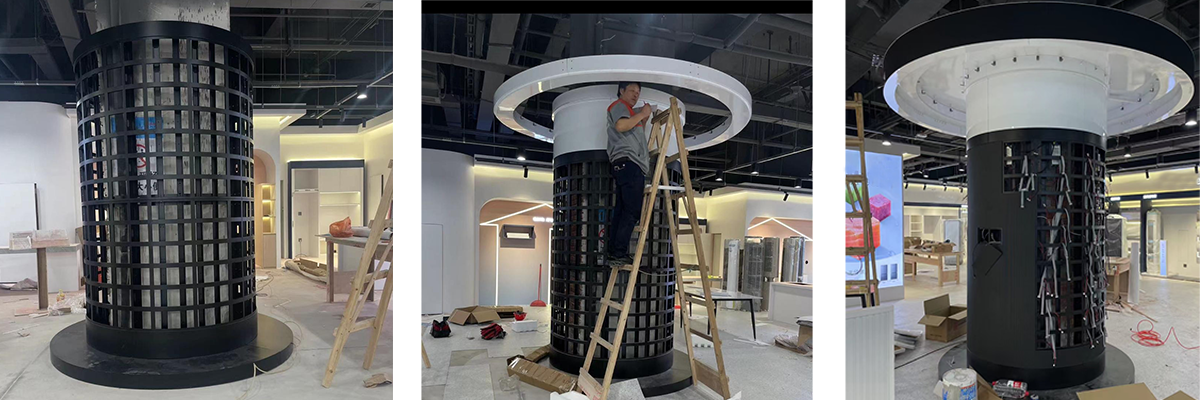

All components are accessible from the front of the screen, making installation, servicing, and module replacement quick and simple — even on columns with restricted rear access.
Full Certification
Each unit ships with CE, RoHS, ETL, FCC, and ISO9001 certifications. Full compliance with international safety and quality standards ensures hassle-free import and project approval.
Wide Application Scenarios
Ideal for shopping mall columns, hotel lobbies, exhibition halls, airport pillars, brand flagship stores, museum exhibits, conference centers, and outdoor landmarks.
Source Factory – On-Time Delivery
We control all production in-house: R&D, module manufacturing, assembly, and QC. Factory-direct pricing, strict lead-time management, and reliable shipping ensure your project deadline is met.
Technical Specifications
Available configurations for your project. All parameters can be customized.
Parameter | Available Options |
|---|---|
Pixel Pitch | P1.5 / P1.8 / P2 / P2.5 / P3 / P4 / P5 / P6 / P8 / P10 |
Module Type | Flexible soft LED module (customizable width & height) |
Cabinet Material | Aluminum / Steel (custom finish available) |
Curvature Radius | R ≥ 500 mm (customizable to any radius) |
Wrap Angle | 90° / 180° / 270° / 360° full wrap (custom) |
Brightness | Indoor: 800–1500 nits | Outdoor: 4500–7000 nits |
Refresh Rate | 1920 Hz – 3840 Hz (high-refresh option) |
Gray Scale | 14–16 bit |
IP Rating | Indoor: IP30 | Outdoor: IP65 (front) / IP54 (rear) |
Maintenance | Front maintenance (full-rear also available) |
Power Consumption | Average: 180–350 W/m² | Max: 600–900 W/m² (depends on pitch) |
Operating Temp | -20°C to +50°C (indoor/outdoor variants) |
Certifications | CE, RoHS, ETL, FCC, ISO9001 |
Warranty | 2–5 years (customizable) |
Lead Time | 15–30 working days (based on complexity) |

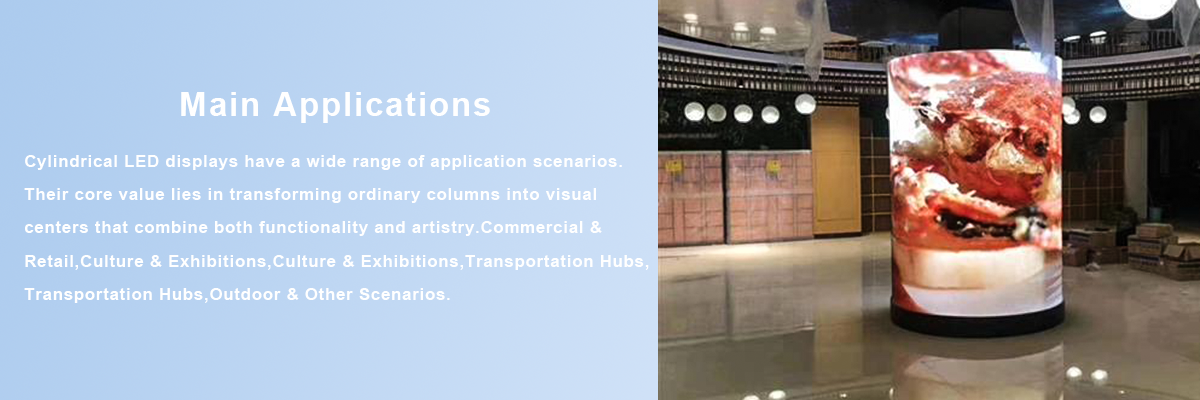

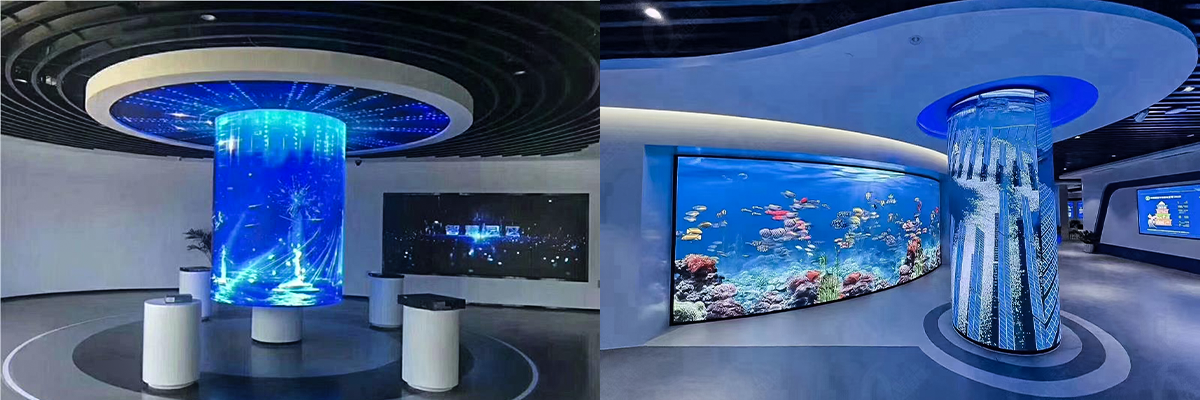

Where Cylindrical LED Displays Are Used
Transform any round surface into a dynamic visual hub.
Shopping Malls-Atrium column displays, brand promotion pillars, wayfinding columns.
Hotels-Lobby columns, reception area pillars, event hall accent displays.
Exhibition Halls-Trade show booths, museum exhibits, immersive themed columns.
Brand Stores-Flagship store centerpieces, entrance columns, product showcase pillars.
Airports-Terminal support columns, information pillars, advertising columns.
Outdoor Landmarks-Public square columns, building facade pillars, city landmark wraps.
Certifications & Quality Assurance
Every screen is manufactured and tested to global standards.
✅CE | ✅RoHS | ✅ETL | ✅FCC |
|---|---|---|---|
✅ISO9001:2015 | 🔬48h Burn-in Test | 📦Export-grade Packing |
We provide full certification documents with every shipment, ensuring smooth customs clearance and project approval worldwide.
Frequently Asked Questions
What is the minimum diameter for a cylindrical LED display?
The minimum diameter depends on the pixel pitch and module design. For P2.5 and above, a radius of R ≥ 500 mm (1 m diameter) is achievable. For finer pitches like P1.5–P2, a slightly larger radius may be recommended. Contact us with your column size, and we'll design the optimal solution.
Can I customize the height and wrap angle?
Yes. Every cylindrical LED display is custom-engineered. You can specify the diameter, height, and wrap angle (90°, 180°, 270°, or full 360°). We will design the cabinet layout and module arrangement accordingly.
What certifications do you provide?
CE, RoHS, ETL, FCC, and ISO9001:2015. For specific project requirements, we can also arrange additional certifications (e.g., TÜV, CB, UL). All documents are provided with the shipment.
What is front maintenance? Is it really easy to service?
Front maintenance means all components — LED modules, power supplies, and receiving cards — are accessible from the front of the screen. No rear access is needed. This is especially important for columns built close to walls or in tight spaces. Module replacement takes minutes with a magnetic tool.
How long does delivery take?
Standard lead time is 15–20 working days for common configurations. Complex projects with custom tooling may need 25–30 working days. We provide a confirmed delivery schedule before order confirmation and track production status weekly.
Source Factory – Why Buy Direct?
We are not a trading company. We own the full production line: R&D, SMT assembly, module testing, cabinet fabrication, and final QC. This means:
💰 Factory Pricing
No middleman markups. Direct factory pricing saves you 20–40% vs. trading company quotes.
🔧 Full Customization
Your size, your pitch, your brightness level. We build it exactly as specified.
📞 Direct Support
Speak directly with the factory engineers. Faster communication, faster problem-solving.
📅 On-Time Delivery
In-house production control means we deliver on schedule. Over 95% on-time track record.
