Product Overview
Make Your Wine Brand Shine

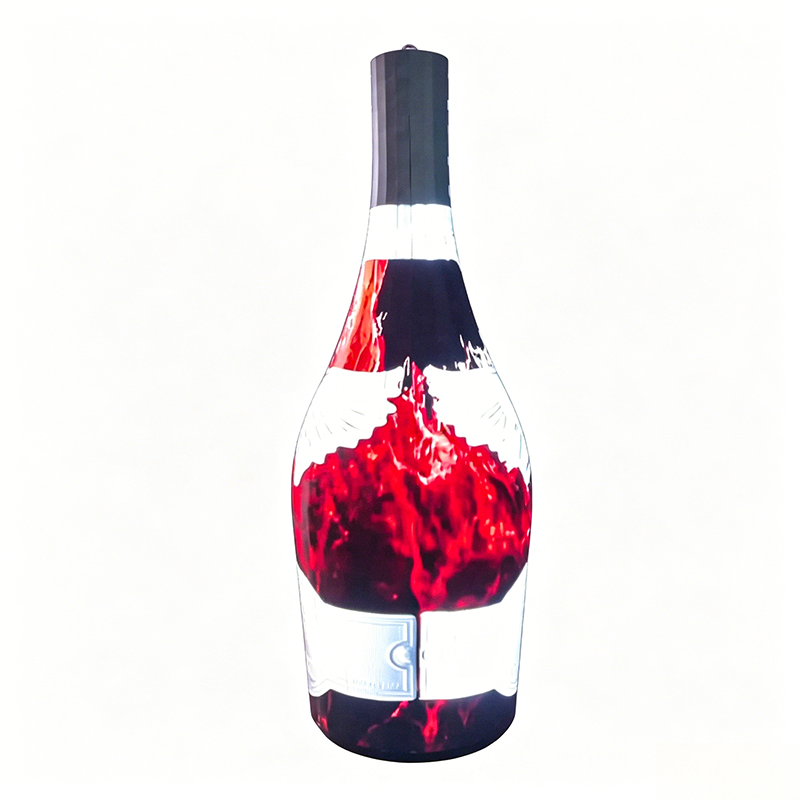

Our custom wine bottle LED display is designed to bring your brand image to life. Using advanced flexible soft LED modules, the display is precisely shaped into a realistic wine bottle silhouette, delivering high-brightness, vivid visuals that capture attention instantly.
As a professional LED display factory, we offer end-to-end customization — from dimensions and pixel pitch to installation method. Every unit is crafted with front maintenance support for easy servicing, and a plug-and-play control system for quick setup.
Perfect for bars, liquor stores, wine exhibitions, and brand showrooms — transform any space into an immersive brand experience.
Key Features
Engineered for flexibility, durability, and stunning visual impact.

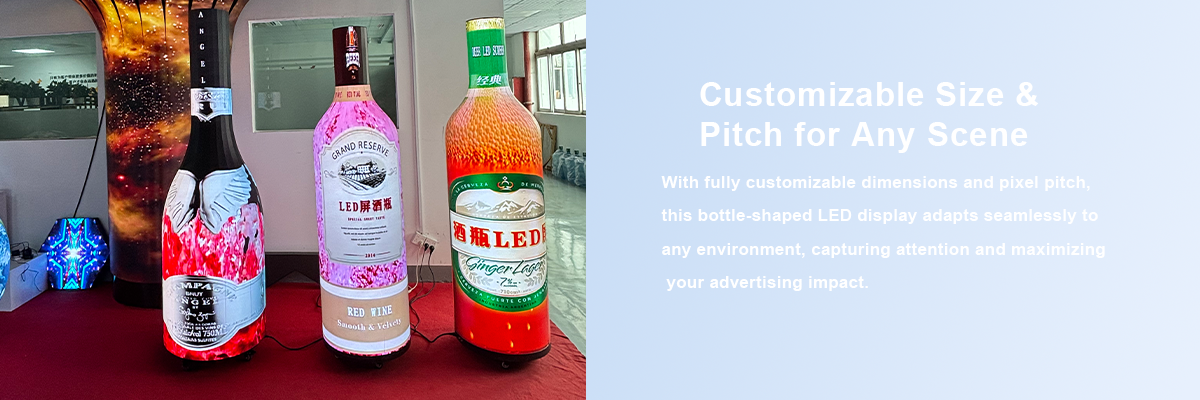

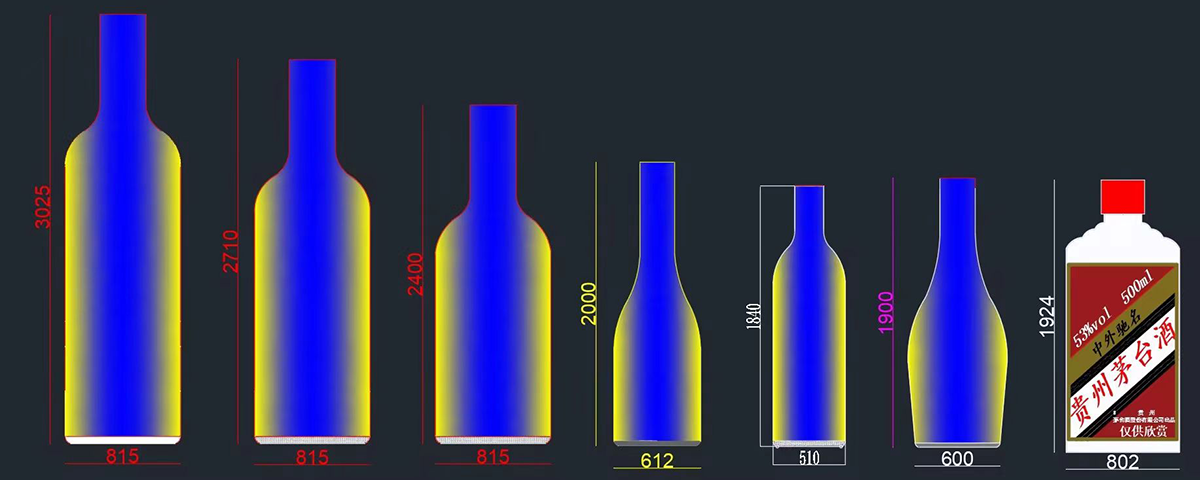

Size Customization
Any height, width, or bottle shape — we build the LED display to your exact specifications. From mini countertop bottles to full wall installations.
Adjustable Pixel Pitch
Choose from P1.25 to P10 to match your viewing distance. Higher resolution for close-up displays, wider pitch for larger installations.
Flexible Soft Module
Advanced flexible PCB technology allows the display to curve smoothly into organic shapes — perfect for custom wine bottle contours without gaps or distortion.
Front Maintenance
All components are serviceable from the front. No need for rear access — ideal for wall-mounted, suspended, or tight-space installations.
Plug & Play
Pre-assembled and tested at the factory. Connect to power and your media source — the display is ready to run. Minimal onsite configuration required.
Factory Direct
We are the original manufacturer. No middlemen — get better pricing, direct technical support, and faster lead times. Fully certified for global shipping.
Technical Specifications
All parameters can be adjusted to your project requirements.
Product Name | Custom Wine Bottle LED Display |
|---|---|
Display Shape | Custom wine bottle silhouette / custom organic shape |
Module Type | Flexible soft LED module (SMD) |
Pixel Pitch | P1.25 / P1.53 / P1.86 / P2 / P2.5 / P3 / P4 / P5 / P6 / P8 / P10 (customizable) |
Cabinet Size | Fully customized to match bottle design |
Brightness | ≥ 1200 cd/m² (indoor) | ≥ 5000 cd/m² (outdoor, optional) |
Refresh Rate | ≥ 1920 Hz |
Gray Scale | 14-bit – 16-bit |
Viewing Angle | H: 160° / V: 160° |
Maintenance | Front maintenance (full) |
Installation | Wall-mounted / suspended / floor-standing / embedded |
Control System | Novastar / Colorlight (plug-and-play) |
Power Supply | AC 110V–240V, 50/60Hz |
Certifications | CE, ROHS, FCC, ETL (upon request) |
Warranty | 2 years |
Lead Time | 10–20 working days (depending on complexity) |

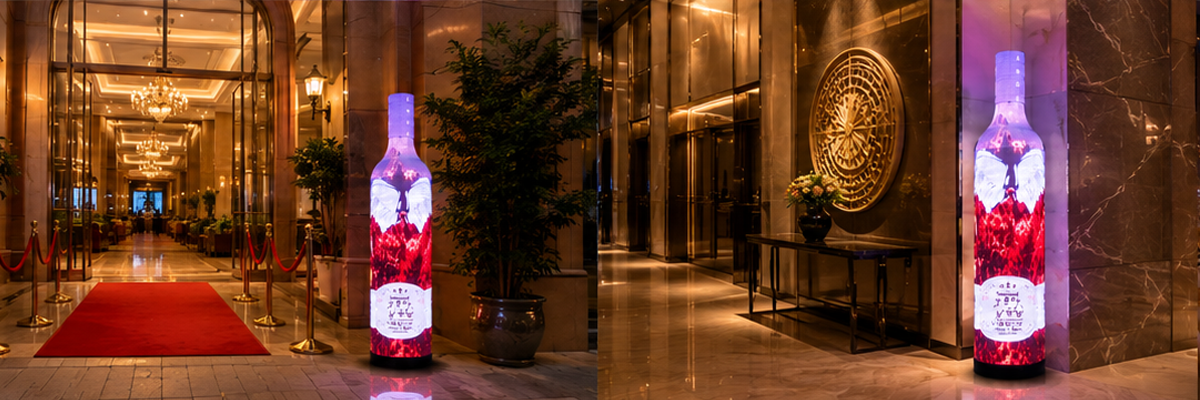

Wide Application Scenarios
The wine bottle LED display adds elegance and energy to any setting.

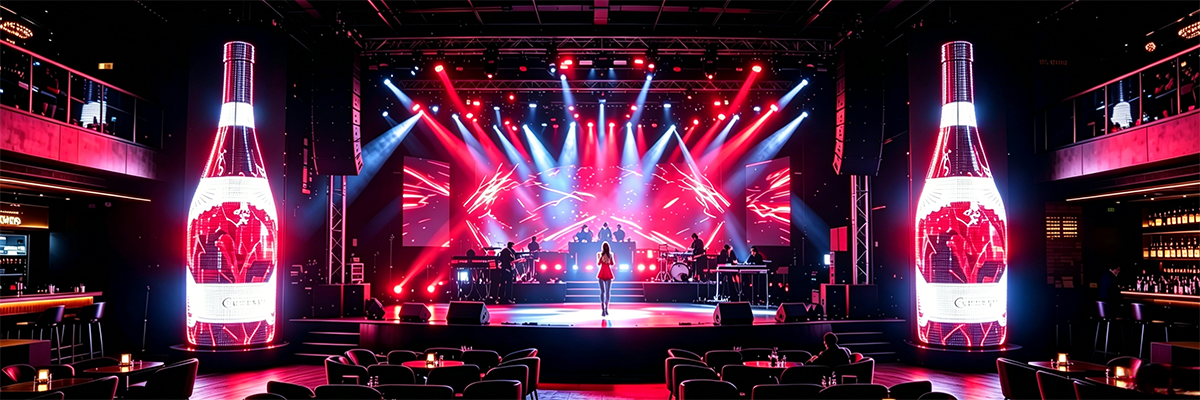

Bars & Nightclubs-Eye-catching wine bottle displays behind the bar enhance atmosphere and brand identity.
Liquor Stores-Attract foot traffic with dynamic digital signage shaped like your most popular bottles.
Wine Exhibitions-Stand out at trade shows and exhibitions with a large-scale custom-shaped display.
Hotels & Restaurants-Create a premium dining experience with wine-themed digital art and promotional content.
Certifications & Quality Assurance
Every display is manufactured and tested under strict quality control — guaranteed safe and reliable.
✅CE -European Safety Standard | ✅ROHS-Restriction of Hazardous Substances | ✅FCC-US Electromagnetic Compatibility |
|---|---|---|
✅ETL-North American Safety (Optional) | 📋ISO 9001-Quality Management System |
Why Choose Our Factory?
We don't just sell LED displays — we engineer custom visual solutions from our own factory floor.
01 Original Factory
Direct manufacturer with 10+ years of LED display production experience. No middlemen, better pricing, full control over quality.
02 Fully Customizable
From size to pixel pitch to shape — we adapt every parameter to your project. Custom wine bottle shapes created from your design files.
03 Reliable Delivery
All products fully tested before shipping. On-time delivery with proper export packaging. Trackable global shipping.
04 Complete Certification
CE, ROHS, FCC, ETL certified. All materials meet international standards. Inspection reports available upon request.
05 After-Sales Support
2-year warranty standard. Dedicated technical support team available via email, WhatsApp, or video call. Spare parts readily available.
06 Global Export Experience
Exported to 40+ countries worldwide. Experienced in international logistics, customs documentation, and compliance requirements.
Frequently Asked Questions
Can I customize the size of the wine bottle LED display?
Absolutely. As a specialized factory, we offer full size customization. Send us your desired dimensions (height, width) or a reference design, and our engineering team will create a tailored solution.
What pixel pitch options do you offer?
We support pixel pitches from P1.25 (fine detail, close viewing) to P10 (larger displays, longer viewing distances). For wine bottle displays in bar or retail settings, P2–P4 is commonly recommended. Our team can advise based on your installation environment.
What is a soft module and why is it used?
A soft (flexible) module uses a flexible PCB that can bend and curve to fit irregular shapes. This is essential for creating the smooth contours of a wine bottle shape without visible seams or gaps between cabinet panels.
What does "front maintenance" mean?
Front maintenance means all components — modules, power supply, receiving card — can be accessed and replaced from the front of the display. No rear access is needed, making it ideal for wall-mounted installations.
Is the display really plug-and-play?
Yes. Each display is pre-assembled, wired, and tested at our factory. On-site, you simply mount the display, connect power, and connect to your media source (HDMI/USB via the control system). Our team provides remote setup guidance.
What certifications do you have?
Our products are certified with CE, ROHS, and FCC as standard. ETL certification is available upon request for North American projects. Full certification documents can be provided before shipment.
How long does production take?
Typical lead time is 10–20 working days, depending on design complexity and quantity. Custom shapes may require additional design and prototyping time. Rush orders can be accommodated — please inquire.
Do you offer samples before bulk order?
Yes. Sample orders are welcome. We can produce a small-scale version or a full prototype for your evaluation. Sample costs are negotiable and can be deducted from a future bulk order.
