Product Overview

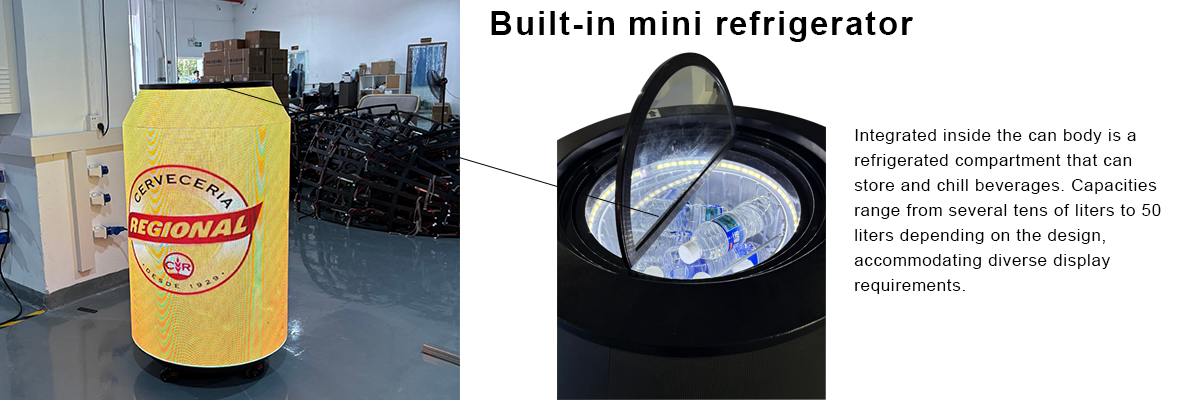

Transform your beverage display with our Built-in Can Cooler LED Display – a seamless integration of high-brightness LED screen and commercial refrigeration. Designed for convenience stores, supermarkets, bars, and event venues, this all-in-one cooler display combines vibrant digital signage with efficient cooling, making your product stand out while keeping drinks perfectly chilled.
Coming with customizable can size layout, the unit fits standard beverage cans and bottles, offering dynamic advertising space right at the point of sale.
Key Features
1. Customizable Can Size
The can compartment layout is fully customizable to match different can/bottle dimensions. Choose from preset column configurations to fit your specific beverage lineup.

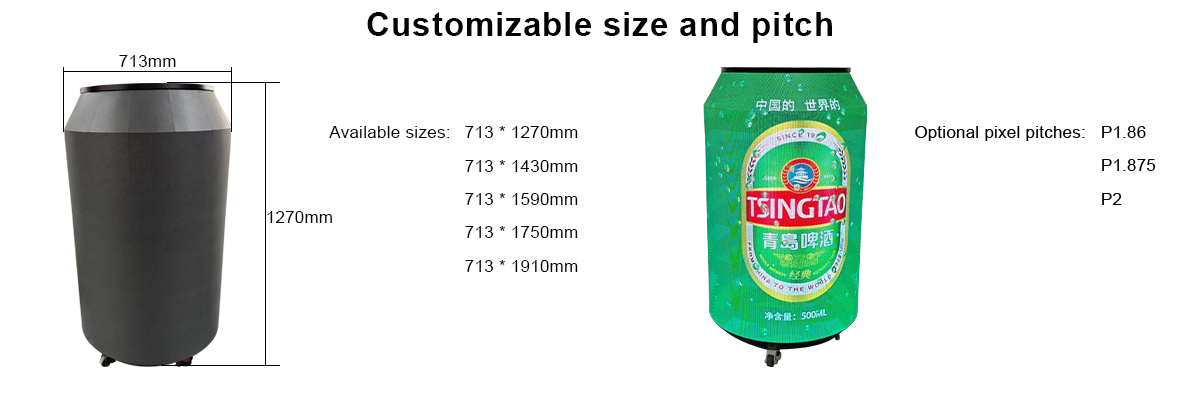

2. Flexible Cabinet Sizes
Available in 5 standard heights to suit different space requirements:
Model | Cabinet Size (W×H) | Typical Application |
|---|---|---|
CH-713127 | 713 × 1270mm | Counter-top / small footprint |
CH-713143 | 713 × 1430mm | Mid-size retail display |
CH-713159 | 713 × 1590mm | Standard commercial use |
CH-713175 | 713 × 1750mm | Large retail display |
CH-713191 | 713 × 1910mm | Full-height flagship display |
3. Multiple Pixel Pitch Options
Choose the optimal pixel density for your viewing distance:
P1.86 Ultra-fine pitch – best for close-up viewing (1–3m)
P1.875 High-definition – ideal for mid-range (2–5m)
P2.0 Standard definition – cost-effective for general use (3m+)

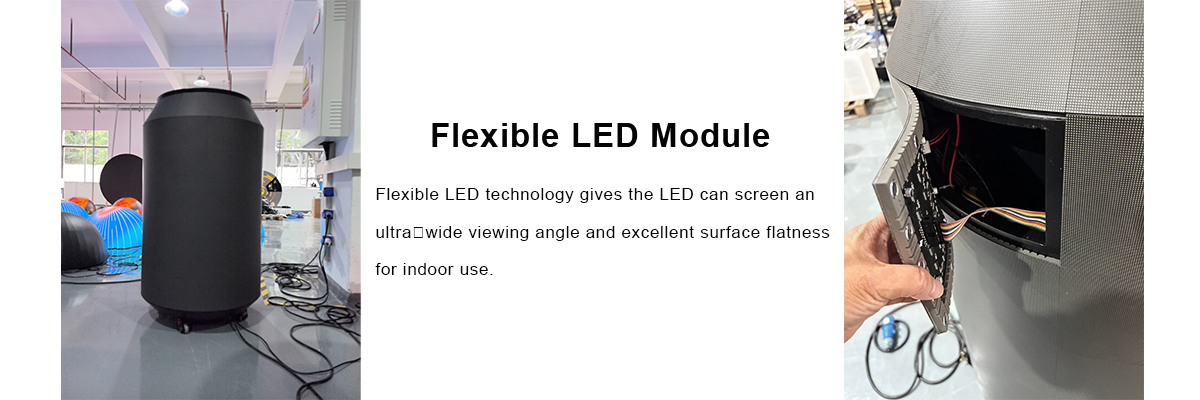

4. Soft Module – Curved & Seamless
Our advanced soft LED module technology allows for a curved, seamless assembly. The flexible PCB and silicone face mask provide a sleek, gapless appearance that adapts to the cooler's shape for a truly integrated look.
5. Front Service – Space-Saving
All maintenance is performed from the front — no need to leave rear access space. This makes the display ideal for tight retail environments where wall space is premium.

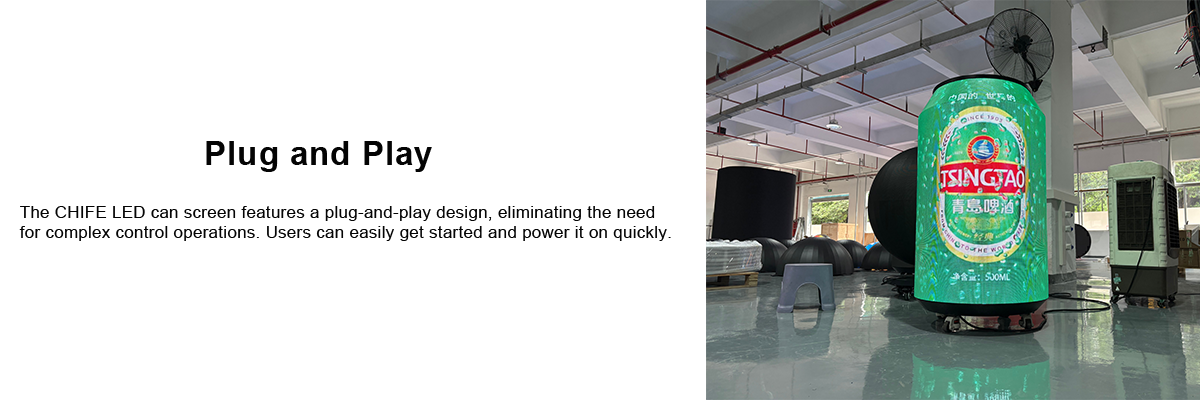

6. Plug & Play – Easy Installation
Pre-assembled and tested before shipping. Simply plug in the power and signal cable, and the display is ready to run. No complex on-site configuration required.
7. Swivel Caster Wheels – Effortless Mobility
Equipped with heavy-duty swivel caster wheels at the bottom, the unit can be easily moved for cleaning, restocking, or repositioning — a must-have for dynamic retail layouts.
8. Wide Application
Perfect for:
Convenience stores (7-Eleven, Lawson, FamilyMart)
Supermarkets & hypermarkets
Bars & nightclubs
Sports stadiums & arenas
Event catering & exhibitions
Hotel lounges & buffets
Gas station shops
Vending machine areas
Why Choose Our Built-in Can Cooler LED Display?
1. All-in-One Solution
No need to buy a separate cooler and LED screen. Our integrated design saves space, reduces installation cost, and simplifies maintenance — one plug, one unit, one supplier.
2. Retail-Ready Digital Signage
Display real-time promotions, pricing, videos, or brand content directly on the cooler. Studies show digital signage at point of sale can increase sales by up to 30%.
3. Energy Efficient
Commercial-grade compressor and LED technology mean lower energy consumption compared to separate units. Keep your drinks cold and your electricity bill low.
4. Custom Branding
We can apply your brand color, logo, and content management system (CMS) for consistent branding across all locations.
Parameter
Pixel Pitch (mm) | P1.86 | P1.875 | P2 |
Pixel Configuration | SMD1515 | SMD1515 | SMD1515 |
Density (Pixels/㎡) | 288,906 | 284,444 | 250,000 |
Module Resolution (Pixel) | 172x86 | 128x64 | 160x80 |
Module Size (mm) | 320x160 | 240x120 | 320x160 |
Driving Mode (Duty) | 1/43 | 1/32 | 1/40 |
Cabinet Size (mm) | 713 * 1270 / 713 * 1430 / 713 * 1590 / 713 * 1750 / 713 * 1910 | 764 * 1341 / 764 * 1510 / 764 * 1678 / 764 * 1847 | 713 * 1270 / 713 * 1430 / 713 * 1590 / 713 * 1750 / 713 * 1910 |
Cabinet Weight (KG) | ≈75 / 83 / 90 / 100 / 112 | ≈85 / 90 / 100 / 115 | ≈75 / 83 / 90 / 100 / 112 |
Brightness (CD/㎡) | 650 | 650 | 650 |
Viewing Angle (°) | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 480 | 480 | 480 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
Protecting Grade | IP31 | IP31 | IP31 |
Package Includes
1× Built-in Can Cooler LED Display (custom height)
1× LED control box & power supply
1× Set of soft LED modules (pre-installed)
1× User manual
4× Swivel caster wheels (pre-installed)
FAQ
Q: Can I customize the can compartment size?
A: Yes. The can/bottle slots are fully customizable to fit your specific beverage SKUs.
Q: Is the LED screen bright enough for a store environment?
A: Absolutely. Our LED display offers high brightness (≥1200cd/m²) suitable for indoor retail lighting, ensuring your content stays vivid and readable.
Q: How long does installation take?
A: Since the unit is plug-and-play, installation typically takes less than 30 minutes — just connect power and signal.
Q: What is the warranty period?
A: Standard warranty is 2 years for the LED screen and 1 year for the refrigeration system. Extended warranty available on request.
Q: Can I play videos on this display?
A: Yes. The built-in control system supports video, images, text, and live data feeds. You can manage content via Wi-Fi, USB, or LAN.
