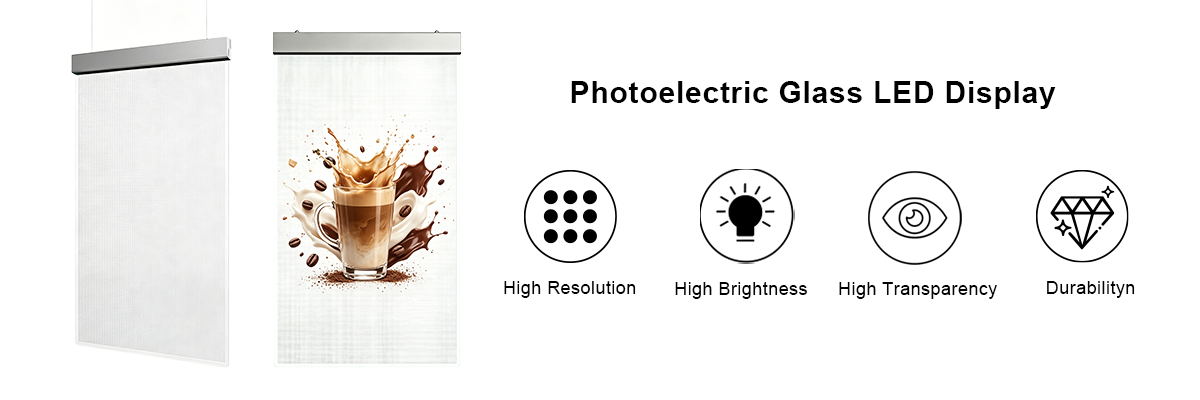

See Through, Stand Out
The CH82H03 redefines window advertising. Its ultra-thin 7 mm tempered glass construction delivers vivid visuals while preserving natural light and store visibility — a true see-through display that never blocks your storefront.
Whether mounted against an existing window or suspended above a lobby counter, the CH82H03 transforms any glass surface into a dynamic advertising medium — without sacrificing aesthetics or light.
Key Features
Why the CH82H03 is the smart choice for modern retail advertising.

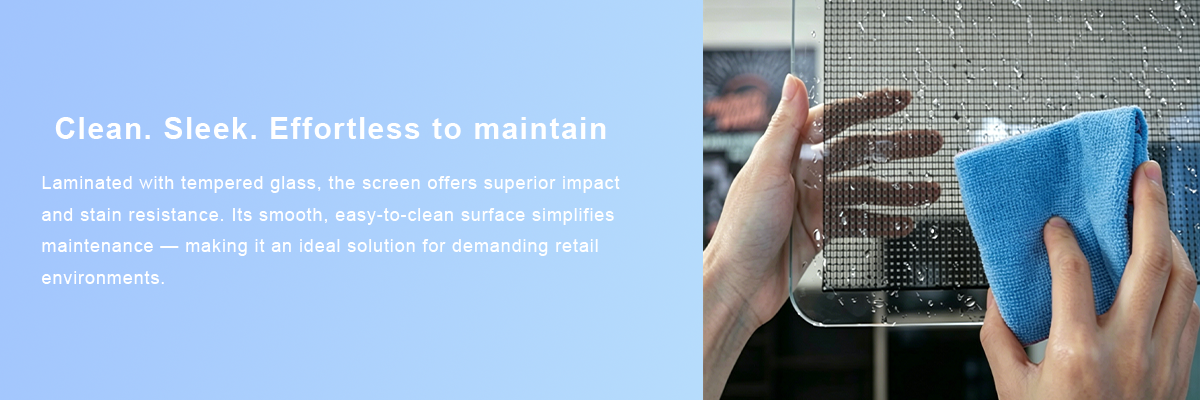

Ultra-Slim 7 mm Glass
Professional tempered glass engineered for commercial use—dustproof, stain-resistant, moisture-proof, and incredibly easy to clean. Maintains a premium, minimalist look.

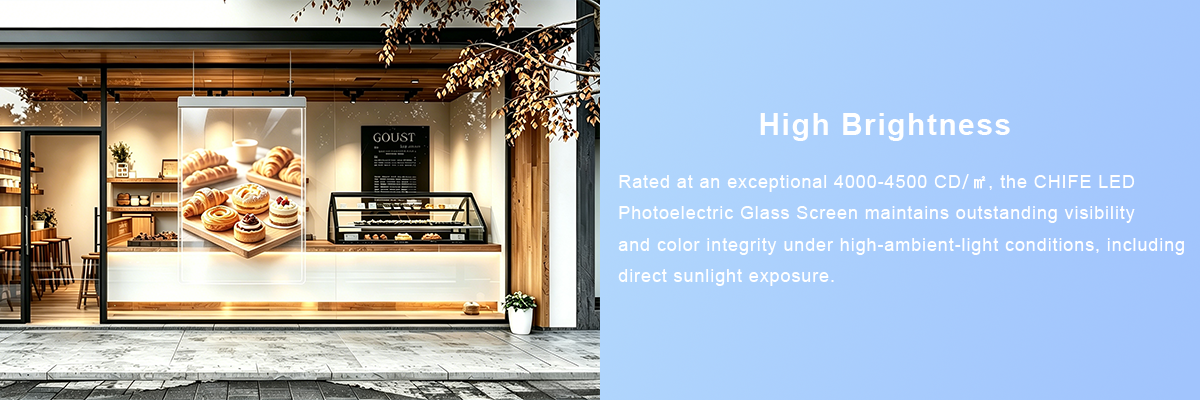

High Brightness (4000–4500 cd/m²)
Bright enough to cut through direct sunlight and window glare, ensuring your content remains vivid and readable even on the sunniest days.

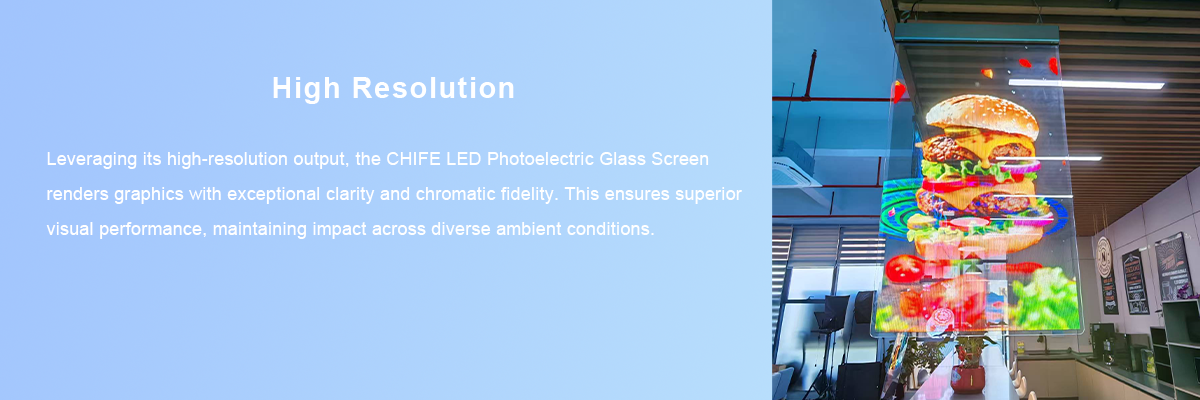

16-Bit Grayscale & True Color
16-bit grayscale processing delivers smooth gradients, deep blacks, and lifelike color reproduction — perfect for both text-rich announcements and eye-catching commercial ads.
> 60% Transparency
Natural light passes through the display, keeping your storefront inviting and visible. Customers can see your products through the screen — no dark, closed-off windows.
Integrated LED + Driver
Each LED is paired with its own driver IC in a unified package, reducing component count, improving reliability, and delivering consistent brightness across the entire panel.
Near-16:9 Aspect Ratio
The 823×1380 mm display area delivers a near-16:9 canvas, making it simple to repurpose standard video content without awkward cropping or letterboxing.
Flexible Installation

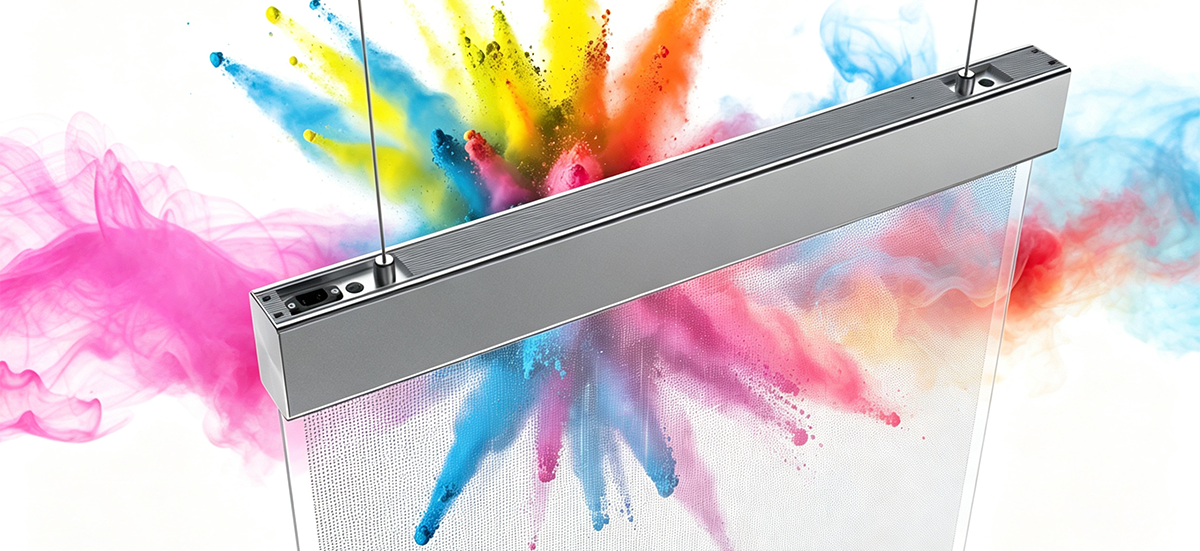

Mount it against an existing storefront window or suspend it above a lobby counter or bar. The lightweight aluminum profile cabinet makes installation straightforward.

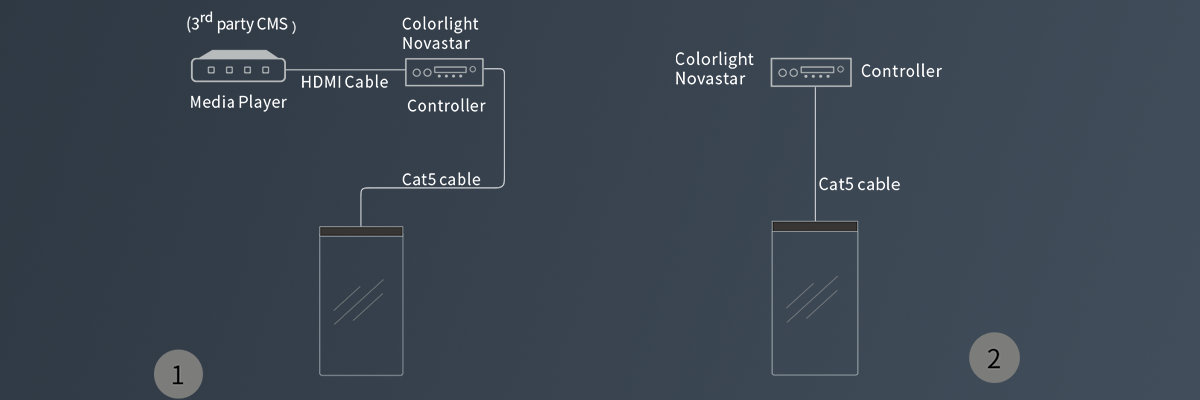

Remote Content Management
Centrally manage playlists, schedules, and updates across all your locations via cloud-based CMS — ideal for chain stores and multi-site deployments.
Safety & Security
High-density smart LED matrix is securely sandwiched between two layers of tempered glass, offering high safety and impact resistance for public-facing installations.
Ideal Applications
Where the CH82H03 glass display delivers maximum impact.

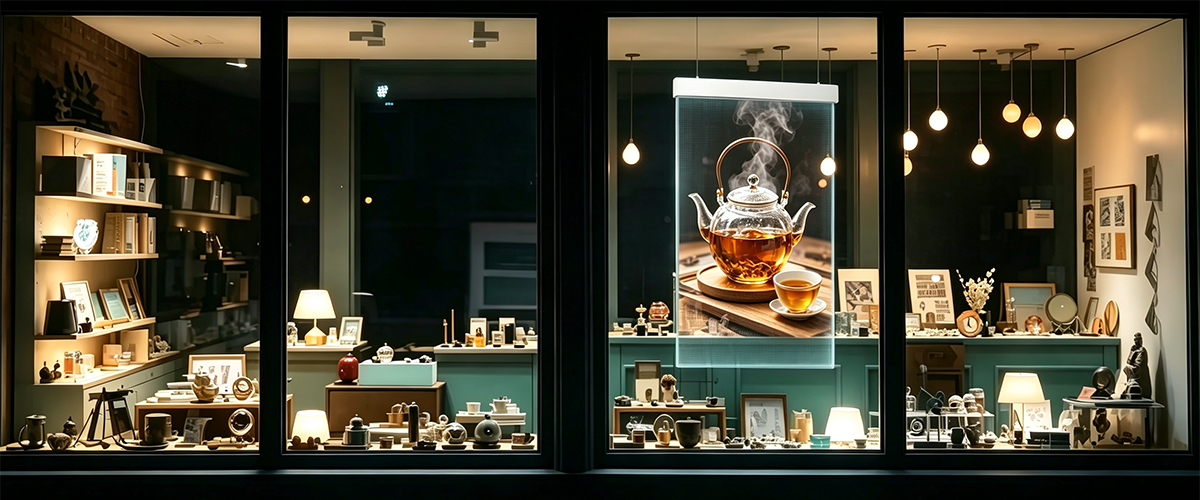

Retail Storefront Windows
Chain Store Networks
Hotel Lobbies & Bars
Cafés & Restaurants
Shopping Mall Displays
Corporate Reception Areas
Brand Experience Centers
Electronics Retail Counters
Technical Specifications
Precision-engineered for demanding retail and commercial environments.
Model | CH82H03 |
Cabinet Material | Aluminum Profile |
Glass Material | Tempered Glass — dustproof, stain-resistant, moisture-proof, easy to clean |
Cabinet Dimensions (W×H×D) | 823 × 1475 × 60 mm |
Glass Thickness | 7 mm |
Display Area (W×H) | 823 × 1380 mm |
Pixel Pitch | P3.4 × 3.4 mm |
Drive Mode | Integrated LED & driver IC — reliable, long-lasting performance |
Brightness | 4000 – 4500 cd/m² |
Gray Scale | 16-bit — smooth, true-to-life color reproduction |
Weight/set | 27KG |
Power consumption Max/Avg. | 800W/240W |
Installation | Window-mounted (against glass) or suspended above counter / lobby bar |
Content Management | Remote content scheduling & playback — manage multiple locations centrally |
Why CHIFE LED?
A reliable partner for your global display projects.
Vertical Integration
We design, engineer, and manufacture in-house — giving you better pricing, shorter lead times, and direct quality control.
Global Shipping
We ship worldwide with professional export packaging. Our logistics team handles documentation, customs clearance support, and safe transit.
Comprehensive After-Sales
Every display comes with a warranty and access to our technical support team. We stand behind our products.
Continuous Innovation
Our R&D team continuously improves pixel pitch, transparency, brightness, and energy efficiency to keep our products ahead of the market.
