Product Overview
The LED holographic advertising display delivers exceptional high definition and vivid color reproduction. Whether showcasing product images or playing promotional videos, it produces stunning image quality with fine, intricate details. Viewers feel as though they can almost reach out and touch the objects on the screen, experiencing their texture and realism. Portable and equipped with a built-in battery, it is suitable for a wide range of applications.
Core Technology
What makes the CH60H02 a next-generation holographic display solution.

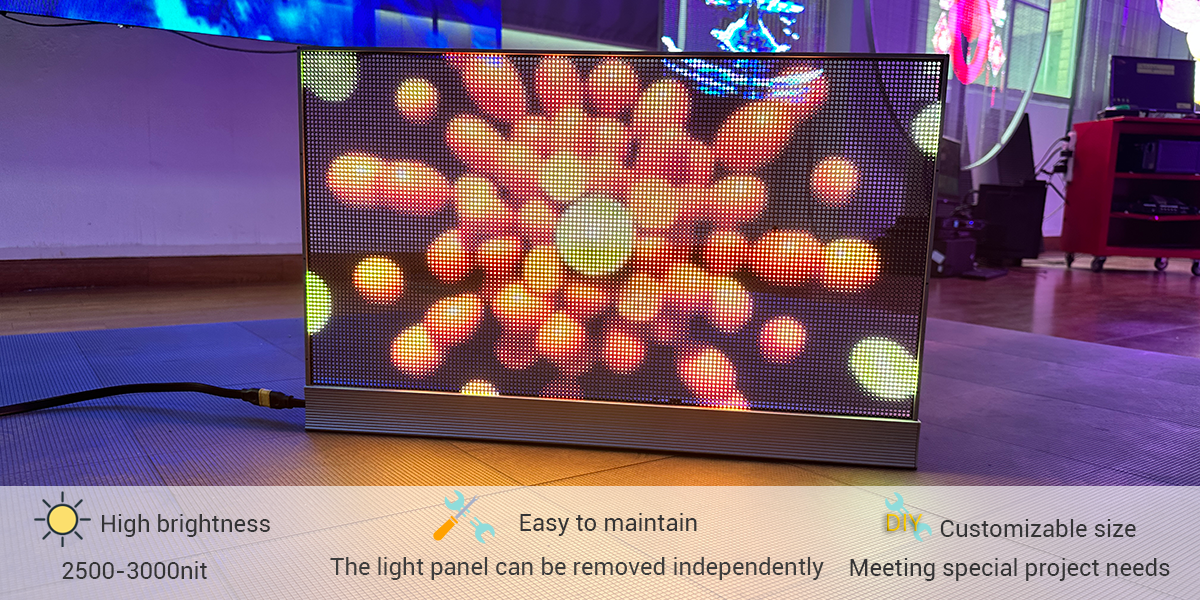

1. Ultra-High Brightness
Ranging from 2500 to 4500 cd/m², the CH60H02 delivers exceptional visibility even under direct sunlight. Your advertising content stays vivid and attention-grabbing in any environment.

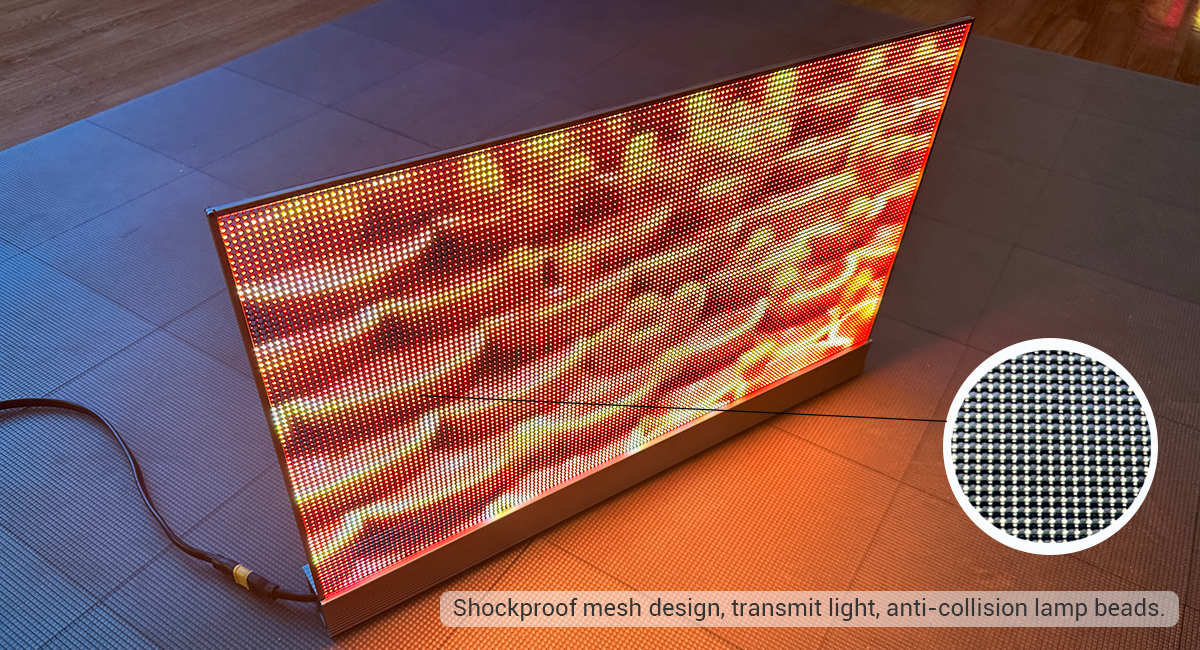

2. Transparent Fiberglass Base
Using high-quality fiberglass board as the base substrate, precision CNC drilling creates custom-shaped openings for maximum light transmittance — achieving true holographic transparency.
3. Integrated Driver IC Micro LEDs
Self-developed lamp beads combine the LED driver IC within a micro-sized package. This reduces component count, improves reliability, and enables ultra-fine pixel pitch designs.
4. Built-in 20000mAh Battery
Run your content for up to 3 hours cordlessly. Perfect for mobile scenarios like concerts, handheld promotions, or temporary installations. External power input is also supported for continuous use.
5. Lightweight Aluminum Frame
Engineered with aluminum alloy profile cabinet at 600×372mm. Strong yet lightweight for easy wall mounting, rigging, or handheld operation.
6. High Precision Manufacturing
Each unit undergoes rigorous quality control at our factory. From CNC drilling accuracy to color calibration, every CH60H02 meets professional-grade standards.
Application Scenarios
Versatile deployment options for the CH60H02 holographic LED screen.
Street-Facing Retail Windows
Transform storefront glass into dynamic advertising. High brightness cuts through daylight reflections to capture foot traffic attention.
Supermarket Displays
Highlight promotions and product information with eye-catching transparent content without blocking the view behind the display.
Concert Fan Handheld
Portable and battery-powered — fans can hold the screen during performances to show messages, logos, or crowd interaction content.

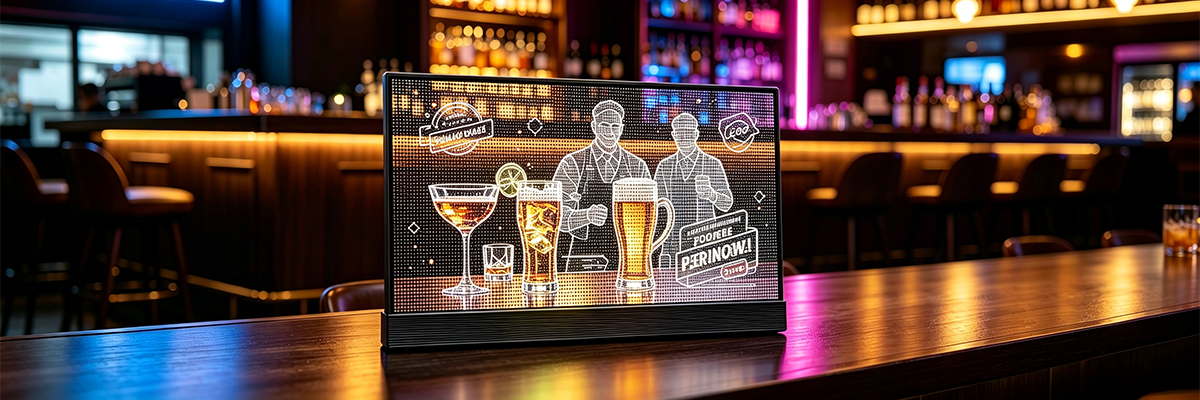

Bar & Nightclub Atmosphere
Create immersive ambient lighting and dynamic visuals. The transparent design adds depth without occupying floor or wall space.
Event Branding & Stage
Lightweight construction makes it easy to rig for trade shows, product launches, and stage backdrops where transparency adds wow factor.
Photography & Video Backdrop
Use as a creative holographic backdrop for content creation. Programmable content adapts to any theme or brand identity.
Why Choose CHIFE LED?
Origin manufacturer with full certification and reliable delivery.
10+Years of LED display manufacturing experience
3International certifications: CE, RoHS, ISO9001
15-20Days standard production lead time
24/7Technical support and after-sales service
DDPDoor-to-door delivery available worldwide
100%Quality tested before shipment
Technical Specifications
CH60H02 LED Holographic Screen — Detailed parameters for your project planning.
Product Version | CH60H02 |
Pixel Pitch(mm) | 3.9*3.9mm |
LED Type | 1212 |
Pixel Density(pixels/m²) | 152x84 |

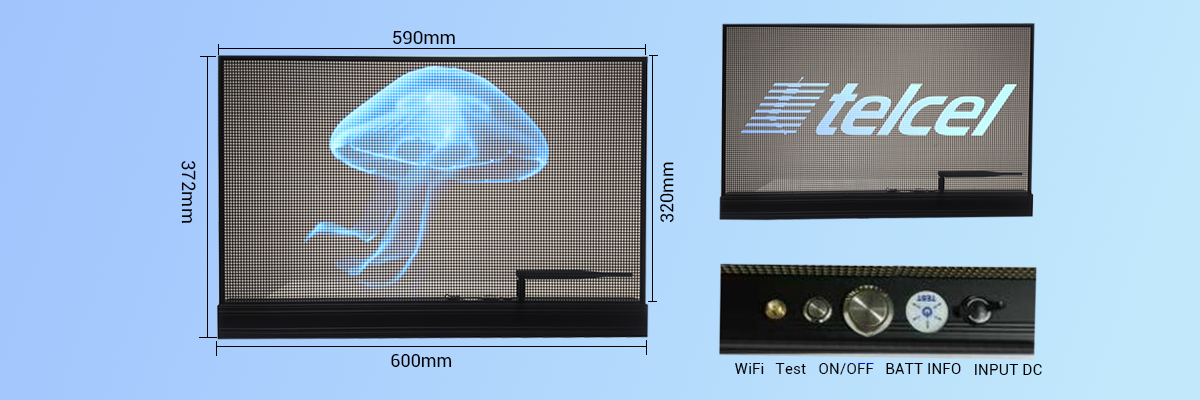

Module Size(WxH)(mm) | 590X320 |
Tile Size(WxHxD)(mm) | 600X372 |
Tile Material | Aluminum profile + fiberglass |
Weight/Tile | 1500g |
Transparency | 60% |
Brightness(cd/m²) | 2500-3000CD |
Brightness Level | 256 |
Refresh Rate | 7680 Hz |
Color Processing | 16Bit |
Colors | 281 trillion |
Driving | Constant current |
IC | H-Refresh |
Scan | static |
Max. Power Consumption | 100W/m² |
Ave.Power Consumption | 30W/m² |
Installation | Handheld & Hang |
Serviceability | Front/Back |
IP Rating | IP34 |
Hor. viewing angle | 160° |
Vert. viewing angle | 160° |
Work Voltage | DC4.2V |
Operational Temp | -10~40°C |
Operational Humidity | 10%-90% |
Battery capacity | 20000mAh |
Product Life | 3 hours |
Frequently Asked Questions
Quick answers about the CH60H02 LED holographic screen.
What is the pixel pitch of the CH60H02?
The CH60H02 supports P3.9 × 3.9 mm pixel pitch, offering clear high-definition visuals suitable for close-range viewing in retail and event environments.
How bright is the display? Can it be seen outdoors?
With a brightness range of 2500 to 4500 cd/m², the CH60H02 performs excellently in both indoor and outdoor settings. It remains clearly visible even under direct sunlight, making it ideal for storefront windows.
How long does the battery last?
The built-in 20000mAh rechargeable battery provides approximately 3 hours of continuous operation. You can also connect an external power supply for extended use.
What certifications does CHIFE LED have?
Our products are CE, RoHS, and ISO9001 certified. All units undergo rigorous quality testing before shipment to ensure compliance with international standards.
What is the minimum order quantity (MOQ)?
MOQ varies by configuration. Please contact our sales team for detailed pricing and MOQ information tailored to your project requirements.
How is the screen controlled?
The CH60H02 works with standard LED display control systems. Our team will provide full technical support and configuration guidance with every order.
