Redefine Commercial Display with
Foldable LED Poster Technology

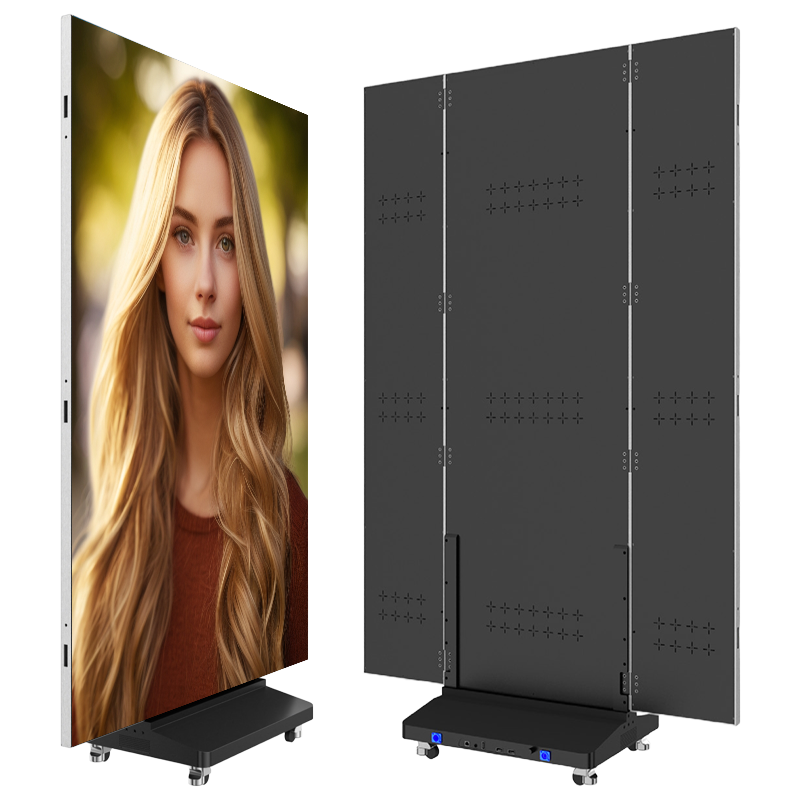

CHIFE LED's tri-fold double-sided poster LED display combines lightweight portability, space-saving design, and exceptional visual performance — purpose-built for modern retail and commercial environments.
Featuring GOB (Glue-on-Board) process modules, the screen delivers outstanding dustproof, moisture-proof, and splash-resistant protection, while remaining easy to clean on the surface. The die-cast aluminum cabinet ensures structural rigidity without adding unnecessary weight.
With a front-service design, maintenance is quick and efficient — no need to dismantle the entire structure. The foldable frame with quick-locking mechanism enables rapid assembly and multi-screen tiling for an instant large-scale display.
Key Features
What makes our tri-fold double-sided LED poster stand out
Ultra-light & Portable
Lightweight design for easy transport and installation. Folds to half size for compact storage and shipping — one person can handle the entire setup.

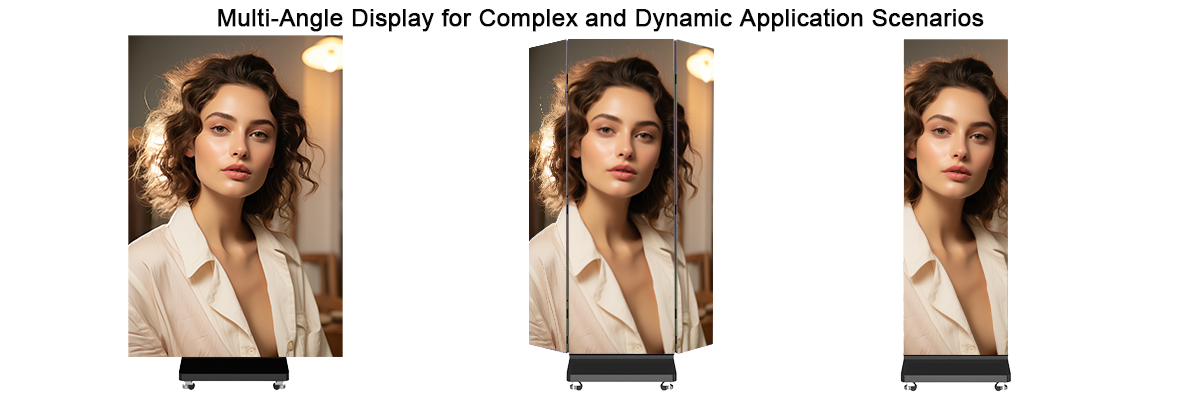

Tri-fold Multi-angle Display
Three-panel folding design supports multi-angle presentation, offering flexibility and adaptability for complex commercial spaces and creative layouts.

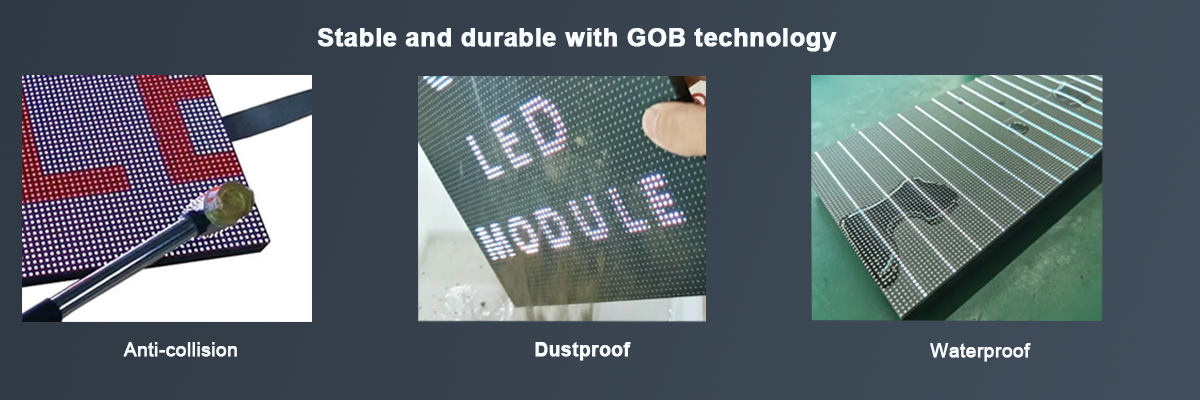

GOB Process Protection
GOB encapsulated modules provide dustproof, moisture-proof, and splash-resistant performance. Easy surface cleaning ensures long-lasting visual clarity.
Front Maintenance
Full front-service access simplifies maintenance and reduces downtime. No rear clearance required — perfect for space-constrained installations.

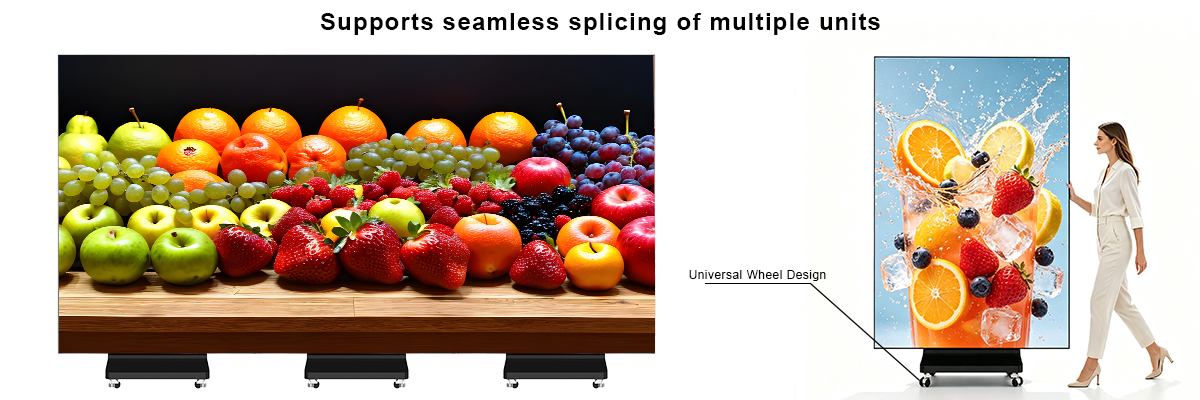

Quick-Lock & Multi-screen Tiling
Foldable frame with rapid locking design supports quick assembly and seamless multi-screen tiling for an instant large-format display.

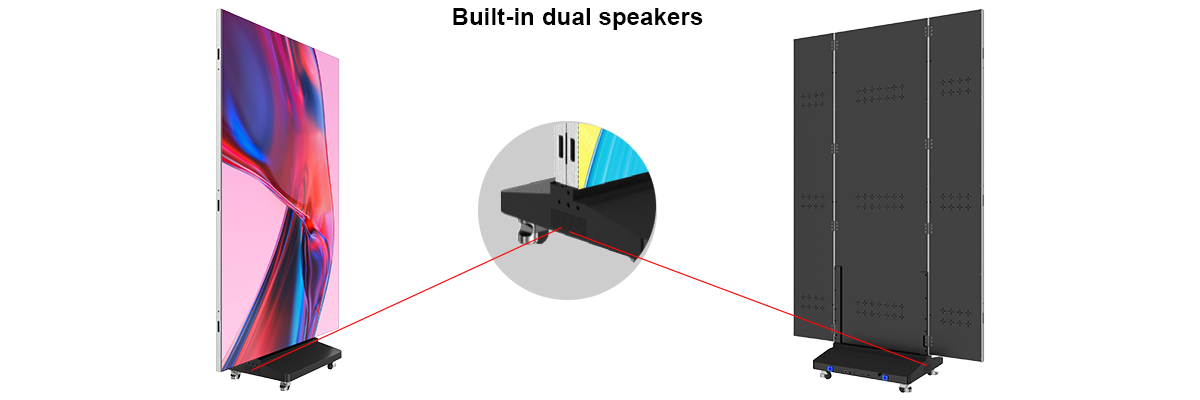

Built-in Speaker
Equipped with high-quality speakers for synchronized audio and video output, delivering an immersive multimedia experience.
Rich Connectivity
USB 3.0, HDMI, Wi-Fi, SIM card slot, and Ethernet port ensure broad compatibility with various devices and playback scenarios.

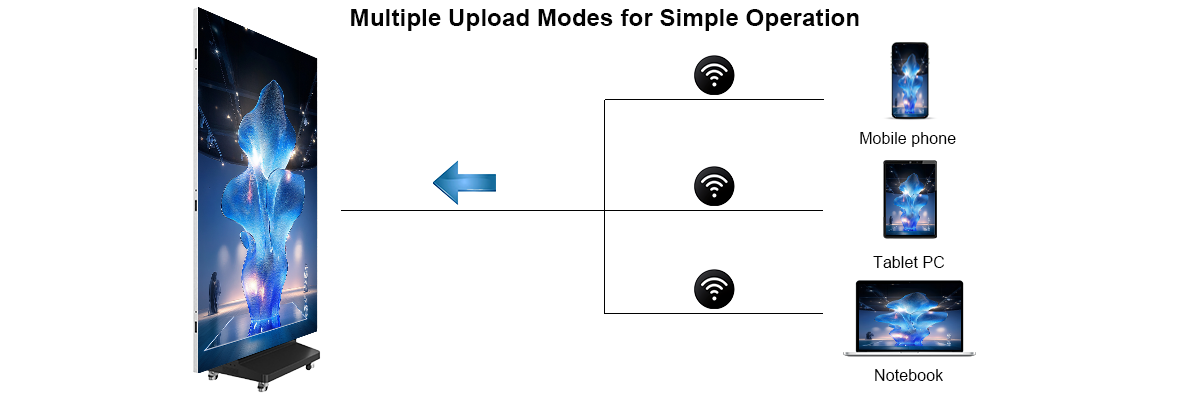

Remote Content Management
Update content remotely via iPad, smartphone, PC, or laptop through USB or Wi-Fi connection. Efficient, flexible, and user-friendly.
Compact Flight Case Storage
Easily folds into a compact flight case for storage and transport. Drastically reduces shipping and storage space requirements.
Available Pixel Pitches
Parameter | P1.25 | P1.53 | P1.86 | P2.5 |
|---|---|---|---|---|
Pixel Pitch (mm) | 1.25 | 1.53 | 1.86 | 2.5 |
Resolution per Cabinet (dots) | 512 × 384 | 418 × 314 | 344 × 258 | 256 × 192 |
Min. Viewing Distance | ≥1.25 m | ≥1.5 m | ≥1.9 m | ≥2.5 m |
Brightness | ≥1200 nits (adjustable) | |||
Refresh Rate | ≥3840 Hz | |||
Application Scenarios
Versatile display solutions for diverse commercial spaces

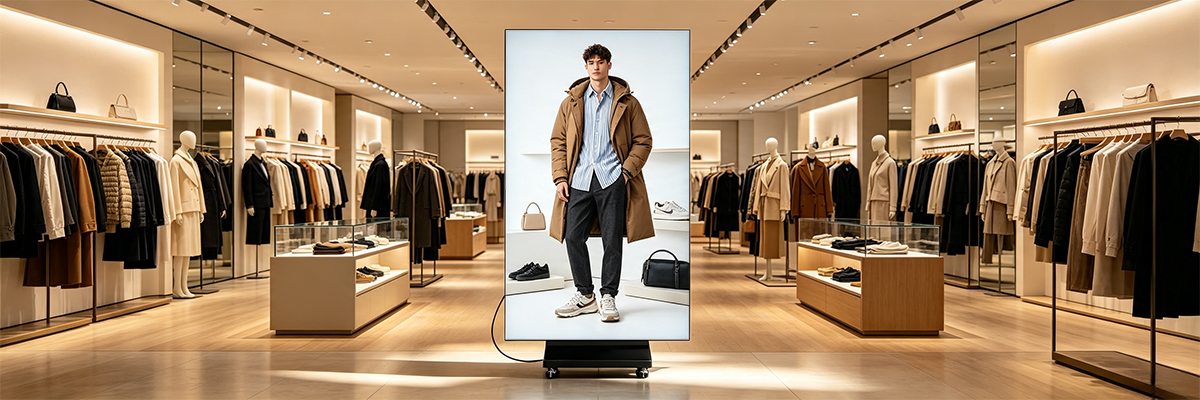

Shopping Malls
Promotional displays and brand showcases
Retail Storefronts
Window advertising and product highlights
Trade Shows & Exhibitions
Portable booth displays that pack up fast
Events & Conferences
Stage backdrops and information boards
Restaurants & Cafés
Digital menu boards and promotions
Hotels & Lobbies
Welcome signage and event announcements
Corporate Lobbies
Brand messaging and digital signage
Photo Booths & Studios
Interactive backdrops and ad displays
Technical Specifications
Detailed parameters of the tri-fold double-sided LED poster
 Name | Project |  CH2070I01-P1.25 |  CH2070I01-P1.53 | CH2070I01-P1.86 |  CH2070I01-P2.5 |
Display module | Pixel spacing (mm） | 1.25 | 1.538 | 1.86 | 2.5 |
Resolution ratio | 256x128 | 204x104 | 172x86 | 128x54 | |
Module Size (mm） | 320x160 | 320x160 | 320x160 | 320x160 | |
Protective technology | GOB | GOB | GOB | GOB | |
Module weight（kg） | 0.55 | 0.55 | 0.55 | 0.55 | |
Whole machine | Whole machine module composition W*H(Pcs） | （W）40x（H）12 | （W）40x（H）12 | （W）40x（H）12 | （W）40x（H）12 |

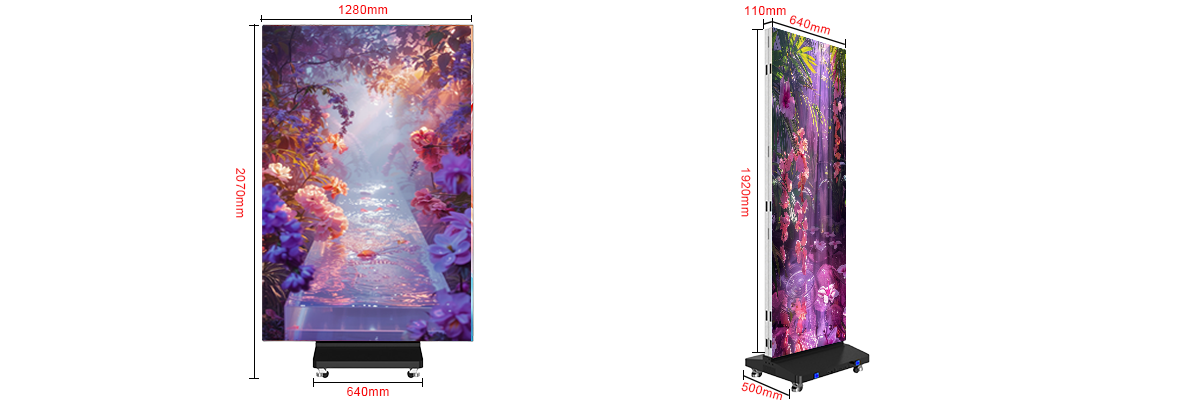

Single sided display size (mm） | 1280*1920 | 1280*1920 | 1280*1920 | 1280*1920 | |
Double sided display size (mm） | 640*1920 | 640*1920 | 640*1920 | 640*1920 | |
Single sided appearance dimensions (mm） | 1280*2070 | 1280*2070 | 1280*2070 | 1280*2070 | |
Double sided appearance dimensions (mm） | 640*2070 | 640*2070 | 640*2070 | 640*2070 | |
Gross weight of the machine（kg） | 78kg | 78kg | 78kg | 78kg | |
Gray scale（BT） | 14-16 | 14-16 | 14-16 | 14-16 | |
Best visual distance | 3-20M | 3-20M | 3-20M | 3-20M | |
Perspective (horizontal) | 160 | 160 | 160° | 160° | |
Perspective (vertical) | 160° | 160° | 160 | 160 | |
Power on | Power supply requirements | 100-240V | 100-240V | 100-240V | 100-240V |
Peak power consumption | 1600W | 1200W | 900W | 850W | |
Average Power | 565W | 400W | 300W | 220W | |
Communication | Synchronous/Asynchronous | suppot | |||
Communication method | APP/Ethernet Port/4G Remote App/USB | ||||
Speaker | Is there a built-in speaker | 50*12mm*2PCS | |||
Audio | 35 Audioln nertuce/Supports ExtermalAmplifier | ||||
Performance | Drive mode | Constant current drive | |||
Frame Frequency | 60HZ | ||||
Refresh rate | >3840HZ | ||||
Using | Typical lifespan values | 50000H | |||
Working temperature range | -40-50℃ | ||||
Operating humidity range | 10-80% | ||||
Storage humidity range | 10-85%RH | ||||
Frequently Asked Questions
Common inquiries about our tri-fold double-sided LED poster
Q: Can the LED poster be used outdoors?
A: This model is designed for indoor use. While the GOB process provides dust and splash resistance, it is not rated for direct outdoor exposure. Please contact us for outdoor-rated solutions.
Q: How heavy is the full unit?
A: The tri-fold double-sided LED poster is engineered for lightweight portability. Exact weight varies by pixel pitch configuration — please request a spec sheet for your preferred pitch.
Q: What content management software do you provide?
A>: We offer user-friendly software compatible with Windows, iOS, and Android. Remote content updates can be done via Wi-Fi, USB, or Ethernet from any connected device.
Q: What is the minimum order quantity (MOQ)?
A> : As a factory-direct supplier, we accommodate both small trial orders and bulk quantities. Contact us with your requirements for a tailored solution.
Q: How long is the warranty?
A: We offer a standard warranty period. Extended warranty options are available upon request. All products undergo strict QC before shipment.
