Product Overview
CHIFE LED proudly presents the next-generation indoor foldable double-sided LED poster display, engineered for businesses that demand portability, visual impact, and operational efficiency. As a leading LED display manufacturer with complete certification coverage, we deliver factory-direct quality with uncompromising reliability.
The cabinet is constructed from precision die-cast aluminum, offering exceptional strength while maintaining an ultra-lightweight profile. The LED modules feature advanced GOB (Glue on Board) technology, providing a transparent protective coating that makes the display dustproof, moisture-resistant, waterproof, and easy to clean — ideal for demanding indoor commercial environments.
Cabinet Size: 640 × 480 mm | Display Size: 640 × 1920 mm | Overall Dimensions: 646 × 2050 mm
Available pixel pitches: P1.25, P1.53, P1.86, P2.5 — covering a wide range of viewing distance and resolution requirements for any indoor application.
Key Features

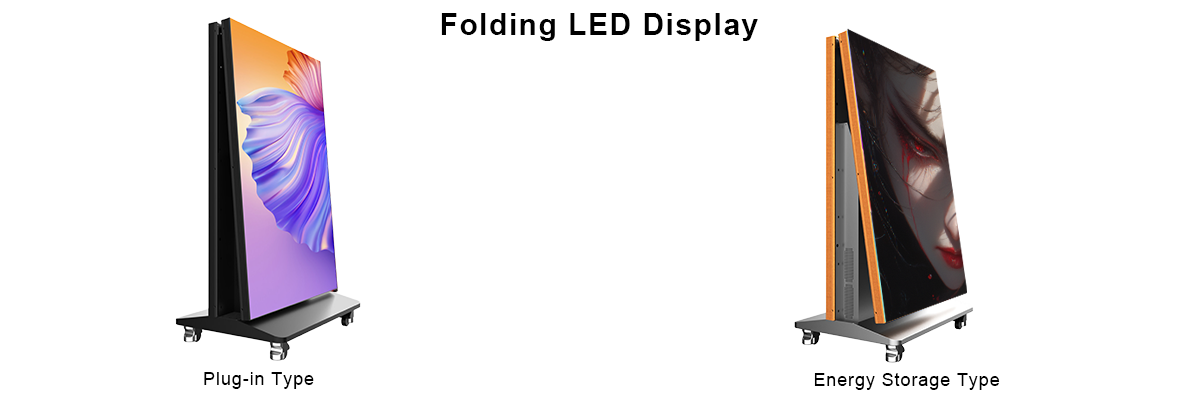

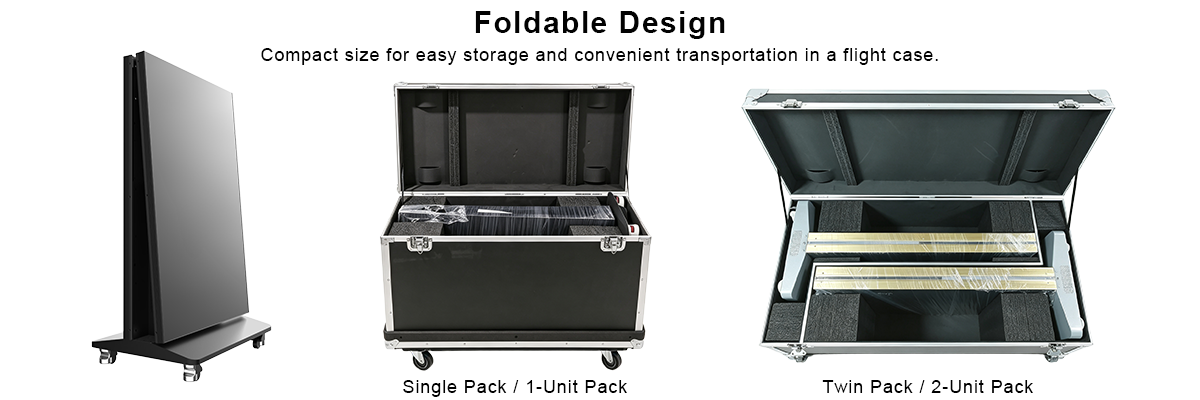

Foldable Design — Half Size When Folded
The foldable poster LED display folds to half its display size, dramatically improving transport and storage efficiency. The quick-locking foldable frame enables rapid setup and takedown.

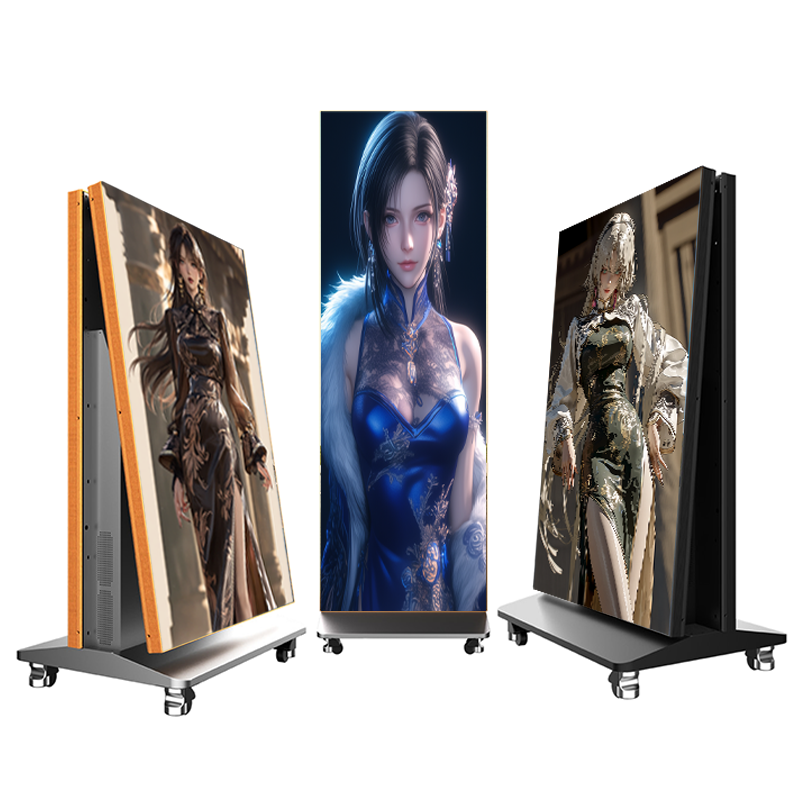

Dual-Sided Display — Flexible Content Management
Each side supports independent content playback or seamless unified display across both sides. Perfect for maximizing visibility in retail aisles, lobbies, and exhibition halls.

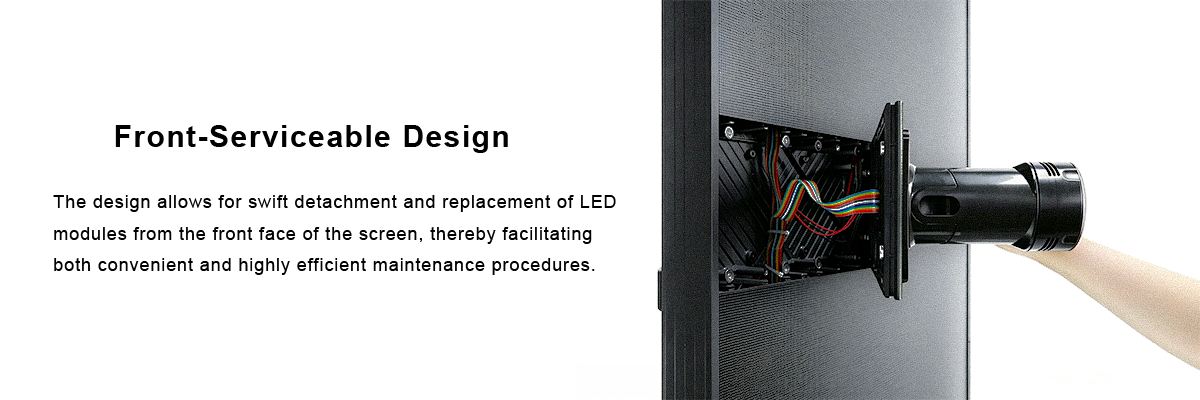

Front Maintenance — Easy Servicing
Full front-access maintenance design allows quick module replacement and servicing without disassembling the structure, significantly reducing downtime and maintenance costs.

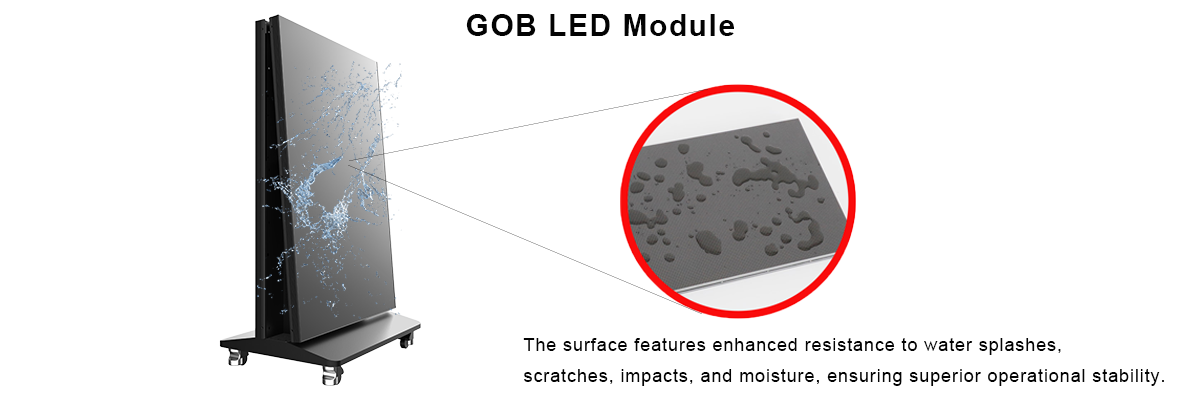

GOB Technology — Superior Protection
The GOB encapsulation provides outstanding protection against dust, moisture, static, and impact. Surface is easily cleanable, ensuring long-term visual clarity in any environment.
One-Person Portable — Compact Flight Case
It easily folds into a compact flight case that can be transported by a single person. Say goodbye to bulky transport methods—this poster display stand is designed specifically for portability.

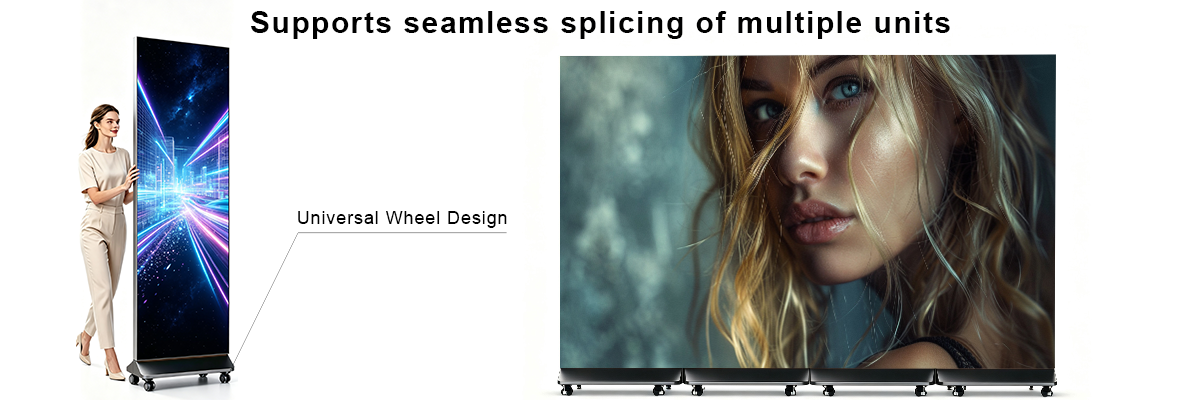

Quick Splicing — Instant Large Screen
The quick-locking mechanism supports rapid multi-unit splicing, enabling you to create a stunning large-format display in seconds. Ideal for events and temporary installations.

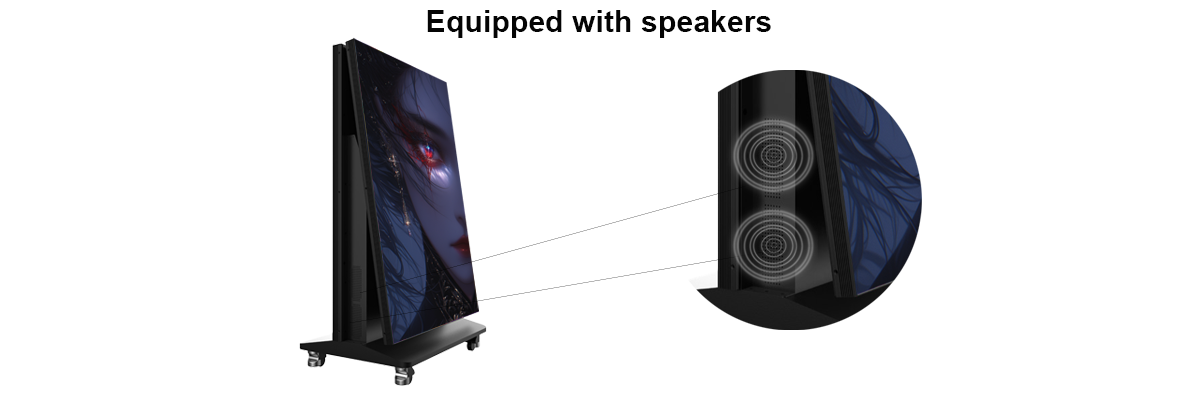

Built-in Speaker — Immersive AV Experience
Equipped with high-quality speakers, the poster display synchronizes image and audio output for an engaging, immersive experience that captivates your audience.
Rich Connectivity — USB 3.0, HDMI, Wi-Fi, Ethernet, SIM
Features USB 3.0, HDMI, Wi-Fi, SIM card slot, and Ethernet. Effortlessly connect to any device for versatile content playback and control across diverse scenarios.

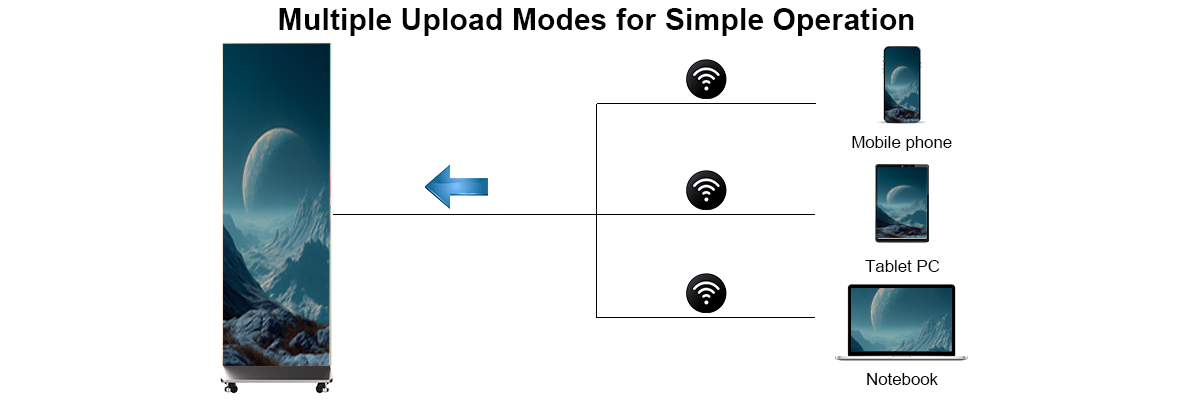

Remote Content Management — Any Device, Anywhere
Update content remotely via iPad, smartphone, computer, or laptop. Supports USB and Wi-Fi connections for efficient, flexible content publishing — no on-site technician required.
Die-Cast Aluminum Cabinet — Light & Durable
Precision die-cast aluminum construction offers an excellent strength-to-weight ratio, making the display both lightweight for portability and robust for long-term use.
Pixel Pitch Options & Recommended Use
Pixel Pitch | Resolution (per panel) | Best Viewing Distance | Recommended Use |
|---|---|---|---|
P1.25 | 512 × 1536 px | ≥ 1.5 m | High-end retail, luxury brand, close-up viewing |
P1.53 | 418 × 1255 px | ≥ 2.0 m | Corporate lobbies, conference rooms |
P1.86 | 344 × 1032 px | ≥ 2.5 m | Exhibitions, shopping malls |
P2.5 | 256 × 768 px | ≥ 4.0 m | Large venues, sports bars, public areas |
Ideal Applications
The foldable double-sided LED poster display is versatile and adaptable. Here are some of the most common scenarios where it excels:

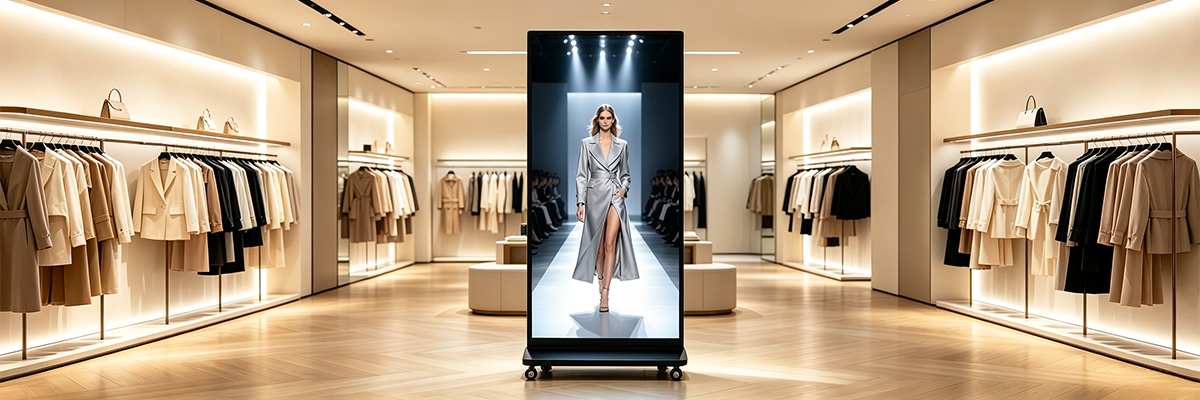

Retail Stores

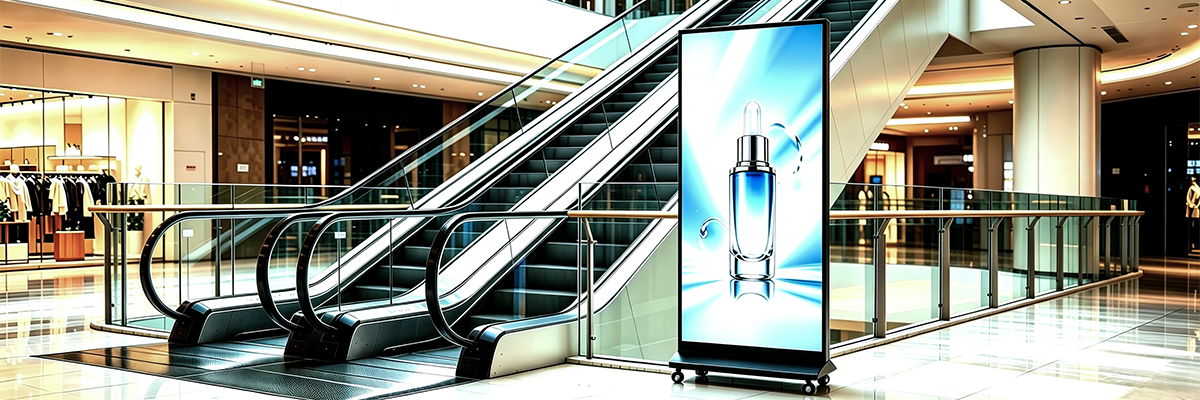

Shopping Malls
Exhibitions & Trade Shows
Corporate Lobbies
Events & Conferences
Casinos & Hospitality
Digital Signage
Booth Displays
Why Choose CHIFE LED?
Direct Factory Manufacturer
Source directly from the factory — no middlemen. Get competitive pricing, faster lead times, and direct technical support from the engineers who build your displays.
Full Certification Coverage
CE, FCC, RoHS certified. Our products pass stringent international standards — safe, reliable, and compliant for global markets.
On-Time Delivery Guarantee
With robust production capacity and strict project management, we ensure your order ships on schedule. Every shipment is backed by quality inspection before dispatch.
Dedicated After-Sales Support
Our technical team provides remote and on-site support, with warranty coverage and spare parts readily available for your peace of mind.
Technical Specifications
Name | Project | CH2050I01-1.25 | CH2050I01-1.53 | CH2050I01-1.86 | CH2050I01-2.5 |
Display module parameters | Pixel spacing | 1.25 | 1.538 | 1.86 | 2.5 |
Resolution ratio(Pixel) | 256*128 | 204*104 | 172*86 | 128*64 | |
Module Size (mm) | 320*160 | 320*160 | 320*160 | 320*160 | |
Protective technology | GOB | GOB | GOB | GOB | |
Module weight(kg) | 0.55 | 0.55 | 0.55 | 0.55 | |
Overall resolution(mm) | 512*1536 | 416*1248 | 344*1032 | 256*768 | |
Display Size(mm) | 640*1920 | 640*1920 | 640*1920 | 640*1920 | |
Dimension(mm) | 646*2050 | 646*2050 | 646*2050 | 646*2050 | |
Weight of the machine(kg) | 43 | 43 | 43 | 43 | |
Brightness (CD/㎡) | 650 | 650 | 650 | 650 | |
Gray Grade (Bits) | 14-16 | 14-16 | 14-16 | 14-16 | |
Color temperature | 3200-9000K | 3200-9000K | 3200-9000K | 3200-9000K | |
Best visual distance | 3-20M | 3-20M | 3-20M | 3-20M | |
Perspective (horizontal) | 160° | 160° | 160° | 160° | |
Perspective (vertical) | 160° | 160° | 160° | 160° | |
Power on requirements | Power supply requirements | 110-240V | 110-240V | 110-240V | 110-240V |
Peak power consumption(W/㎡) | 650 | 550 | 450 | 430 | |
Average Power(W/㎡) | 220 | 185 | 150 | 145 | |
Communication parameters | Synchronous/asynchronous | support | |||
Communication method | App / USB / Ethernet Port / GigE / Wireless / PoE / WiFi / 4G Remote Control | ||||
Interface | JS485*1 WIFI*1 U*1 HDMI*2 | ||||
Speaker | Is there a built-in speaker | 50*12mm*2PCS | |||
Audio | 3.5Audio/Supports an external power amplifier | ||||
Performance processing | Drive mode | Constant current drive | |||
Refresh rate | 60Hz | ||||
Typical lifespan value | ≥3840Hz | ||||
Using parameters | Working temperature range | -40-50°C | |||
Operating humidity range | 10-80% | ||||
Storage Temperature Range | -50-50RH | ||||
Storage humidity range | 10-85%RH | ||||
Frequently Asked Questions
What pixel pitches are available for the foldable LED poster display?
CHIFE LED offers P1.25, P1.53, P1.86and P2.5 pixel pitches, covering a wide range of indoor display requirements from high-resolution close-up viewing to larger-scale public displays.
What is GOB technology and what are its benefits?
GOB (Glue on Board) applies a transparent protective coating over the LED modules. Benefits include: dustproof and waterproof protection, impact resistance, easy surface cleaning, and extended lifespan making it perfect for environments where durability and cleanliness matter.
Are foldable LED poster displays easy to transport?
Yes. This display can be folded down to half its size and packed into a compact flight case, allowing a single person to transport it with ease. Its lightweight die-cast aluminum housing ensures easy transport and enables quick setup anywhere.
Can the double-sided display show different content on each side?
Absolutely. Each side supports independent content playback. You can display different advertisements, information, or media on each side, or synchronize both sides for a unified visual experience — whichever suits your application.
What connectivity options does this LED poster display support?
It supports USB 3.0, HDMI, Wi-Fi, SIM card slot, and Ethernet. This wide range of connectivity ensures compatibility with virtually any media player, computer, or content management system.
Can I update content remotely?
Yes. You can update content remotely from any device — iPad, smartphone, computer, or laptop — via Wi-Fi or USB connection. No on-site technician is needed for content changes, saving time and operational costs.
Is the display suitable for multi-screen splicing?
Yes, the quick-locking mechanism supports seamless multi-unit splicing. Multiple poster displays can be combined instantly to create a large-format video wall, perfect for events, exhibitions, and large lobbies.
