Luban Lock LED Display
Seamless splicing • 3D interlocking design • Ultra-high-definition visual experience.
Factory direct — every pixel pitch and appearance fully customizable.
What Is Luban Lock LED Display?

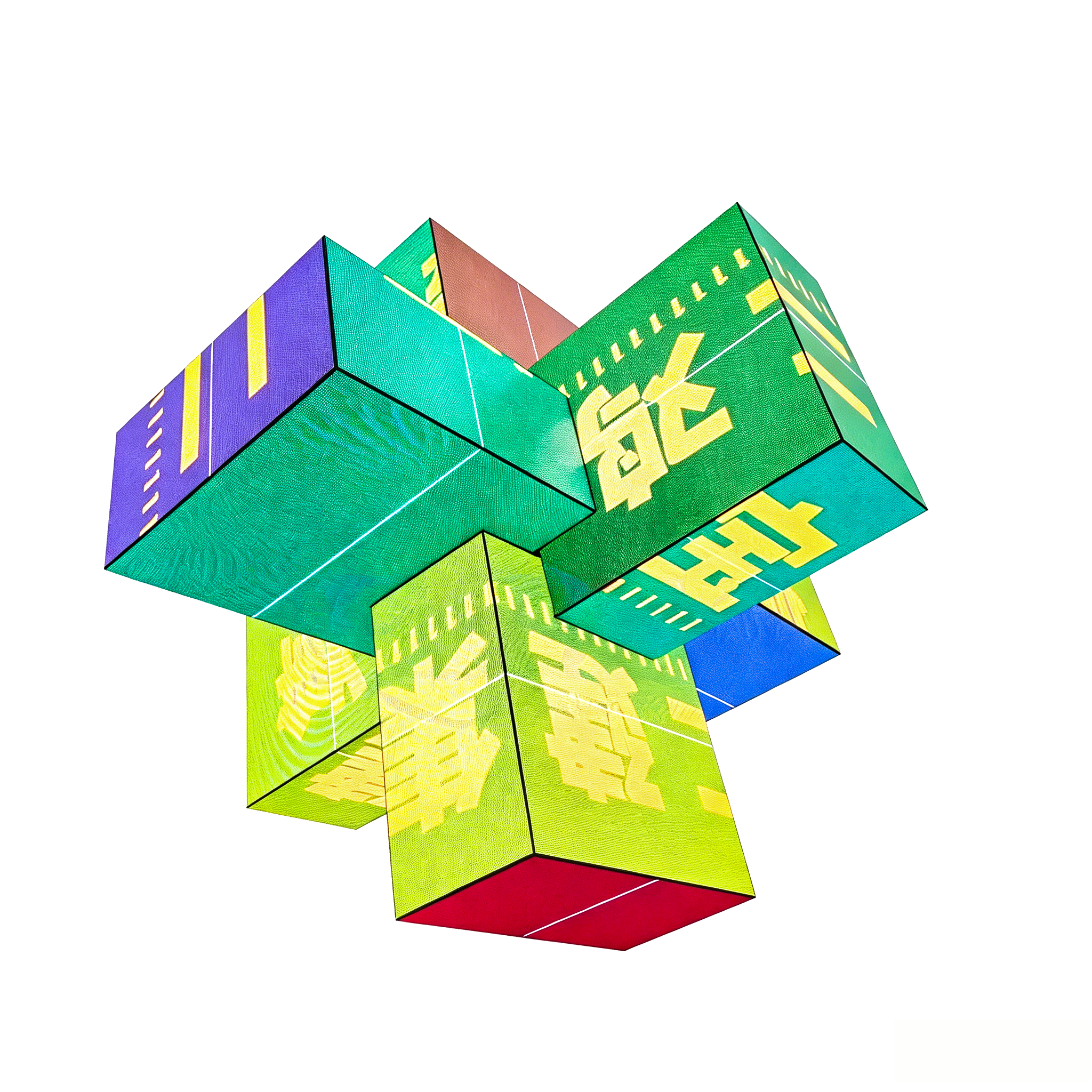

The Luban Lock LED Display draws inspiration from the ancient Chinese Luban Lock (Lu Ban Suo) — a timeless interlocking puzzle. Each LED module is precisely engineered with a 3D interlocking mechanism that locks tightly with adjacent panels, eliminating seams and gaps.
The result? A truly seamless video wall with zero visible bezels. Whether you run a control room, a luxury retail store, a conference center, or an outdoor stage, the Luban Lock LED screen delivers an uninterrupted, premium visual experience.
As a factory-direct manufacturer, we offer complete customization — from pixel pitch selection (P2.5, P2.604, P3,P3.91, and beyond) to appearance, shape, and size. All products come with full international certifications (CE, RoHS, FCC, ETL) and guaranteed delivery timelines.
Key Features & Advantages
Seamless Splicing
Zero gap between modules thanks to the precision 3D interlocking design. Enjoy a perfectly smooth video wall without distracting bezels.

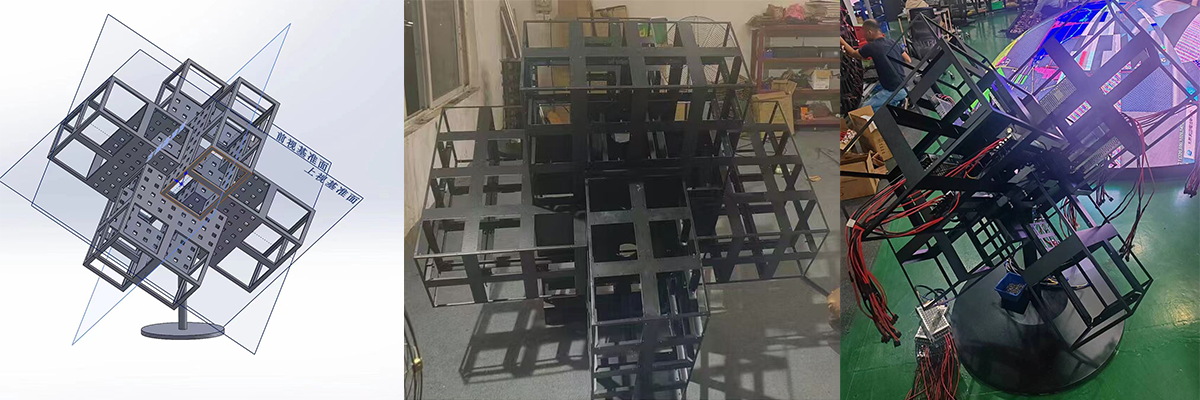

3D Interlocking Mechanism

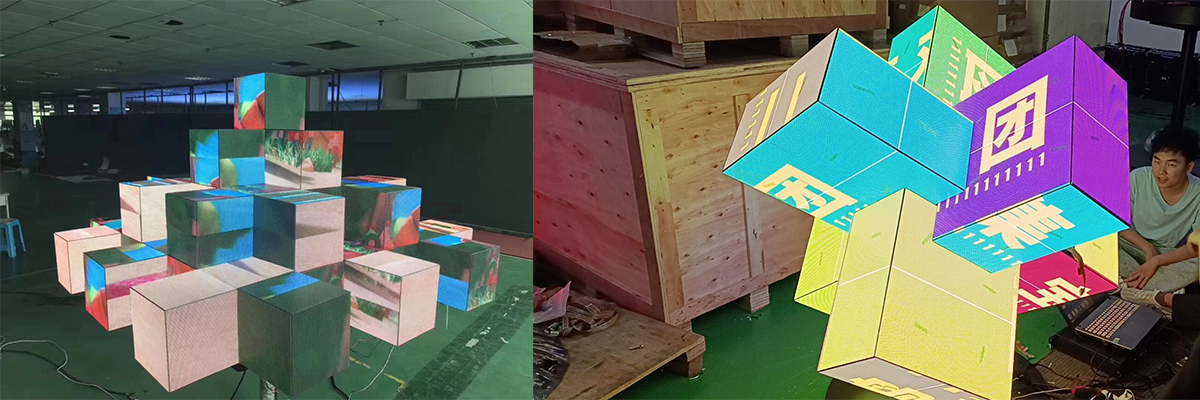

Inspired by the traditional Luban Lock. Each module locks into place with structural precision, providing superior stability and easy assembly.
Outstanding Visual Quality
High refresh rate, wide color gamut, and uniform brightness across the entire screen. Vivid, lifelike imagery that captivates every audience.
Fully Customizable
Choose your pixel pitch (P1.2 to P10+), cabinet size, shape, curvature, and appearance. We tailor the screen to your exact project needs.
Factory Direct Pricing
We are the source manufacturer. No middlemen — competitive pricing, direct communication, faster lead times, and better after-sales support.
Full Certification
CE, RoHS, FCC, ETL certified. Compliant with international quality and safety standards. Reliable delivery with factory-guaranteed quality control.

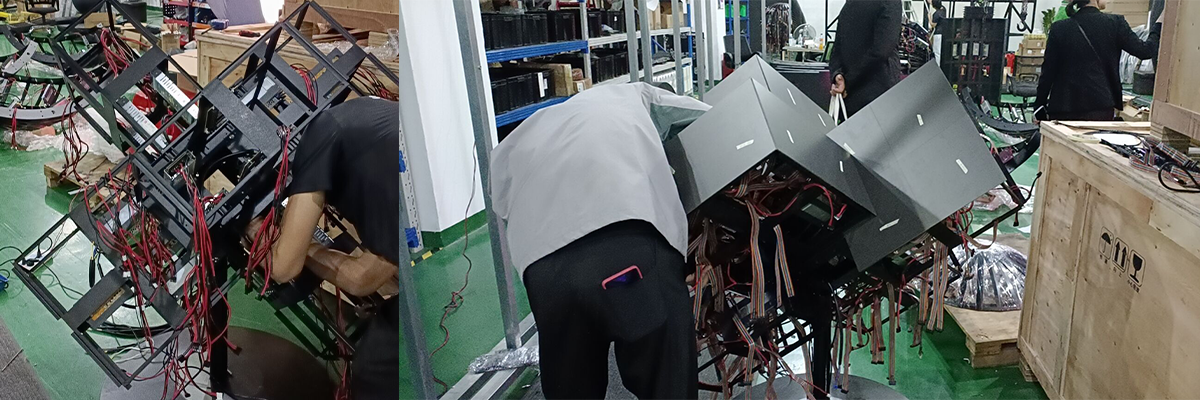

Easy Installation & Maintenance
Modules snap together intuitively. Front and rear maintenance options available, making service quick and cost-effective.
Wide Application Scope
Indoor & outdoor — conference rooms, retail, broadcasting, exhibitions, stage performances, control centers, hotels, and more.
Technical Specifications
Customizable across the full range. Below are common configurations; contact us for your custom build.
Product specifications | Outdoor P2.5 | Indoor P2.5 | Indoor P2.604 | Indoor P3 | Outdoor P3.91 |
Usage scenarios | Outdoor | Indoor | Indoor | Indoor | Outdoor |
Pixel spacing | 2.5mm | 2.5mm | 2.604mm | 3mm | 3.91mm |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Point density | 160000 | 160000 | 147456 | 111111 | 65536 |
brightness | 4000cd/m² | 600cd/m² | 600cd/m² | 600cd/m² | 4000cd/m² |
Horizontal perspective/vertical | 140° | 140° | 140° | 140° | 140° |
planeness | ≤0.3mm | ≤0.3mm | ≤0.3mm | ≤0.3mm | ≤0.3mm |
Power Supply | 5V40A/5V60A | 5V40A/5V60A | 5V40A/5V60A | 5V40A/5V60A | 5V40A/5V60A |
Software | Custom Player (CG-V8) | Custom Player (CG-V8) | Custom Player (CG-V8) | Custom Player (CG-V8) | Custom Player (CG-V8) |
Receiving card | Kystar K12 | Kystar K12 | Kystar K12 | Kystar K12 | Kystar K12 |
Number of bits for signal color | 16bits | 16bits | 16bits | 16bits | 16bits |
Frame rate | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz |
Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
peak power | 400W | 400W | 200W | 400W | 600W |
Average power | 150W | 150W | 65W | 150W | 200W |
Mean time between failures | ≥100000H | ≥100000H | ≥100000H | ≥100000H | ≥100000H |

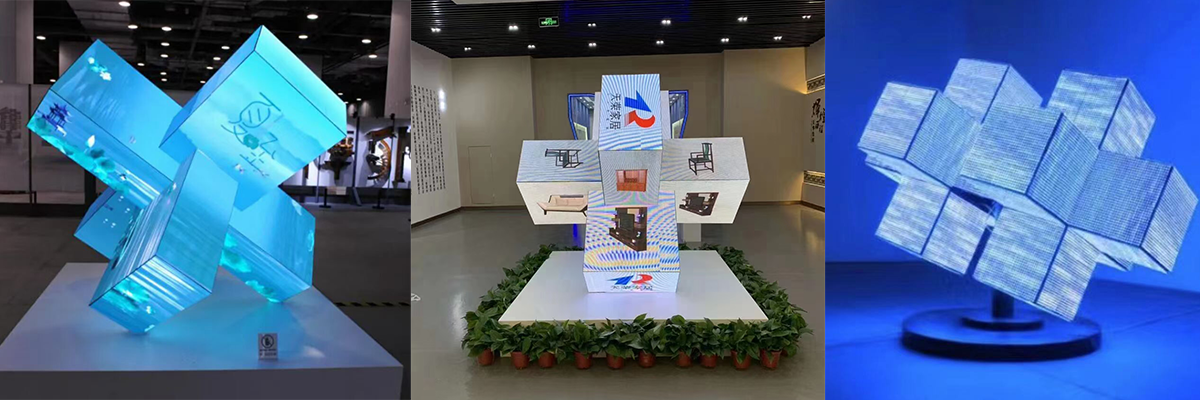

Wide Range of Applications
The Luban Lock LED display adapts to virtually any environment where visual excellence matters.
Stage & Events
Retail & Showrooms
Exhibition Halls
Hotels & Lobbies
Digital Signage
Sports Venues
Frequently Asked Questions
What is a Luban Lock LED display?
It is an innovative LED screen that uses a 3D interlocking mechanism inspired by the traditional Chinese Luban Lock. Each module locks tightly with adjacent panels, achieving seamless splicing with no visible bezels.
Can I customize the pixel pitch?
Absolutely. As a factory-direct manufacturer, we offer complete customization of pixel pitch from P2.5 to P4+ to suit any viewing distance and resolution requirement.
Can you customize the appearance and shape?
Yes. Cabinet size, color, texture, curvature, and even non-standard shapes are all customizable. Send us your design requirements and we will engineer a solution.
What certifications do you have?
Our products are CE, RoHS, FCC, and ETL certified, fully compliant with international quality and safety standards. We can also apply for additional certifications based on your target market.
What is the minimum order quantity (MOQ)?
We welcome both small trial orders and bulk orders. Contact our sales team for MOQ details based on your specific configuration.
What is the typical lead time?
Standard lead times range from 7 to 25 days depending on the configuration and order volume. Rush orders are available upon request.
Ready to Elevate Your Visual Experience?
Contact us today for a customized quote. Tell us your pixel pitch, size, and design requirements — we'll deliver the perfect Luban Lock LED solution.
