Turn Heads. Create Buzz. Build Your Brand.
A spherical LED display isn't just a screen — it's a visual landmark. Its unique geometric form naturally draws eyes and cameras. With dynamic content, it can transform into a globe, planet, soccer ball, or any creative shape, delivering a fresh visual experience that flat screens simply cannot match.
Supporting naked-eye 3D, immersive interactivity, and dynamic branding, this outdoor LED sphere becomes the "visual magnet" of any public space — organically generating social media buzz and foot traffic.
Why Choose a Spherical LED Display?
Beyond advertising — it's an experience. The outdoor P3.91 LED sphere combines stunning visuals with industrial-grade durability.
360° Visual Magnet
The sphere's unique geometry is a natural attention-grabber. It simulates planets, globes, sports balls, and creative objects — making your brand visible from every angle and creating instant photo-worthy moments.

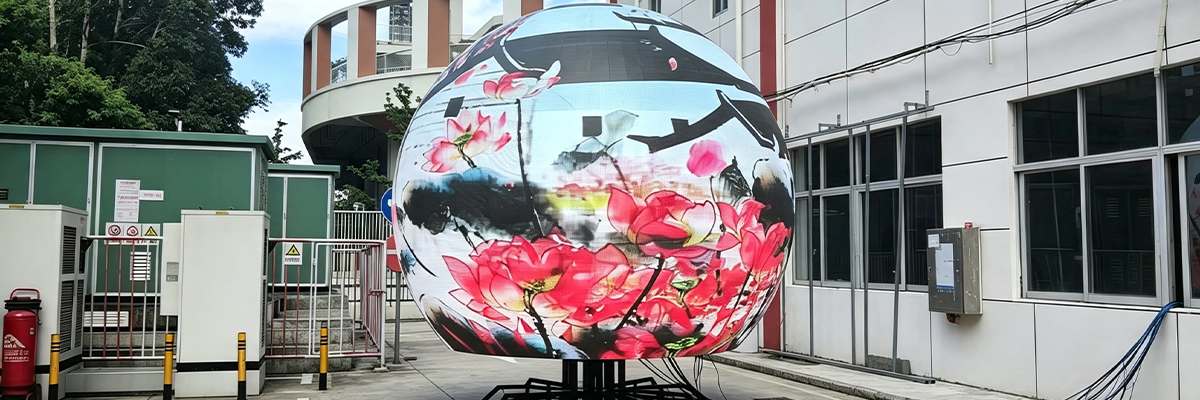

IP66+ Outdoor Protection
Outdoor waterproof modules rated IP66 or higher. The cabinet and materials are specially treated for corrosion resistance, high/low temperature endurance, and protection against heavy rain and dust.
5500cd/m² Sunlight Readable
High brightness of 5500cd/m² and above ensures crystal-clear visibility even under direct sunlight. Your content stays vibrant and legible 24/7 in any outdoor environment.

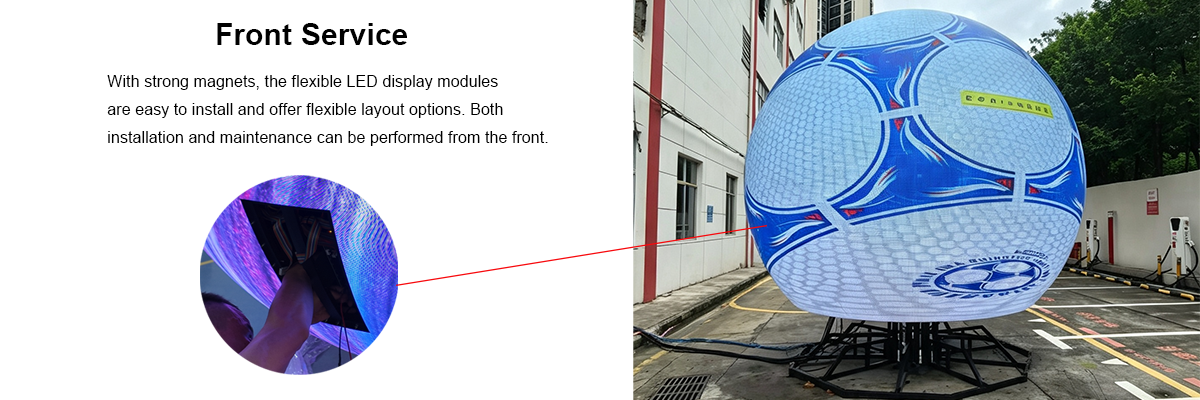

Front Maintenance Design
Modules can be removed and serviced from the front of the screen — no need for complex rear access. This dramatically simplifies installation and maintenance, especially for elevated or confined spaces.

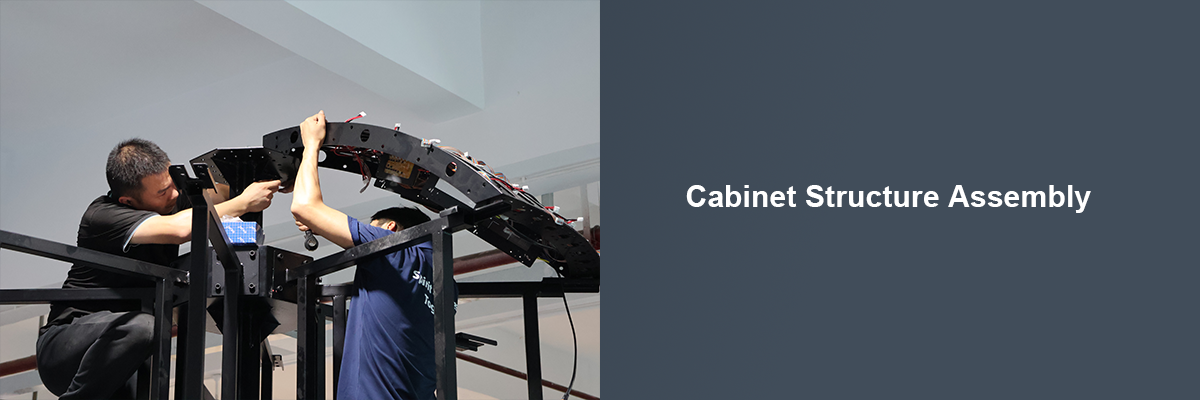

Magnetic Quick Installation
High-strength magnetic adsorption technology enables rapid module attachment and detachment. Installation efficiency is greatly improved, reducing labor costs and project timelines.
Naked-Eye 3D & Interactive Ready
Fully supports naked-eye 3D content and immersive interactive experiences. Break through the flat screen limitation — turn your LED sphere into a show-stopping creative medium.
Perfect for These Outdoor Spaces
Wherever you need to stand out — the LED sphere turns any location into a landmark.
Brand Landmarks
Create iconic visual statements at corporate plazas, building entrances, and city squares.
Theme Parks
Add immersive, photo-worthy attractions that draw crowds and generate social media buzz.

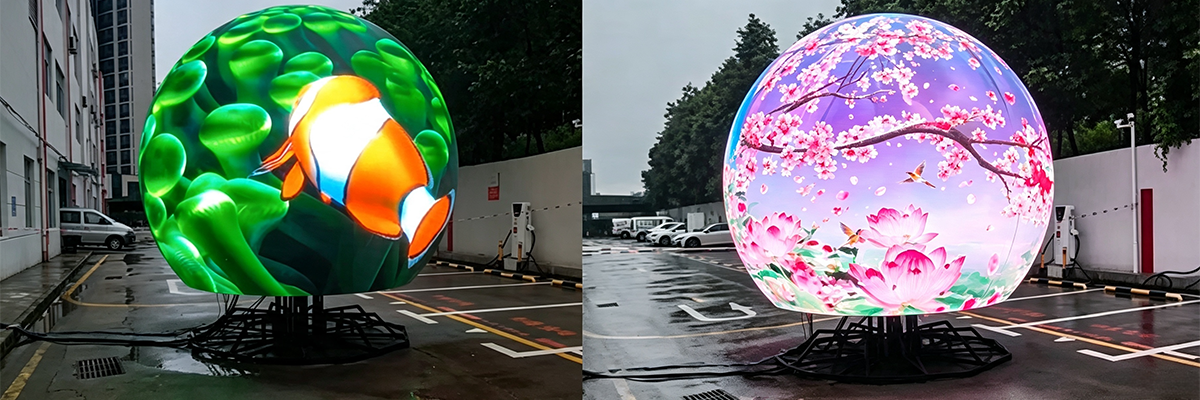

Large Events
Perfect for expos, concerts, festivals, and sports events — dynamic visuals from every angle.
Commercial Complexes
Attract foot traffic and boost dwell time at shopping malls, entertainment centers, and plazas.
Transport Hubs
Stand out at airports, train stations, and transit centers with high-visibility advertising.
Experiential Marketing
Naked-eye 3D and interactive campaigns that turn your brand into a must-share experience.
Why Choose Chifuyi Technology?
Source direct from a certified LED display factory with 10+ years of manufacturing expertise.
10+ YearsLED Display Manufacturing
CE · RoHS · FCCFull Certifications
15–20 DaysFast Lead Time
24/7 SupportAfter-Sales Service
Factory Direct Pricing
No middlemen. Get competitive factory-direct prices with full quality control from production to delivery.
Certified Quality
CE, RoHS, FCC, ISO9001 certified. Rigorous QC at every stage ensures reliable performance.
Global Shipping
DDP/DAP services available. We handle logistics, customs clearance, and delivery to your site worldwide.
Custom Solutions
Need a different size, pitch, or shape? Our engineering team can customize the LED sphere to your project requirements.

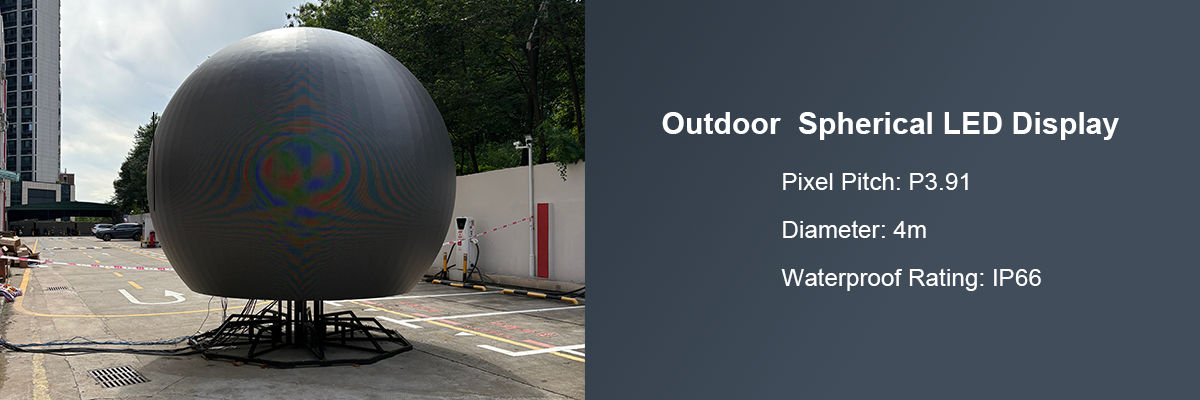

Technical Specifications
Precision-engineered outdoor P3.91 spherical LED display with verified performance parameters.
Model | CH-SP-P3.91-4M |
|---|---|
Diameter | 4 meters |
Pixel Pitch | P3.91 mm |
LED Type | SMD 1921 / SMD 2121 |
Brightness | ≥ 5500 cd/m² |
Viewing Angle | 360° horizontal × 140° vertical |
IP Rating | IP66 (front) / IP54 (rear) |
Refresh Rate | ≥ 1920 Hz |
Color Depth | 16-bit, 281 trillion colors |
Power Consumption | Average: 350 W/m² | Peak: 900 W/m² |
Operating Temperature | −20°C to +60°C |
Maintenance Method | Front maintenance |
Cabinet Material | Die-cast aluminum / Steel with anti-corrosion coating |
Installation Method | Magnetic adsorption modules + steel structure support |
Certifications | CE, RoHS, FCC, ISO9001 |
Warranty | 2 years (extended available) |
Lead Time | 25–30 working days |
Frequently Asked Questions
Quick answers about our outdoor spherical LED displays.
What pixel pitch options are available for spherical LED displays?
Our standard spherical LED displays support pixel pitches from P3.91 to P10. The P3.91 pitch offers excellent image detail for the 4m diameter sphere, making it ideal for both close and distant viewing. Custom pitches are available upon request.

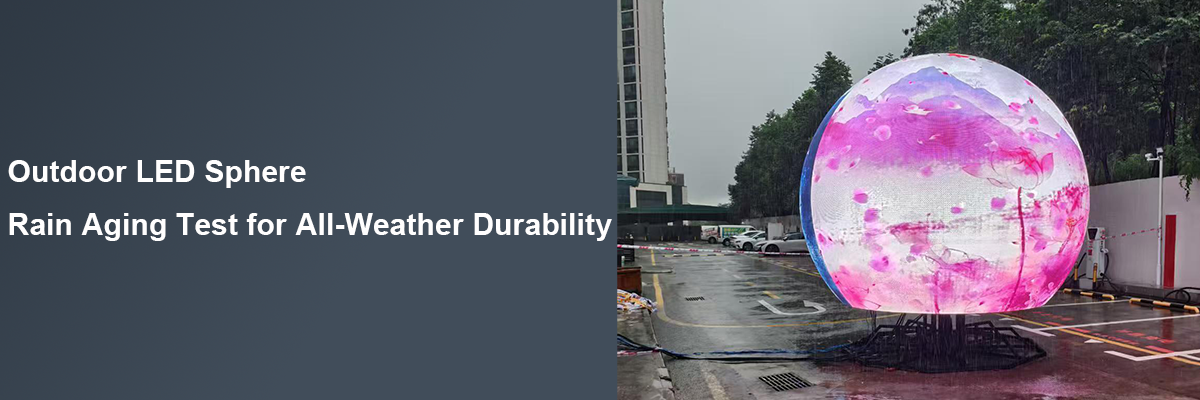

Can the spherical display withstand extreme weather?
Yes. The outdoor modules are rated IP66 (waterproof and dustproof). The cabinet and structural components undergo anti-corrosion and high/low temperature treatment, ensuring stable operation in temperatures from −20°C to +60°C, even in coastal or desert environments.
How is maintenance performed on a spherical LED display?
The display supports front maintenance — all modules can be accessed, removed, and serviced from the front. This eliminates the need for rear access space, significantly reducing installation complexity and ongoing maintenance costs.
What is the typical lead time and shipping process?
Standard lead time is 25–30 working days after order confirmation. We offer DDP (Delivered Duty Paid) and DAP (Delivered at Place) shipping services, handling all logistics, customs clearance, and delivery to your site worldwide. Contact our team for a detailed shipping quote.
What content can be displayed on a spherical LED screen?
The LED sphere supports standard video formats and can display dynamic content including planet/globe animations, sports balls, 3D product showcases, brand logos, live video feeds, and interactive campaigns. It is fully compatible with standard video processors and media servers.
Do you offer installation guidance and after-sales support?

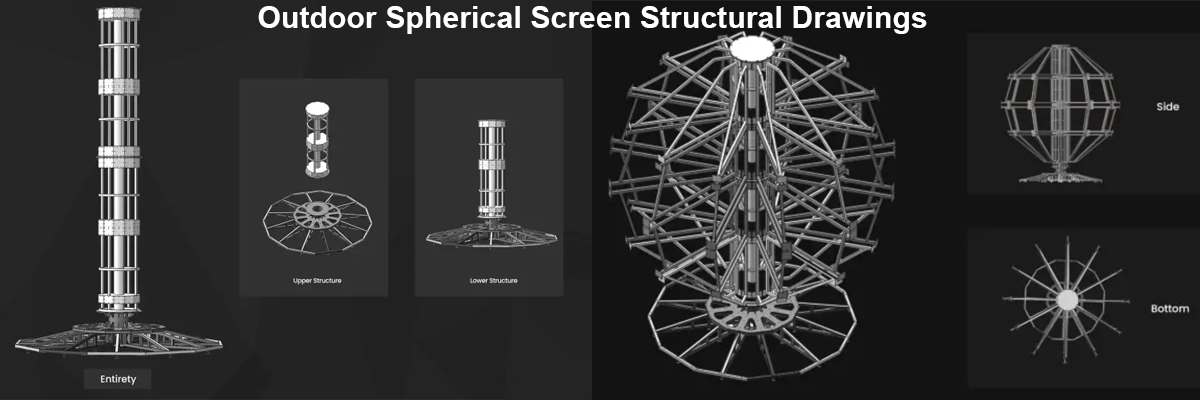

Yes. We provide detailed installation manuals, structural design drawings, and online technical support. Our team is available 24/7 for remote troubleshooting, and we offer optional on-site installation supervision for larger projects.
